GE JV695S Specification
TM
R
12-1/8
10-1/2
24-1/8
9-1/4
6
36
1
3-1/4
10
12-1/8
10-1/2
24-1/8
9-1/4
6
36
1
3-1/4
10
11"
MIN.
(inside)
Recessed bottom cabinet
18" MIN.
11"
M IN.
(inside)
Flush bottom cabinet
18" MIN.
12-1/8
10-1/2
24-1/8
1
10
11"
MIN.
(inside)
Recessed bottom cabinet
18" MIN.

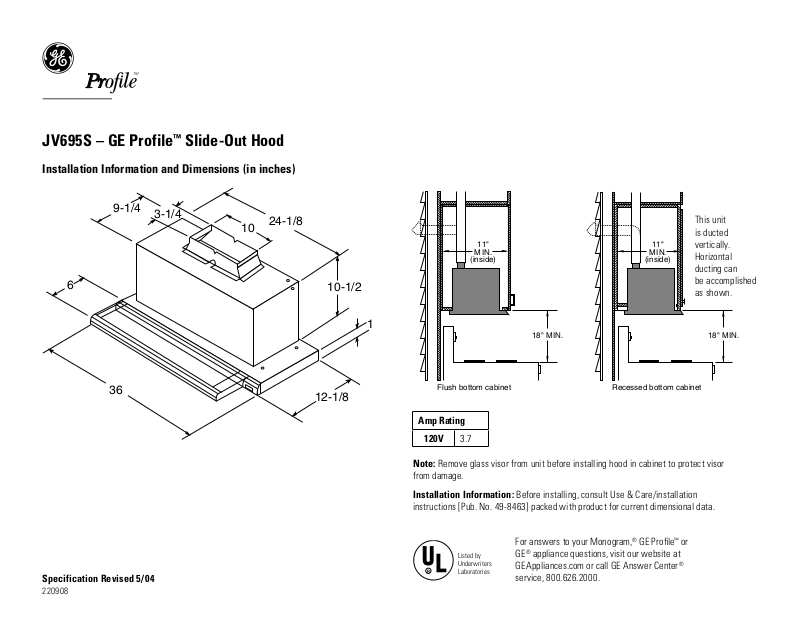

JV695S – GE Profile™ Slide-Out Hood
Installation Information and Dimensions (in inches)
This unit
is ducted
vertically.
Horizontal
ducting can
be accomplished
as shown.
Amp Rating
120V
Note: Remove glass visor from unit before installing hood in cabinet to protect visor
from damage.
Installation Information: Before installing, consult Use & Care/installation
3.7
instructions [Pub. No. 49-8463] packed with product for current dimensional data.
Specification Revised 5/04
220908
For answers to your Monogram,® GE Profile™ or
Listed by
Underwriters
Laboratories
GE® appliance questions, visit our website at
GEAppliances.com or call GE Answer Center®
service, 800.626.2000.
TM
JV695S – GE Profile™ Slide-Out Hood
Features and Benefits
• White on white Model
• 36" Vented Hood With Cooktop Light
• See-Through Glass Visor Slides In and Out
• 300 CFM Performance With Variable Speed Fan Control
• Auto Heat Sensor
• Compact Housing Leaves Ample Shelf Space Behind Cabinet Doors
• Vertical Exhaust With 3-1/4" x 10" Rectangular Duct
• Sones Rating: Top Exhaust – 4.5
Specification Revised 5/04
220908
• Also Available In Black on black as in Model JV694S and Bisque
as in Model JV696S
