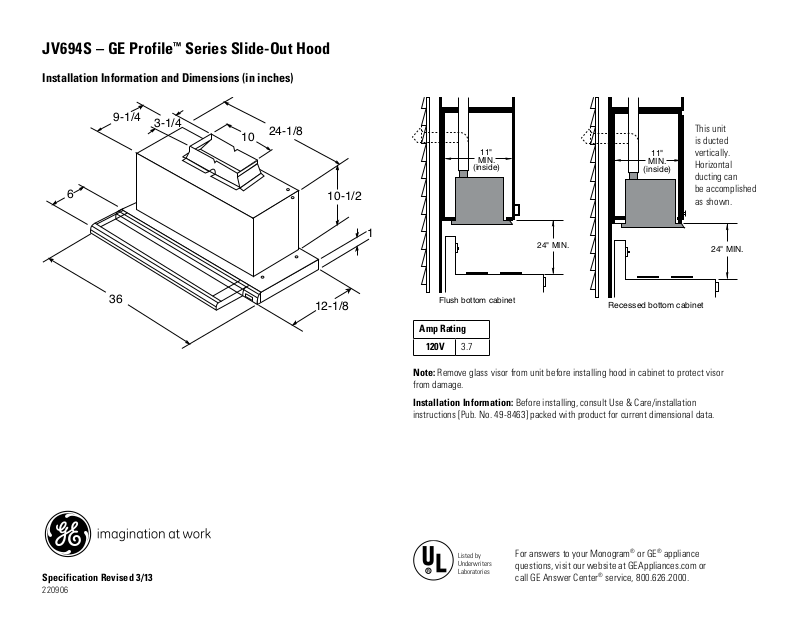

JV694S – GE Profile™ Series Slide-Out Hood
24" MIN.
Recessed bottom cabinet
Installation Information and Dimensions (in inches)
9-1/4
3-1/4
10
24-1/8
11"
MIN.
(inside)
11"
MIN.
(inside)
This unit
is ducted
vertically.
Horizontal
ducting can
6
10-1/2
be accomplished
as shown.
1
24" MIN.
36
12-1/8
Flush bottom cabinet
Amp Rating
120V 3.7
Note: Remove glass visor from unit before installing hood in cabinet to protect visor
from damage.
Installation Information: Before installing, consult Use & Care/installation
instructions [Pub. No. 49-8463] packed with product for current dimensional data.
Specification Revised 3/13
220906
Listed by
Underwriters
Laboratories
For answers to your Monogram® or GE® appliance
questions, visit our website at GEAppliances.com or
call GE Answer Center® service, 800.626.2000.
JV694S – GE Profile™ Series Slide-Out Hood
Features and Benefits
• Black on black Model
• 36" Vented Hood With Cooktop Light
• See-Through Glass Visor Slides In and Out
• 320 CFM Performance With Variable Speed Fan Control
• Auto Heat Sensor
• Compact Housing Leaves Ample Shelf Space Behind Cabinet Doors
• Vertical Exhaust With 3-1/4" x 10" Rectangular Duct
• Sones Rating: Top Exhaust – 4.5
• Also Available In White on white as Model JV695S and Bisque as in
Model JV696S
Specification Revised 3/13
220906
