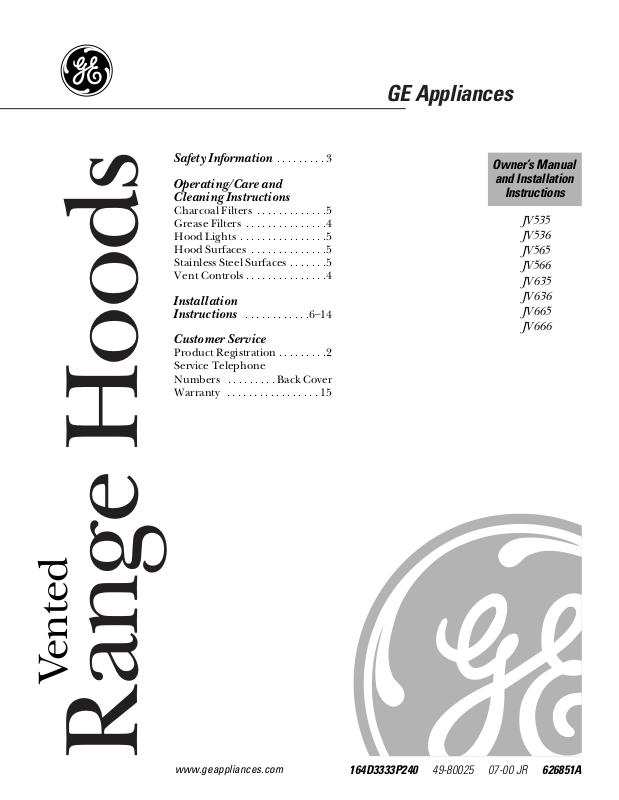

GE JV565, JV666, JV635, JV636, JV566 User Manual 2
...
Range Hoods
Vented
Safety Information . . . . . . . . . 3
Operating/Care and
Cleaning Instructions
Charcoal Filters . . . . . . . . . . . . .5
Grease Filters . . . . . . . . . . . . . . .4
Hood Lights . . . . . . . . . . . . . . . .5
Hood Surfaces . . . . . . . . . . . . . .5
Stainless Steel Surfaces . . . . . . .5
Vent Controls . . . . . . . . . . . . . . .4

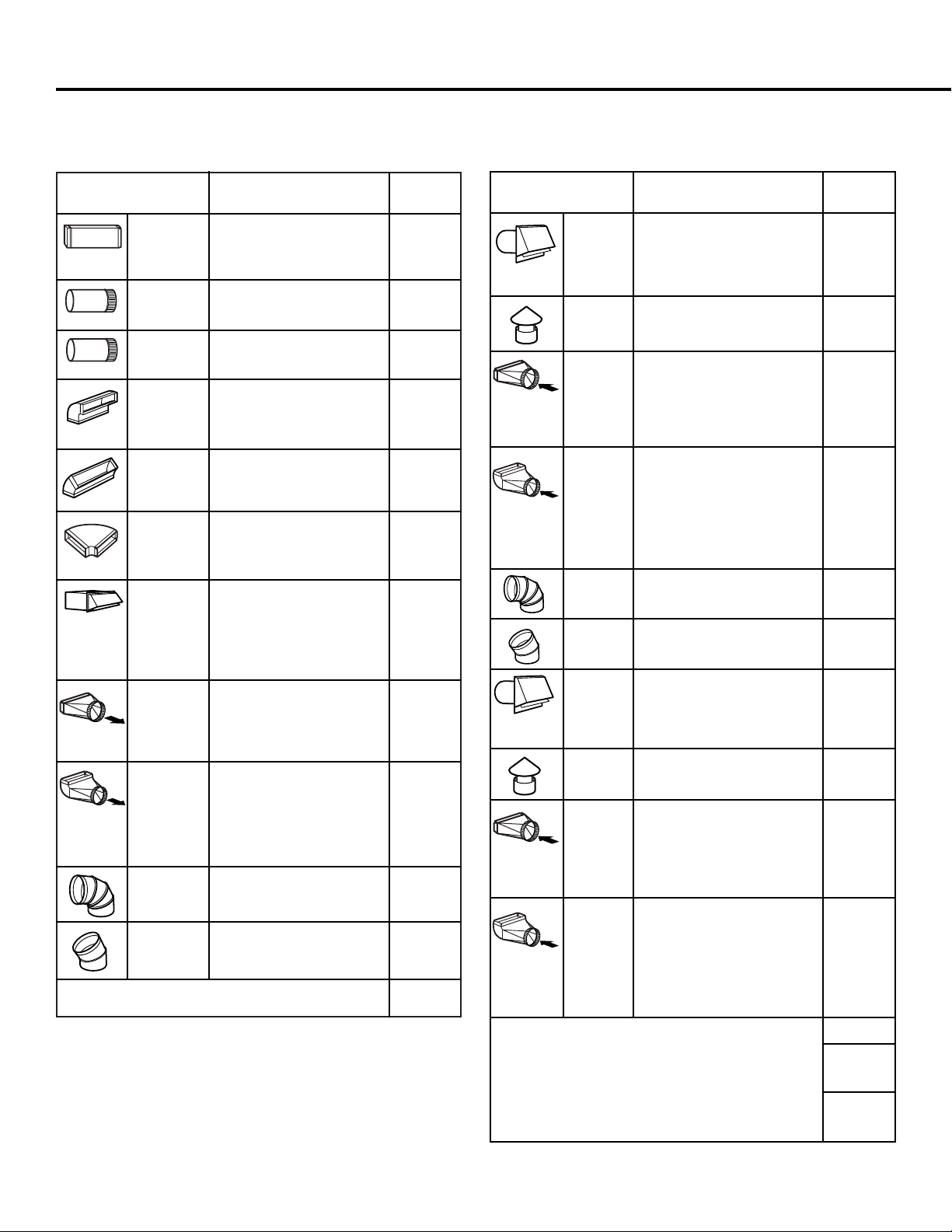

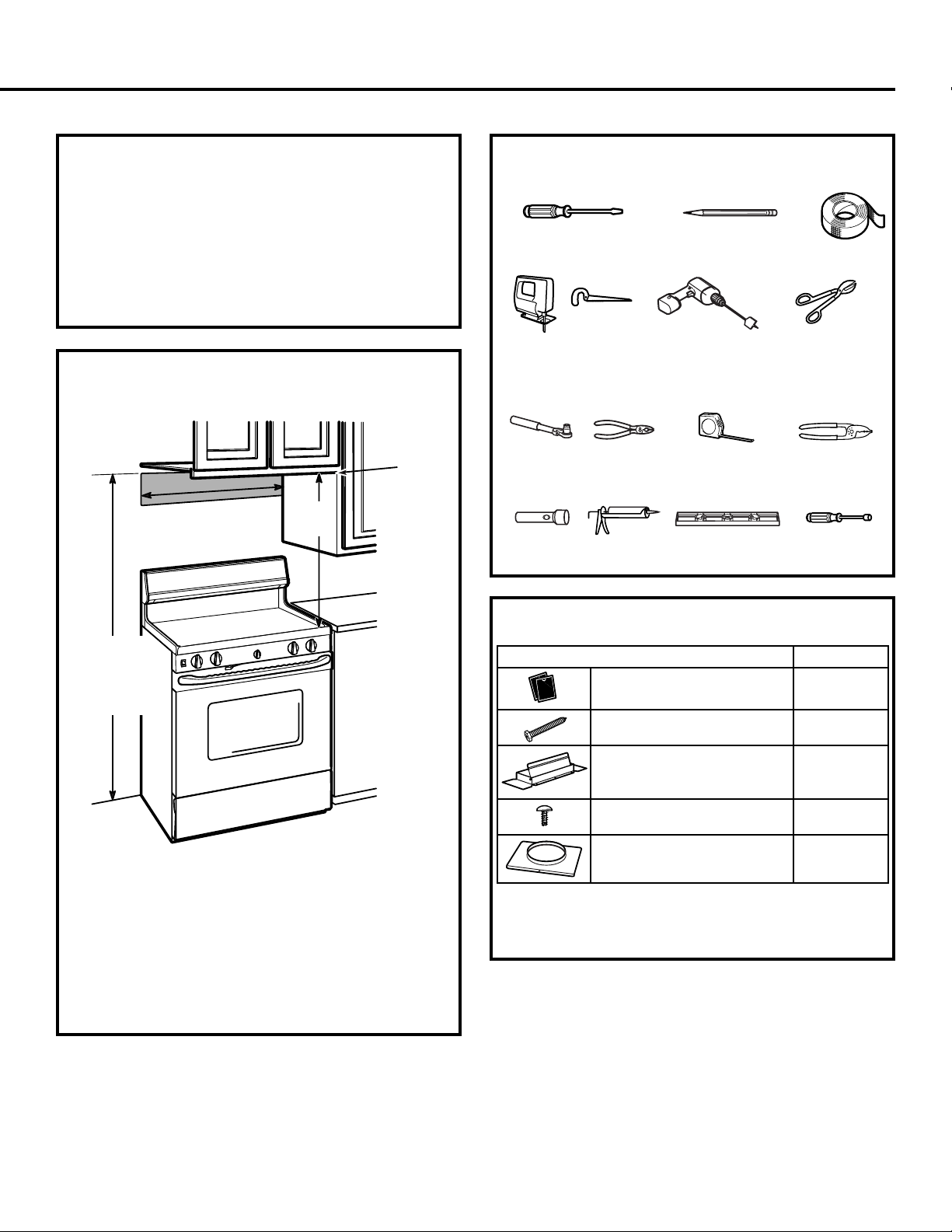

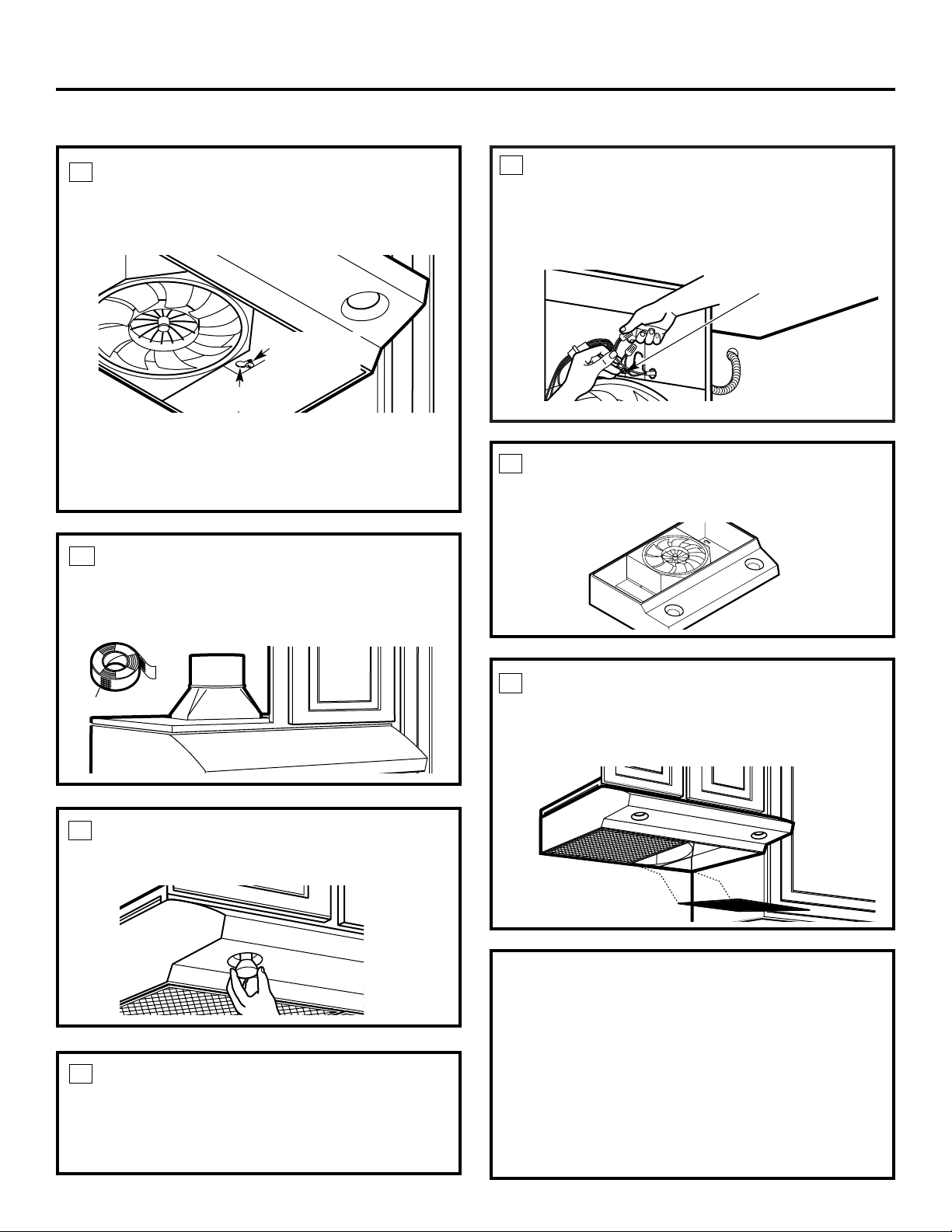

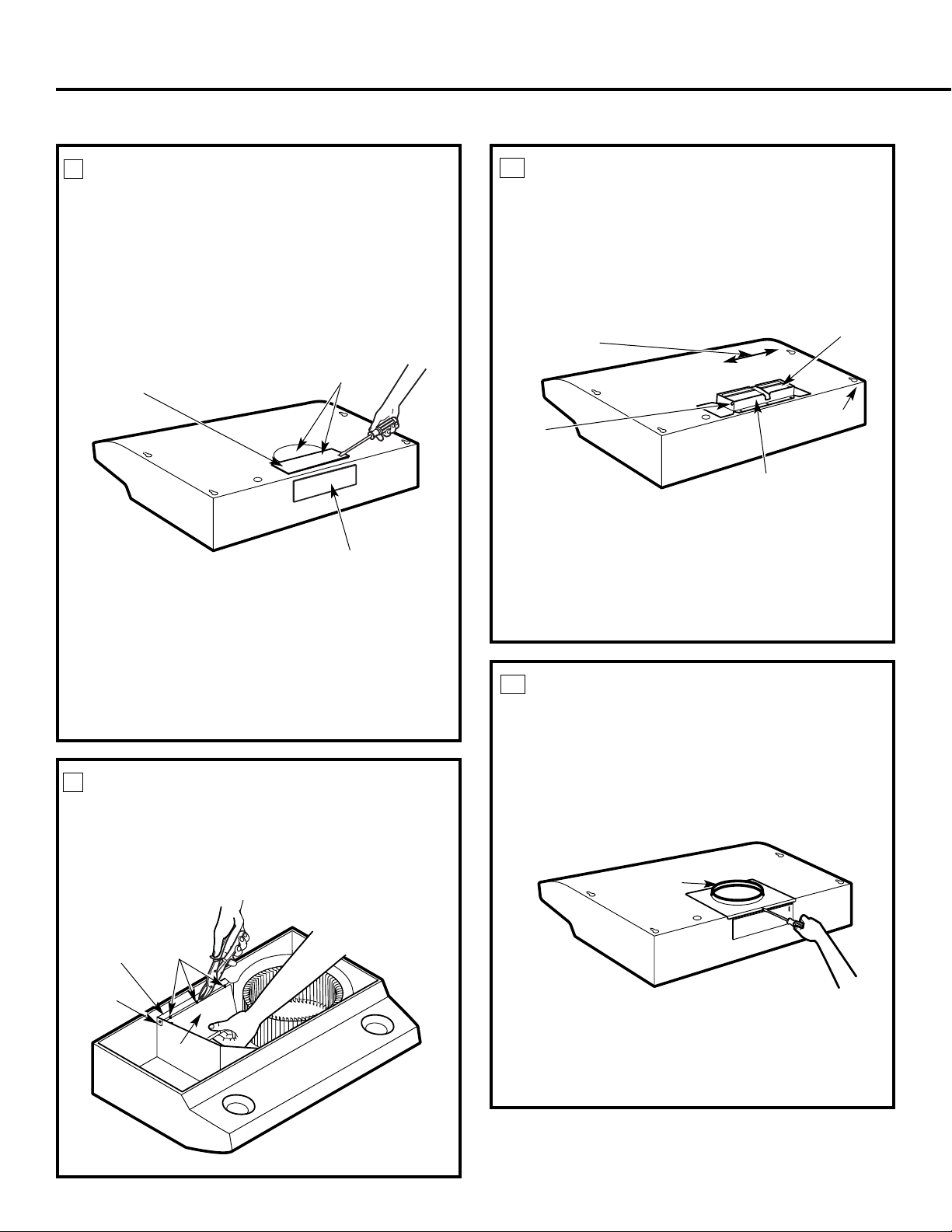

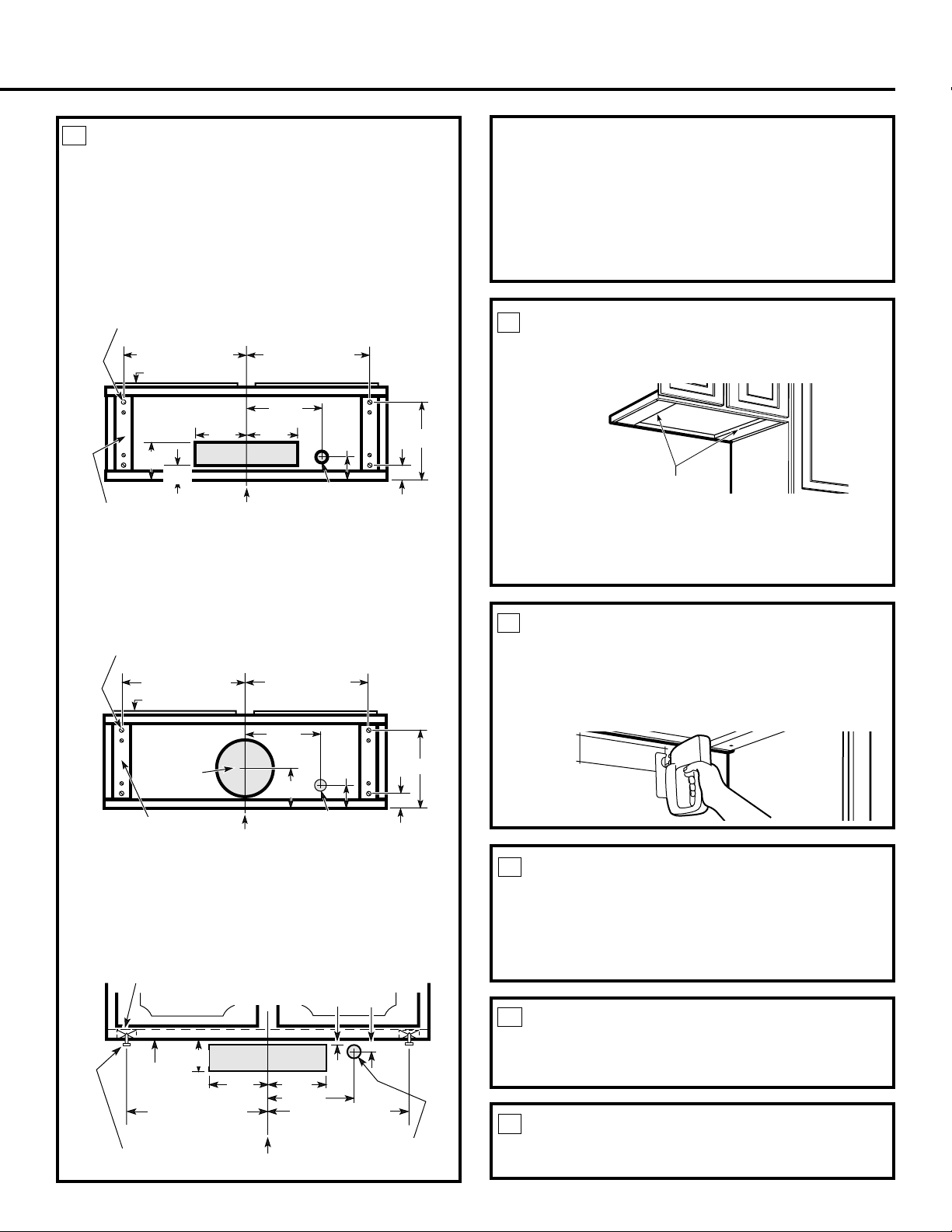

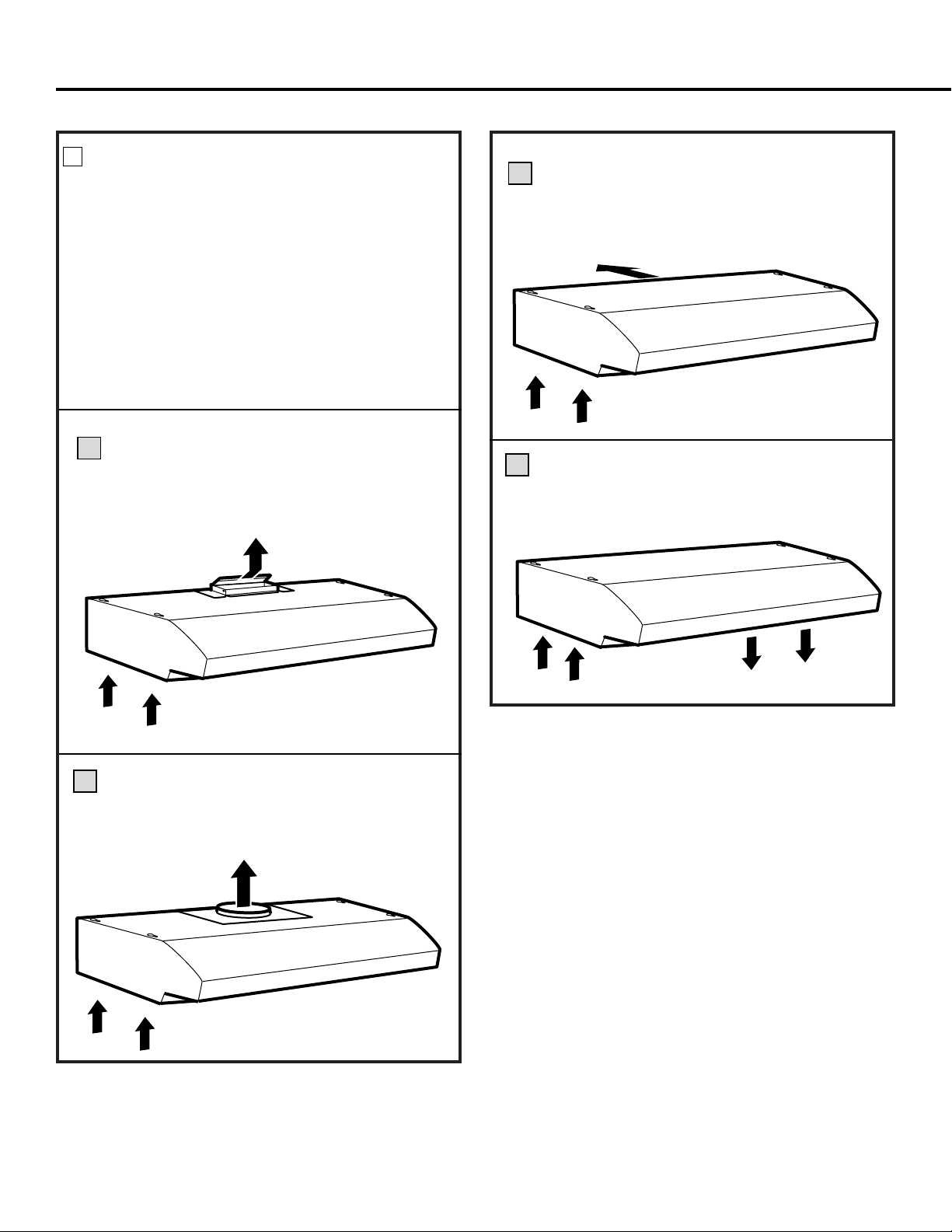

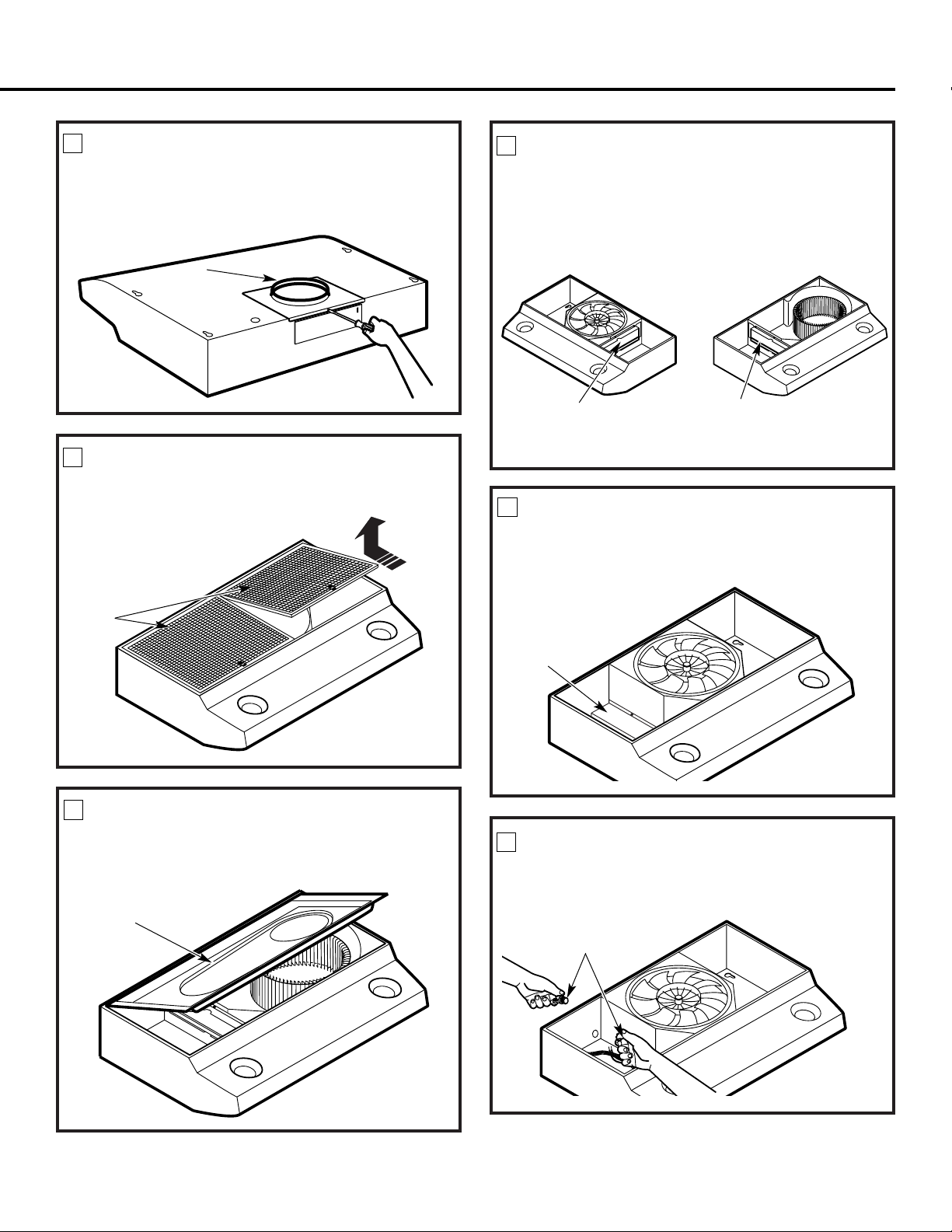

Installation
Instructions . . . . . . . . . . . .6–14
Customer Service
Product Registration . . . . . . . . .2
Service Telephone
Numbers . . . . . . . . . Back Cover
Warranty . . . . . . . . . . . . . . . . . 15
GE Appliances
Owner’s Manual
and Installation
Instructions
JV535
JV536
JV565
JV566
JV635
JV636
JV665
JV666
www.geappliances.com |
164D3333P240 49-80025 07-00 JR 626851A |
Safety Instructions
Operating Instructions
Installation Instructions
Customer Service
GE & You, A Service Partnership.
IMPORTANT!
Fill out the Consumer Product Registration Card.
Two easy ways to register your appliance!
■Through the internet at www.geappliances.com
■Complete and mail the enclosed Product Registration Card
FOR YOUR RECORDS
Write the model and serial numbers here:
#
#
You can find them on a label on the back wall of the hood.
Staple sales slip or cancelled check here.
Proof of the original purchase date is needed to obtain service under the warranty.
READ THIS MANUAL
Inside you will find many helpful hints on how to use and maintain your range hood properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your range hood.
IF YOU NEED SERVICE
If you do need service, you can relax knowing help is only a phone call away. A list of toll-free customer service numbers is included in the back section of this manual.
OR
Visit our Website at: www.geappliances.com
2
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
SAFETY PRECAUTIONS
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
A.Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
B.Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
C.Do not use this unit with any solid-state speed control device.
D.This unit must be grounded.
CAUTION – For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
WARNING – TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:
A.SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
B.NEVER PICK UP A FLAMING PAN— You may be burned.
C.DO NOT USE WATER, including wet dishcloths or towels—a violent steam explosion will result.
D.Use an extinguisher ONLY if:
1.You know you have a Class ABC extinguisher, and you already know how to operate it.
2.The fire is small and contained in the area where it started.
3.The fire department is being called.
4. You can fight the fire with your back to an exit.
*Based on “Kitchen Firesafety Tips” published by NFPA.
WARNING – TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A.Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B.Always turn hood ON when cooking at high heat or when cooking flaming foods.
C.Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
D.Use proper pan size. Always use cookware appropriate for the size of the surface element.
WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
A.Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
B.Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
C.When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
D.Ducted fans must always be vented to the outdoors.
WARNING – TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
■Do not attempt to repair or replace any part of your hood unless it is specifically
recommended in this guide. All other servicing should be referred to a qualified technician.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
READ AND SAVE THESE INSTRUCTIONS
Instructions Safety
Instructions Operating
Instructions Installation
Service Customer
3
Safety Instructions
Operating Instructions
Installation Instructions
Customer Service
Using the hood controls.
Throughout this manual, features and appearance may vary from your model.
Your model will have one of the above type of controls.
FAN Control
Turn or press (according to your model) the FAN speed control to LO, MED, HI or BOOST, as needed.
Continuous use of the fan system while cooking helps keep the kitchen comfortable and less humid. It also reduces cooking odors and soiling moisture that create a frequent need for cleaning.
LIGHT Control
Turn or press (according to your model) the LIGHT control to BRIGHT for bright light while cooking. Turn or press to NITE for use as a night light.
FAN ON Light
The FAN ON indicator light will glow when the fan is turned on.
Care and cleaning of the vent hood.
Be sure electrical power is off and all surfaces are cool before cleaning or servicing any part of the vent hood.
If it ever becomes necessary to replace the metal grease filters, they may be ordered from your GE supplier.
Reusable Metal Grease Filters
The hood has 2 metal reusable grease filters.
The metal filters trap grease released by foods on the cooktop. They also help prevent flaming foods on the cooktop from damaging the inside of the hood.
For this reason, the filters must ALWAYS be in place when the hood is used. The grease filters should be cleaned once a month, or as needed.
To remove, slide the filters to the rear using the tab. Pull them down and out.
To replace, slide the filters in the frame slot on the back of the opening. Push up and back and then to the front to lock into place.
To clean the grease filters, soak them and then swish them around in hot water and detergent. Don’t use ammonia or ammonia products because they will darken the metal. Do not use abrasives or oven cleaners. Light brushing can
be used to remove embedded dirt. Rinse, shake and let them dry before replacing. They may
also be cleaned in an automatic dishwasher.
NOTE: Before cleaning, make sure the charcoal filters, if present, are unclipped and removed. See the Charcoal Filters section.
4
The charcoal filters are clipped inside of each reusable metal grease filter.
Charcoal Filters (on some models)
The charcoal filters cannot be cleaned. They must be replaced.
For 30″ hood models, order Kit no. WB02X10707.
For 36″ hood models, order Kit no. WB02X10708.
These kits can be ordered from your GE supplier.
If the model is not vented to the outside, the air will be recirculated through disposable charcoal filters that help remove smoke and odors.
The charcoal filters should be replaced when they are noticeably dirty or discolored (usually after 6 to 12 months, depending on hood usage).
NOTE: DO NOT rinse, or put charcoal filters in an automatic dishwasher.
Painted Surfaces (on some models)
To clean the hood surface, use a hot, |
Do not use steel-wool pads or other |
damp cloth with a mild detergent |
abrasive cleaners. They will scratch |
suitable for painted surfaces. Use a |
the surface. Wipe with a clean, hot, |
clean, hot, damp cloth to remove |
damp cloth after using cleansers. |
soap. Dry with a dry, clean cloth. |
|
Stainless Steel Surfaces (on some models)
Do not use a steel-wool pad; it will scratch the surface.
To clean the stainless steel surface, use a hot, damp cloth with a mild detergent suitable for stainless steel surfaces. Use a clean, hot, damp cloth to remove soap. Dry with a dry, clean cloth.
If food soil remains, try a general kitchen cleaner, such as Fantastik®, Simple Green®, or Formula 409®.
For hard-to-clean soil, use a standard stainless steel cleaner, such as Bon-Ami® or Cameo®.
Apply cleaner with a damp sponge. Use a clean, hot, damp cloth to remove cleaner. Dry with a dry, clean cloth. Always scrub lightly in the direction of the grain.
After cleaning, use a stainless steel polish, such as Stainless Steel Magic®, Revere Copper and Stainless Steel Cleaner®, or Wenol All Purpose Metal Polish®. Follow the product instructions for cleaning the stainless steel surface.
Hood Lights
This hood requires two bulbs (not included), maximum 50 watts.
Purchase and install PAR20, 50 W Maximum halogen bulbs.
When replacing a bulb, let it cool first. Make sure that power to the light has been turned off. Never allow a hot bulb to come into contact with water.
To change the light bulbs:
Grasp the bulb on the edges and unscrew it.
Replace with the same size bulb.
CAUTION:
■Do not touch the hood light bulbs when they are on. They may be hot enough to cause injury.
■The light bulbs operate at extremely high temperatures. If they shatter, the hot glass could cause personal injury.
Instructions Safety
Instructions Operating
Instructions Installation
Service Customer
5
