GE JTP50SH Specification
GE Appliances
JTP50SH – GE®30" Built-In Double Wall Oven
Specification Created 8/03
320129

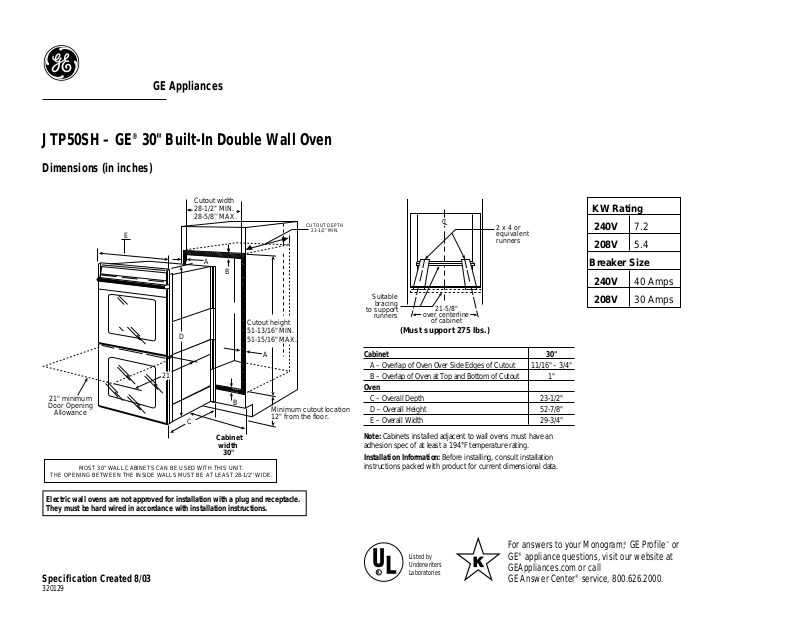

Dimensions (in inches)
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile™or
GE®appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Cabinet 30"
A – Overlap of Oven Over Side Edges of Cutout 11/16" – 3/4"
B – Overlap of Oven at Top and Bottom of Cutout 1"
Oven
C – Overall Depth 23-1/2"
D – Overall Height 52-7/8"
E – Overall Width 29-3/4"
Note: Cabinets installed adjacent to wall ovens must have an
adhesion spec of at least a 194°F temperature rating.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
21" minimum
Door Opening
Allowance
B
B
A
A
Cutout height
51-13/16" MIN.
51-15/16" MAX.
Minimum cutout location
12" from the floor.
Cutout width
28-1/2’’ MIN.
28-5/8’’ MAX.
21
Cabinet
width
30"
C
E
D
MOST 30’’ WALL CABINETS CAN BE USED WITH THIS UNIT.
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2’’ WIDE.
CUTOUT DEPTH
23-1/2’’ MIN.
C
L
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
(Must support 275 lbs.)
KW Rating
240V 7.2
208V 5.4
Breaker Size
240V 40 Amps
208V 30 Amps
Electric wall ovens are not approved for installation with a plug and receptacle.
They must be hard wired in accordance with installation instructions.
Specification Created 8/03
320129
JTP50SH – GE®30" Built-In Double Wall Oven
Features and Benefits
• Self-clean oven – conveniently cleans oven cavity without the need for scrubbing.
• Super large oven capacity – Provides the impressively large oven interior for cooking more
dishes and large meals at one time.
• Electronic oven controls – One-touch electronic pads are easy-to-use and allow for simple
oven operation.
• TrueTemp™system – Delivers even heat distribution and maximum oven control.
• Big Clearview™window – An extra large clear window makes monitoring the progress of
the food easy.
• Interior oven light – Supplies light to make viewing the progress of cooking easy
and convenient.
• Dual element bake – Alternates the upper broiling element and the lower baking element
for even heating and optimal baking results.
• Model JTP50SHSS – Stainless steel
