GE JTP45BD, JTP45CD, JTP45SD, JTP45WD Specification
GE Appliances

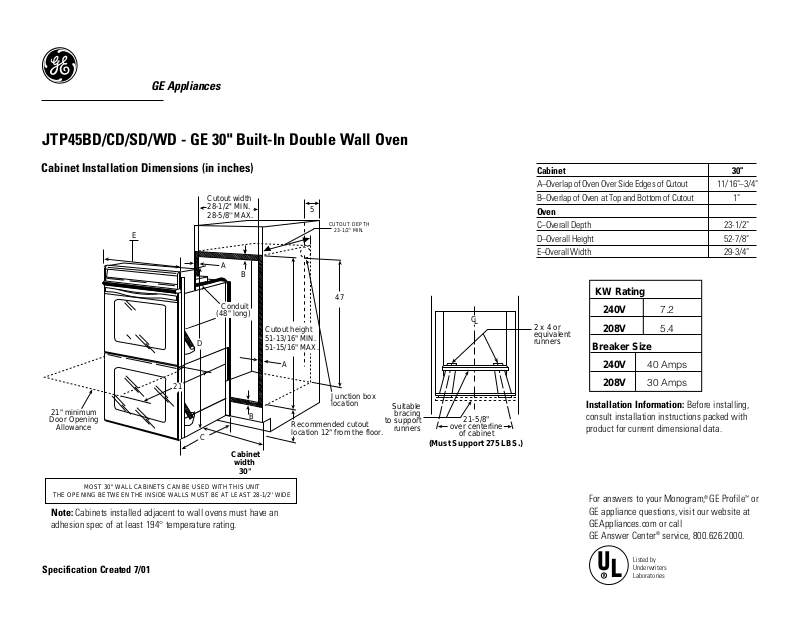

JTP45BD/CD/SD/WD - GE 30" Built-In Double Wall Oven
Cabinet Installation Dimensions (in inches)
21" minimum Door Opening Allowance
Cutout width
28-1/2'' MIN. 28-5/8'' MAX.
E
A
B
Conduit (48" long)
D
21
B
C
5
CUTOUT DEPTH 23-1/2'' MIN.
47
Cutout height 51-13/16" MIN. 51-15/16" MAX.
A
Junction box location
Recommended cutout location 12" from the floor.
Cabinet width 30"
C |
L |
Suitable |
|
|
|
|
|
|
bracing |
21-5/8" |
|
|
|||
to support |
|
|
||||
runners |
|
|
over centerline |
|
|
|
|
|
|
||||
|
|
of cabinet |
||||
|
|
|
||||
|
(Must Support 275 LBS.) |
|||||
Cabinet |
30" |
|
A–Overlap of Oven Over Side Edges of Cutout |
11/16"–3/4" |
|
|
|
|
B–Overlap of Oven at Top and Bottom of Cutout |
1" |
|
|
|
|
Oven |
|
|
C–Overall Depth |
23-1/2" |
|
D–Overall Height |
52-7/8" |
|
|
|
|
E–Overall Width |
29-3/4" |
|
KW Rating
|
240V |
7.2 |
|
2 x 4 or |
208V |
5.4 |
|
equivalent |
|
|
|
|
|
|
|
runners |
Breaker Size |
||
|
|||
|
240V |
|
40 Amps |
|
208V |
|
30 Amps |
|
|
|
|
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE
Note: Cabinets installed adjacent to wall ovens must have an adhesion spec of at least 194° temperature rating.
Specification Created 7/01
For answers to your Monogram,® GE Profile™ or GE appliance questions, visit our website at GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
Listed by
Underwriters
R Laboratories
GE Appliances
JTP45BD/CD/SD/WD - GE 30" Built-In Double Wall Oven
Features and Benefits
• TrueTemp™ System
• 2 Extra Large 4.4 cu. ft. Self-Cleaning Capacity Ovens
• SmartSet Electronic Oven Controls
•Sabbath Mode
•2 Oven Racks with 6 Embossed Positions Each Oven
•True Frameless Glass Oven Doors with Big ClearView™ Windows
•Installation Flexibility
•Model JTP45WDWW - White on white
•Model JTP45BDBB - Black on black
• Model JTP45CDCC - Bisque
• Model JTP45SDSS - Stainless steel
Specification Created 7/01
