Specification Revised 6/99
GE Appliances
JTP45BABB - GE 30" Double Wall Oven
21" minimum
Door Opening
Allowance
5
B
B
A
A
47
Conduit
(48" long)
Junction box
location
Cutout height
51-13/16" MIN.
51-15/16" MAX.
Recommended cutout
location 12" from the floor.
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
21
Cabinet
width
30"
C
E
D
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE
CUTOUT DEPTH
23-1/2'' MIN.
*Most 30" wall cabinets can be used
with this unit.
The opening between the inside walls
must be at least 28-1/2" wide.
A =Allow minimum of 21" for clearance to
adjacent corners, drawers, walls, etc.,
when door is opened.
B = Allow 11/16" for overlap of oven
over side edges of cutout.
C = Allow 1" for overlap of oven—
top and bottom of cutout.
Installation Information: Before
installing, consult installation instructions
(Pub. No. 31-10125) packed with
product for current dimensional data.

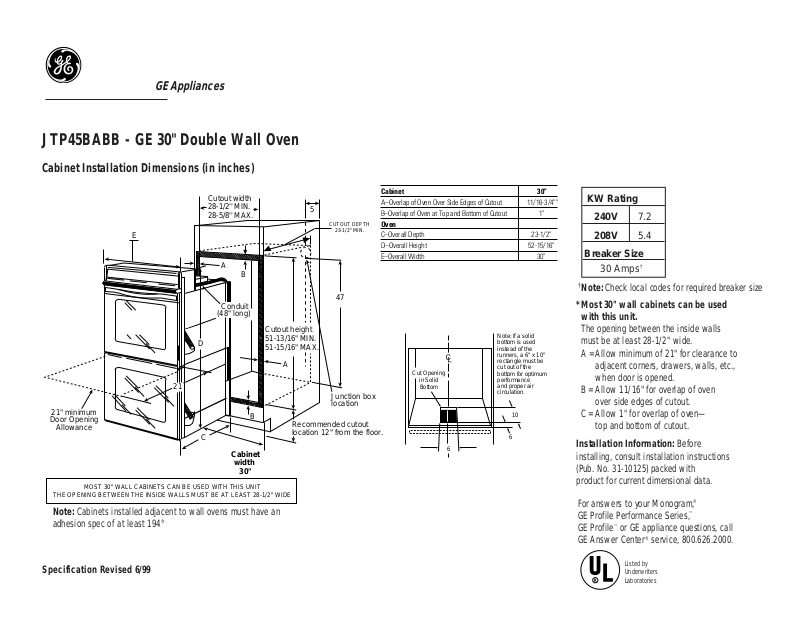

Cabinet Installation Dimensions (in inches)
Cut Opening
in Solid
Bottom
10
Note: If a solid
bottom is used
instead of the
runners, a 6" x 10"
rectangle must be
cut out of the
bottom for optimum
performance
and proper air
circulation.
6
6
A–Overlap of Oven Over Side Edges of Cutout 11/16-3/4""
B–Overlap of Oven at Top and Bottom of Cutout 1"
Cabinet 30"
C–Overall Depth 23-1/2"
D–Overall Height 52-15/16"
E–Overall Width 30"
Oven
R
Listed by
Underwriters
Laboratories
Note: Cabinets installed adjacent to wall ovens must have an
adhesion spec of at least 194°
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
KW Rating
240V 7.2
208V 5.4
Breaker Size
30 Amps
†
†
Note: Check local codes for required breaker size
Specification Revised 6/99
GE Appliances
JTP45BABB - GE 30" Double Wall Oven
Features and Benefits
• TrueTemp™ System
• 2 Extra Large Capacity Self-Clean Ovens with Automatic Oven Door Locks
• 2 Oven Racks (Each Oven)
• 6 Embossed Rack Positions (Each Oven)
• SmartSet Electronic Oven Controls
• Electronic Clock and Kitchen Timer
• Delay Time Bake Option with Cook and Hold
• Auto Oven Shut-Off with Override
• Variable Broil / Six-Pass Broil Element
• Extra-Large Broiler Pan with Grid
• Up-Front Oven Lights
• Frameless Glass Oven Doors with Big-View Windows
• Sure Grip Designer-Style Handle
• 30" Oven Cabinet Width Required
• Model JTP45WAWW - White on white
• Model JTP45BBABB - Black on black
