GE JTP35BM, JTP35CM, JTP35WM Specification

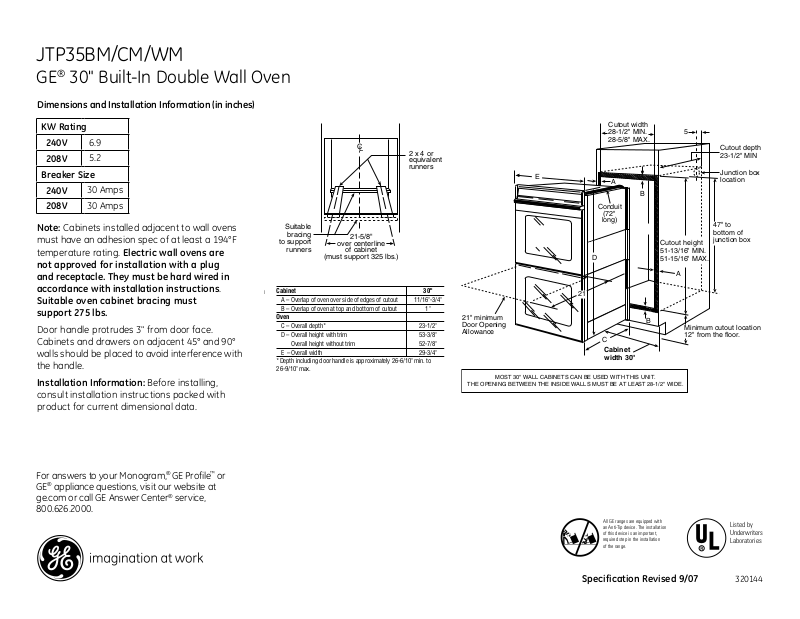

JTP35BM/CM/WM
GE® 30" Built-In Double Wall Oven
Dimensions and Installation Information (in inches)
KW Rating
240V 6.9
208V 5.2
Breaker Size
240V |
30 Amps |
|
|
208V |
30 Amps |
|
|
Note: Cabinets installed adjacent to wall ovens must have an adhesion spec of at least a 194°F temperature rating. Electric wall ovens are not approved for installation with a plug and receptacle. They must be hard wired in accordance with installation instructions.
Suitable oven cabinet bracing must support 275 lbs.
Door handle protrudes 3" from door face. Cabinets and drawers on adjacent 45° and 90° walls should be placed to avoid interference with the handle.
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.
|
|
|
Cutout width |
|
|
|
|
|
28-1/2'' MIN. |
5 |
|
|
C |
|
28-5/8'' MAX. |
|
|
|
|
|
|
Cutout depth |
|
|
L |
2 x 4 or |
|
|
|
|
|
|
|
23-1/2" MIN |
|
|
|
equivalent |
|
|
|
|
|
runners |
|
|
Junction box |
|
|
E |
|
|
|
|
|
A |
|
location |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
B |
|
|
|
|
|
Conduit |
|
|
|
|
|
(72" |
|
|
Suitable |
|
|
long) |
|
47" to |
|
|
|
|
||
bracing |
21-5/8" |
|
|
|
bottom of |
to support |
|
|
Cutout height |
junction box |
|
over centerline |
|
|
|||
runners |
of cabinet |
|
|
51-13/16" MIN. |
|
|
(must support 325 lbs.) |
|
D |
51-15/16" MAX. |
|
|
|
|
|
A |
|
Cabinet |
30" |
|
21 |
|
|
|
|
|
A – Overlap of oven over side of edges of cutout |
11/16"-3/4" |
|
|
|
|
|
||
|
|
|
|
|
|
|
||
B – Overlap of oven at top and bottom of cutout |
1" |
|
|
|
|
|
|
|
Oven |
|
21" minimum |
|
|
|
B |
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|||
C – Overall depth* |
23-1/2" |
Door Opening |
|
|
|
Minimum cutout location |
||
|
|
|
|
|||||
D – Overall height with trim |
53-3/8" |
Allowance |
|
|
|
|
12" from the floor. |
|
|
|
C |
||||||
Overall height without trim |
52-7/8" |
|
|
|
|
|||
|
|
Cabinet |
|
|
||||
E –Overall width |
29-3/4" |
|
|
|
|
|||
|
|
width 30" |
|
|
||||
*Depth including door handle is approximately 26-6/10" min. to |
|
|
|
|
||||
|
|
|
|
|
|
|
||
26-9/10" max. |
|
|
|
|
|
|
|
|
|
|
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT. |
|
|
||||
|
|
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE. |
|
|
||||
|
|
|
|
|
|
|
|
|
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
All GE ranges are equipped with an Anti-Tip device. The installation of this device is an important, required step in the installation
of the range.
Listed by Underwriters Laboratories
Specification Revised 9/07 |
320144 |
JTP35BM/CM/WM
GE® 30" Built-In Double Wall Oven
Features and Benefits
•Self Clean Oven (upper oven only) - Conveniently cleans the upper oven cavity without need of scrubbing
•Extra-Large Oven Capacity - Provides a large oven interior ideal for cooking more items at once
•Electronic Oven Controls - One-touch electronic pads are easy-to-use and allow for simple oven operation
•TrueTemp (Upper Oven) - Provides even heat distribution and precise oven control
•Improved Lighting - Positions lamps diagonally across the top of the oven to promote better viewing
•Eight-Pass Bake Element - A powerful, continuous heating element loops throughout the oven, delivering evenly cooked foods
•Six-Pass Broil Element - Provides a more even coverage of the food on the broiler pan
•Hidden Bake Oven Interior - Hides previously exposed bottom element to deliver a clean interior appearance
•Two Oven Racks - Feature a durable construction to help accommodate any size or type of cookware
•Heavy-Duty Oven Racks - Provides extra support
•Multiple Oven Rack Positions - Delivers flexibility and allows consumers to make the most of available oven capacity
•Model JTP35BMBB - Black on black
•Model JTP35CMCC - Bisque on bisque
•Model JTP35WMWW - White on white
Specification Revised 9/07 |
320144 |
