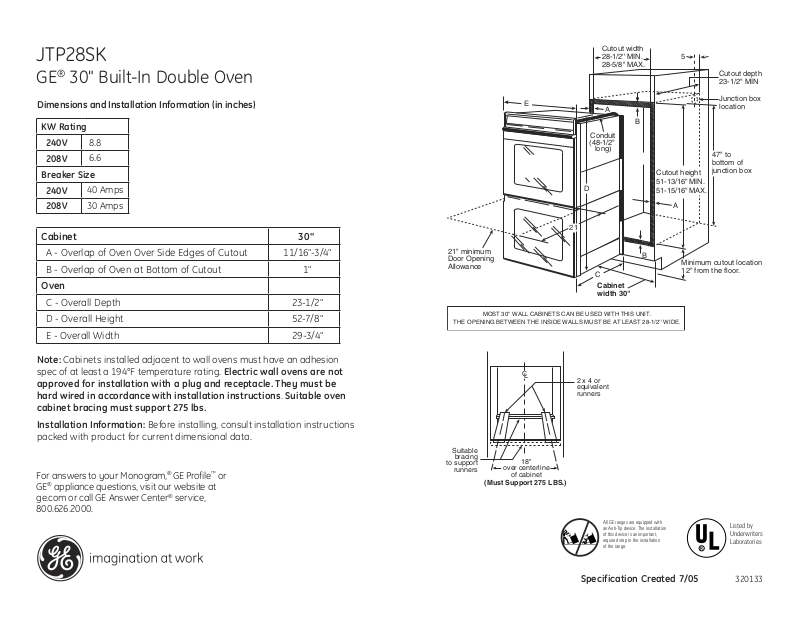

JTP28SK
21" minimum
Door Opening
Allowance
B
B
A
A
Cutout height
51-13/16" MIN.
51-15/16" MAX.
Minimum cutout location
12" from the floor.
Cutout depth
23-1/2" MIN
5
47" to
bottom of
junction box
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
21
Cabinet
width 30"
C
E
D
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.
Conduit
(48-1/2"
long)
Junction box
location
C
L
(Must Support 275 LBS.)
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
18
"
over centerline
of cabinet
GE® 30" Built-In Double Oven
Dimensions and Installation Information (in inches)
KW Rating
240V
208V
Breaker Size
240V
208V
8.8
6.6
40 Amps
30 Amps
Cabinet
A - Overlap of Oven Over Side Edges of Cutout
- Overlap of Oven at Bottom
B
of Cutout
Oven
- Overall Depth
C
D - Overall Height
E - Overall Width
Cabinets installed adjacent to wall ovens must have an adhesion
Note:
spec of at least a 194°F temperature rating. Electric wall ovens are not
approved for installation with a plug and receptacle. They must be
hard wired in accordance with installation instructions
cabinet bracing must support 275 lbs.
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
11/16"-3/4"
23-1/2"
52-7/8"
29-3/4"
Suitable oven
.
30"
1"
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Created 7/05
Listed by
Underwriters
Laboratories
320133
![](/html/c6/c68b/c68b1d86449979f6cdd3df22a5e6e6ed6b56d4a2b8851a146e9f35817cf67681/bg2.png)
JTP28SK
GE® 30" Built-In Double Oven
Features and Benefits
• Self-Clean Oven - Conveniently cleans oven cavity without the need for scrubbing
• Super-Large Oven Capacity - Provides the impressively large oven interior for cooking
more dishes and large meals at one time
• Electronic Oven Controls - One-touch electronic pads are easy-to-use and allow for
simple oven operation
• TrueTemp™ System - Delivers even heat distribution and maximum oven control
• Big ClearView™ Window - An extra large clear window makes monitoring the progress
of the food easy
• Interior Oven Light - Supplies light to make viewing the progress of cooking easy and
convenient
• Dual Element Bake - Alternates the upper broiling element and the lower baking
element for even heating and optimal baking results
• Model JTP28SKSS - Stainless steel
Specification Created 7/05
