GE JTP27WAWW Specification

Page 1
Specification Revised 6/99
GE Appliances
JTP27WAWW - GE 30" Double Wall Oven
21" minimum
Door Opening
Allowance
5
47
Conduit
(48" long)
Junction box location
Cutout height 51-13/16" MIN. 51-15/16" MAX.
Recommended cutout location 12" from the floor.
Cutout width 28-1/2'' MIN. 28-5/8'' MAX.
21
Cabinet
width
30"
C
D
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE
CUTOUT DEPTH
23-1/2'' MIN.
*Most 30" wall cabinets can be used
with this unit.
The opening between the inside walls must be at least 28-1/2" wide. A =Allow minimum of 21" for clearance to
adjacent corners, drawers, walls, etc., when door is opened.
B = Allow 11/16" for overlap of oven
over side edges of cutout.
C = Allow 1" for overlap of oven—
top and bottom of cutout.
Installation Information: Before installing, consult installation instructions (Pub. No. 31-10125) packed with product for current dimensional data.

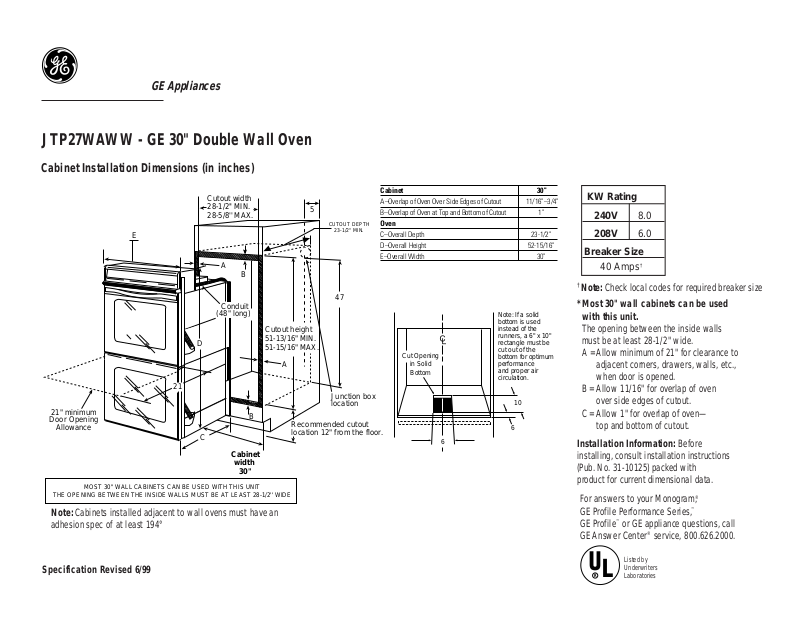

Cabinet Installation Dimensions (in inches)
Cut Opening
in Solid Bottom
10
Note: If a solid bottom is used instead of the runners, a 6" x 10" rectangle must be cut out of the bottom for optimum performance and proper air circulation.
6
6
A–Overlap of Oven Over Side Edges of Cutout 11/16"–3/4" B–Overlap of Oven at Top and Bottom of Cutout 1"
Cabinet 30"
C–Overall Depth 23-1/2" D–Overall Height 52-15/16" E–Overall Width 30"
Oven
R
Listed by Underwriters Laboratories
Note: Cabinets installed adjacent to wall ovens must have an adhesion spec of at least 194°
For answers to your Monogram,
®
GE Profile Performance Series,
GE Profile™or GE appliance questions, call GE Answer Center®service, 800.626.2000.
KW Rating
240V 8.0 208V 6.0
Breaker Size
40 Amps
Note: Check local codes for required breaker size
Page 2
Specification Revised 6/99
GE Appliances
JTP27WAWW - GE 30" Double Wall Oven
Features and Benefits
•TrueTemp
System
•Extra Large Capacity Self-Cleaning Upper Oven with Automatic Oven Door Lock
•Extra Large Capacity Standard Clean Lower Oven
•2 Oven Racks (Each Oven)
•6 Embossed Rack Positions (Each Oven)
•SmartSet Electronic Oven Controls (Upper)
•Electronic Clock and Kitchen Timer
•Auto Oven Shut-Off with Override (Upper Oven)
•Variable Broil / Six-Pass Broil Element
•Extra-Large Broiler Pan with Grid
•Up-Front Oven Lights
•Frameless Glass Oven Doors with Big-View Windows
•Sure Grip Designer-Style Handles
•30" Oven Cabinet Width Required
•Model JTP27WAWW - White on white
•Model JTP27BABB - Black on black
