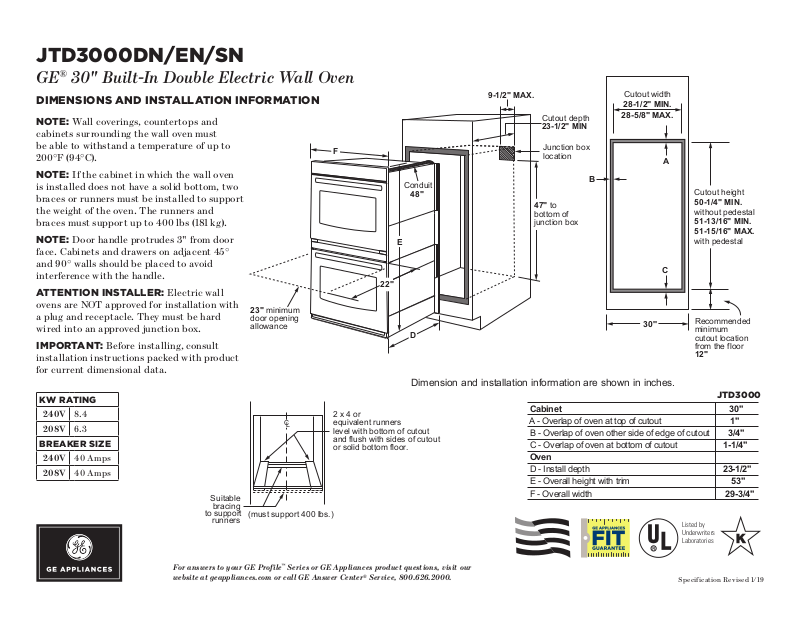

Page 1
JTD3000DN/EN/SN
Cutout width
28-1/2" MIN.
28-5/8" MAX.
A
C
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
30''
JTD3000DNBB, JTD3000DNWW, JTD3000ENES,
JTD3000SNSS, JTD5000BNTS, JTD5000DNBB,
JTD5000DNWW, JTD5000ENES, JTD5000FNDS,
JTD5000SNSS, PTD7000BNTS, PTD7000FNDS,
PTD7000SNSS, PTD700LSNSS, PTD700RSNSS
Cutout width
28-1/2" MIN.
28-5/8" MAX.
B
A
C
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
30''
Cabinet 30"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 3/4"
C - Overlap of oven at bottom of cutout 1-1/4"
Oven
D - Install depth 23-1/2"
E - Overall height with trim 53"
F - Overall width 29-3/4"
9-1/2" MAX.
F
Conduit
48"
47" to
bottom of
junction box
Junction box
location
Cutout depth
23-1/2" MIN
Cutout width
28-1/2" MIN.
28-5/8" MAX.
B
A
C
22"
23" minimum
door opening
allowance
E
D
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
30''
JTD3000DNBB, JTD3000DNWW, JTD3000ENES,
JTD3000SNSS, JTD5000BNTS, JTD5000DNBB,
JTD5000DNWW, JTD5000ENES, JTD5000FNDS,
JTD5000SNSS, PTD7000BNTS, PTD7000FNDS,
PTD7000SNSS, PTD700LSNSS, PTD700RSNSS
GE® 30" Built-In Double Electric Wall Oven

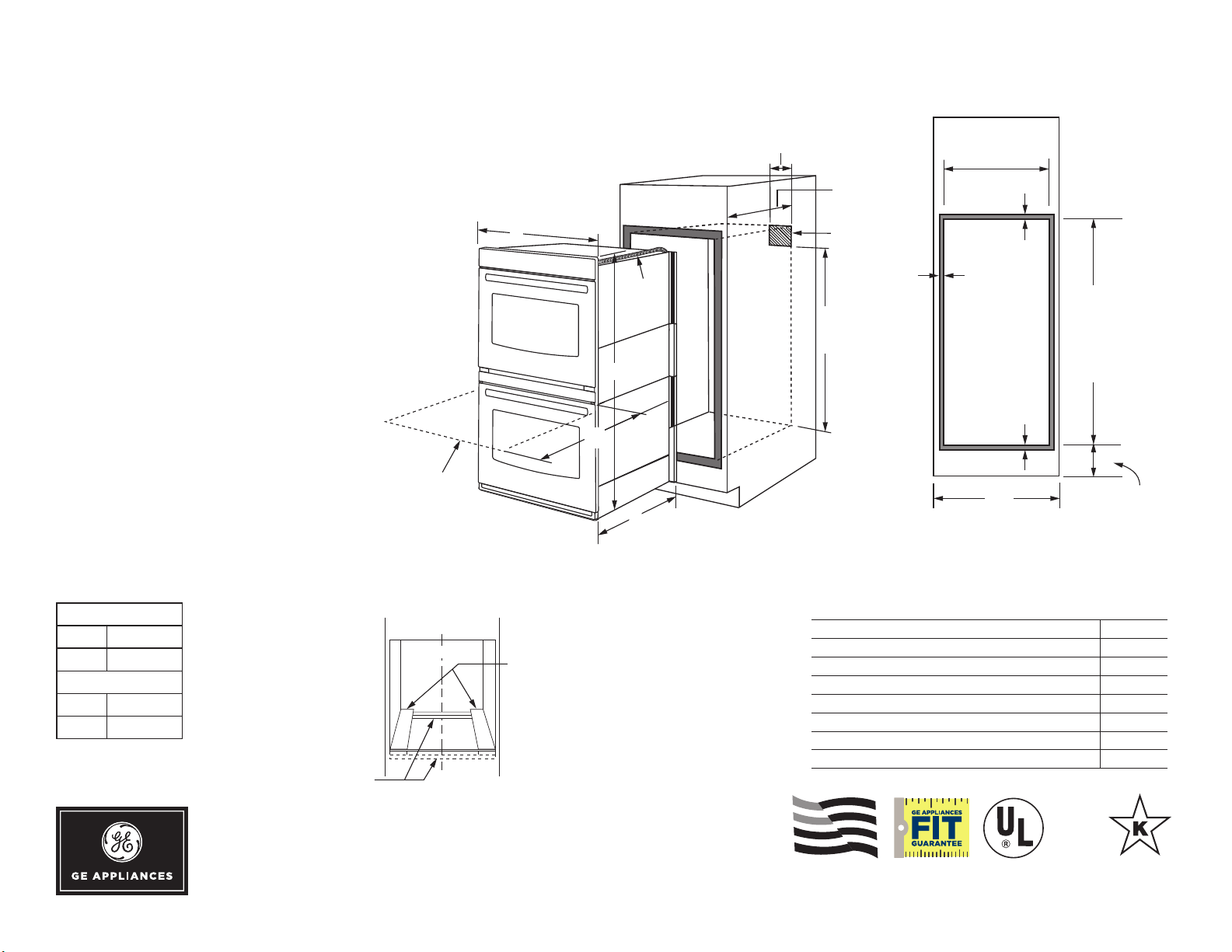

DIMENSIONS AND INSTALLATION INFORMATION
NOTE: Wall coverings, countertops and
cabinets surrounding the wall oven must
be able to withstand a temperature of up to
200°F (94°C).
NOTE: If the cabinet in which the wall oven
is installed does not have a solid bottom, two
braces or runners must be installed to support
the weight of the oven. The runners and
braces must support up to 400 lbs (181 kg).
NOTE: Door handle protrudes 3" from door
face. Cabinets and drawers on adjacent 45°
and 90° walls should be placed to avoid
interference with the handle.
ATTE NTIO N IN STALL ER: Electric wall
ovens are NOT approved for installation with
a plug and receptacle. They must be hard
wired into an approved junction box.
IMPORTANT: Before installing, consult
installation instructions packed with product
for current dimensional data.
KW R ATIN G
24 0V 8.4
208V 6.3
BREAKER SIZE
24 0V 40 Amps
208V 40 Amps
23" minimum
door opening
allowance
Suitable
bracing
to support
runners
For answers to your GE Profile™ Series or GE Appliances product questions, visit our
website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
(must support 400 lbs.)
C
L
F
2 x 4 or
equivalent runners
level with bottom of cutout
and flush with sides of cutout
or solid bottom floor.
9-1/2" MAX.
Cutout depth
23-1/2" MIN
Junction box
location
Conduit
48"
E
22"
D
Dimension and installation information are shown in inches.
47" to
bottom of
junction box
B
Cabinet 30"
A - Overlap of oven at top of cutout 1"
B - Overlap of oven other side of edge of cutout 3/4"
C - Overlap of oven at bottom of cutout 1-1/4"
Oven
D - Install depth 23-1/2"
E - Overall height with trim 53"
F - Overall width 29-3/4"
Cutout width
28-1/2" MIN.
28-5/8" MAX.
A
C
30''
Cutout height
50-1/4" MIN.
without pedestal
51-13/16" MIN.
51-15/16" MAX.
with pedestal
Recommended
minimum
cutout location
from the floor
12"
JTD3000
Listed by
Underwriters
Laboratories
Specification Revised 1/19
Page 2
JTD3000DN/EN/SN
GE® 30" Built-In Double Electric Wall Oven
DIMENSIONS AND INSTALLATION INFORMATION
NOTE: 30" Double electric wall ovens are
approved for installation above 27" and 30"
warming drawers.
ATTE NTIO N IN STALL ER: Electric wall ovens
are NOT approved for installation with a plug
and receptacle. They must be hard wired into an
approved junction box.
IMPORTANT: Before installing, consult
installation instructions packed with ALL
products for current dimensional and combination
data.

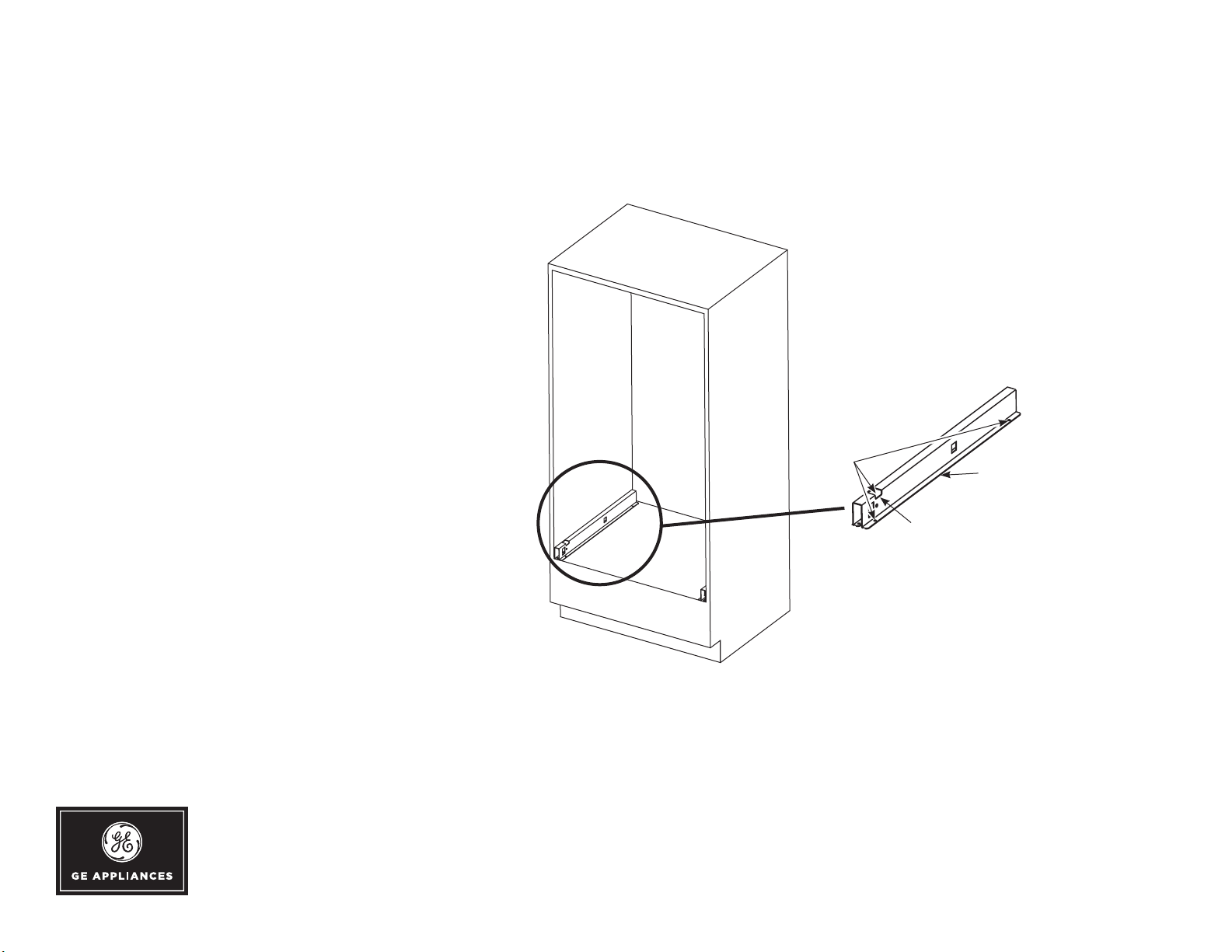

WHEN TO USE THE PEDESTAL RAILS:
When replacing an older GE Appliances 30"
double wall oven with a new GE Appliances model.
Cutout Height = 51-13/16" to 51-15/16". This is our
traditional cutout height.
WHEN NOT TO USE THE PEDESTAL RAILS:
When replacing a 30" double wall oven from
another manufacturer (ie; Whirlpool) with a new
GE Appliances model. Cutout height = 50-1/4".
You will need to verify that the existing cutout
matches the 50-1/4" dimension.
If the new GE Appliances 30" double wall oven
is being installed into new construction (ie; not a
replacement), then the recommended installation
is to use the pedestal rails.
Attachment
screws
Flanges toward
center of cutout
Top cutout
toward front
For answers to your GE Profile™ Series or GE Appliances product questions, visit our
website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
Specification Revised 1/19
Page 3
JTD3000DN/EN/SN
GE® 30" Built-In Double Electric Wall Oven
FEATURES AND BENEFITS
Never scrub, heavy-duty racks – Say goodbye to scrubbing thanks to never scrub heavy-duty racks,
engineered to withstand a self clean cycle
Self-Clean with optional Steam Clean – Cleaning the oven interior has never been easier, with two
cleaning options to fit your lifestyle
Anywhere control with remote notifications – Save time by conveniently preheating and
monitoring your oven from anywhere using the GE Appliances Kitchen app
Scan-to-cook – Prepare your favorite packaged foods to perfection simply by scanning the barcode
on the package with your smartphone and letting your oven adjust settings automatically
Glass touch controls – Set temperatures quickly and clean with little effort
10-pass hidden bake element – Even baking and quick cleanup are assured, with 10-pass element
that heats a large cooking area and is hidden for an easy-to-wipe surface
8-pass broil element – Get full broil coverage and even browning from edge to edge
Model JTD3000DNBB – Black
Model JTD3000DNWW – White
Model JTD3000ENES – Slate
Model JTD3000SNSS – Stainless Steel
FIT GUARANTEE
Replacing a similar wall oven from GE Appliances or another brand? GE wall ovens are guaranteed
for an exact fit or GE Appliances will pay up to $300 toward modifications.
Visit geappliances.com for more info
Specification Revised 1/19
