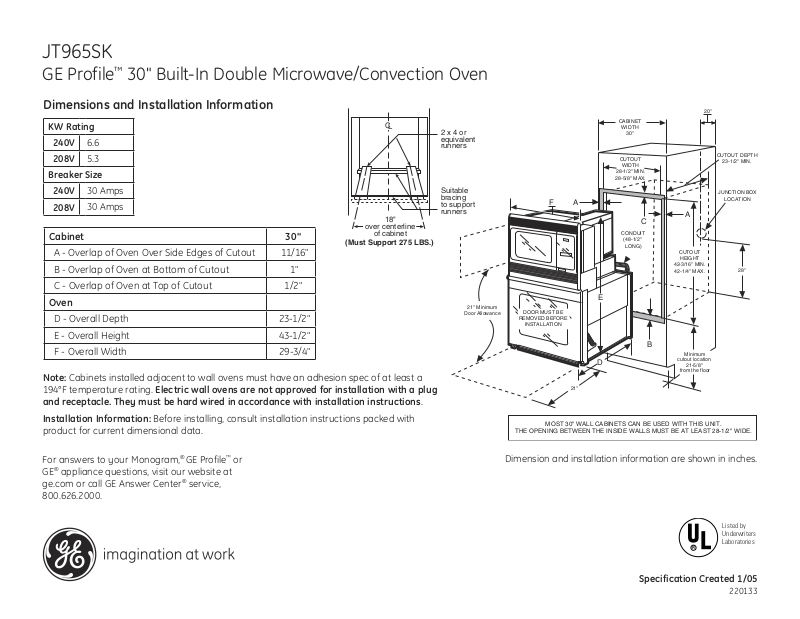

JT965SK
GE Profile™ 30" Built-In Double Microwave/Convection Oven
Dimensions and Installation Information
KW Rating
240V 6.6
208V 5.3
Breaker Size
240V |
|
30 Amps |
|
|
|
|
|
|
|
208V |
|
30 Amps |
|
|
|
|
|
|
|
|
|
|
|
|
Cabinet |
|
|
30" |
|
|
|
|||
A - Overlap of Oven Over Side Edges of Cutout |
11/16" |
|||
|
|
|||
B - Overlap of Oven at Bottom of Cutout |
1" |
|||
|
|
|||
C - Overlap of Oven at Top of Cutout |
1/2" |
|||
|
|
|
|
|
Oven |
|
|
|
|
|
|
|||
D - Overall Depth |
23-1/2" |
|||
|
|
|||
E - Overall Height |
43-1/2" |
|||
|
|
|||
F - Overall Width |
29-3/4" |
|||
|
|
|
|
|
C |
|
L |
2 x 4 or |
|
equivalent |
|
runners |
|
Suitable |
|
bracing |
|
to support |
18" |
runners |
|
|
over centerline |
|
of cabinet |
|
(Must Support 275 LBS.) |
|
21" Minimum
Door Allowance
Note: Cabinets installed adjacent to wall ovens must have an adhesion spec of at least a 194°F temperature rating. Electric wall ovens are not approved for installation with a plug and receptacle. They must be hard wired in accordance with installation instructions.
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
|
20'' |
|
|
CABINET |
|
|
WIDTH |
|
|
30'' |
|
|
CUTOUT |
CUTOUT DEPTH |
|
23-1/2'' MIN. |
|
|
WIDTH |
|
|
|
|
|
28-1/2'' MIN. |
|
|
28-5/8'' MAX. |
|
|
|
JUNCTION BOX |
F |
A |
LOCATION |
|
||
|
A |
|
|
C |
|
|
CONDUIT |
|
|
(48-1/2'' |
|
|
LONG) |
|
|
CUTOUT |
|
|
HEIGHT |
|
|
42-3/16'' MIN. |
28'' |
|
42-1/4'' MAX. |
E
DOOR MUST BE
REMOVED BEFORE
INSTALLATION
B
Minimum D cutout location
21-5/8'' from the floor
21''
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.
Dimension and installation information are shown in inches.
Listed by
Underwriters
Laboratories
R
Specification Created 1/05
220133
JT965SK
GE Profile™ 30" Built-In Double Microwave/Convection Oven
Features and Benefits
•True European convection (lower oven only) - A third dual-loop heating element surrounds the fan to deliver a uniform and savory cooking result
•Convection bake (lower oven only)- Provides you with ideal airflow throughout the
oven cavity, ensuring better baking results
• Convection roast (lower oven only) - Provides you with even cooking and consistent results, roasting meats up to 25% faster than a conventional oven
• Electronic oven controls - One-touch electronic pads are easy-to-use and allow for simple oven operation
•Self-clean oven - Conveniently cleans oven cavity without the need for scrubbing
•Super-large oven capacity - Provides the impressively large oven interior for cooking
more dishes and large meals at one time
• TrueTempTM system (lower oven only) - Provides even heat distribution and maximum oven control
• Model JT965SKSS – Stainless steel
