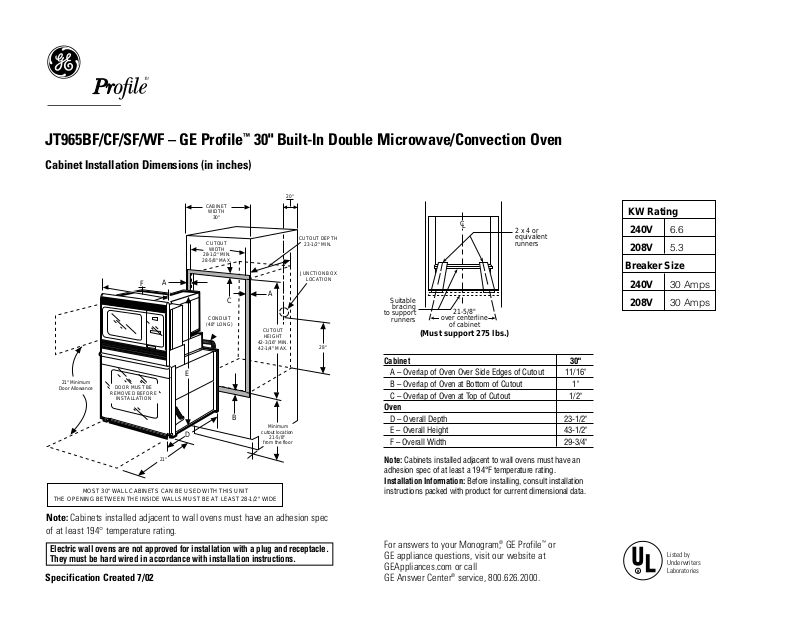

JT965BF/CF/SF/WF – GE Profile™30" Built-In Double Microwave/Convection Oven
Cabinet Installation Dimensions (in inches)
Note: Cabinets installed adjacent to wall ovens must have an adhesion spec
of at least 194° temperature rating.
Cabinet 30"
A – Overlap of Oven Over Side Edges of Cutout 11/16"
B – Overlap of Oven at Bottom of Cutout 1"
C – Overlap of Oven at Top of Cutout 1/2"
Oven
D – Overall Depth 23-1/2"
E – Overall Height 43-1/2"
F – Overall Width 29-3/4"
C
L
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
Note: Cabinets installed adjacent to wall ovens must have an
adhesion spec of at least a 194°F temperature rating.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
20''
28''
21''
A
F
A
B
C
CONDUIT
(48'' LONG)
CUTOUT
HEIGHT
42-3/16'' MIN.
42-1/4'' MAX.
CUTOUT
WIDTH
28-1/2'' MIN.
28-5/8'' MAX.
Minimum
cutout location
21-5/8''
from the floor
21" Minimum
Door Allowance
JUNCTION BOX
LOCATION
CABINET
WIDTH
30''
DOOR MUST BE
REMOVED BEFORE
INSTALLATION
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE
D
CUTOUT DEPTH
23-1/2'' MIN.
E
(Must support 275 lbs.)
Electric wall ovens are not approved for installation with a plug and receptacle.
They must be hard wired in accordance with installation instructions.
KW Rating
240V 6.6
208V 5.3
Breaker Size
240V 30 Amps
208V 30 Amps
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Page 2
TM
Specification Created 7/02
JT965BF/CF/SF/WF – GE Profile™30" Built-In Double Microwave/Convection Oven
Features and Benefits
• Upper Oven – 1.6 cu. ft. Capacity Microwave/1000 Watts with Turntable
• Sensor and Convenience Cooking Controls
• Electronic Touch Controls with Kitchen Timer
• Lower Oven – Extra-Large Capacity Self-Cleaning Oven with True European Convection
and Delay Clean Option
• Convection Bake and Convection Roast
• TrueTemp™System
• SmartSet Electronic Oven Controls with Digipad
• 2 Oven Racks with 6 Embossed Positions
• Model JT965WFWW – White on white
• Model JT965BFBB – Black on black
• Model JT965CFCC – Bisque on bisque
• Model JT965SFSS – Stainless steel
