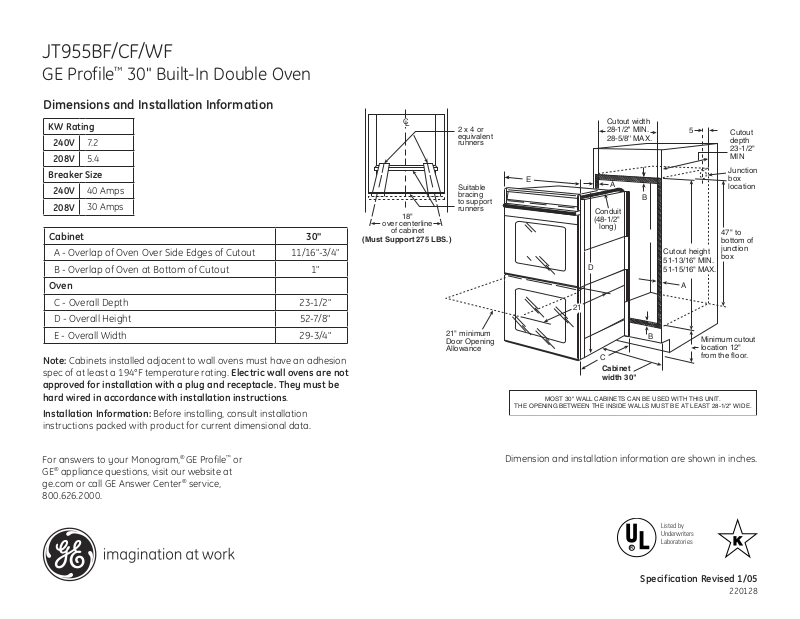

GE JT955BF, JT955CF, JT955WF Specification
JT955BF/CF/WF
GE Profile™ 30" Built-In Double Oven
Dimensions and Installation Information
KW Rating
240V 7.2
208V 5.4
Breaker Size
240V |
|
40 Amps |
|
|
|
|
|
|
|
208V |
|
30 Amps |
|
|
|
|
|
|
|
|
|
|
|
|
Cabinet |
|
|
30" |
|
|
|
|||
A - Overlap of Oven Over Side Edges of Cutout |
11/16"-3/4" |
|||
|
|
|||
B - Overlap of Oven at Bottom of Cutout |
1" |
|||
|
|
|
|
|
Oven |
|
|
|
|
|
|
|||
C - Overall Depth |
23-1/2" |
|||
|
|
|||
D - Overall Height |
52-7/8" |
|||
|
|
|||
E - Overall Width |
29-3/4" |
|||
|
|
|
|
|
Note: Cabinets installed adjacent to wall ovens must have an adhesion spec of at least a 194°F temperature rating. Electric wall ovens are not approved for installation with a plug and receptacle. They must be hard wired in accordance with installation instructions.
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.
CL |
2 x 4 or |
Cutout width |
|
|
|
28-1/2'' MIN. |
5 |
Cutout |
|
|
equivalent |
28-5/8'' MAX. |
|
|
|
|
depth |
||
|
runners |
|
|
|
|
|
|
23-1/2" |
|
|
|
|
|
|
|
|
|
|
MIN |
|
|
|
|
Junction |
|
E |
A |
|
box |
|
Suitable |
|
location |
|
|
bracing |
B |
|
|
|
to support |
|
|
|
|
|
|
|
|
18" |
runners |
Conduit |
|
|
|
|
|
||
(48-1/2" |
|
|
||
over centerline |
|
|
||
|
long) |
|
|
|
of cabinet |
|
|
47" to |
|
|
|
|
||
(Must Support 275 LBS.) |
|
|
|
bottom of |
|
|
|
Cutout height |
junction |
|
|
|
box |
|
|
D |
|
51-13/16" MIN. |
|
|
|
51-15/16" MAX. |
|
|
A
21 |
|
|
|
21" minimum |
B |
Minimum cutout |
|
Door Opening |
|||
|
|||
Allowance |
|
location 12" |
|
C |
|
from the floor. |
|
Cabinet |
|
|
|
width 30" |
|
|
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
Dimension and installation information are shown in inches.
Listed by
Underwriters
Laboratories
R
Specification Revised 1/05
220128
JT955BF/CF/WF
GE Profile™ 30" Built-In Double Oven
Features and Benefits
• Precise Air™ convection system (Upper Oven Only) - Provides even air and heat circulation for superior baking and roasting results
• Convection bake (multi-rack) (Upper Oven Only) - Provides you with ideal convection baking for multiple racks of food, ensuring superb results
•Convection roast - Provides even cooking and consistent results, roasting meats up to 25% faster than a conventional oven
•Glass touch oven controls - Feature a smooth glass design that is both easy-to-operate and easy-to-clean
•Self-clean oven - Conveniently cleans oven cavity without the need for scrubbing
•Super large oven capacity - Provides the impressively large oven interior for cooking more dishes and large meals at one time
•TrueTemp™ system - Delivers even heat distribution and maximum oven control
• Model JT955WFWW – White on white
• Model JT955CFCC – Bisque on bisque
• Model JT955BFBB – Black on black
Specification Revised 1/05
