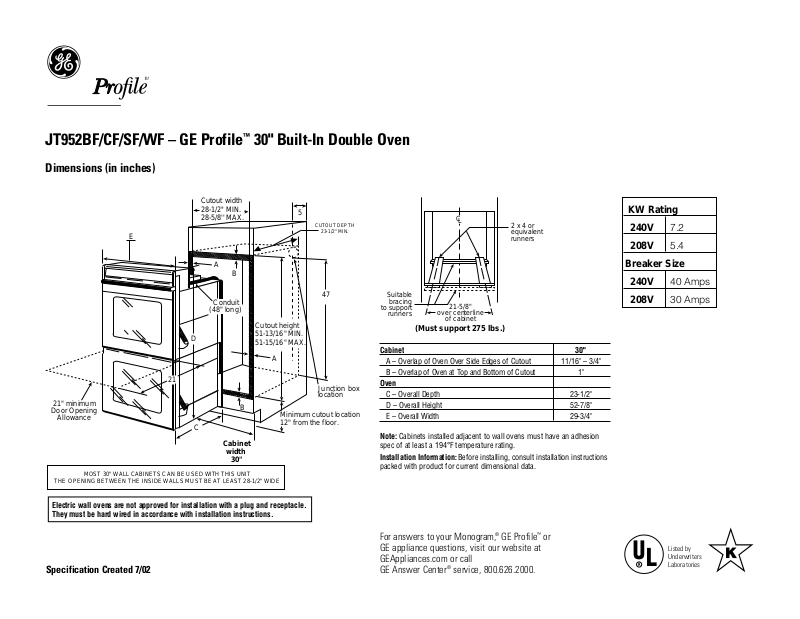

JT952BF/CF/SF/WF – GE Profile™30" Built-In Double Oven
TM
Specification Created 7/02
Dimensions (in inches)
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
KW Rating
240V 7.2
208V 5.4
Breaker Size
240V 40 Amps
208V 30 Amps
Cabinet 30"
A – Overlap of Oven Over Side Edges of Cutout 11/16" – 3/4"
B – Overlap of Oven at Top and Bottom of Cutout 1"
Oven
C – Overall Depth 23-1/2"
D – Overall Height 52-7/8"
E – Overall Width 29-3/4"
Note: Cabinets installed adjacent to wall ovens must have an adhesion
spec of at least a 194°F temperature rating.
Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.
21" minimum
Door Opening
Allowance
5
B
B
A
A
47
Conduit
(48" long)
Junction box
location
Cutout height
51-13/16" MIN.
51-15/16" MAX.
Minimum cutout location
12" from the floor.
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
21
Cabinet
width
30"
C
E
D
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE
CUTOUT DEPTH
23-1/2'' MIN.
C
L
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
(Must support 275 lbs.)
Electric wall ovens are not approved for installation with a plug and receptacle.
They must be hard wired in accordance with installation instructions.
Specification Created 7/02
TM
JT952BF/CF/SF/WF – GE Profile™30" Built-In Double Oven
Features and Benefits
• Upper Oven – Convection Bake and Convection Roast with Auto Recipe™Conversion
• Precise Air™Convection System
• Extra-Large 4.1 cu. ft. Capacity Self-Cleaning Convection Oven with Delay Clean Option
• 3 Heavy Duty Oven Racks with 7 Embossed Positions (Upper Oven)
• TrueTemp™System
• Lower Oven – Extra-Large 4.4 cu. ft. Capacity Self-Cleaning Thermal Oven
with Delay Clean Option
• 2 Heavy Duty Oven Racks with 6 Embossed Positions (Lower Oven)
• SmartSet Electronic Oven Controls with Digipad; Certified Sabbath Mode
• True Frameless Glass Oven Doors with Big ClearView™Windows, CleanDesign Oven Interior
• Convection Cookbook Included
• Model JT952WFWW – White on white
• Model JT952BFBB – Black on black
• Model JT952CFCC – Bisque on bisque
• Model JT952SFSS – Stainless steel
