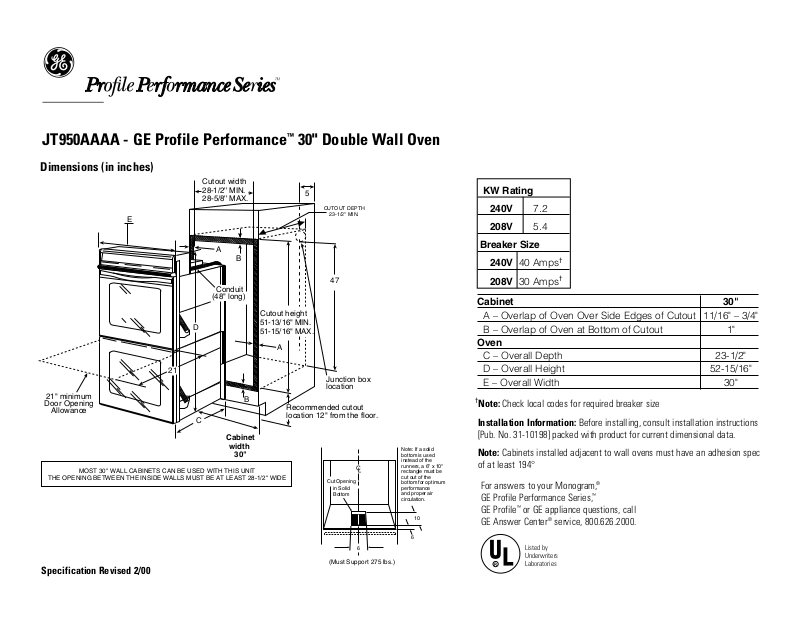

GE JT950AAAA Specification
JT950AAAA - GE Profile Performance™30" Double Wall Oven
Specification Revised 2/00
Dimensions (in inches)
21" minimum
Door Opening
Allowance
5
B
B
A
A
47
Conduit
(48" long)
Junction box
location
Cutout height
51-13/16" MIN.
51-15/16" MAX.
Recommended cutout
location 12" from the floor.
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
21
Cabinet
width
30"
C
E
D
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE
CUTOUT DEPTH
23-1/2'' MIN.
Cabinet 30"
A – Overlap of Oven Over Side Edges of Cutout 11/16" – 3/4"
B – Overlap of Oven at Bottom of Cutout 1"
Oven
C – Overall Depth 23-1/2"
D – Overall Height 52-15/16"
E – Overall Width 30"
Cut Opening
in Solid
Bottom
10
Note: If a solid
bottom is used
instead of the
runners, a 6" x 10"
rectangle must be
cut out of the
bottom for optimum
performance
and proper air
circulation.
6
6
(Must Support 275 lbs.)
Installation Information: Before installing, consult installation instructions
[Pub. No. 31-10198] packed with product for current dimensional data.
Note: Cabinets installed adjacent to wall ovens must have an adhesion spec
of at least 194°
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
KW Rating
240V 7.2
208V 5.4
Breaker Size
240V 40 Amps
†
208V 30 Amps
†
†
Note: Check local codes for required breaker size
Specification Revised 2/00
JT950AAAA - GE Profile Performance™30" Double Wall Oven
Features and Benefits
• TrueTemp
™
System
• Convection Upper Oven:
- Large 3.8 Cu.Ft. Self-Cleaning Oven w/ Delay Clean Option
- 3 Oven Racks / 7 Embossed Rack Positions
- Convection Bake
- Convection Roast
- Roasting Rack
• Bread Proofing Mode
• Baking Rack
• Thermal Lower Oven:
- Large 4.2 Cu.Ft. Self-Cleaning Oven w/ Delay Clean Option
- 2 Oven Racks / 6 Embossed Rack Positions
• SmartSet Electronic Oven Controls
• Automatic Meat Thermometer
• Variable Broil / Six-Pass Broil Element
• Hidden Bake Elements
• Broiler Pan with Grid
• Up-Front Oven Lights
• Big-View Windows
• Integrated Designer-Style Handles
• 30" Oven Cabinet Width Required
• Model JT950WAWW - White on white
• Model JT950BABB - Black on black
• Model JT950AAAA - Almond on almond
• Model JT950SASS - Stainless Steel
• Model JT950CACC - Bisque
