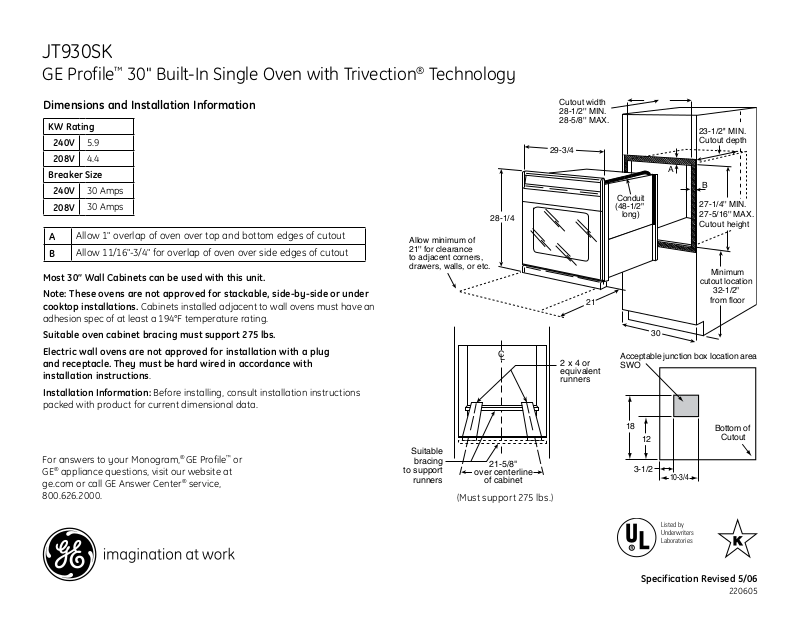

GE JT930SK Specification
JT930SK
GE Profile™ 30" Built-In Single Oven with Trivection® Technology
Dimensions and Installation Information
KW Rating
240V 5.9
208V 4.4
Breaker Size
240V 30 Amps
208V 30 Amps
A Allow 1" overlap of oven over top and bottom edges of cutout
B Allow 11/16"-3/4" for overlap of oven over side edges of cutout
Most 30” Wall Cabinets can be used with this unit.
Note: These ovens are not approved for stackable, side-by-side or under cooktop installations. Cabinets installed adjacent to wall ovens must have an adhesion spec of at least a 194°F temperature rating.
28-1/4
Allow minimum of 21'' for clearance to adjacent corners,
drawers, walls, or etc.
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
23-1/2'' MIN. Cutout depth
29-3/4
|
A |
|
Conduit |
B |
|
27-1/4'' MIN. |
||
(48-1/2" |
||
long) |
27-5/16'' MAX. |
|
|
Cutout height |
|
|
Minimum |
|
|
cutout location |
|
|
32-1/2" |
|
21 |
from floor |
Suitable oven cabinet bracing must support 275 lbs.
Electric wall ovens are not approved for installation with a plug and receptacle. They must be hard wired in accordance with installation instructions.
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
|
|
30 |
|
L |
|
Acceptable junction box location area |
|
C |
2 x 4 or |
SWO |
|
|
|
||
|
equivalent |
|
|
|
runners |
|
|
|
|
18 |
Bottom of |
|
|
12 |
Cutout |
Suitable |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
bracing |
21-5/8" |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
3-1/2 |
|
|
|
|
|
|
|
|
|
||||||
to support |
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
over centerline |
|
|
|
|
|
|
10-3/4 |
|
|
||||||
|
|
|
|
|
|
|
||||||||||
runners |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
of cabinet |
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||
(Must support 275 lbs.)
Listed by
Underwriters
Laboratories
Specification Revised 5/06
220605
JT930SK
GE Profile™ 30" Built-In Single Oven with Trivection® Technology
Features and Benefits
•Trivection Technology – Combines thermal, convection and microwave energies to produce quality food remarkably fast
• Speed Baking/Speed Broiling – Uses Trivection technology to cook food up to five times faster than a traditional oven
• Convection Bake (Multi-Rack) – Provides ideal convection baking for multiple racks of food, ensuring superb results
•Convection Roast – Provides even cooking and consistent results, roasting meats up to 25% faster than a conventional oven
•Chef’s GuideTM Glass Touch Oven Controls – Feature a smooth glass design that is both easy-to-operate and easy-to-clean
•Self-Clean Oven – Conveniently cleans oven cavity without the need for scrubbing.
•Extra-Large Oven Capacity – Provides a large oven interior ideal for cooking more items at once
•TrueTempTM System – Delivers even heat distribution and maximum oven control
•Model JT930SKSS – Stainless steel
Specification Revised 5/06
220605
