GE JT912SK Specification

R

JT912SK

Cutout width
28-1/2'' MIN.
28-5/8'' MAX.

29-3/4

28-1/4

30

Recommended

cutout location

32-1/2"

from floor

21

Junction
box
location

Allow minimum of 21'' for clearance
to adjacent corners, drawers, walls, or etc.

Conduit

(48-1/2"

long)

5

27-1/4'' MIN.
27-5/16'' MAX.
Cutout height

A

B

23-1/2'' MIN.
Cutout depth

22'' MIN.

C

L

(Must Support 275 LBS.)

2 x 4 or
equivalent
runners

Suitable
bracing
to support
runners

21-5/8"

over centerline

of cabinet

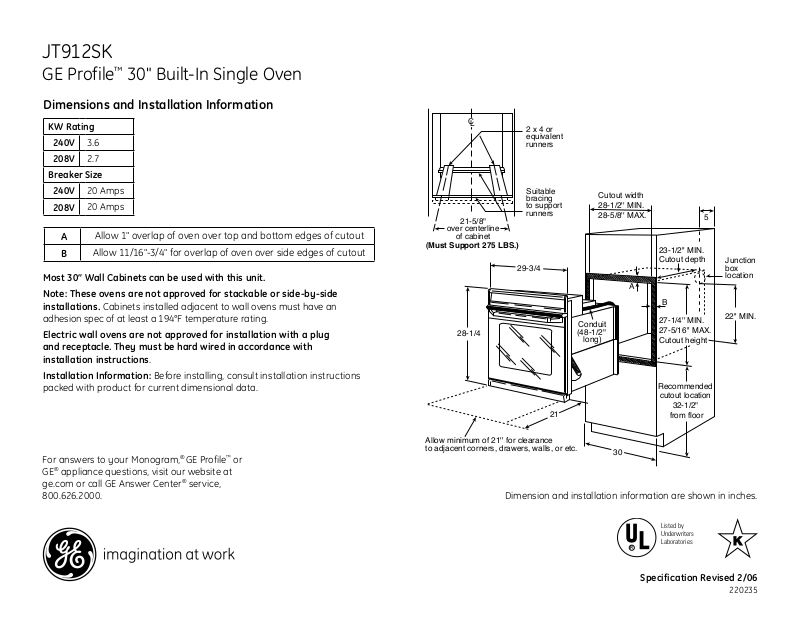

GE Profile™ 30" Built-In Single Oven

Dimensions and Installation Information

KW Rating

240V

208V

Breaker Size

240V

208V

3.6

2.7

20 Amps

20 Amps

A

B

Allow 1" overlap of oven over top and bottom edges of cutout

Allow 11/16"-3/4" for overlap of oven over side edges of cutout

Most 30” Wall Cabinets can be used with this unit.

Note: These ovens are not approved for stackable or side-by-side
installations. Cabinets installed adjacent to wall ovens must have an

adhesion spec of at least a 194°F temperature rating.

Electric wall ovens are not approved for installation with a plug
and receptacle. They must be hard wired in accordance with
installation instructions.

Installation Information: Before installing, consult installation instructions

packed with product for current dimensional data.

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

Dimension and installation information are shown in inches.

Listed by
Underwriters
Laboratories

Specification Revised 2/06

220235

R

JT912SK

Power cord
for cooktop

Junction box
for oven

Junction box in
adjacent cabinet
for cooktop
hook-up

2 (two) 90°elbows &
sufficient pipe to
connect in adjacent
cabinet

Right cabinet side

3/4" Support

Shut-off

valve

Pressure
regulator

1/2" Black

iron pipe

Union

Conduit

(48-1/2" long)

30" built-in

oven

3-1/2" MIN.
Free space

4" To 4-1/2"

3-1/4

22

Side View

5-9/16"

Reference dim.

for MAX. support

height with typical

36" countertop

height

36" Typical
Countertop height

Power cord

Reference
5-9/16

30-7/16

Free space

1-1/2" MIN.

1-1/2" Typical countertop

Side View

22

27-5/16" MAX.

Cutout height

27-1/4" MIN.

Junction box(s) for

oven & radiant

cooktop 22" from

floor

Add suitable

filler to match

adjacent cabinets

when needed

to maintain toe

kick alignment

30" Oven W/ Rad. Cktp.

5

24

25

Gas or electric cooktops may be installed
over this oven. See cooktop installation
instructions for cutout size. See label on
top of oven for approved cooktop models.

Gas (including the pressure regulator) and
electrical connections for gas cooktop must
be located in an adjacent accessible location.
For a 30" gas cooktop, the connections are
more conveniently made to the right.

120 Volt
Outlet

Gas
connection

Junction box
location
240/208V

36'' MIN.

4'' To 4-1/2 '' Toe kick allowable

Match toe kick height
front and two sides

22'' MIN. above
support platform

Top and/or side
fillers may be
necessary if unit
is positioned
between
existing cabinets

28-1/2'' MIN.
28-5/8'' MAX.

3/4'' Support
platform required

23-1/2" MIN.
Cutout depth

Allow 11/16''
overlap over side
edges of cutout

1-1/2"
Countertop

27-1/4'' MIN.
27-5/16'' MAX.
Cutout height

GE Profile™ 30" Built-In Single Oven

Optional Undercounter Dimensions and Installation Information

Note: 36” ribbon cooktops (excluding JP968)

are approved for use over GE 30” single wall
ovens only. 30” ribbon cooktops (excluding
JP938) are approved for use over GE 30” and
GE 27” single wall ovens. Model JP938 can be
installed over 27” wall ovens except stainless
model JK915 and JK912SF. Refer to cooktop
and wall oven installation information packed
with products for current dimensional data.

Note: CleanDesign or Sealed Burner Gas

This installation is to achieve minimum gap
between bottom of countertop and control
panel. For this installation, the bottom trim will
not be flush with a typical 4” toe kick

Note: Cabinets installed adjacent to wall ovens
must have an adhesion spec of at least a 194°F
temperature rating.

Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.

With 36" Gas Cooktop

With 30" CleanDesign or Sealed Burner Gas Cooktop

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

Dimension and installation information are shown in inches.

Listed by
Underwriters
Laboratories

Specification Revised 2/06

220235
