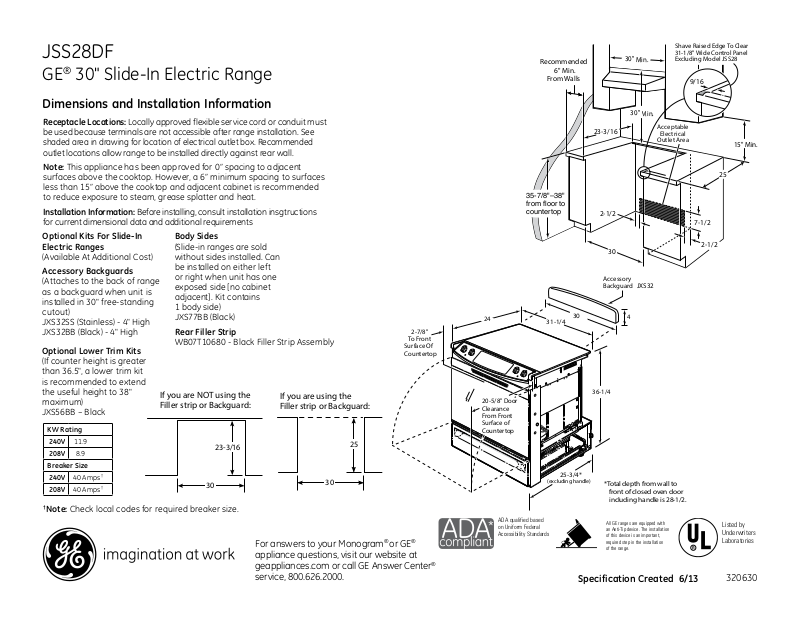

GE JSS28DFBB Specification Sheet
JSS28DF
23-3/16
30
30
If you are NOT using the
Filler strip or Backguard:
If you are using the
Filler strip or Backguard:
25
Acceptable
Electrical
Outlet Area
30" Min.
30" Min.
Shave Raised Edge To Clear
31-1/8" Wide Control Panel
Excluding Model JSS28
23-3/16
15" Min.
2-1/2
30
25
9/16
7-1/2
2-1/2
23-3/16
30
30
If you are NOT using the
Filler strip or Backguard:
If you are using the
Filler strip or Backguard:
25
23-3/16
30
If you are NOT using the
Filler strip or Backguard:
GE® 30" Slide-In Electric Range
Recommended
6" Min.
From Walls
30" Min.
Shave Raised Edge To Clear
31-1/8" Wide Control Panel
Excluding Model JSS28
9/16
Dimensions and Installation Information
Receptacle Locations: Locally approved flexible service cord or conduit must
be used because terminals are not accessible after range installation.
shaded area in drawing for location of electrical outlet box. Recommended
outlet locations allow range to be installed directly against rear wall.
Note: This appliance has been approved for 0” spacing to adjacent
surfaces above the cooktop. However, a 6” minimum spacing to surfaces
less than 15” above the cooktop and adjacent cabinet is recommended
to reduce exposure to steam, grease splatter and heat.
Installation Information: Before installing, consult installation insgtructions
for current dimensional data and additional requirements
Optional Kits For Slide-In
Electric Ranges
(Available At Additional Cost)
Accessory Backguards
(Attaches to the back of range
as a backguard when unit is
installed in 30" free-standing
cutout)
JXS32SS (Stainless) - 4" High
JXS32BB (Black) - 4" High
Optional Lower Trim Kits
(If counter height is greater
than 36.5", a lower trim kit
is recommended to extend
the useful height to 38"
maximum)
JXS56BB – Black
KW Rating
240V
208V
Breaker Size
240V
208V
†
Note: Check local codes for required breaker size.
11.9
8.9
†
40 Amps
†
40 Amps
(Slide-in ranges are sold
without sides installed. Can
Body Sides
be installed on either left
or right when unit has one
exposed side [no cabinet
adjacent]. Kit contains
1 body side)
JXS77BB (Black)
Rear Filler Strip
WB07T10680 - Black Filler Strip Assembly
If you are NOT using the
Filler strip or Backguard:
23-3/16
30
For answers to your Monogram® or GE®
appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
See
If you are using the
Filler strip or Backguard:
25
30
2-7/8"
To Front
Surface Of
Countertop
24
20-5/8" Door
Clearance
From Front
Surface of
Countertop
ADA qualified based
on Uniform Federal
*
Accessibility Standards
35-7/8"–38"
from floor to
countertop
31-1/4
(excluding handle)
30" Min.
23-3/16
2-1/2
30
30
25-3/4*
Accessory
Backguard
36-1/4
*Total depth from wall to
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
JXS32
4
front of closed oven door
including handle is 28-1/2.
Specification Created 6/13
Acceptable
Electrical
Outlet Area
15" Min.
25
7-1/2
2-1/2
Listed by
Underwriters
Laboratories
320630
JSS28DF
LIGHT
GE® 30" Slide-In Electric Range
Features and Benefits
• Coil Heating Elements - Provide even heat and easy cleanup
• Electronic Oven Controls - Electronic touch pads are easy to
operate
• Removable Full-Width Storage Drawer - Store cookware or
kitchen accessories
• 4.4 cu. ft. Oven Capacity - Enough room to cook an entire meal
at once
• Standard Clean Oven - Smooth surface and rounded corners
make clean-up quick and easy
• Chrome Drip Bowls - Contain spills and remove for easy cleaning
• Model JSS28DFWW - White on white
• Model JSS28DFCC - Bisque on bisque
Specification Created 6/13
320630
