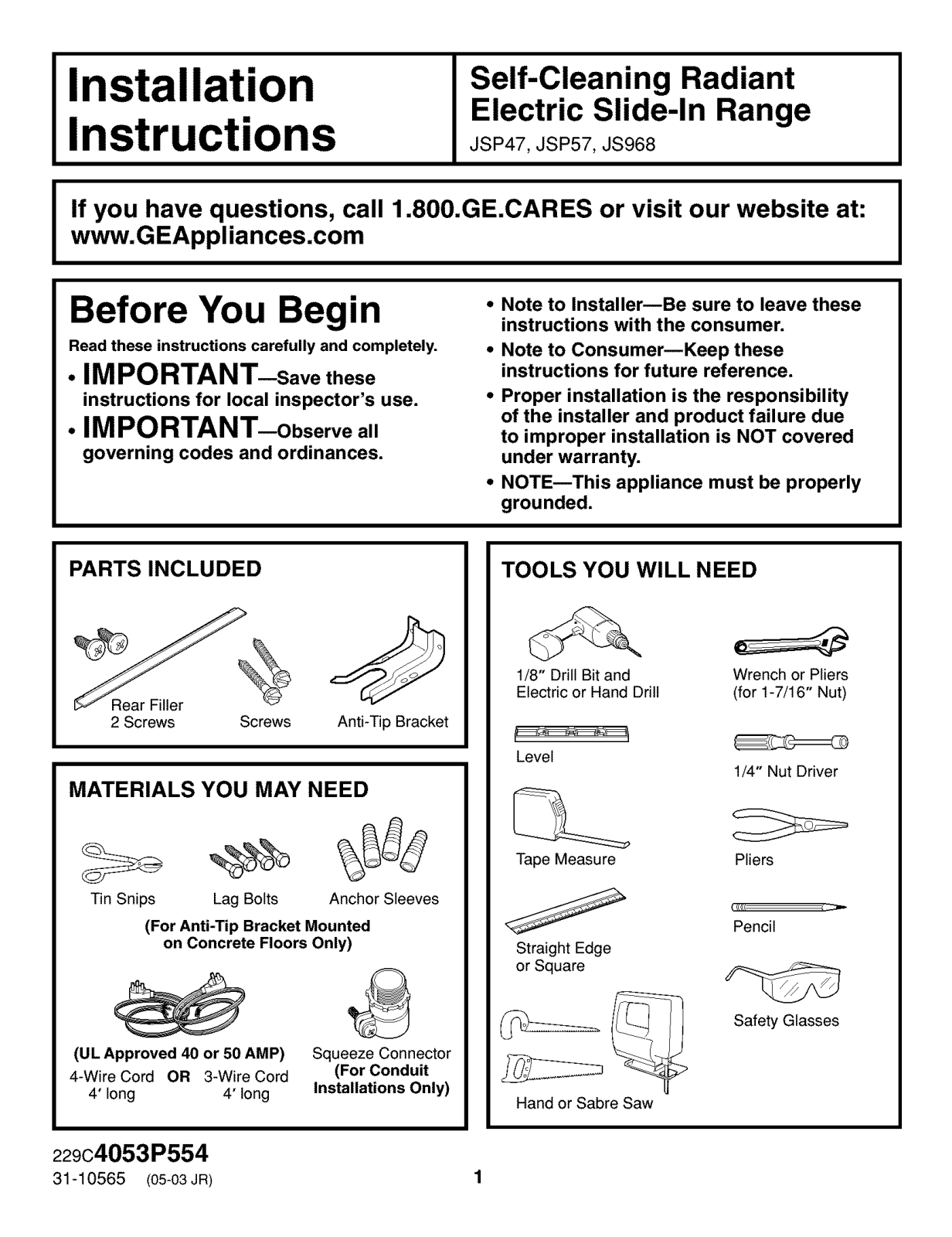

GE JDP47BF3BB, JDP47CF3CC, JDP47WF3WW, JS968BF3BB, JS968KF3CC Installation Guide

Installation

Self-Cleaning Radiant

Electric Slide-In Range

Instructions

I If you have questions, call 1.800.GE.CARES or visit our website at:www.GEAppliances.com I

JSP47, JSP57, JS968

Before You Begin

Read these instructions carefully and completely.

• IM PO RTANT-save these

instructions for local inspector's use.

• IMPORTANT-observeall

governing codes and ordinances.

PARTS INCLUDED

2 Screws Screws

MATERIALS YOU MAY NEED

Anti-Tip Bracket

• Note to Installer--Be sure to leave these
instructions with the consumer.

• Note to Consumer--Keep these
instructions for future reference.

• Proper installation is the responsibility

of the installer and product failure due
to improper installation is NOT covered

under warranty.

• NOTE--This appliance must be properly

grounded.

TOOLS YOU WILL NEED

1/8" Drill Bit and
Electric or Hand Drill

Level

Wrench or Pliers
(for 1-7/16" Nut)

1/4" Nut Driver

Tin Snips Lag Bolts Anchor Sleeves

(For Anti-Tip Bracket Mounted

on Concrete Floors Only)

(UL Approved 40 or 50 AMP)

4-Wire Cord OR 3-Wire Cord

4' long 4" long

Squeeze Connector

(For Conduit

Installations Only)

229c4053P554

31-10565 (05-03 JR) 1

Tape Measure

Straight Edge
or Square

Hand or Sabre Saw

Pliers

( Ill(I

Pencil

Safety Glasses

Installation Instructions

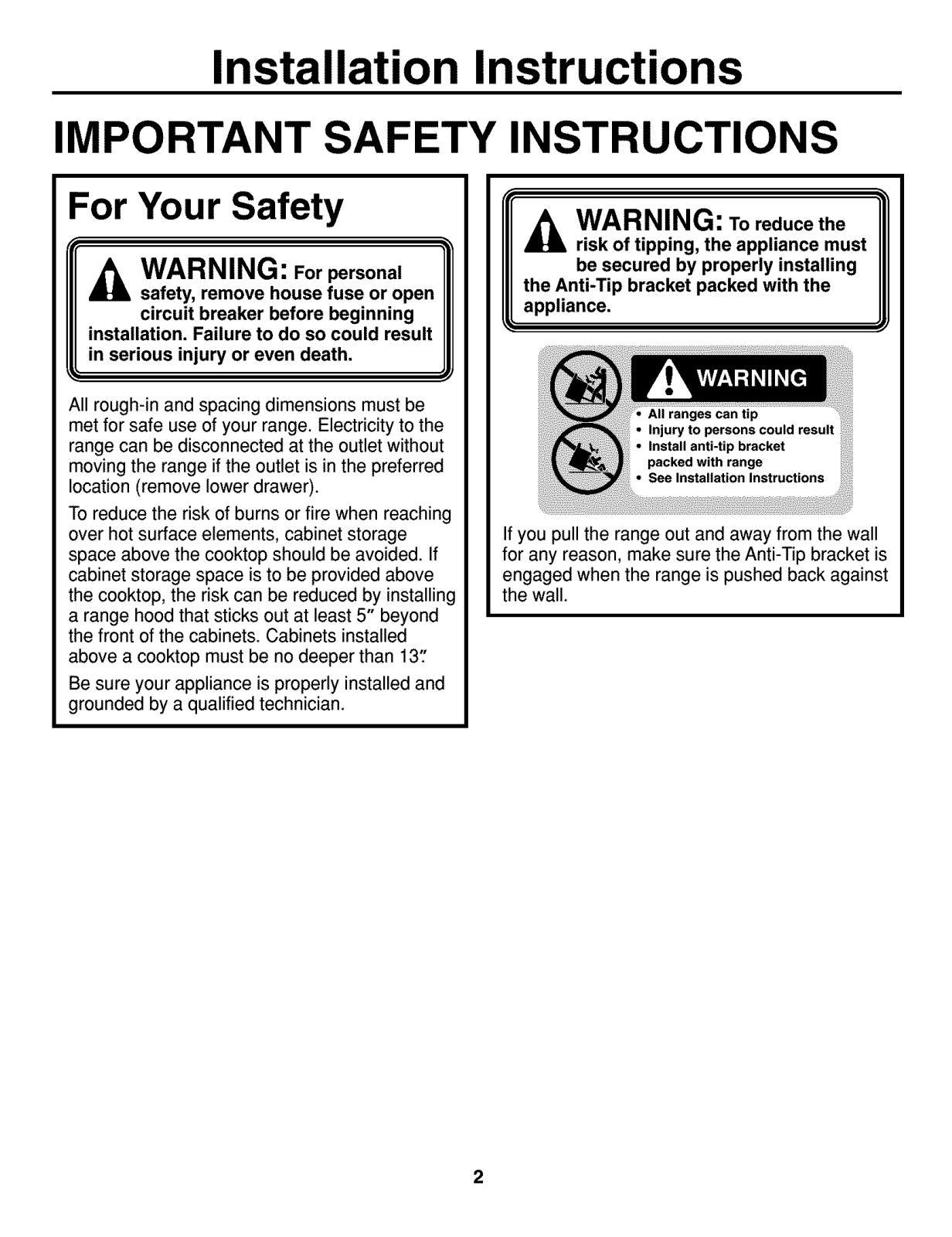

IMPORTANT SAFETY INSTRUCTIONS

For Your Safety

_i WARNING: For personal

installation. Failure to do so could result
in serious injury or even death.

All rough-in and spacing dimensions must be

met for safe use of your range. Electricity to the
range can be disconnected at the outlet without
moving the range if the outlet is in the preferred
location (remove lower drawer).

To reduce the risk of burns or fire when reaching
over hot surface elements, cabinet storage
space above the cooktop should be avoided. If
cabinet storage space is to be provided above
the cooktop, the risk can be reduced by installing
a range hood that sticks out at least 5" beyond

the front of the cabinets. Cabinets installed
above a cooktop must be no deeper than 13"

Be sure your appliance is properly installed and

grounded by a qualified technician.

safety, remove house fuse or open
circuit breaker before beginning

__ WARNING: Toreducethe

the Anti-Tip bracket packed with the
appliance.

If you pull the range out and away from the wall
for any reason, make sure the Anti-Tip bracket is
engaged when the range is pushed back against

the wall.

risk of tipping, the appliance must
be secured by properly installing

2

Installation Instructions

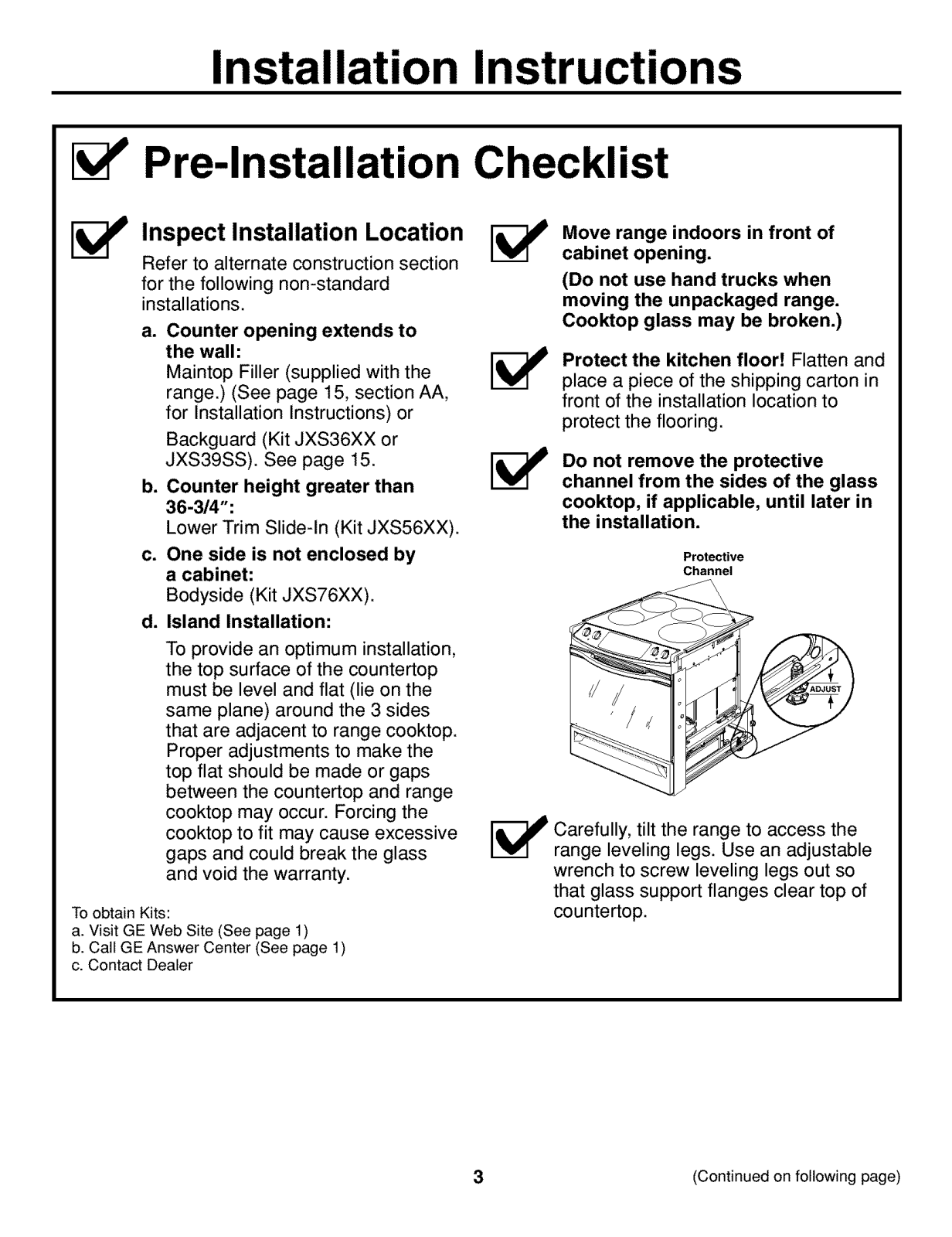

Pre-lnstallation Checklist

Inspect Installation Location

Refer to alternate construction section

for the following non-standard
installations.

a.

Counter opening extends to

the wall:

Maintop Filler (supplied with the
range.) (See page 15, section AA,

for Installation Instructions) or

Backguard (Kit JXS36XX or

JXS39SS). See page 15.

b.

Counter height greater than

36-3/4":

Lower Trim Slide-In (Kit JXS56XX).

c. One side is not enclosed by

a cabinet:

Bodyside (Kit JXS76XX).

d. Island Installation:

To provide an optimum installation,
the top surface of the countertop

must be level and flat (lie on the
same plane) around the 3 sides
that are adjacent to range cooktop.

Proper adjustments to make the
top flat should be made or gaps
between the countertop and range
cooktop may occur. Forcing the
cooktop to fit may cause excessive
gaps and could break the glass
and void the warranty.

To obtain Kits:
a. Visit GE Web Site (See page 1)

b. Call GE Answer Center (See page 1)

c. Contact Dealer

Move range indoors in front of

cabinet opening.
(Do not use hand trucks when

moving the unpackaged range.

Cooktop glass may be broken.)

Protect the kitchen floor! Flatten and

place a piece of the shipping carton in
front of the installation location to

protect the flooring.

Do not remove the protective

channel from the sides of the glass
cooktop, if applicable, until later in
the installation.

Protective
Channel

Carefully, tilt the range to access the
range leveling legs. Use an adjustable
wrench to screw leveling legs out so
that glass support flanges clear top of
countertop.

3 (Continued on following page)

Installation Instructions

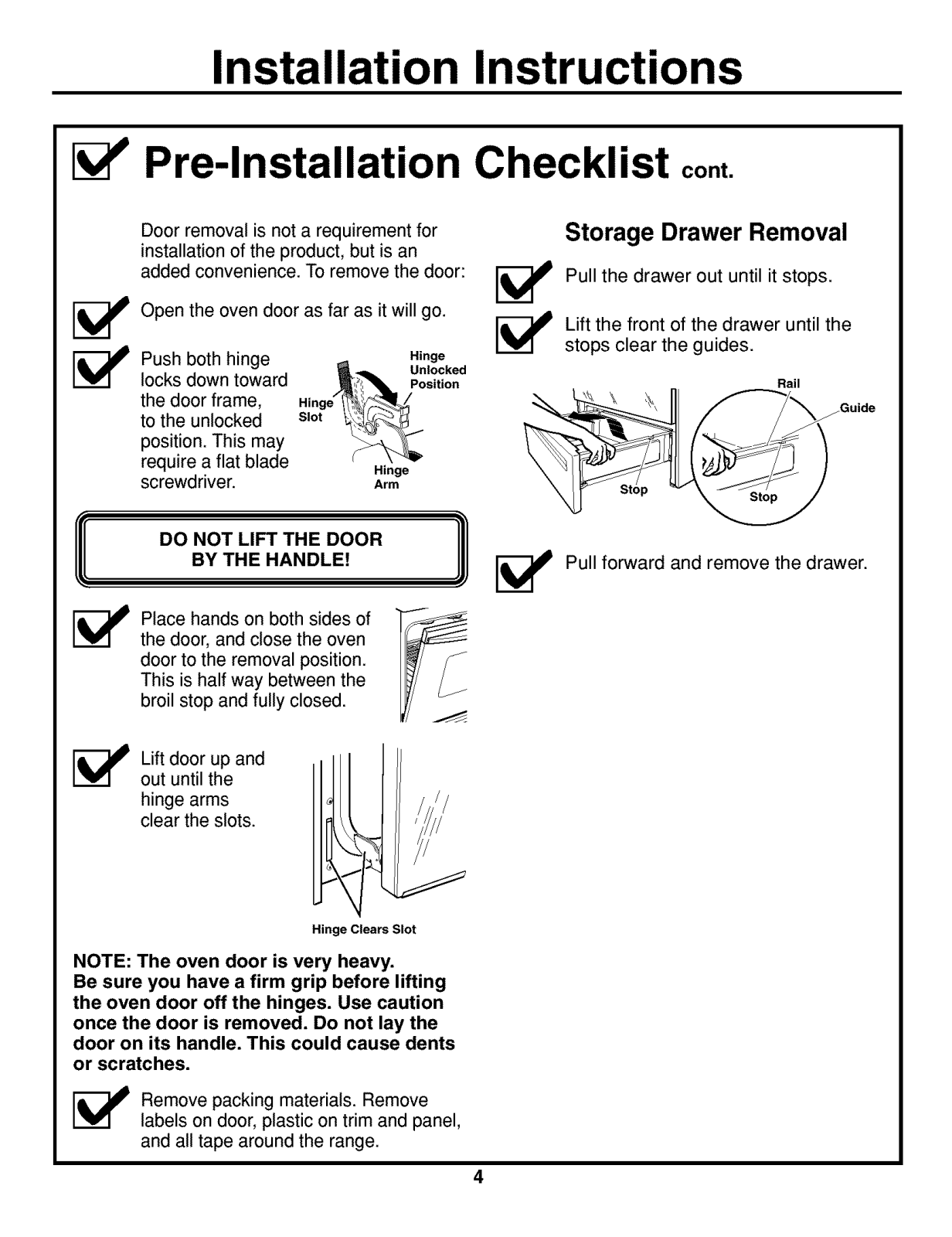

Pre-lnstallation Checklist cont.

II

Door removal is not a requirement for
installation of the product, but is an

added convenience. To remove the door:

Open the oven door as far as it will go.

Push both hinge Hinge
locks down toward . -'_i_ /

the door frame, Hingei/_ I
to the unlocked s_ot_

position. This may
require a flat blade Hinge

screwdriver. Arm

DO NOT LIFT THE DOOR

BY THE HANDLE!

Place hands on both sides of

the door, and close the oven
door to the removal position.
This is half way between the

broil stop and fully closed.

_IL. Unlocked

',_'I Position

Storage Drawer Removal

Pull the drawer out until it stops.

Lift the front of the drawer until the

stops clear the guides.

Rail

i] [_ Pull forward and remove the drawer.

[_ Lift door up and

NOTE: The oven door is very heavy.
Be sure you have a firm grip before lifting

the oven door off the hinges. Use caution
once the door is removed. Do not lay the

door on its handle. This could cause dents
or scratches.

[_ Remove packing materials. Remove

out until the

hinge arms

clear the slots.

Hinge Clears Slot

labels on door, plastic on trim and panel,
and all tape around the range.

4

Installation Instructions

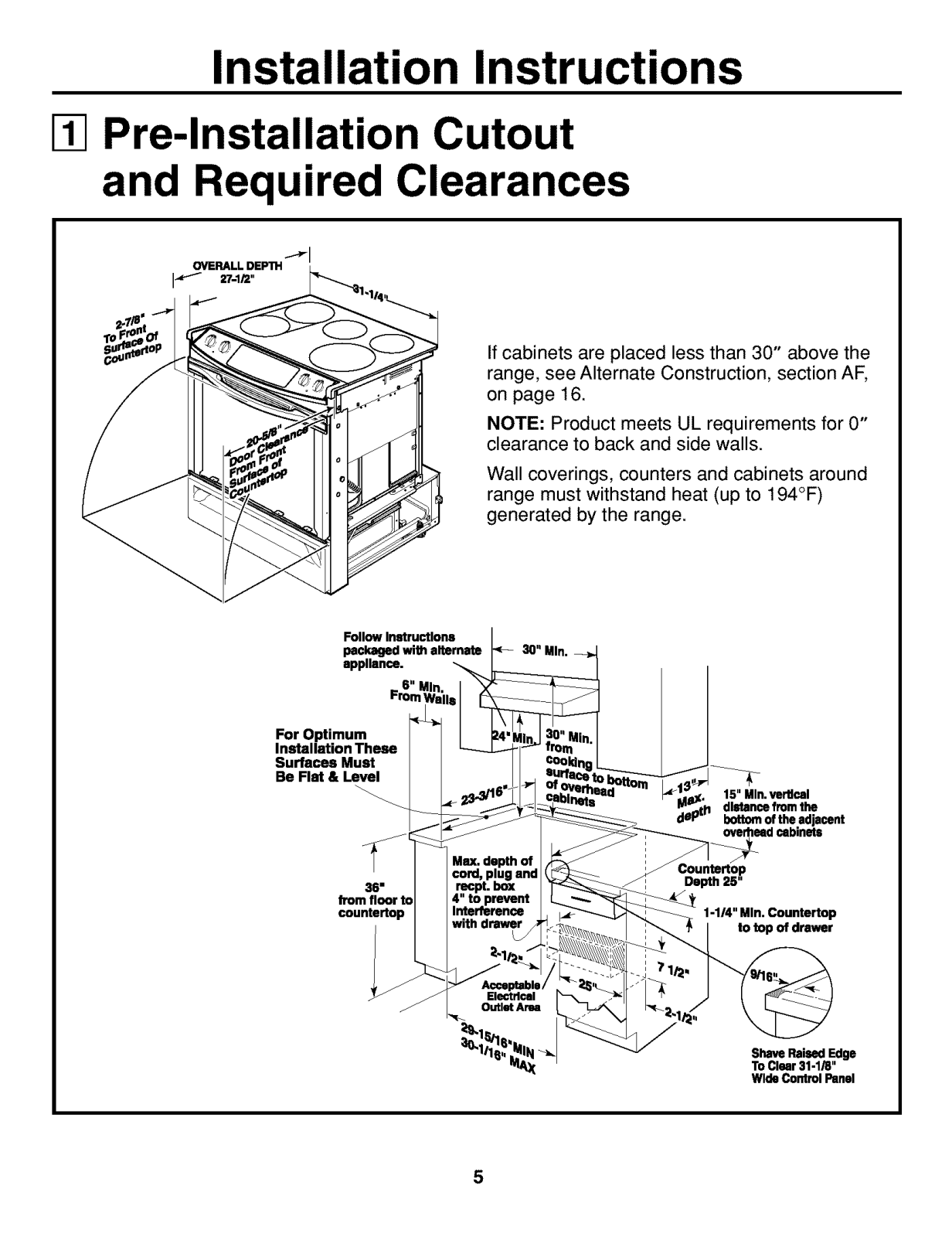

IT]Pre-lnstallation Cutout

and Required Clearances

If cabinets are placed less than 30" above the
range, see Alternate Construction, section AF,

on page 16.

NOTE: Product meets UL requirements for 0"

clearance to back and side walls.
Wall coverings, counters and cabinets around

range must withstand heat (up to 194°F)

generated by the range.

Follow Instructions
packaged with alternate

appliance.

For Optimum

Installation These
Surfaces Must
Be FIst & Level

36"

h'omfloorto
countertop

15" MIn. verlleal

distancefromthe
bottomof theadjacent

overhead cabinets

_ Counto_op

J Depth 25"

1-1/4"MIn. Countertop

to topof drawer

ShaveRaisedEdge
ToClear31-1/8"

WideControlPanel

5

Installation Instructions

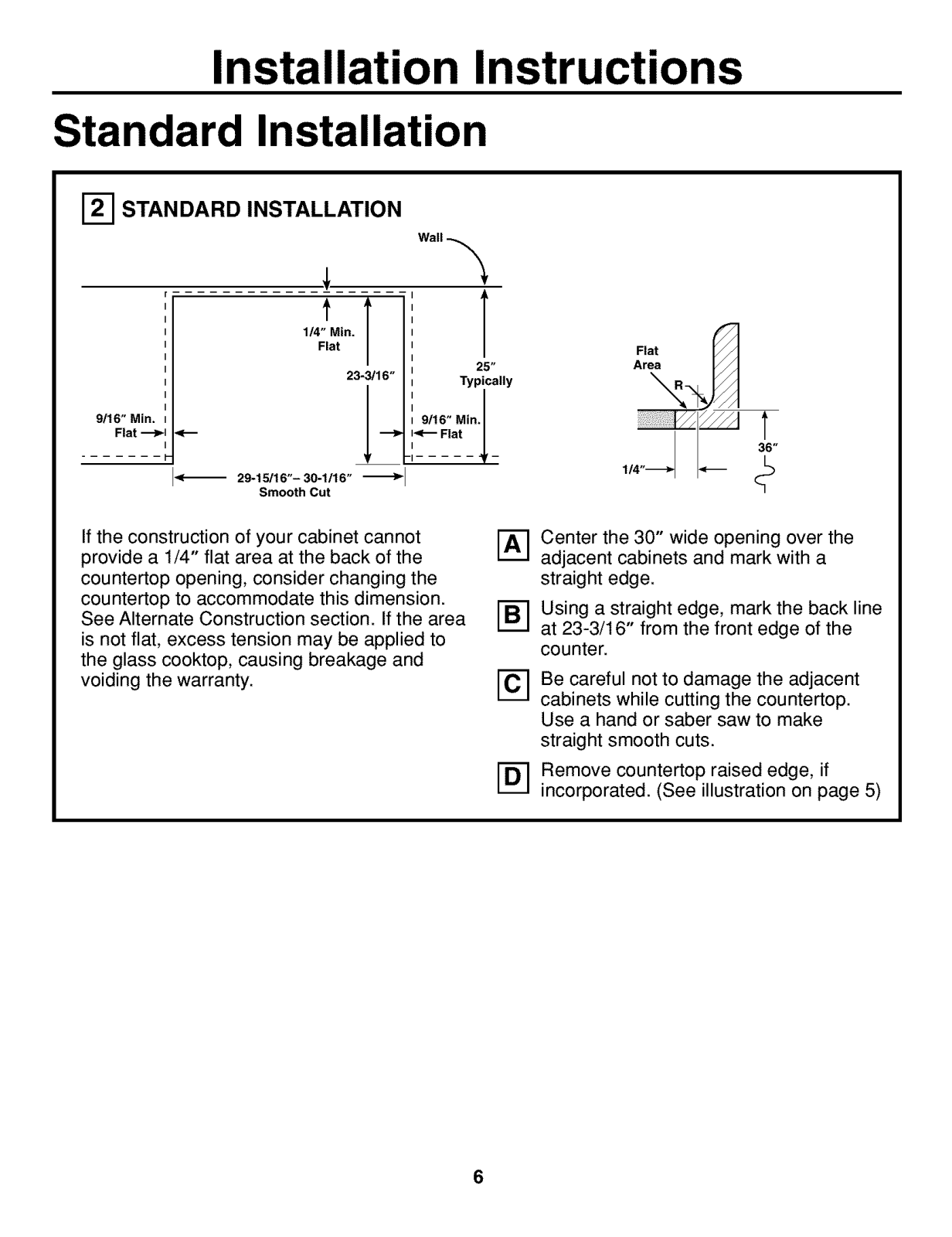

Standard Installation

I-2--]STANDARD INSTALLATION

Jt Wall -_

23-3/16" Typically

/

9/16" Min. / 9/16" Min.

25"

Flat

Area

F,a,--.:- L--'i"-F'a'

<-_ 29-15/16"-30-1/16" "_1

Smooth Cut

If the construction of your cabinet cannot
provide a 1/4" flat area at the back of the
countertop opening, consider changing the
countertop to accommodate this dimension.

See Alternate Construction section. If the area

is not flat, excess tension may be applied to
the glass cooktop, causing breakage and
voiding the warranty. [-_

L.C._I

[_] Remove countertop raised edge, if

1/4"-_> <_ 36"

Center the 30" wide opening over the
adjacent cabinets and mark with a
straight edge.

Using a straight edge, mark the back line
at 23-3/16" from the front edge of the

counter.
Be careful not to damage the adjacent

cabinets while cutting the countertop.
Use a hand or saber saw to make

straight smooth cuts.

incorporated. (See illustration on page 5)

6
