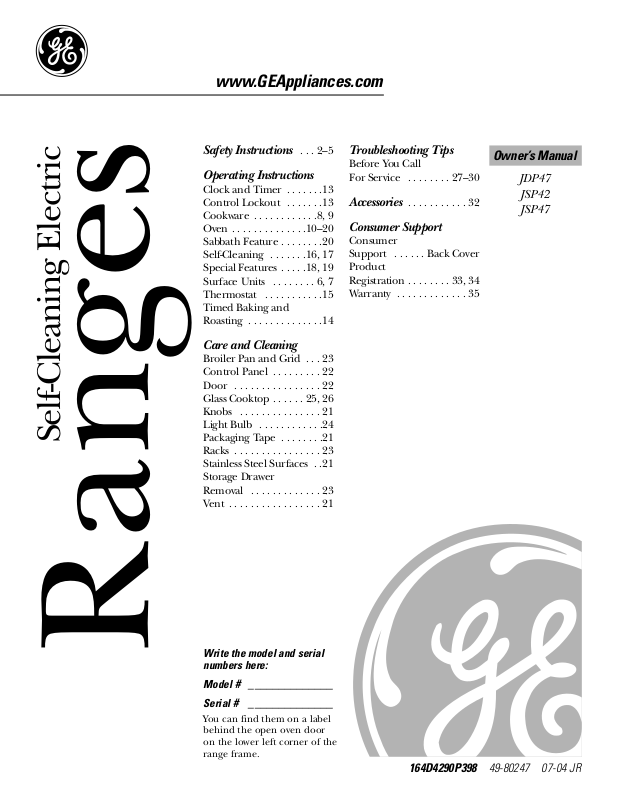

GE JSP47, JSP42 User Manual

www.GEAppliances.com
164D4290P398 49-80247 07-04 JR
Write the model and serial numbers here:
Model
# ______________
Serial
# ______________
Ranges
Self-Cleaning Electric
Safety Instructions . . . 2–5

Operating Instructions

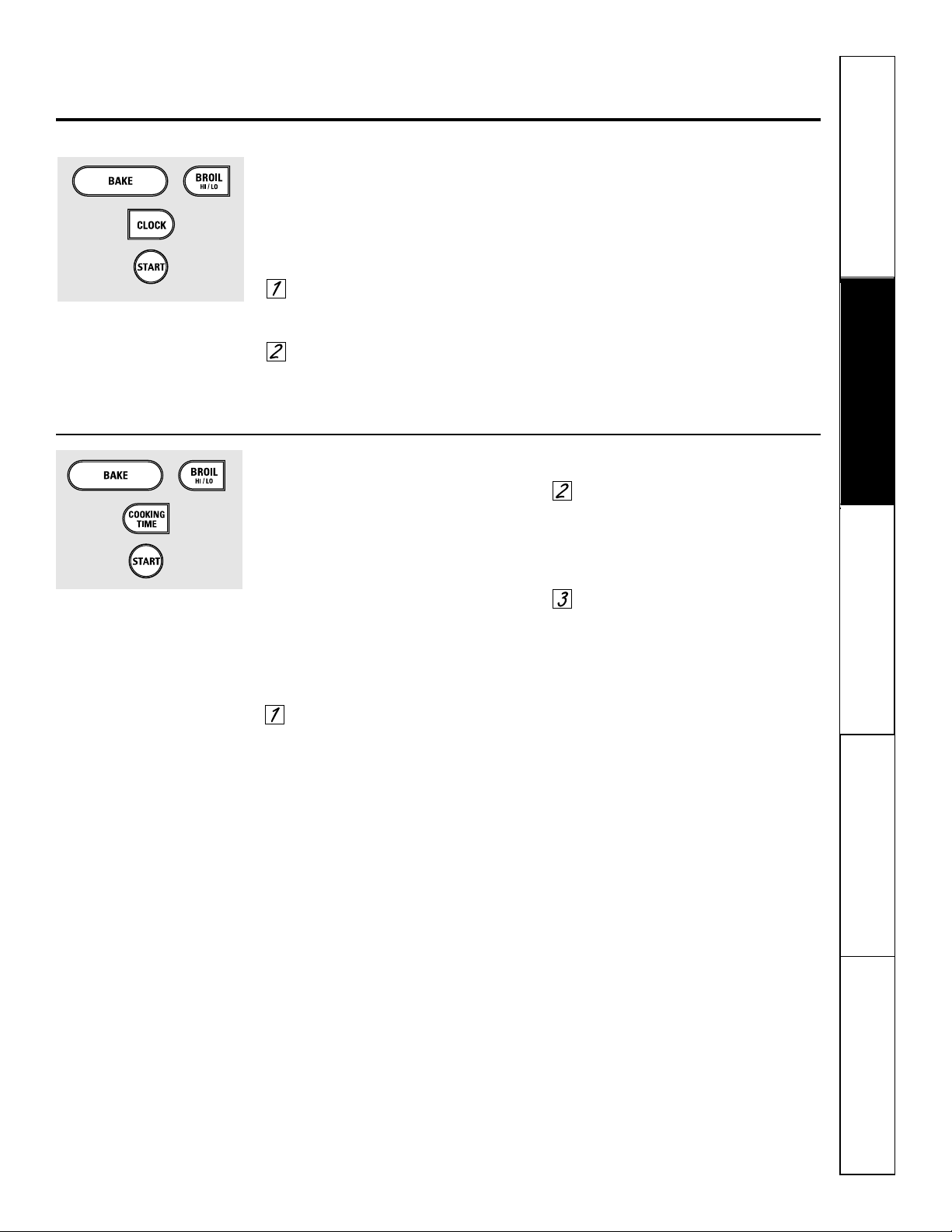

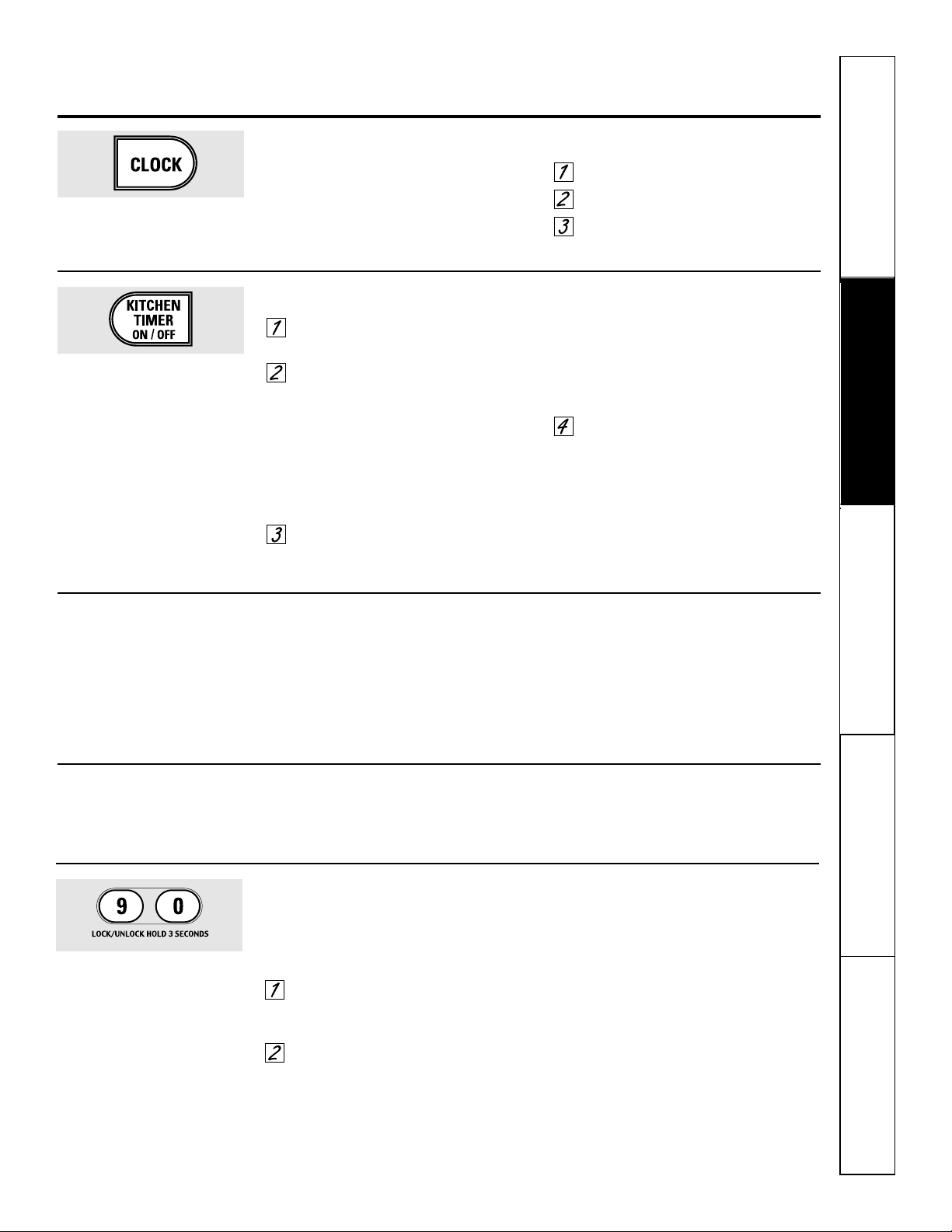

Clock and Timer . . . . . . .13
Control Lockout . . . . . . .13
Cookware . . . . . . . . . . . .8, 9

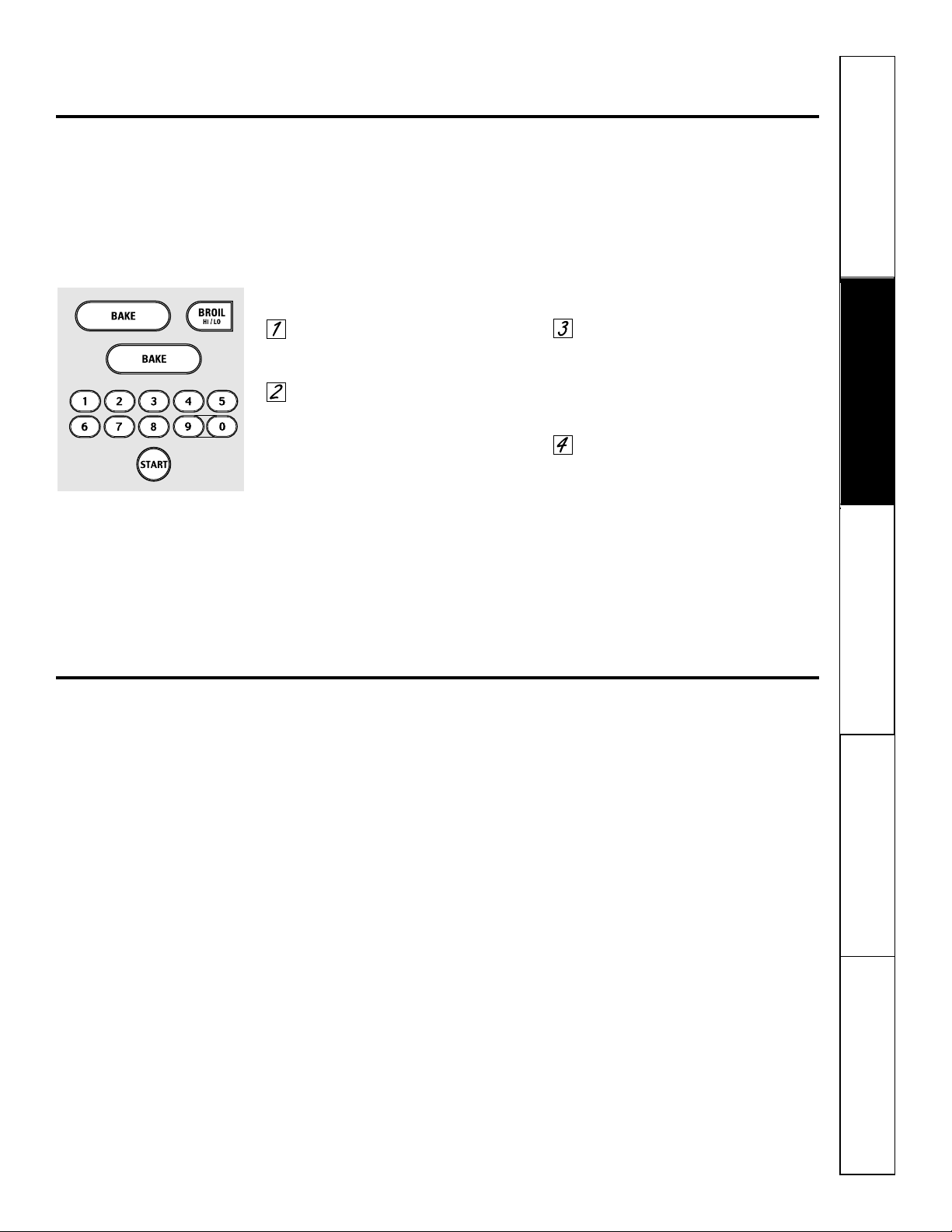

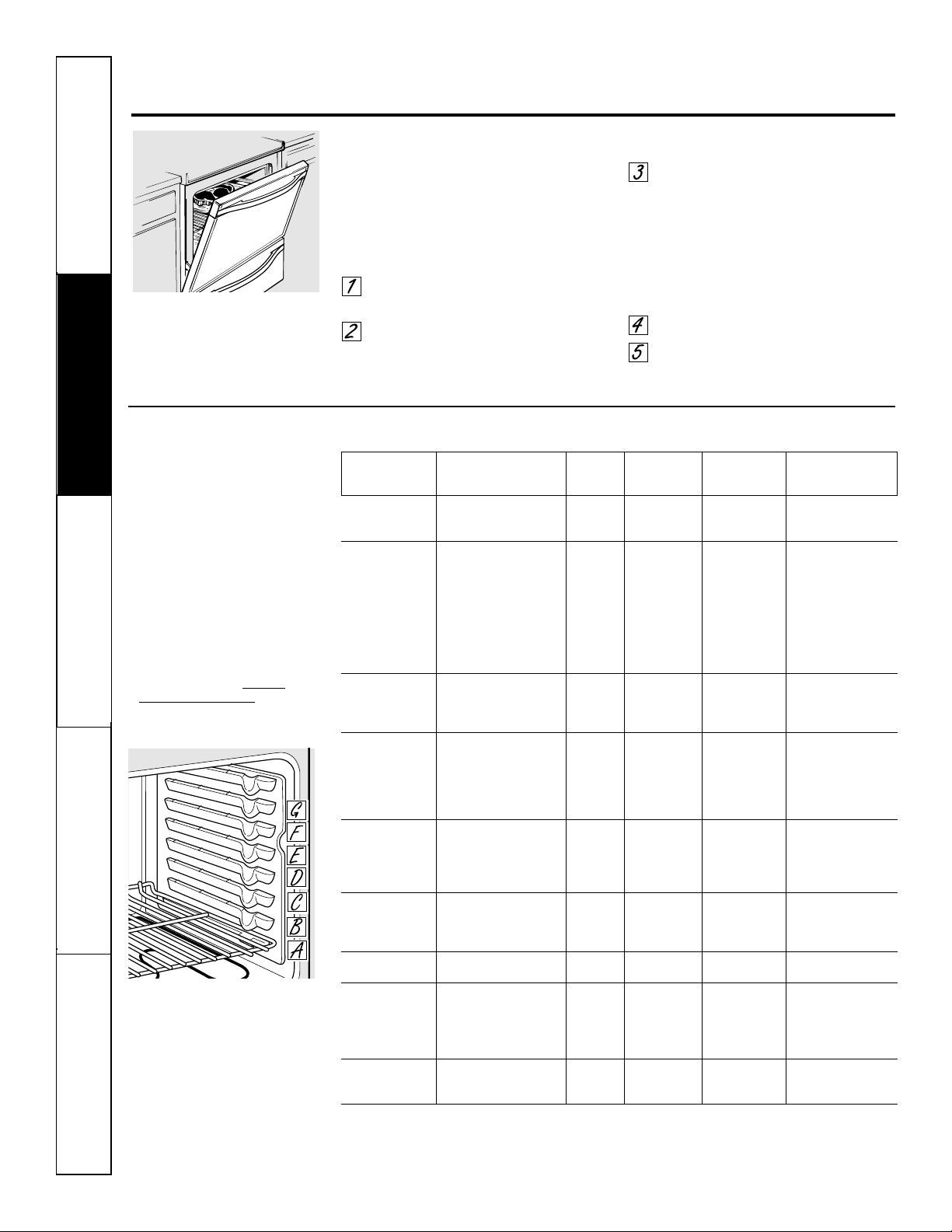

Oven . . . . . . . . . . . . . .10–20
Sabbath Feature . . . . . . . .20

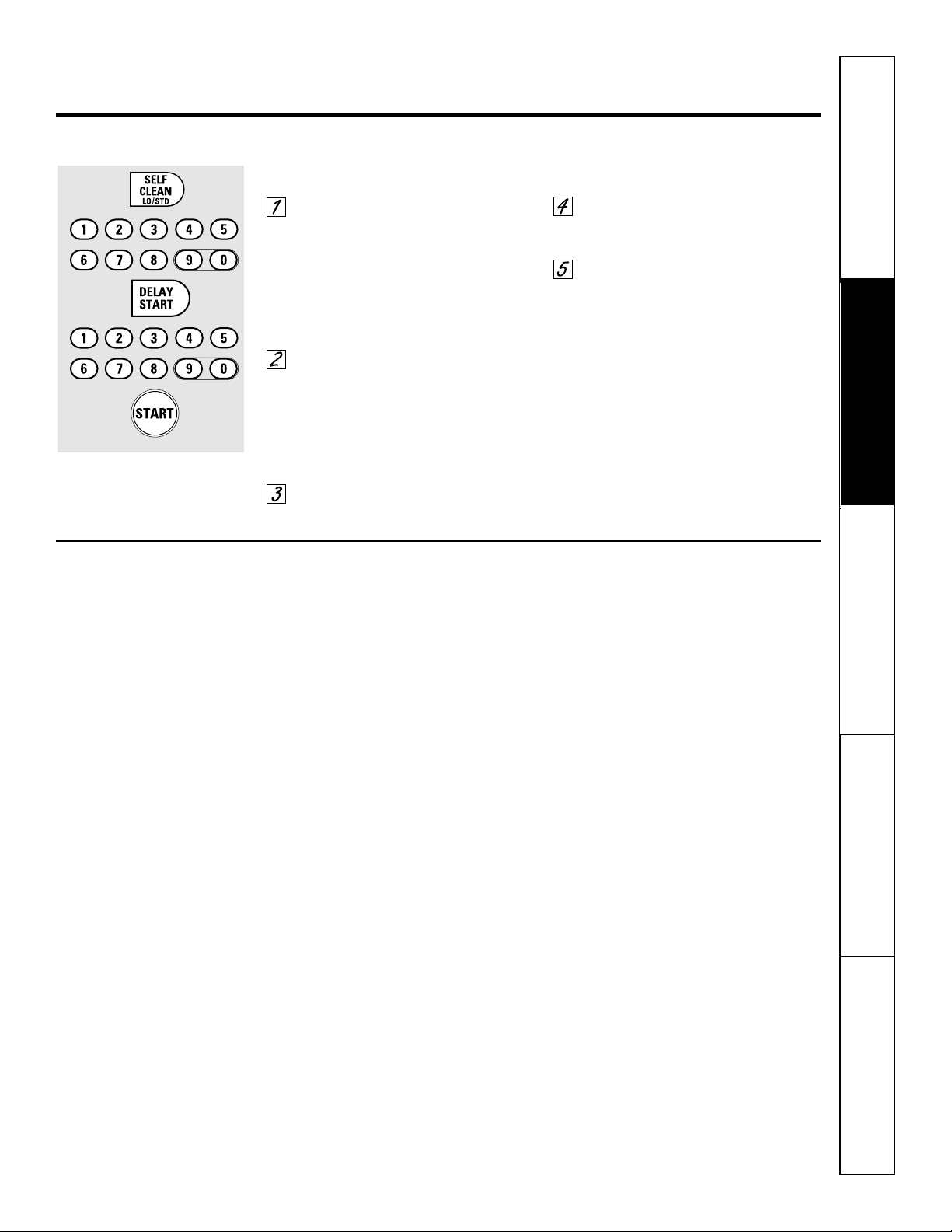

Self-Cleaning . . . . . . .16, 17
Special Features . . . . .18, 19
Surface Units . . . . . . . . 6, 7
Thermostat . . . . . . . . . . .15

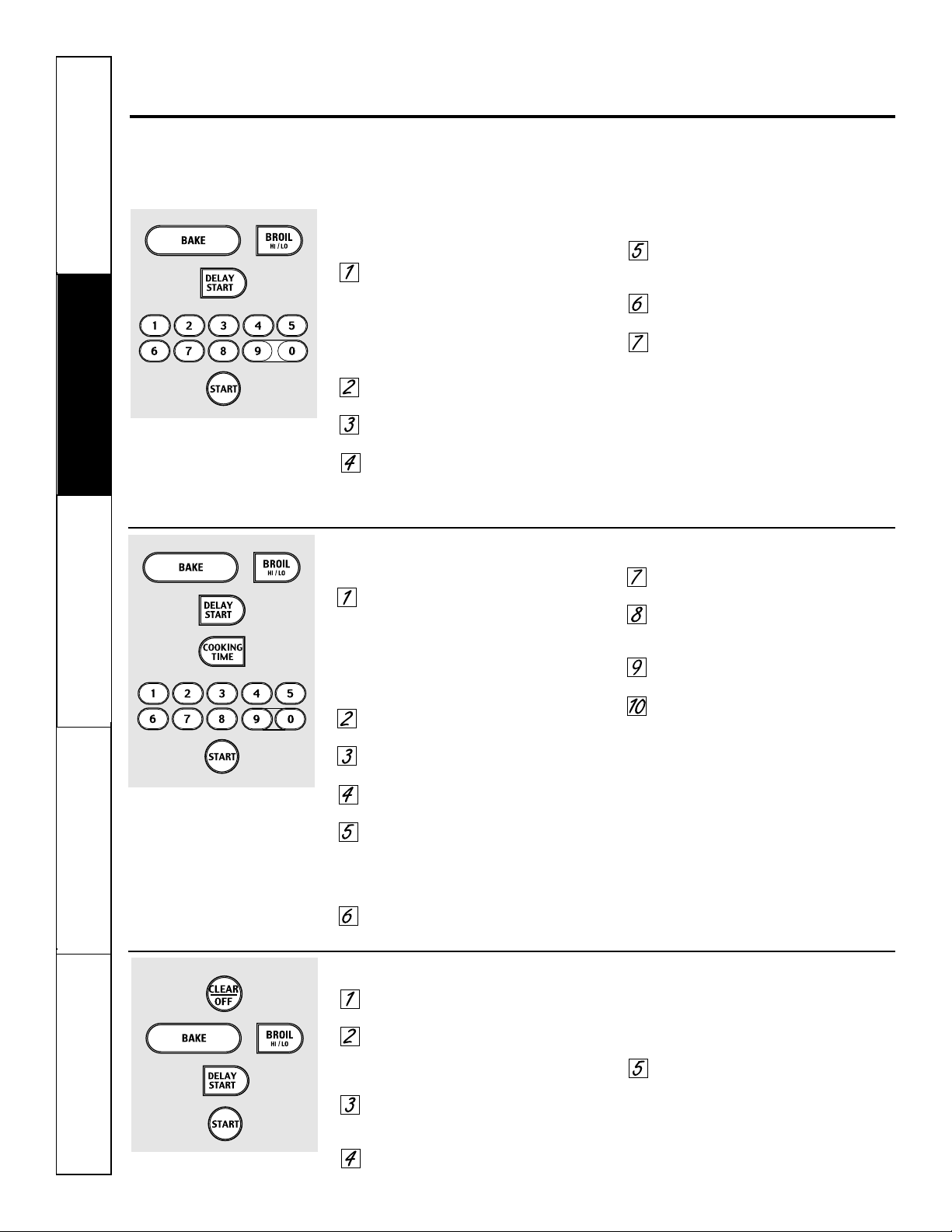

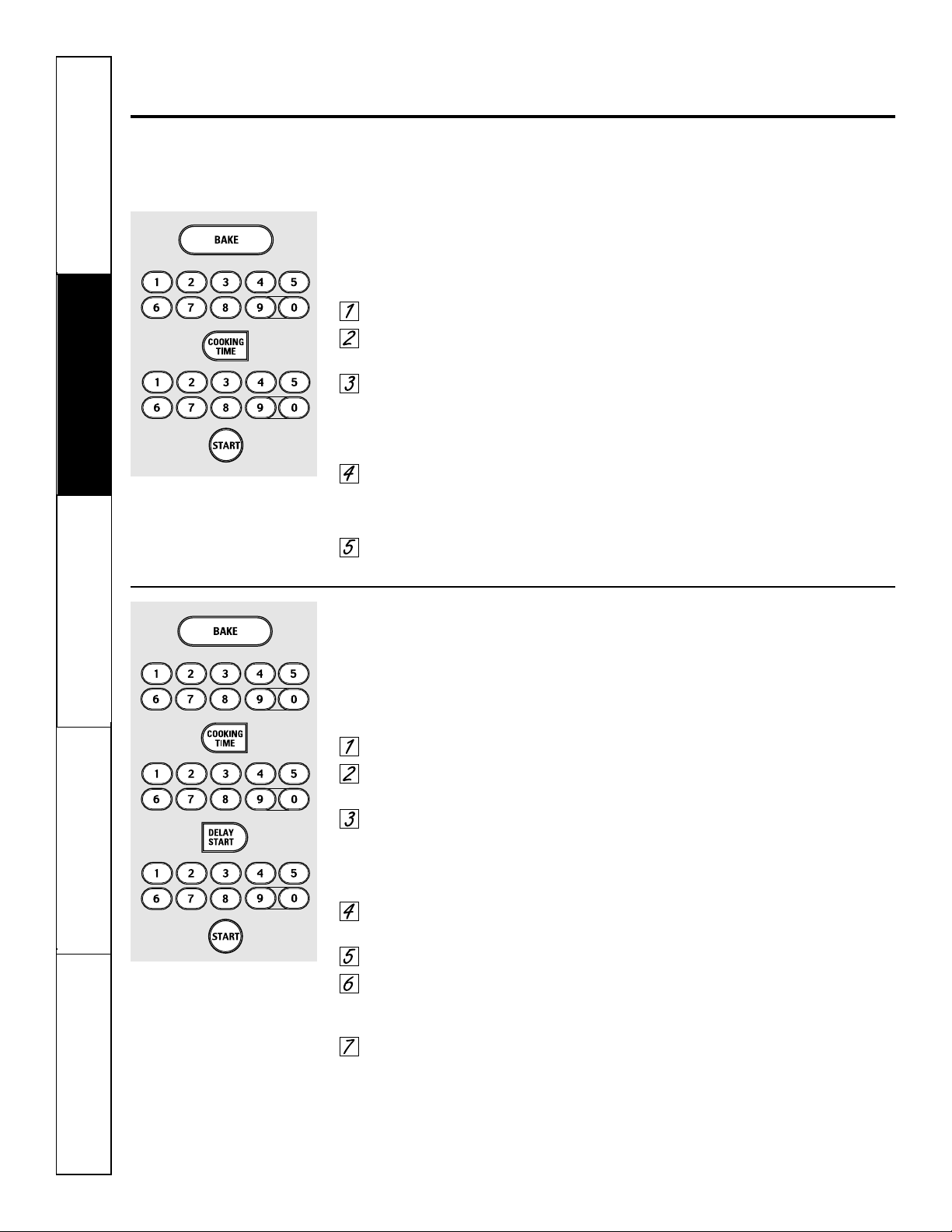

Timed Baking and
Roasting . . . . . . . . . . . . . .14

Care and Cleaning

Broiler Pan and Grid . . . 23
Control Panel . . . . . . . . . 22
Door . . . . . . . . . . . . . . . . 22
Glass Cooktop . . . . . . 25, 26
Knobs . . . . . . . . . . . . . . . 21
Light Bulb . . . . . . . . . . . .24
Packaging Tape . . . . . . . .21
Racks . . . . . . . . . . . . . . . . 23
Stainless Steel Surfaces . .21 Storage Drawer
Removal . . . . . . . . . . . . . 23
Vent . . . . . . . . . . . . . . . . . 21

Troubleshooting Tips

Before You Call
For Service . . . . . . . . 27–30

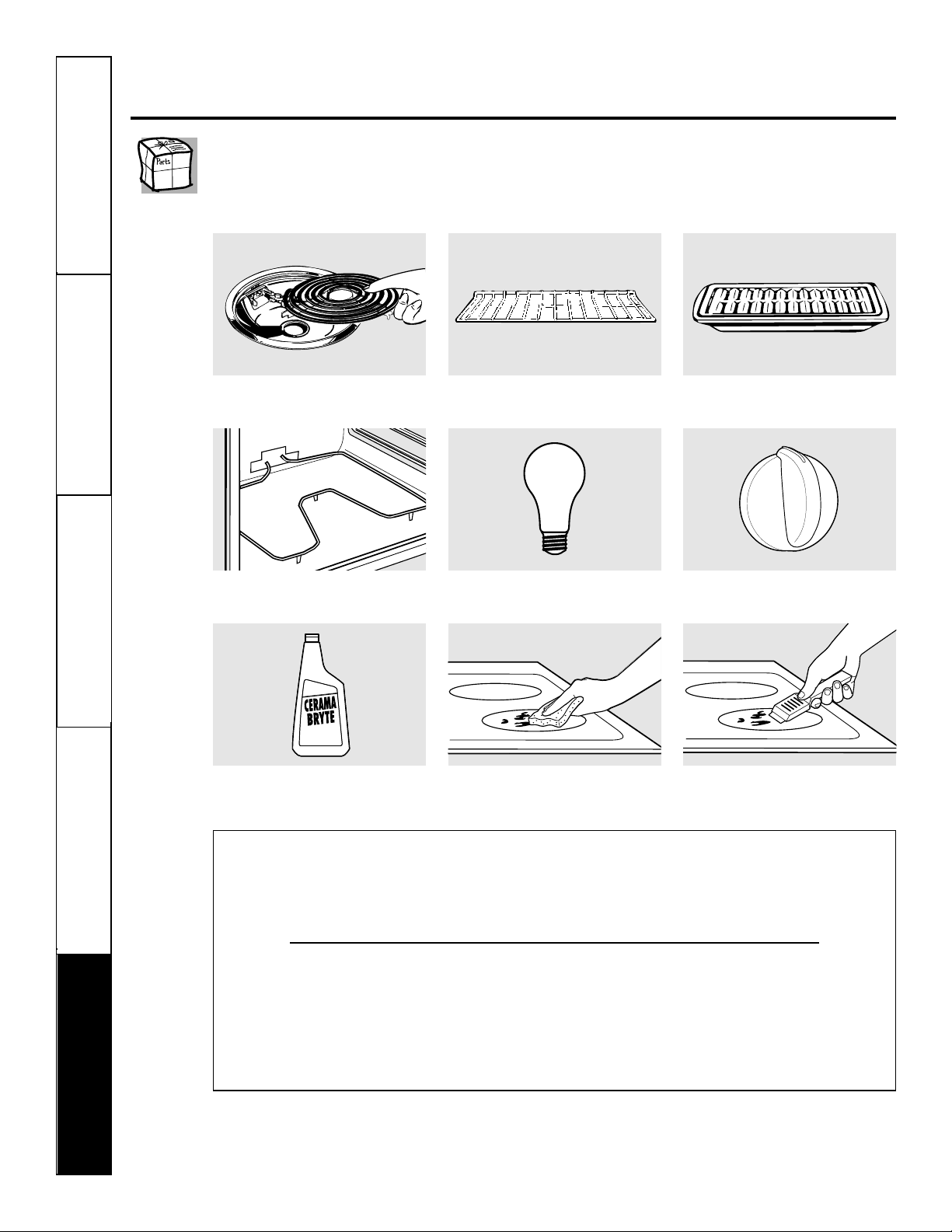

Accessories . . . . . . . . . . . 32

Consumer Support

Consumer
Support . . . . . . Back Cover
Product
Registration . . . . . . . . 33, 34
Warranty . . . . . . . . . . . . . 35
JDP47
JSP42 JSP47
Owner’s Manual
2

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock, or to prevent property damage, personal injury, or loss of life.
All ranges can tip and injury could result.
Slide-In To prevent accidental tipping of the range, attach it to the wall and floor by installing the Ranges: Anti-Tip device supplied.
To check if the device is installed and engaged properly, remove the storage drawer and inspect the rear leveling leg. Make sure it fits securely into the slot.
Drop-In To prevent accidental tipping of the range, secure the attached Anti-Tip bracket, under Ranges: the rear countertop.
To check if the device is installed and engaged properly, lower the oven door and gently apply medium force at the handle end until movement of the range is detected. Continue pressing until the anti-tip bracket is engaged and movement stops. A small amount of movement is acceptable at the back of the range top but it should be stable and not tip once the anti-tip bracket is engaged.
If you pull the range out from the wall for any reason, make sure the device is properly engaged when you push the range back against the wall. If it is not, there is a possible risk of the range tipping over and causing injury if you or a child stand, sit or lean on an open door.
Please refer to the Anti-Tip device information shipped with the device and in this manual. Failure to take this precaution could result in tipping of the range and injury.
WARNING ANTI-TIP DEVICE
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.
The fiberglass insulation in self-clean ovens gives off a very small amount of carbon monoxide during the cleaning cycle. Exposure can be minimized by venting with an open window or using a ventilation fan or hood.
When using electrical appliances, basic safety precautions should be followed, including the following:
Use this appliance only for its intended
purpose as described in this Owner’s Manual.
Be sure your appliance is properly
installed and grounded by a qualified installer in accordance with the provided installation instructions.
Have the installer show you the location of
the circuit breaker or fuse. Mark it for easy reference.
Do not attempt to repair or replace any
part of your range unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.
Before performing any service, disconnect
the range power supply at the household distribution panel by removing the fuse or switching off the circuit breaker.
Do not leave children alone—children
should not be left alone or unattended in an area where an appliance is in use. They should never be allowed to sit or stand on any part of the appliance.
Do not allow anyone to climb, stand or
hang on the door, storage drawer or cooktop. They could damage the range and even tip it over, causing severe personal injury.
SAFETY PRECAUTIONS
Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F and poultry to at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against foodborne illness.
COOK MEAT AND POULTRY THOROUGHLY…
Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
3
www.GEAppliances.com
Do not store flammable materials in an
oven or near the cooktop.
CAUTION: Items of interest to
children should not be stored in cabinets above a range or on the back of a range— children climbing on the range to reach items could be seriously injured.
Never wear loose-fitting or hanging
garments while using the appliance. Be careful when reaching for items stored over the range. Flammable material could be ignited if brought in contact with hot surface units or heating elements and may cause severe burns.
Use only dry pot holders—moist or damp
pot holders on hot surfaces may result in burns from steam. Do not let pot holders touch hot surface units or heating elements. Do not use a towel or other bulky cloth in place of pot holders.
Do not use water on grease fires. Never
pick up a flaming pan. Turn the controls off. Smother a flaming pan on a surface unit by covering the pan completely with a well-fitting lid, cookie sheet or flat tray. Use a multi-purpose dry chemical or foam-type fire extinguisher.
Flaming grease outside a pan can be put
out by covering it with baking soda or, if available, by using a multi-purpose dry chemical or foam-type fire extinguisher.
Flame in the oven can be smothered
completely by closing the oven door and turning the oven off or by using a multi­purpose dry chemical or foam-type fire extinguisher.
For your safety, never use your appliance
for warming or heating the room.
Do not let cooking grease or other
flammable materials accumulate in or near the range.
Do not touch the surface units, the
heating elements or the interior surface of the oven. These surfaces may be hot enough to burn even though they are dark in color. During and after use, do not touch, or let clothing or other flammable materials contact the surface units, areas nearby the surface units or any interior area of the oven; allow sufficient time for cooling first.
Potentially hot surfaces include the
cooktop, areas facing the cooktop, oven vent opening, surfaces near the opening, crevices around the oven door.
REMEMBER : The inside surface of the oven
may be hot when the door is opened.
Do not store or use combustible materials,
gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
Keep the hood and grease filters clean
to maintain good venting and to avoid grease fires.
Teach children not to play with the
controls or any other part of the range.
Always keep dish towels, dish cloths, pot
holders and other linens a safe distance from your range.
Always keep wooden and plastic utensils
and canned food a safe distance from your range.
Always keep combustible wall coverings,
curtains or drapes a safe distance from your range.
WARNING!
SAFETY PRECAUTIONS
Do not operate the oven or cooktop controls if the glass is broken. Food splatter or cleaning solution may penetrate a broken control panel or cooktop and create a risk of electrical shock. Contact a qualified technician immediately should your glass control panel or cooktop become broken.
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
Use proper pan size—select cookware having flat bottoms large enough to cover the surface unit heating element. The use of undersized cookware will expose a portion of the surface unit to direct contact and may result in ignition of clothing. Proper relationship of cookware to surface unit will also improve efficiency.
Never leave the surface units unattended
at high heat settings. Boilovers cause smoking and greasy spillovers that may catch on fire.
Only certain types of glass, glass ⁄ceramic,
earthenware or other glazed containers are suitable for cooktop service; others may break because of the sudden change in temperature.
To minimize the possibility of burns,
ignition of flammable materials and spillage, the handle of a container should be turned toward the center of the range without extending over nearby surface units.
Always turn the surface units off before
removing cookware.
When preparing flaming foods under the
hood, turn the fan on.
Use care when touching the cooktop. The
glass surface of the cooktop will retain heat after the controls have been turned off.
Keep an eye on foods being fried at high
or medium high heat settings.
Foods for frying should be as dry as
possible. Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan.
Use little fat for effective shallow or deep
fat frying. Filling the pan too full of fat can cause spillovers when food is added.
If a combination of oils or fats will be used
in frying, stir together before heating, or as fats melt slowly.
Always heat fat slowly, and watch as it heats.
Use a deep fat thermometer whenever
possible to prevent overheating fat beyond the smoking point.
Avoid scratching the glass cooktop. The
cooktop can be scratched with items such as sharp instruments, rings or other jewelry, and rivets on clothing.
Large scratches or impacts to glass
doors or cooktops can lead to broken or shattered glass.
Do not operate the radiant surface units if
the glass is broken. Spillovers or cleaning solution may penetrate a broken cooktop and create a risk of electrical shock. Contact a qualified technician immediately should your glass cooktop become broken.
Never use the glass cooktop surface as a
cutting board.
Do not place or store items that can melt
or catch fire on the glass cooktop, even when it is not being used.
Be careful when placing spoons or other
stirring utensils on glass cooktop surface when it is in use. They may become hot and could cause burns.
Clean the cooktop with caution. If a wet
sponge or cloth is used to wipe spills on a hot surface unit, be careful to avoid steam burns. Some cleaners can produce noxious fumes if applied to a hot surface.
NOTE: We recommend that you avoid wiping any surface unit areas until they have cooled and the indicator light has gone off. Sugar spills are the exception to
this. Please see the Cleaning the glass cooktop section.

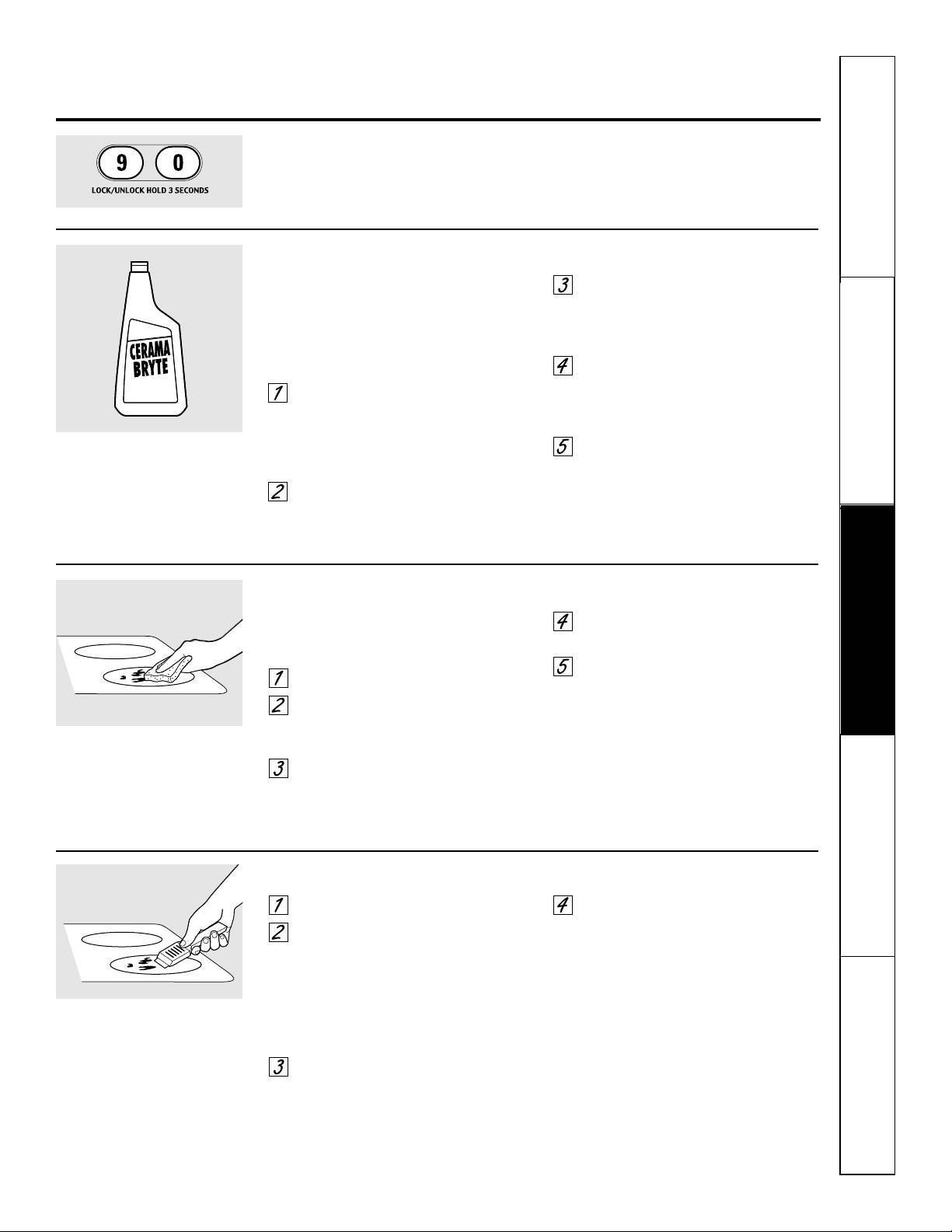

When the cooktop is cool, use only the
CERAMA BRYTE
®
Ceramic Cooktop Cleaner and the CERAMA BRYTE Ceramic Cooktop Cleaning Pad to clean the cooktop.
To avoid possible damage to the cooking
surface, do not apply cleaning cream to the glass surface when it is hot.
After cleaning, use a dry cloth or paper
towel to remove all cleaning cream residue.
Read and follow all instructions and
warnings on the cleaning cream labels.
RADIANT SURFACE UNITS
4
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
5
www.GEAppliances.com
Do not heat unopened food containers.
Pressure could build up and the container could burst, causing an injury.
Keep the oven vent unobstructed.
Keep the oven free from grease buildup.
Place the oven rack in the desired position
while the oven is cool. If racks must be handled when hot, do not let pot holder contact the heating elements.
When using cooking or roasting bags in
the oven, follow the manufacturer’s directions.
Pulling out the rack to the stop-lock is a
convenience in lifting heavy foods. It is also a precaution against burns from touching hot surfaces of the door or oven walls.
Do not use the oven to dry newspapers.
If overheated, they can catch on fire.
Do not use the oven for a storage area.
Items stored in an oven can ignite.
Do not leave paper products, cooking
utensils or food in the oven when not in use.
Do not use aluminum foil to line oven
bottoms, except as suggested in this manual. Improper installation of aluminum foil may result in a risk of electric shock or fire.
Stand away from the range when opening the oven door. Hot air or steam which escapes can cause burns to hands, face and/or eyes.
WARNING!
OVEN
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
Do not use oven cleaners. No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven. Residue from oven cleaners will damage the inside of the oven when the self-clean cycle is used.
Do not clean the door gasket. The door
gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.

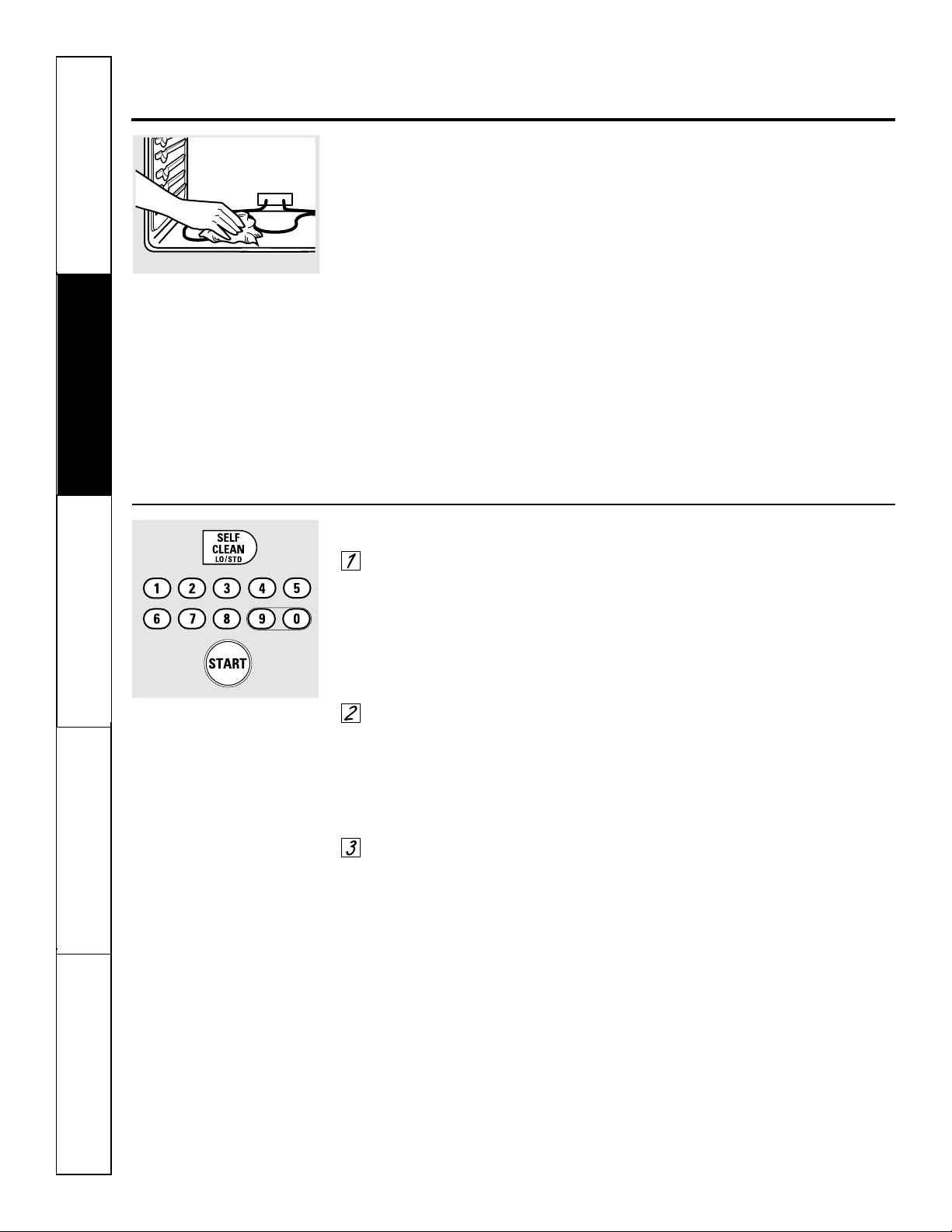

Before self-cleaning the oven, remove
the racks, broiler pan, grid and other cookware.
Be sure to wipe up excess spillage before
starting the self-cleaning operation.
If the self-cleaning mode malfunctions,
turn the oven off and disconnect the power supply. Have it serviced by a qualified technician.
Clean only parts listed in this Owner’s
Manual.
SELF-CLEANING OVEN
Using the surface units.
Throughout this manual, features and appearance may vary from your model.
How to Set
Push the knob in and turn in either direction to the setting you want.
At both OFF and HI the control clicks into position. You may hear slight clicking sounds during cooking, indicating the control is keeping the power level you set.
A HOT SURFACE indicator light, on the cooktop, will glow when any radiant element is turned on. It will remain on until the surface is cooled to approximately 150°F.
Hot surface indicator light will:
come on when the unit is hot to the touch.
stay on even after the unit is turned off.
glow until the unit is cooled to approximately 150°F.
The WARM setting on the right REAR surface unit keeps already heated food warm until ready to serve. Do not use to heat cold food.
Be sure you turn the control knob to OFF when you finish cooking.
Dual Surface Unit Control Knob
The right front surface unit has 2 cooking sizes to select from so you can match the size of the unit to the size of the cookware you are using.
To use the small (6-inch) surface unit, turn the control knob to the SMALL settings.
To use the large (9-inch) surface unit, turn the control knob to the LARGE settings.
6
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
Temperature Limiter
Every radiant surface unit has a temperature limiter.
The temperature limiter protects the glass cooktop from getting too hot.
The temperature limiter may cycle the units off for a time if:
The pan boils dry.
The pan bottom is not flat.
The pan is off center.
There is no pan on the unit.
7
www.GEAppliances.com
The following information will help you choose cookware which will give good performance on glass cooktops.
Never cook directly on the glass. Always use cookware.
About the radiant surface units…
The radiant cooktop features heating units beneath a smooth glass surface.
NOTE: A slight odor is normal when a new cooktop is used for the first time. It is caused by the heating of new parts and insulating materials and will disappear in a short time.
The surface unit will cycle on and off to maintain your selected control setting.
It is safe to place hot cookware on the glass surface even when the cooktop is cool.
Even after the surface units are turned off, the glass cooktop retains enough heat to continue cooking. To avoid over-cooking, remove pans from the surface units when the food is cooked. Avoid placing anything on the surface unit until it has cooled completely.
Do not slide cookware across the cooktop because it can scratch the glass—the glass is scratch-resistant, not scratch-proof.
Water stains (mineral deposits) are removable
using the cleaning cream or full strength white vinegar.
Use of window cleaner may leave an
iridescent film on the cooktop. The cleaning cream will remove this discoloration.
Don’t store heavy items above the cooktop.
If they drop onto the cooktop, they can cause damage.
Do not use the surface as a cutting board.
;
;
;
;
;
;;
;
;
;
;;
;
;
;
;;
;
;
;
;
;;
;;
;
;;
;
;
;
;
;
;
;
;;
;
;;
;;
;
;;
;;
;
;;
;
;;
;
;
;;
;
;
;;
;
;
;
;;
;
;;
;
;;
;
;
;;
;
;;
;
;;
;
;;
;
;
;;
Always place the pan in the center of the surface unit you are cooking on.
SURFACE COOKING
OFF CENTER
DRAGGING
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
8
Selecting types of cookware.
The following information will help you choose cookware which will give good performance on glass cooktops.
Stainless Steel:
recommended
Aluminum:
heavyweight recommended
Good conductivity. Aluminum residues sometimes appear as scratches on the cooktop, but can be removed if cleaned immediately. Because of its low melting point, lightweight aluminum should not be used.
Copper Bottom:
recommended
Copper may leave residues which can appear as scratches. The residues can be removed, as long as the cooktop is cleaned immediately. However, do not let these pots boil dry. Overheated metal can bond to glass cooktops. An overheated copper bottom pot will leave a residue that will permanently stain the cooktop if not removed immediately.
Porcelain-Enamel Covered Cast Iron:
recommended
As long as the cookware is covered completely with porcelain enamel, this cookware is recommended. Caution is recommended for cast iron cookware that is not completely covered with smooth porcelain enamel, since it may scratch the glass ceramic cooktop.
Glass-Ceramic:
usable, but not recommended
Poor performance. May scratch the surface.
Stoneware:
usable, but not recommended
Poor performance. May scratch the surface.
Home Canning Tips:
Be sure the canner is centered over the surface unit.
Make sure the canner is flat on the bottom.
Use recipes and procedures from reputable sources. These are available from manufacturers such as Ball®and Kerr®and the Department of Agriculture Extension Service.
To prevent burns from steam or heat, use caution when canning.
Check pans for flat bottoms by using a straight edge.
Pans with rounded, curved, ridged or warped bottoms are not recommended.
Use only flat-bottomed woks.
Wok Cooking
We recommend that you use only a flat-bottomed wok. They are available at your local retail store.
Do not use round-bottom woks. You could be seriously burned if the wok tipped over.
9
Note: Flat-bottomed canners are required for glass cooktops.
Pots that extend beyond 1of the surface unit’s circle are not recommended for most surface cooking. However, when canning with water-bath or pressure canner, larger-diameter pots may be used. This is because boiling water temperatures (even under pressure) are not harmful to the cooktop surfaces surrounding the surface units.
HOWEVER, DO NOT USE LARGE­DIAMETER CANNERS OR OTHER LARGE-DIAMETER POTS FOR FRYING OR BOILING FOODS OTHER THAN WATER. Most syrup or sauce mixtures—and all types of frying—cook at temperatures much higher than boiling water. Such temperatures could eventually harm the glass cooktop surfaces.
Be sure the canner fits over the center of the surface unit. If your cooktop or its location does not allow the canner to be centered on the surface unit, use smaller­diameter pots for good canning results.
Flat-bottomed canners must be used. Do not use canners with flanged or rippled bottoms (often found in enamelware) because they don’t make enough contact with the surface units and take a long time to boil water.
When canning, use recipes and procedures from reputable sources. Reliable recipes and procedures are available from the manufacturer of your canner; manufacturers of glass jars for canning, such as Ball®and Kerr
®
brand; and the United States Department of Agriculture Extension Service.
Remember that canning is a process that generates large amounts of steam. To avoid burns from steam or heat, be careful when canning.
NOTE: If your house has low voltage, canning may take longer than expected, even though directions have been carefully followed. The process time will be shortened by:
(1) using a pressure canner and
( 2) starting with HOT tap water for fastest
heating of large quantities of water.
CAUTION:
Safe canning requires that harmful
microorganisms are destroyed and that the jars are sealed completely. When canning foods in a water-bath canner, a gentle but steady boil must be maintained for the required time. When canning foods in a pressure canner, the pressure must be maintained for the required time.
After you have adjusted the controls,
it is very important to make sure the prescribed boil or pressure levels are maintained for the required time.
Since you must make sure to process
the canning jars for the prescribed time, with no interruption in processing time, do not can on any cooktop surface unit if your canner is not flat.
Observe the Following Points in Canning
Wrong!
Right!
www.GEAppliances.com
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
Using the oven controls.
Throughout this manual, features and appearance may vary from your model.
Oven Control, Clock and Timer Features and Settings
BAKE Pad
Press this pad to select the bake function.
Display
Shows the time of day, oven temperature, whether the oven is in the bake, broil or self-cleaning mode and the times set for the timer or automatic oven operations.
If “F– and a number or letter” flash in the display and the oven control signals, this indicates a function error code.
If your oven was set for a timed oven operation and a power outage occurred, the clock and all programmed functions must be reset.
The time of day will flash in the display when there has been a power outage.
COOKING TIME Pad
Press this pad and then press the number pads to set the amount of time you want your food to cook. The oven will shut off when the cooking time has run out.
DELAY START Pad
Use along with COOKING TIME or SELF CLEAN LO/STD pads to set the oven to start
and stop automatically at a time you set.
CLOCK Pad
Press this pad before setting the clock.
KITCHEN TIMER ON/OFF Pad
Press this pad to select the timer feature.
CLEAR/OFF Pad
Press this pad to cancel ALL oven operations except the clock and timer.
Number Pads
Use to set any function requiring numbers such as the time of day on the clock, the timer, the oven temperature, the start time and length of operation for timed baking and self-cleaning.
START Pad
Must be pressed to start any cooking or cleaning function.
SELF CLEAN LO/STD Pad
Press this pad to select the self-cleaning function. See the Using the self-cleaning

oven section.

OVEN LIGHT Pad
Press this pad to turn the oven light on or off.
BROIL HI/LO Pad
Press this pad to select the broil function.
10
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
Features and appearance may vary.
Aluminum Foil
You can use aluminum foil to line the broiler pan and broiler grid. However, you must mold the foil tightly to the grid and cut slits in it just like the grid.
Without the slits, the foil will prevent fat and meat juices from draining into the broiler pan. The juices could become hot enough to catch on fire. If you do not cut the slits, you are essentially frying, not broiling.
Do not use aluminum foil on the bottom of the oven.
Never entirely cover a rack with aluminum foil. This will disturb the heat circulation and result in poor baking.
A smaller sheet of foil may be used to catch a spillover by placing it on a lower rack several inches below the food.
Cut slits in the foil just like the grid.
Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
11
Using the oven. www.GEAppliances.com
To avoid possible burns, place the racks in the desired position before you turn the oven on.
Before you begin…
The racks have stops, so that when placed correctly on the supports (A through G), they will stop before coming completely out, and will not tilt.
When placing and removing cookware, pull the rack out until it stops.
To remove a rack, pull it toward you, tilt the front end up and pull it out.
To replace, place the end of the rack (stop-locks) on the support, tilt up the front and push the rack in.
CAUTION: When you are using the
rack in the lowest position (A), you will need to use caution when pulling the rack out. We recommend that you pull the rack out several inches and then, using two pot holders, pull the rack out by holding the sides of it. The rack is low and you could be burned if you place your hand in the middle of the rack and pull all the way out. Be very careful not to burn your hand on the door when using the rack in the lowest position (A).
The oven has 7 rack positions.
How to Set the Oven for Baking or Roasting
Press the BAKE pad.
Press the number pads to set the desired temperature.
Press the START pad.
Check food for doneness at minimum time on recipe. Cook longer if necessary.
Press the CLEAR/OFF pad when cooking is complete.
NOTE: A cooling fan may automatically turn on and off to cool internal parts. This is normal, and the fan may continue to run even after the oven in turned off.
If baking four cake layers at the same time, place two layers on rack B and two layers on rack D. Stagger pans on the rack so one is not directly above the other.
Type of Food Rack Position
Frozen pies (on cookie sheet) C or D
Angel food cake A
Bundt or pound cakes B or C
Biscuits, muffins, brownies, C or D cookies, cupcakes, layer cakes, pies
Casseroles C or D
Turkey A
Preheating and Pan Placement
Preheat the oven if the recipe calls for it. Preheating is necessary for good results when baking cakes, cookies, pastry and breads.
To preheat, set the oven at the correct temperature. The control will beep when the oven is preheated and the display will show your set temperature. This will take approximately 6 to 8 minutes.
Baking results will be better if baking pans are centered in the oven as much as possible. If baking with more than one pan, place the pans so each has at least 1 to 11⁄2of air space around it.
Center baking pans in the oven.
Loading...
+ 25 hidden pages
