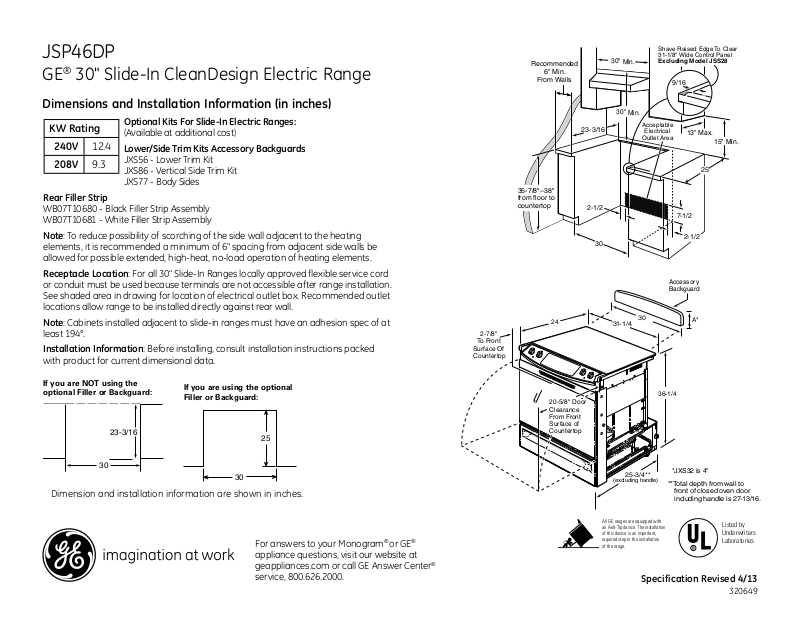

GE JSP46DP Specification
JSP46DP
If
optional
If you are using the optional
Filler or Backguard:
25
30
30
Acceptable
Electrical
Outlet Area
30" Min.
30" Min.
Shave Raised Edge To Clear
31-1/8" Wide Control Panel
Excluding Model JSS28
Recommended
6" Min.
From Walls
23-3/16
15" Min.
13" Max.
2-1/2
30
25
9/16
7-1/2
2-1/2
35-7/8"–38"
from floor to
countertop
GE® 30" Slide-In CleanDesign Electric Range
Recommended
6" Min.
From Walls
30" Min.
Shave Raised Edge To Clear
31-1/8" Wide Control Panel
Excluding Model JSS28
9/16
Dimensions and Installation Information (in inches)
KW Rating
240V
208V
Rear Filler Strip
WB07T10680 - Black Filler Strip Assembly
WB07T10681 - White Filler Strip Assembly
Note: To reduce possibility of scorching of the side wall adjacent to the heating
elements, it is recommended a minimum of 6" spacing from adjacent side walls be
allowed for possible extended, high-heat, no-load operation of heating elements.
Receptacle Location: For all 30" Slide-In Ranges locally approved flexible service cord
or conduit must be used because terminals are not accessible after range installation.
See shaded area in drawing for location of electrical outlet box. Recommended outlet
locations allow range to be installed directly against rear wall.
Note: Cabinets installed adjacent to slide-in ranges must have an adhesion spec of at
least 194°.
Installation Information: Before installing, consult installation instructions packed
with product for current dimensional data.
you are NOT using the
12.4
9.3
Filler or Backguard:
Optional Kits For Slide-In Electric Ranges:
(Available at additional cost)
Lower/Side Trim Kits Accessory Backguards
JXS56 - Lower Trim Kit
JXS86 - Vertical Side Trim Kit
JXS77 - Body Sides
23-3/16
If you are using the optional
Filler or Backguard:
25
2-7/8"
To Front
Surface Of
Countertop
35-7/8"–38"
from floor to
countertop
24
20-5/8" Door
Clearance
From Front
Surface of
Countertop
23-3/16
2-1/2
30
30" Min.
31-1/4
Acceptable
Electrical
Outlet Area
30
36-1/4
13" Max.
7-1/2
2-1/2
Accessory
Backguard
15" Min.
25
A*
30
Dimension and installation information are shown in inches.
For answers to your Monogram® or GE®
appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
25-3/4**
(excluding handle)
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Specification Revised 4/13
*JXS32 is 4"
**Total depth from wall to
front of closed oven door
including handle is 27-13/16.
Listed by
Underwriters
Laboratories
320649
JSP46DP
GE® 30" Slide-In CleanDesign Electric Range
Features and Benefits
• Self-clean Oven - Self-clean allows you to spare yourself from the trouble and effort
it takes to scrub the oven interior. The oven does all the work!
• True European Convection with Precise Air - A reversing fan circulates heat and air
for evenly browned and baked foods
• Electronic Oven Controls - Electronic pads on the control panel are easy to operate
with just a touch
• Glass Touch Controls - Smooth controls are easy to use and add a sophisticated
style to the kitchen
• Power Boil Element - Accommodates various-size pots or pans and 3,000 watts of
power speeds the boiling process
• Bridge Element - Combines three cooktop elements into one large cooking area,
ideal for griddles and gourmet pans
• 4.1 cu. ft. Oven Capacity - Remarkably large oven interior is ideal for holidays, dinner
parties and everyday family cooking
• Two Oven Racks - Includes two oven rack that are sturdy and reliable
• Ribbon Heating Elements - Powerful heat beneath the smooth surface provides
high-speed warm-up and even heating
• Big Hearth Window - Elegant shaped window makes it easy to monitor the progress
of food
• Frameless Glass Oven Door - Simple and stylish frameless glass door creates an
elegant look that blends into cabinetry, and is easy to wipe clean
I
H
8
1
I
H
1
8
8
6
6
2
9
3
4
8
4
4
7
2
5
6
2
O
L
L
O
8
6
9
6
4
8
2
4
2
2
L
O
7
3
4
6
5
• Model JSP46DPWW - White on white (white door and white cooktop)
• Model JSP46DPBB - Black on black (black door and black cooktop)
Specification Revised 4/13
320649
