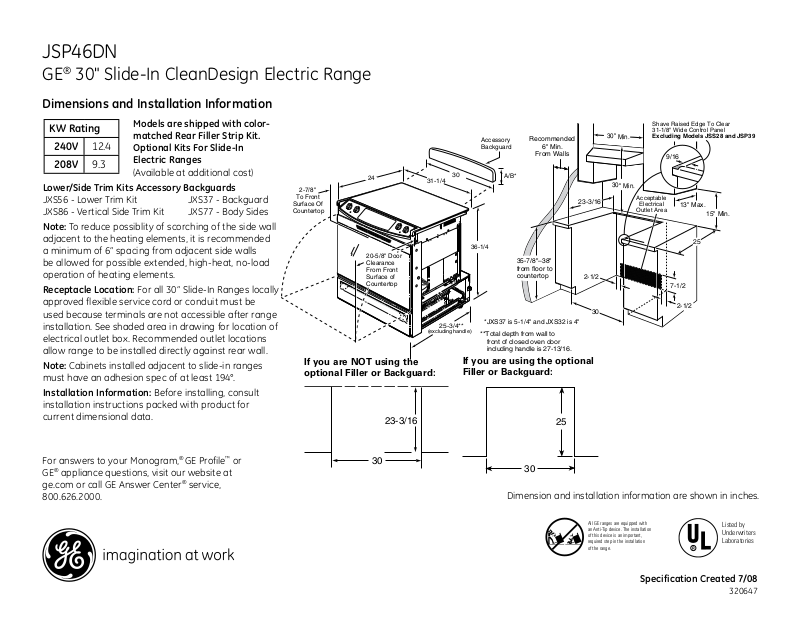

JSP46DN
GE® 30" Slide-In CleanDesign Electric Range
Dimensions and Installation Information
KW Rating
240V 12.4
208V 9.3
Models are shipped with colormatched Rear Filler Strip Kit. Optional Kits For Slide-In Electric Ranges
(Available at additional cost)
Lower/Side Trim Kits Accessory Backguards
JXS56 - Lower Trim Kit |
JXS37 - Backguard |
JXS86 - Vertical Side Trim Kit |
JXS77 - Body Sides |
Note: To reduce possiblity of scorching of the side wall adjacent to the heating elements, it is recommended a minimum of 6” spacing from adjacent side walls
be allowed for possible extended, high-heat, no-load operation of heating elements.
Receptacle Location: For all 30” Slide-In Ranges locally approved flexible service cord or conduit must be used because terminals are not accessible after range installation. See shaded area in drawing for location of electrical outlet box. Recommended outlet locations allow range to be installed directly against rear wall.
Note: Cabinets installed adjacent to slide-in ranges must have an adhesion spec of at least 194°.
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
2-7/8" To Front Surface Of Countertop
|
|
|
Accessory |
Recommended |
|
|
|
|
Backguard |
6" Min. |
|
|
|
|
|
From Walls |
|
24 |
30 |
|
A/B* |
|
|
31-1/4 |
|
|
|
||
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
23-3/16 |
|
|
36-1/4 |
|
|
|
20-5/8" Door |
|
|
|
35-7/8"–38" |
|
Clearance |
|
|
|
|
|
From Front |
|
|
|
from floor to |
|
Surface of |
|
|
|
countertop |
2-1/2 |
Countertop |
|
|
|
|
|
|
|
|
|
|
30 |
|
25-3/4** |
|
*JXS37 is 5-1/4" and JXS32 is 4" |
||
|
|
|
|
|
|
|
(excluding handle) |
**Total depth from wall to |
|
||
|
|
|
|
||
|
|
|
front of closed oven door |
|
|
|
|
|
including handle is 27-13/16. |
|
30" Min.
30" Min.
Shave Raised Edge To Clear
31-1/8" Wide Control Panel
Excluding Models JSS28 and JSP39
9/16 |
|
Acceptable |
|
Electrical |
13" Max. |
Outlet Area |
15" Min. |
|
25
7-1/2
2-1/2
If you are NOT using the |
|
If you are using the optional |
|||||||||||||||||
optional Filler or Backguard: |
|
Filler or Backguard: |
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
23-3/16 |
|
|
25 |
|
|
|
||||||||||||
|
|
|
30 |
|
|
|
|
|
|
|
|
|
30 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
Dimension and installation information are shown in inches. |
All GE ranges are equipped with an Anti-Tip device. The installation of this device is an important, required step in the installation
of the range.
Listed by Underwriters Laboratories
Specification Created 7/08
320647
JSP46DN
GE® 30" Slide-In CleanDesign Electric Range
Features and Benefits
•Self-Clean Oven - Conveniently cleans the oven cavity without need of scrubbing
•PreciseAir™ Convection System - Delivers even air and heat circulation for superior baking and roasting results
•True European Convection - A third dual-loop heating element surrounds the fan to deliver uniform and savory cooking results
•Electronic Oven Controls - One-touch electronic pads are easy-to-use and allow for simple oven operation
•PowerBoil™ Element - Accommodates various-size pots or pans and 3,000 watts of power speeds the boiling process
•Bridge Element - Combines three cooktop elements into one large cooking area, ideal for oversized cooking pans
•Super-Large Oven Capacity - Provides an impressively large oven interior for cooking more dishes and large meals at one time
•Two Oven Racks - Feature a durable construction to help accommodate any size or type of cookware
•Ribbon Heating Elements - Provide powerful heat beneath a smooth glass surface to ensure even heat and fast warm-up times
•Big Hearth Window - Features an enhanced shape to add an elegant appearance and make viewing trouble-free
•Model JSP46DNWW - White on white (white door and white cooktop)
•Model JSP46DNBB - Black on black (black door and black cooktop)
HI |
1 |
8 |
|
LO |
LO |
Specification Created 7/08
320647
