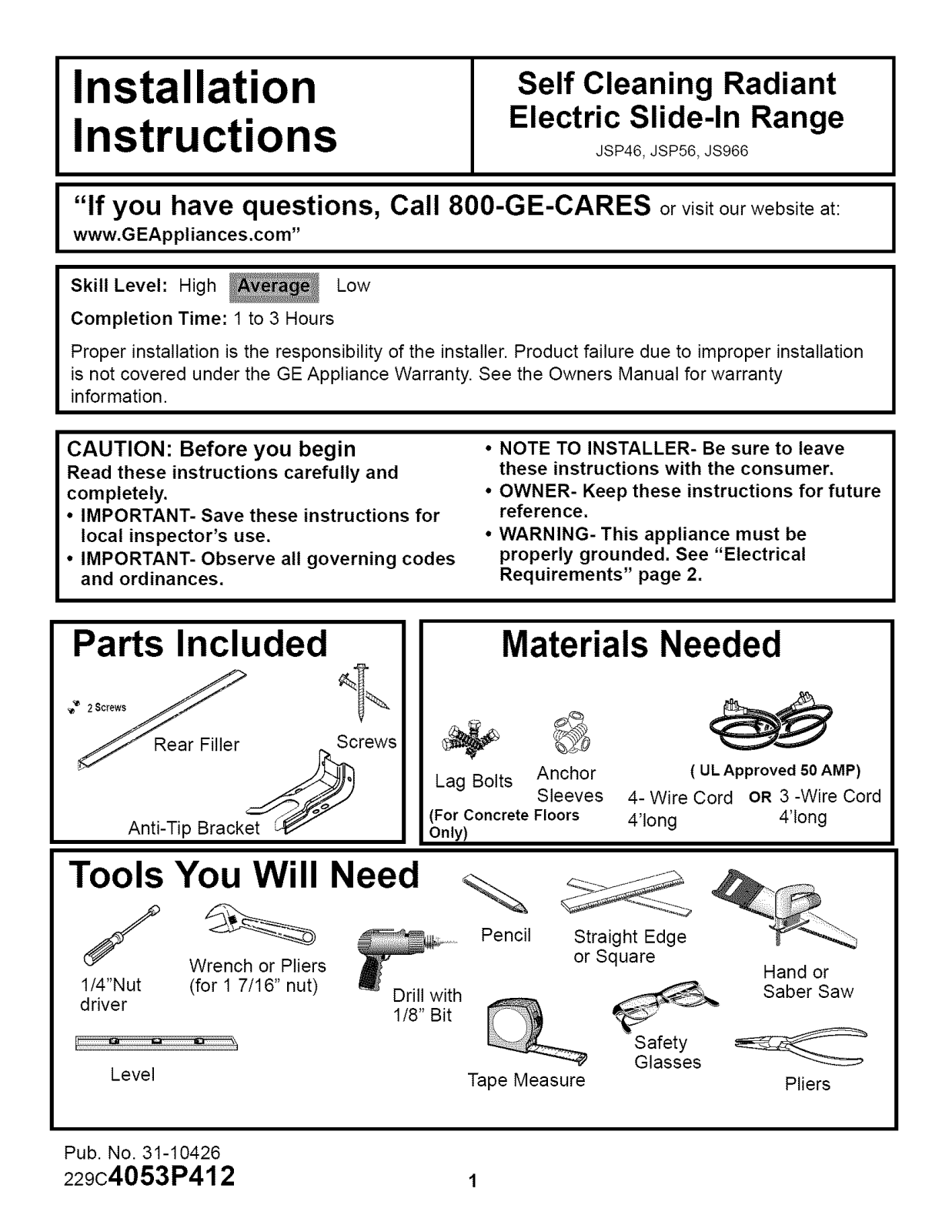

GE JSP46BN1BB, JSP46CN1CC, JSP46WD2WW, JSP46WN1WW Installation Guide

Installation

Self Cleaning Radiant

Electric Slide-In Range

Instructions

JSP46, JSP56, JS966

"If you have questions, Call 800-GE-CARES orvisit ourwebsite at:

www.GEAppliances.com"

Skill Level: High Low
Completion Time: 1 to 3 Hours

Proper installation is the responsibility of the installer. Product failure due to improper installation
is not covered under the GE Appliance Warranty. See the Owners Manual for warranty

information.

CAUTION: Before you begin

Read these instructions carefully and
completely.

• IMPORTANT- Save these instructions for

local inspector's use.

• IMPORTANT- Observe all governing codes

and ordinances.

Parts Included

2 Screws _

__ Screws

Anti-Tip Bracket__

(For Concrete Floors
Only)

Tools You Will Need

• NOTE TO INSTALLER- Be sure to leave
these instructions with the consumer.

• OWNER- Keep these instructions for future
reference.

• WARNING- This appliance must be
properly grounded, See "Electrical
Requirements" page 2.

Materials Needed

6

Lag Bolts Anchor

Sleeves

( UL Approved 50 AMP)
4- Wire Cord OR 3 -Wire Cord
4'long 4'long

/

Wrench or Pliers

1/4"N ut

driver

Level

Pub. No. 31-10426

22gc4053P412 1

(for 1 7/16" nut)

Drill with
1/8" Bit

Tape Measure

Pencil

Straight Edge
or Square

Hand or
SaberSaw

Safety
Glasses

Pliers

Installation Instructions

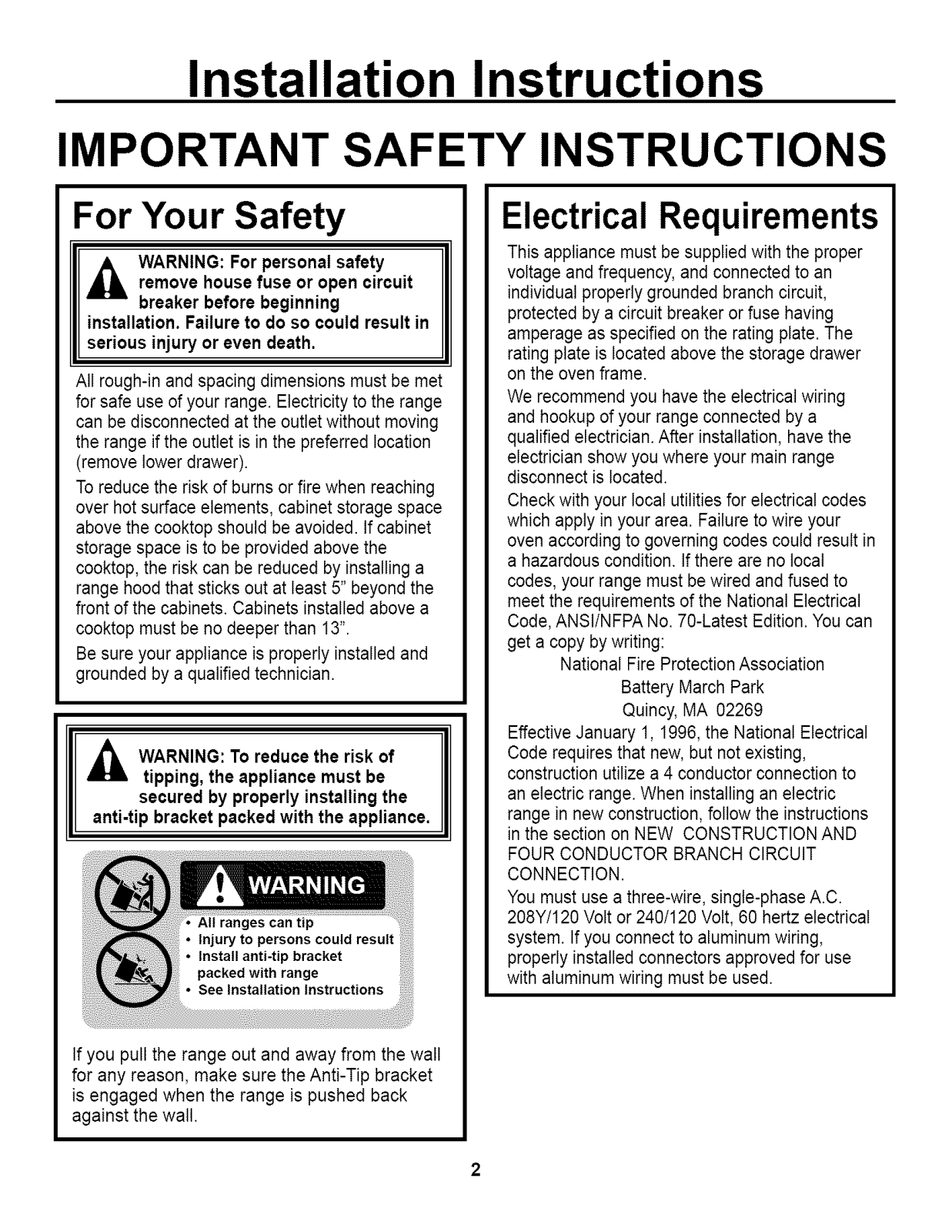

IMPORTANT SAFETY INSTRUCTIONS

For Your Safety

,_ WARNING: For personal safetyremove house fuse or open circuit

breaker before beginning

installation. Failure to do so could result in
serious injury or even death.

All rough-in and spacing dimensions must be met
for safe use of your range. Electricity to the range

can be disconnected at the outlet without moving

the range if the outlet is in the preferred location

(remove lower drawer).

To reduce the risk of burns or fire when reaching
over hot surface elements, cabinet storage space

above the cooktop should be avoided. If cabinet
storage space is to be provided above the

cooktop, the risk can be reduced by installing a

range hood that sticks out at least 5" beyond the

front of the cabinets. Cabinets installed above a
cooktop must be no deeper than 13".

Be sure your appliance is properly installed and

grounded by a qualified technician.

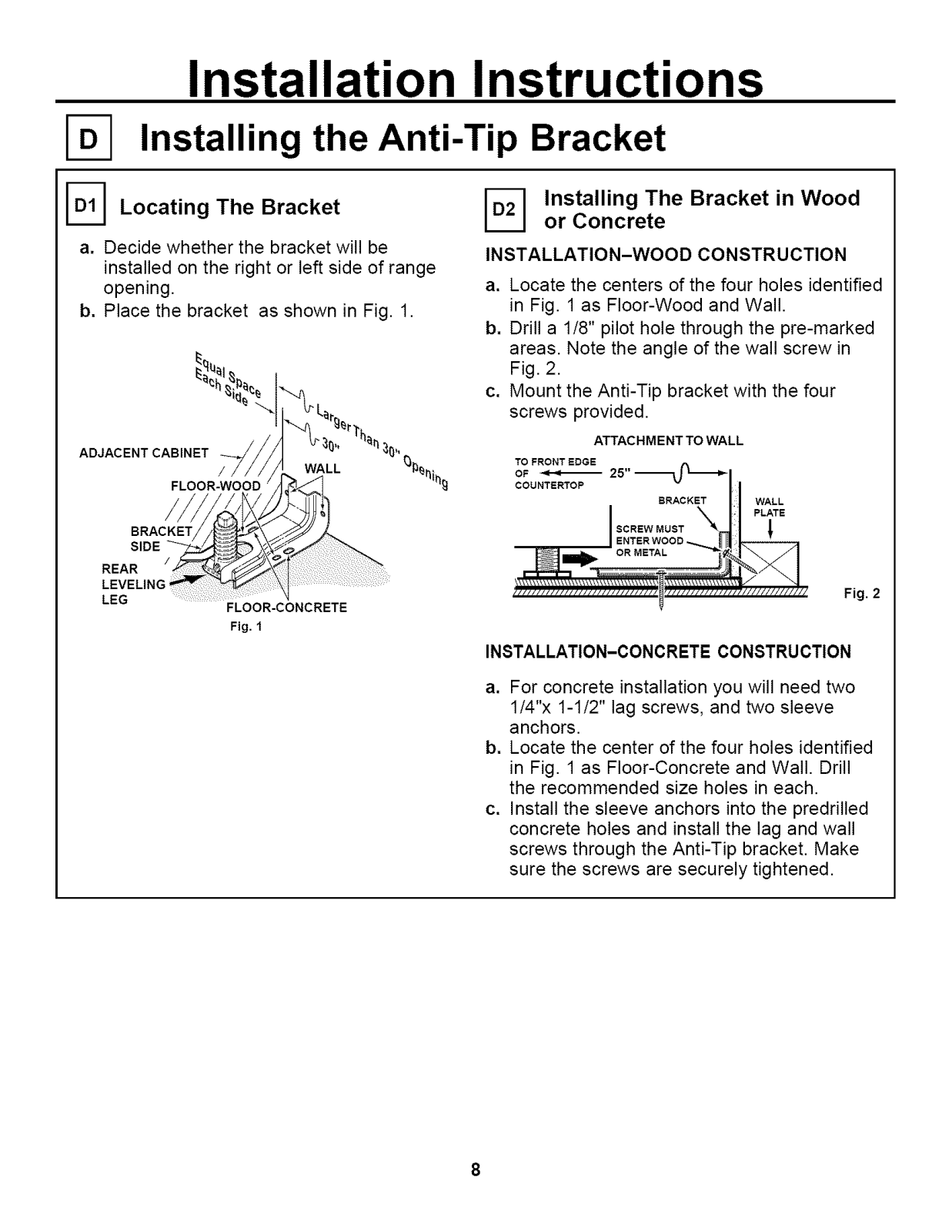

_1_ WARNING: To reduce the risk of

tipping, the appliance must be

secured by properly installing the

anti-tip bracket packed with the appliance.

See Installation Instructions

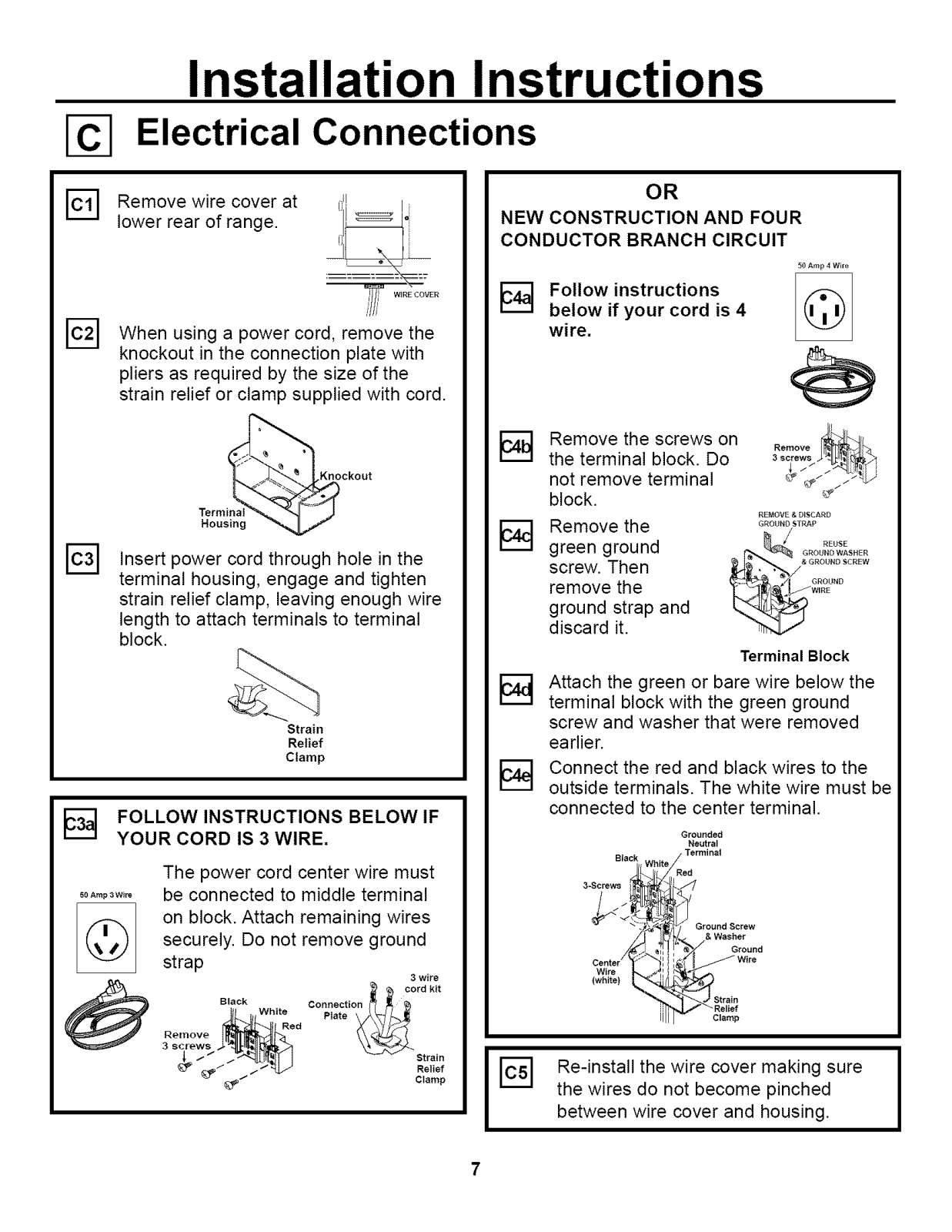

Electrical Requirements

This appliance must be supplied with the proper
voltage and frequency, and connected to an
individual properly grounded branch circuit,

protected by a circuit breaker or fuse having
amperage as specified on the rating plate. The
rating plate is located above the storage drawer

on the oven frame.
We recommend you have the electrical wiring

and hookup of your range connected by a
qualified electrician. After installation, have the
electrician show you where your main range

disconnect is located.
Check with your local utilities for electrical codes

which apply in your area. Failure to wire your
oven according to governing codes could result in

a hazardous condition. If there are no local
codes, your range must be wired and fused to

meet the requirements of the National Electrical
Code, ANSI/NFPA No. 70-Latest Edition. You can

get a copy by writing:

National Fire Protection Association

Battery March Park

Quincy, MA 02269

Effective January 1, 1996, the National Electrical

Code requires that new, but not existing,
construction utilize a 4 conductor connection to

an electric range. When installing an electric
range in new construction, follow the instructions

in the section on NEW CONSTRUCTION AND

FOUR CONDUCTOR BRANCH CIRCUIT

CONNECTION.
You must use a three-wire, single-phase A.C.

208Y/120 Volt or 240/120 Volt, 60 hertz electrical
system. If you connect to aluminum wiring,

properly installed connectors approved for use
with aluminum wiring must be used.

If you pull the range out and away from the wall

for any reason, make sure the Anti-Tip bracket
is engaged when the range is pushed back
against the wall.

2

Installation Instructions

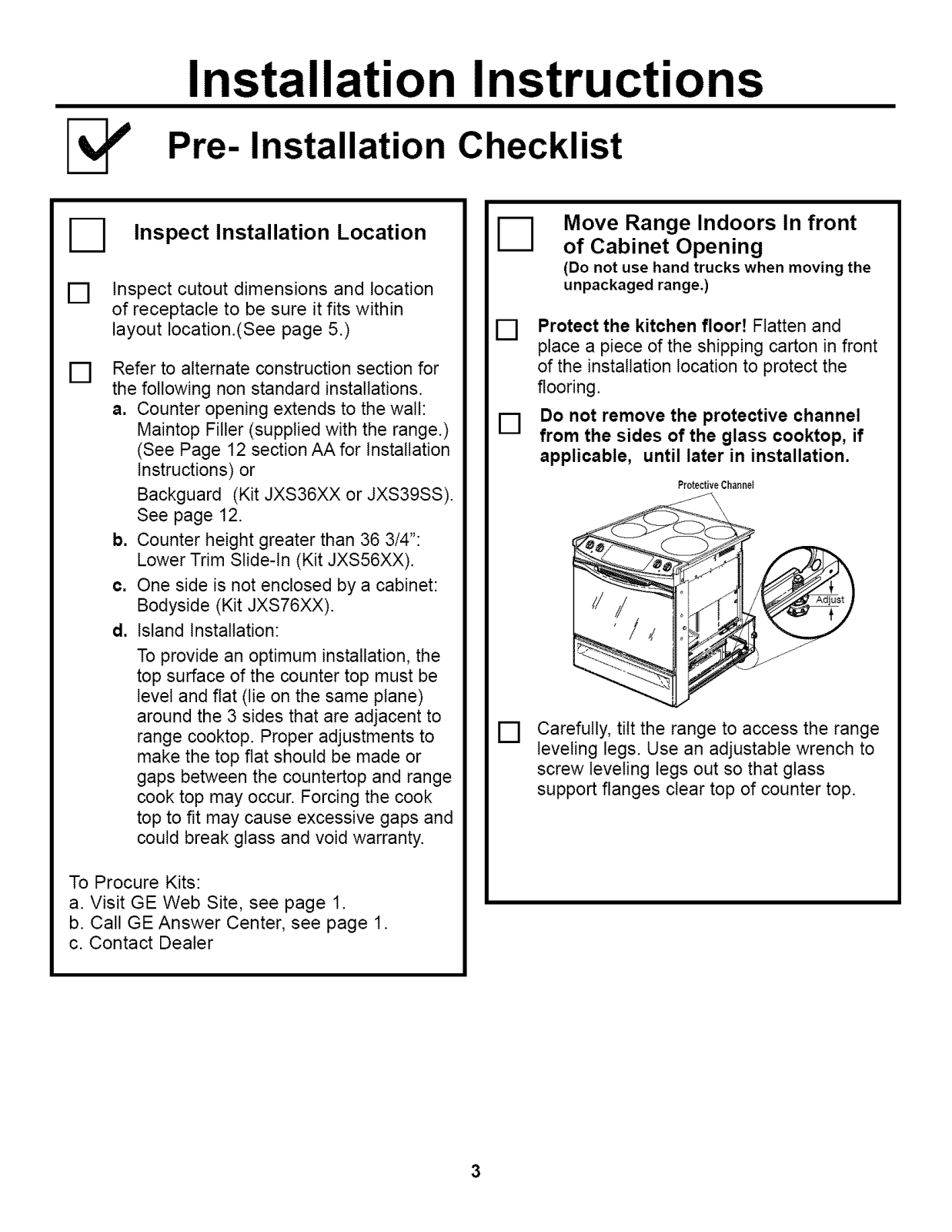

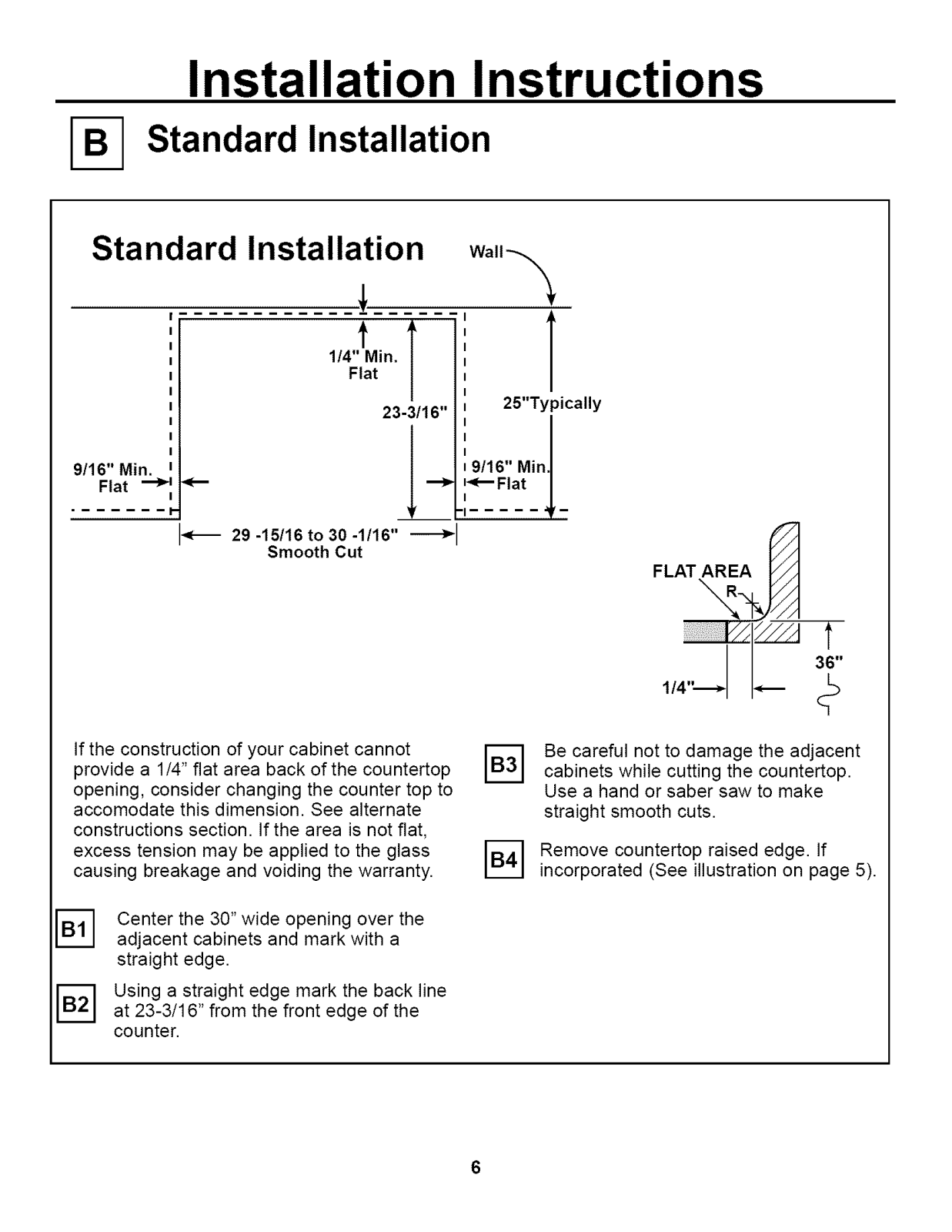

Pre- Installation Checklist

D Inspect Installation Location

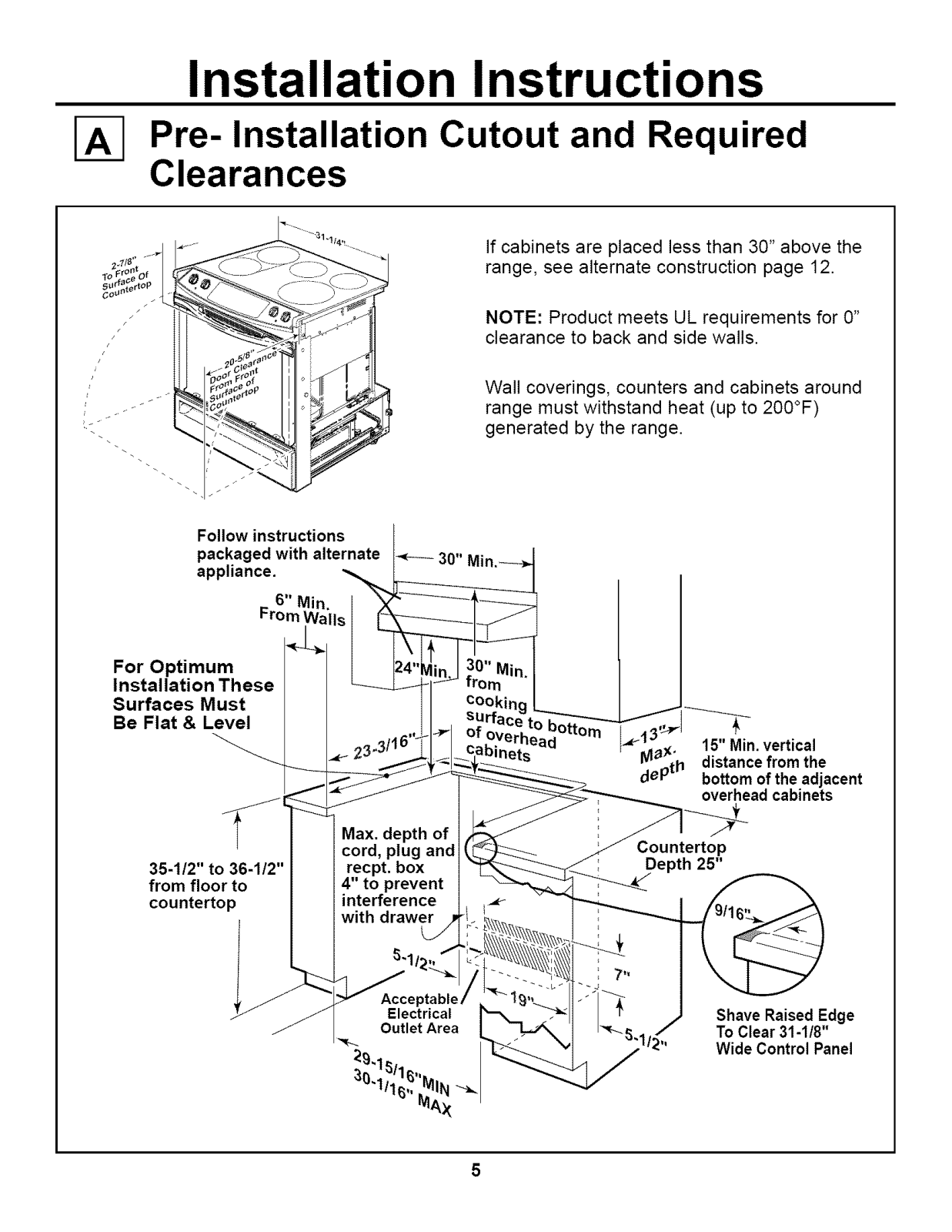

Inspect cutout dimensions and location

[]

of receptacle to be sure it fits within
layout Iocation.(See page 5.)

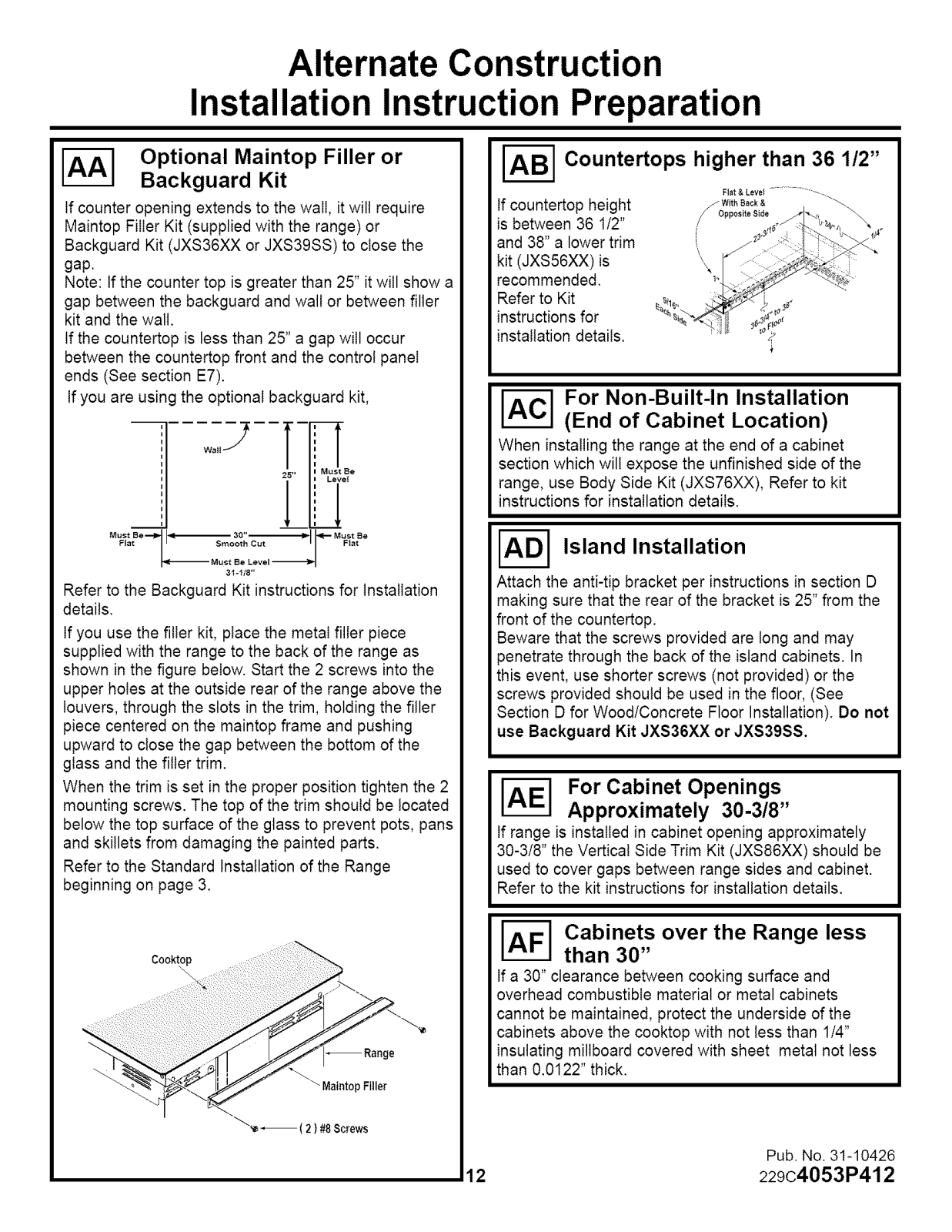

Refer to alternate construction section for

[]

the following non standard installations.
a. Counter opening extends to the wall:

Maintop Filler (supplied with the range.)
(See Page 12 section AA for Installation

Instructions) or
Backguard (Kit JXS36XX or JXS39SS).

See page 12.

b. Counter height greater than 36 3/4":

Lower Trim Slide-In (Kit JXS56XX).

¢. One side is not enclosed by a cabinet:

Bodyside (Kit JXS76XX).

d. Island Installation:

To provide an optimum installation, the
top surface of the counter top must be
level and flat (lie on the same plane)
around the 3 sides that are adjacent to
range cooktop. Proper adjustments to
make the top flat should be made or
gaps between the countertop and range
cook top may occur. Forcing the cook
top to fit may cause excessive gaps and
could break glass and void warranty.

D

[]

[]

[]

of Cabinet Opening

(Do not use hand trucks when moving the
unpackaged range.)

Protect the kitchen floor! Flatten and

place a piece of the shipping carton in front
of the installation location to protect the
flooring.

Do not remove the protective channel

from the sides of the glass cooktop, if
applicable, until later in installation,

FrotectiveChannet

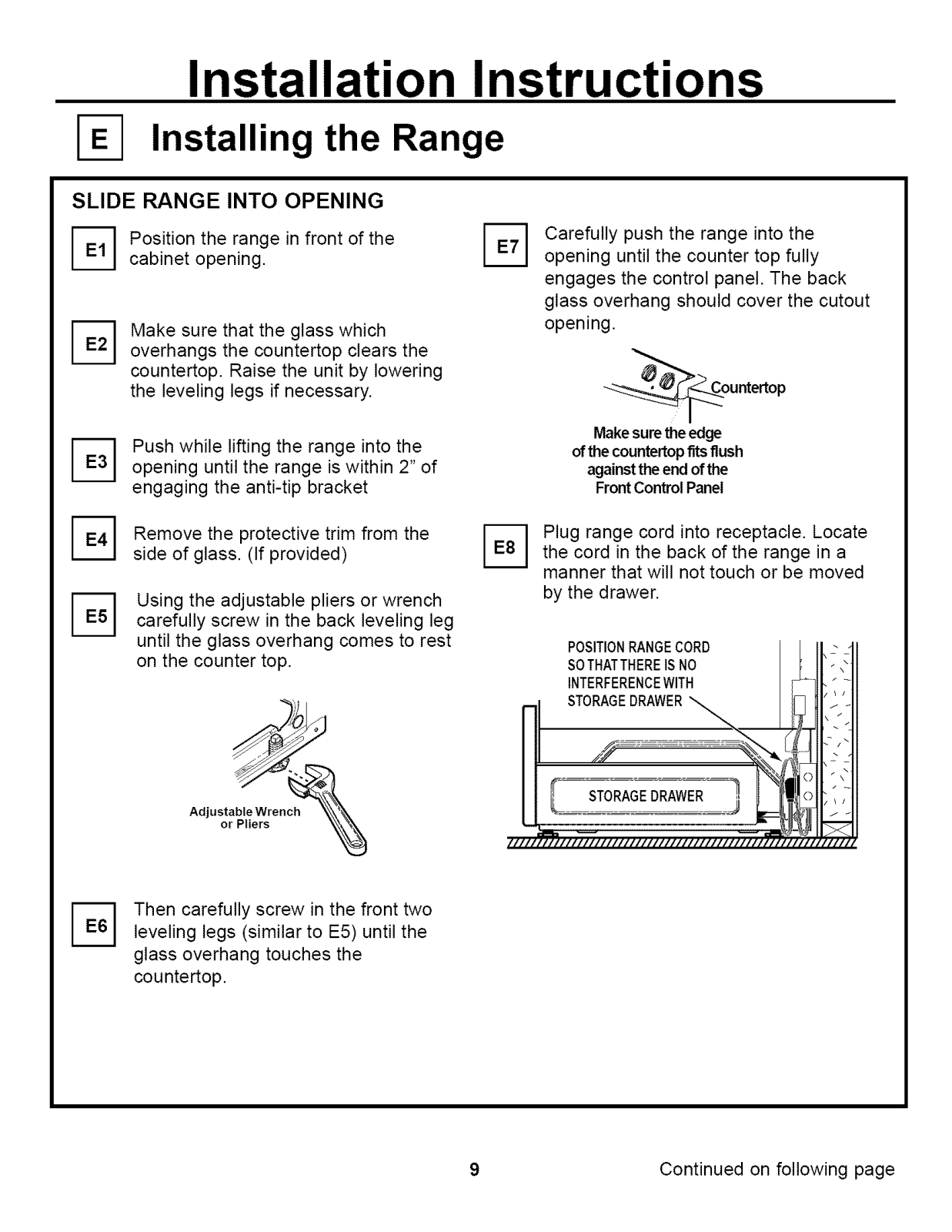

Carefully, tilt the range to access the range
leveling legs. Use an adjustable wrench to
screw leveling legs out so that glass
support flanges clear top of counter top.

Move Range Indoors In front

To Procure Kits:
a. Visit GE Web Site, see page 1.

b. Call GE Answer Center, see page 1.

c. Contact Dealer

3

Installation Instructions

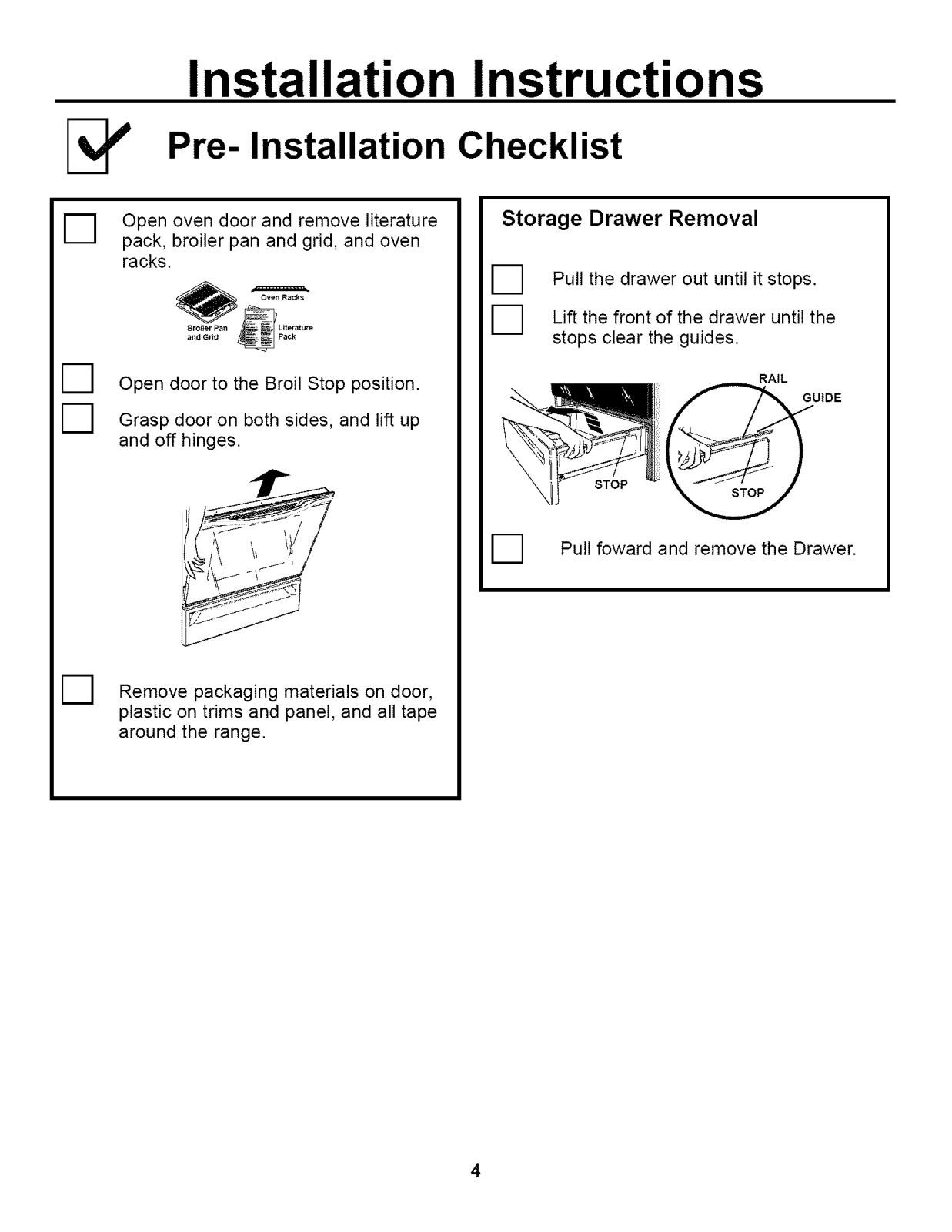

Pre- Installation Checklist

D Open oven door and remove literature

pack, broiler pan and grid, and oven
racks.

Open door to the Broil Stop position.

Grasp door on both sides, and lift up

and off hinges.

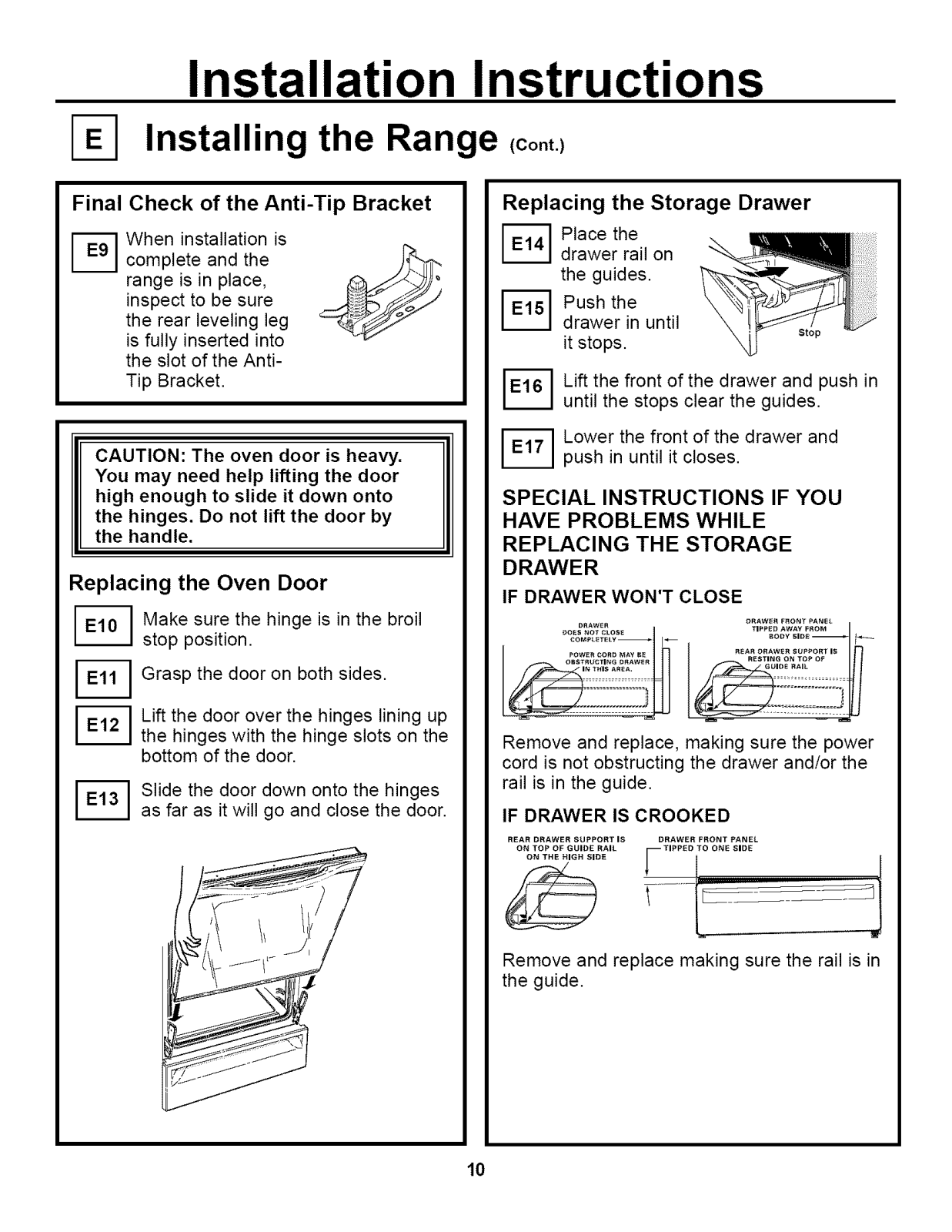

Storage Drawer Removal

D Pull the drawer out until it stops.

D Lift the front of the drawer until the

stops clear the guides.

RAIL

GUIDE

STOP

D Pull foward and remove the Drawer.

D

Remove packaging materials on door,
plastic on trims and panel, and all tape

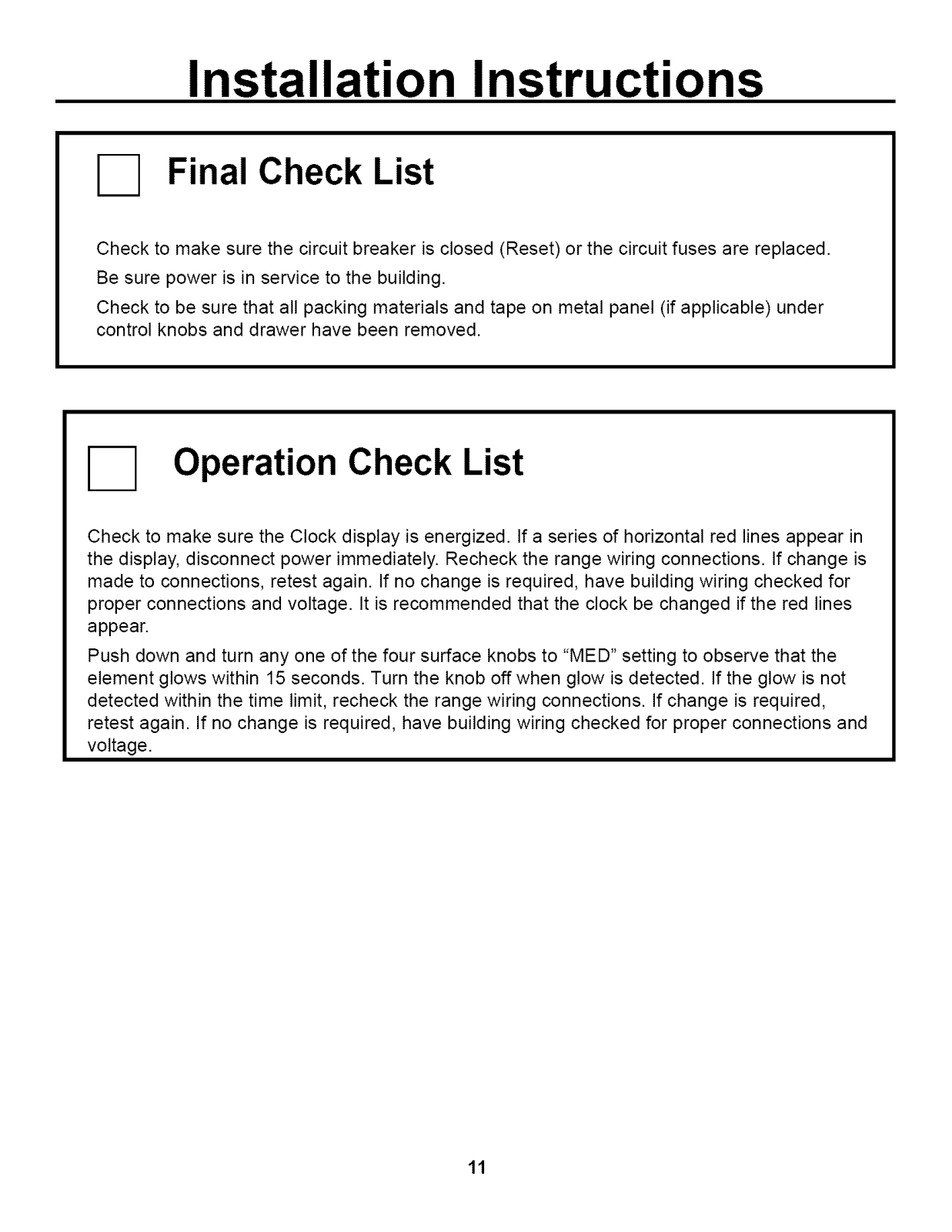

around the range.
