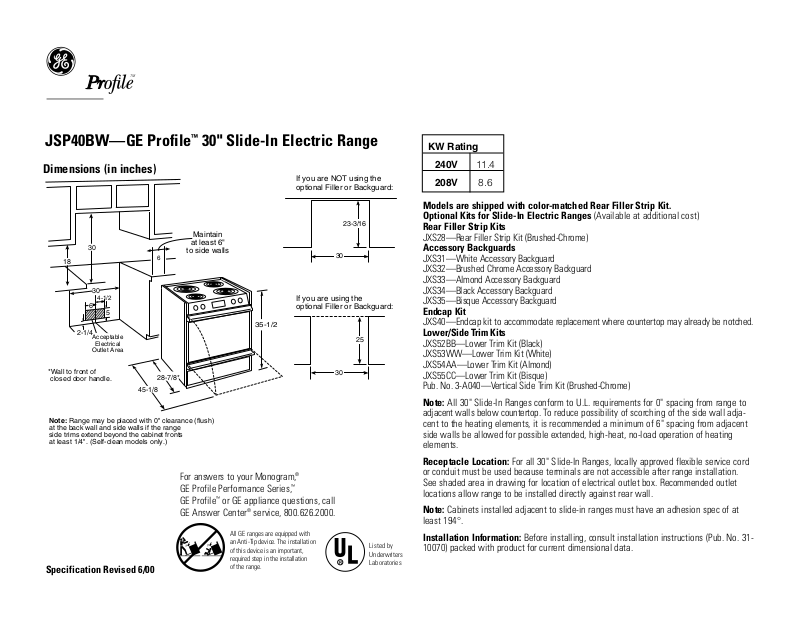

JSP40BW—GE Profile™ 30" Slide-In Electric Range
Dimensions (in inches)
|
|
If you are NOT using the |
|
|
optional Filler or Backguard: |
|
|
23-3/16 |
|
|
Maintain |
30 |
|
at least 6" |
|
to side walls |
|
18 |
6 |
30 |
|
|
|
30 |
|
If you are using the |
4-1/2 |
|
|
6 |
|
optional Filler or Backguard: |
5 |
|
|
2-1/4 |
|
35-1/2 |
|
|
|
Acceptable |
|
25 |
Electrical |
|
|
|
|
|
Outlet Area |
|
|
*Wall to front of |
28-7/8* |
30 |
closed door handle. |
|
|
|
45-1/8 |
|
Note: Range may be placed with 0" clearance (flush) at the back wall and side walls if the range
side trims extend beyond the cabinet fronts at least 1/4". (Self-clean models only.)
For answers to your Monogram,®
GE Profile Performance Series,™
GE Profile™ or GE appliance questions, call
GE Answer Center® service, 800.626.2000.
|
|
All GE ranges are equipped with |
|
|
|
|
an Anti-Tip device. The installation |
|
Listed by |
|
|
of this device is an important, |
|
|
|
|
|
Underwriters |
|
|
|
required step in the installation |
|
|
|
|
R |
Laboratories |
|
Specification Revised 6/00 |
|
of the range. |
||
|
|
|
||
|
|
|
|
KW Rating
240V 11.4
208V 8.6
Models are shipped with color-matched Rear Filler Strip Kit. Optional Kits for Slide-In Electric Ranges (Available at additional cost)
Rear Filler Strip Kits
JXS28—Rear Filler Strip Kit (Brushed-Chrome)
Accessory Backguards
JXS31—White Accessory Backguard JXS32—Brushed Chrome Accessory Backguard JXS33—Almond Accessory Backguard JXS34—Black Accessory Backguard JXS35—Bisque Accessory Backguard
Endcap Kit
JXS40—Endcap kit to accommodate replacement where countertop may already be notched.
Lower/Side Trim Kits
JXS52BB—Lower Trim Kit (Black)
JXS53WW—Lower Trim Kit (White)
JXS54AA—Lower Trim Kit (Almond)
JXS55CC—Lower Trim Kit (Bisque)
Pub. No. 3-A040—Vertical Side Trim Kit (Brushed-Chrome)
Note: All 30" Slide-In Ranges conform to U.L. requirements for 0" spacing from range to adjacent walls below countertop. To reduce possibility of scorching of the side wall adjacent to the heating elements, it is recommended a minimum of 6" spacing from adjacent side walls be allowed for possible extended, high-heat, no-load operation of heating elements.
Receptacle Location: For all 30" Slide-In Ranges, locally approved flexible service cord or conduit must be used because terminals are not accessible after range installation. See shaded area in drawing for location of electrical outlet box. Recommended outlet locations allow range to be installed directly against rear wall.
Note: Cabinets installed adjacent to slide-in ranges must have an adhesion spec of at least 194°.
Installation Information: Before installing, consult installation instructions (Pub. No. 3110070) packed with product for current dimensional data.
TM
JSP40BW—GE Profile™ 30" Slide-In Electric Range
|
|
F
L
O
|
|
|
|
Features and Benefits
• Black on black Model
• Fingerprint and Scratch Resistant Patterned Glass Ribbon Cooktop
•Self-Cleaning Oven With Automatic Oven Door Lock
•Frameless Glass Oven Door With Window
•2 Oven Shelves
•Broiler Pan With Grid
•SmartSet Electronic Controls
•Storage Drawer
•Two 8", One 6" and One Dual 6"/9" Ribbon Heating Element
•4 Hot Surface Indicator Lights
•Sure Grip Designer-Style Handle
•Also Available In White on white as Model JSP40WW and Almond on almond as Model JSP40AW
•Optional Backguard Available At Additional Cost
Specification Revised 6/00
