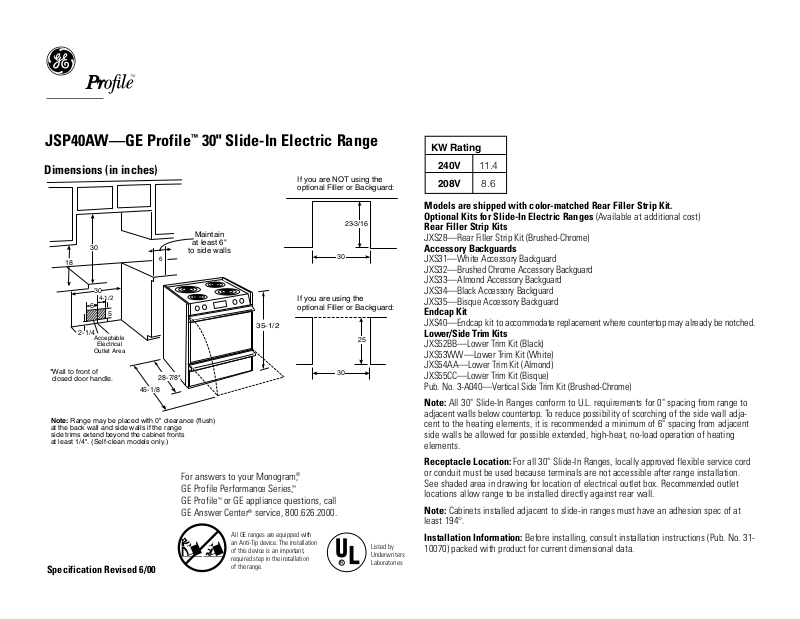

JSP40AW—GE Profile™30" Slide-In Electric Range
Dimensions (in inches)
23-3/16
30
30
If you are NOT using the
optional Filler or Backguard:
If you are using the
optional Filler or Backguard:
25
28-7/8*
35-1/2
Maintain
at least 6"
to side walls
Acceptable
Electrical
Outlet Area
45-1/8
2-1/4
5
6
4-1/2
30
30
18
6
*Wall to front of
closed door handle.
Note: Range may be placed with 0" clearance (flush)
at the back wall and side walls if the range
side trims extend beyond the cabinet fronts
at least 1/4". (Self-clean models only.)
Models are shipped with color-matched Rear Filler Strip Kit.
Optional Kits for Slide-In Electric Ranges (Available at additional cost)
Rear Filler Strip Kits
JXS28—Rear Filler Strip Kit (Brushed-Chrome)
Accessory Backguards
JXS31—White Accessory Backguard
JXS32—Brushed Chrome Accessory Backguard
JXS33—Almond Accessory Backguard
JXS34—Black Accessory Backguard
JXS35—Bisque Accessory Backguard
Endcap Kit
JXS40—Endcap kit to accommodate replacement where countertop may already be notched.
Lower/Side Trim Kits
JXS52BB—Lower Trim Kit (Black)
JXS53WW—Lower Trim Kit (White)
JXS54AA—Lower Trim Kit (Almond)
JXS55CC—Lower Trim Kit (Bisque)
Pub. No. 3-A040—Vertical Side Trim Kit (Brushed-Chrome)
Note: All 30" Slide-In Ranges conform to U.L. requirements for 0" spacing from range to
adjacent walls below countertop. To reduce possibility of scorching of the side wall adjacent to the heating elements, it is recommended a minimum of 6" spacing from adjacent
side walls be allowed for possible extended, high-heat, no-load operation of heating
elements.
Receptacle Location: For all 30" Slide-In Ranges, locally approved flexible service cord
or conduit must be used because terminals are not accessible after range installation.
See shaded area in drawing for location of electrical outlet box. Recommended outlet
locations allow range to be installed directly against rear wall.
Note: Cabinets installed adjacent to slide-in ranges must have an adhesion spec of at
least 194°.
Installation Information: Before installing, consult installation instructions (Pub. No. 31-
10070) packed with product for current dimensional data.
KW Rating
240V 11.4
208V 8.6
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
TM
Specification Revised 6/00
JSP40AW—GE Profile™30" Slide-In Electric Range
O
V
E
N
L
I
G
H
T
F
R
O
N
T
R
E
A
R
F
R
O
N
T
R
E
A
R
S
U
R
F
A
C
E
U
N
I
T
S
O
F
F
L
O
|
|
|
M
E
D
|
|
|
H
I
O
F
F
L
O
|
|
|
M
E
D
|
|
|
H
I
O
F
F
L
O
|
|
|
M
E
D
|
|
|
H
I
O
F
F
L
O
|
|
|
M
E
D
|
|
|
H
I
Features and Benefits
• Almond on almond Model
• Fingerprint and Scratch Resistant Patterned Glass Ribbon Cooktop
• Self-Cleaning Oven With Automatic Oven Door Lock
• Frameless Glass Oven Door With Window
• 2 Oven Shelves
• Broiler Pan With Grid
• SmartSet Electronic Controls
• Storage Drawer
• Two 8", One 6" and One Dual 6"/9" Ribbon Heating Element
• 4 Hot Surface Indicator Lights
• Sure Grip Designer-Style Handle
• Also Available In Black on black as Model JSP40BW and White on white
as Model JSP40WW
• Optional Backguard Available At Additional Cost
