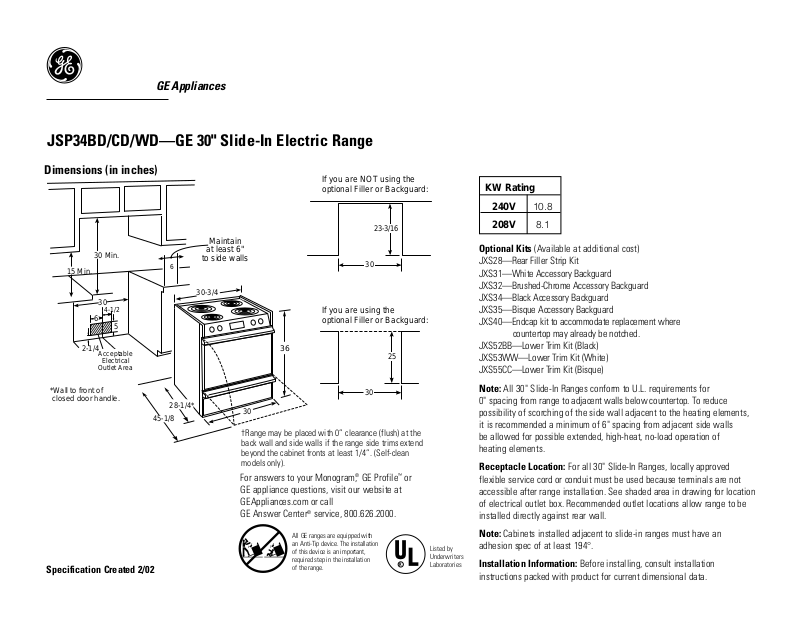

GE JSP34BD, JSP34CD, JSP34WD Specification

GE Appliances

Specification Created 2/02

JSP34BD/CD/WD—GE 30" Slide-In Electric Range

Dimensions (in inches)

23-3/16

If you are NOT using the optional Filler or Backguard:

If you are using the optional Filler or Backguard:

28-1/4*

Maintain

at least 6"

to side walls

Acceptable

Electrical

Outlet Area

45-1/8

2-1/4

4-1/2

30-3/4

30 Min.

15 Min.

*Wall to front of closed door handle.

Optional Kits (Available at additional cost) JXS28—Rear Filler Strip Kit JXS31—White Accessory Backguard JXS32—Brushed-Chrome Accessory Backguard JXS34—Black Accessory Backguard JXS35—Bisque Accessory Backguard JXS40—Endcap kit to accommodate replacement where

countertop may already be notched. JXS52BB—Lower Trim Kit (Black) JXS53WW—Lower Trim Kit (White) JXS55CC—Lower Trim Kit (Bisque)

Note: All 30" Slide-In Ranges conform to U.L. requirements for 0" spacing from range to adjacent walls below countertop. To reduce possibility of scorching of the side wall adjacent to the heating elements, it is recommended a minimum of 6" spacing from adjacent side walls be allowed for possible extended, high-heat, no-load operation of heating elements.

Receptacle Location: For all 30" Slide-In Ranges, locally approved flexible service cord or conduit must be used because terminals are not accessible after range installation. See shaded area in drawing for location of electrical outlet box. Recommended outlet locations allow range to be installed directly against rear wall.

Note: Cabinets installed adjacent to slide-in ranges must have an adhesion spec of at least 194°.

Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.

KW Rating

240V 10.8 208V 8.1

All GE ranges are equipped with an Anti-Tip device. The installation of this device is an important, required step in the installation of the range.

For answers to your Monogram,®GE Profile™or GE appliance questions, visit our website at GEAppliances.com or call GE Answer Center®service, 800.626.2000.

Listed by Underwriters Laboratories

†Range may be placed with 0” clearance (flush) at the back wall and side walls if the range side trims extend beyond the cabinet fronts at least 1/4”. (Self-clean models only).

GE Appliances

Specification Created 2/02

JSP34BD/CD/WD—GE 30" Slide-In Electric Range

Features and Benefits

• Lift-Up Overhanging Porcelain-Enameled Cooktop

• Two 8" and Two 6" Plug-In Calrod

Heating Elements

• Removable Chrome One-Piece Drip Bowls

• Self-Clean Oven With Automatic Oven Door Lock

• SmartSet Electronic Oven Control

• Electronic Clock and Kitchen Timer

• Delay Bake Option With Cook and Hold

• Auto Oven Shut-Off With Override

• Broiler Pan With Grid

• 2 Oven Shelves

• Interior Oven Light

• Frameless Glass Oven Door With Window

• Color-Matched Storage Drawer

• Designer-Style Handle

• Optional Backguard Available At Additional Cost

• Model JSP34BDBB–Black on black

• Model JSP34CDCC–Bisque on bisque

• Model JSP34WDWW–White on white
