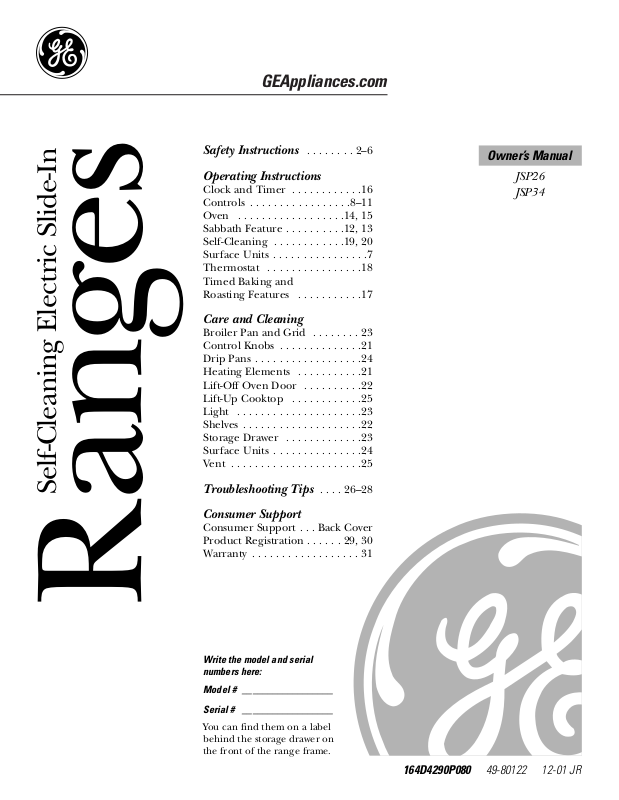

GE JSP34, JSP26 User Manual
GEAppliances.com
JSP26
JSP34
Owner’s Manual
Ranges
Self-Cleaning Electric Slide-In
164D4290P080 49-80122 12-01 JR
Safety Instructions . . . . . . . . 2–6
Operating Instructions
Clock and Timer . . . . . . . . . . . .16
Controls . . . . . . . . . . . . . . . . .8–11
Oven . . . . . . . . . . . . . . . . . .14, 15
Sabbath Feature . . . . . . . . . .12, 13
Self-Cleaning . . . . . . . . . . . .19, 20
Surface Units . . . . . . . . . . . . . . . .7
Thermostat . . . . . . . . . . . . . . . .18
Timed Baking and
Roasting Features . . . . . . . . . . .17
Care and Cleaning
Broiler Pan and Grid . . . . . . . . 23
Control Knobs . . . . . . . . . . . . . .21
Drip Pans . . . . . . . . . . . . . . . . . .24
Heating Elements . . . . . . . . . . .21
Lift-Off Oven Door . . . . . . . . . .22
Lift-Up Cooktop . . . . . . . . . . . .25
Light . . . . . . . . . . . . . . . . . . . . .23
Shelves . . . . . . . . . . . . . . . . . . . .22
Storage Drawer . . . . . . . . . . . . .23
Surface Units . . . . . . . . . . . . . . .24
Vent . . . . . . . . . . . . . . . . . . . . . .25
Troubleshooting Tips . . . . 26–28
Consumer Support
Consumer Support . . . Back Cover
Product Registration . . . . . . 29, 30
Warranty . . . . . . . . . . . . . . . . . . 31
Write the model and serial
numbers here:
Model # __________________
Serial # __________________
You can find them on a label
behind the storage drawer on
the front of the range frame.
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire,
electric shock, or to prevent property damage, personal injury, or loss of life.
All ranges can tip and injury could result.
To prevent accidental tipping of the range, attach it to the wall and floor by installing the Anti-Tip
device supplied.
Check if the device is installed and engaged properly. Make sure the chain fits securely into the slot
in the bracket.
If you pull the range out from the wall for any reason, make sure the device is properly
engaged when you push the range back against the wall. If it is not, there is a possible risk of
the range tipping over and causing injury if you or a child stand, sit or lean on an open door.
Please refer to the Anti-Tip device information in this manual. Failure to take this precaution
could result in tipping of the range and injury.
WARNING
ANTI-TIP DEVICE
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
2
Safety Instructions
Operating Instructions
Safety Instructions
Operating Instructions
Care and Cleaning Troubleshooting Tips Consumer Support
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to
publish a list of substances known to the state to cause cancer, birth defects or other reproductive
harm, and requires businesses to warn customers of potential exposure to such substances.
The fiberglass insulation in self-clean ovens gives off a very small amount of carbon monoxide during
the cleaning cycle. Exposure can be minimized by venting with an open window or using a ventilation
fan or hood.
When using electrical appliances, basic safety precautions should be followed, including the following:
■Use this appliance only for its intended
purpose as described in this Owner’s
Manual.
■Be sure your appliance is properly
installed and grounded by a qualified
installer in accordance with the provided
installation instructions.
■ Have the installer show you the location
of the circuit breaker or fuse. Mark it for
easy reference.
■ Do not attempt to repair or replace any
part of your range unless it is specifically
recommended in this manual. All other
servicing should be referred to a qualified
technician.
■ Never try to move a pan of hot fat,
especially a deep fat fryer. Wait until the fat
is cool.
■ Never leave jars or cans of fat dripping in
or near your range.
■ Before performing any service, disconnect
the range power supply at the household
distribution panel by removing the fuse or
switching off the circuit breaker.
■ Do not leave children alone—children
should not be left alone or unattended in
an area where an appliance is in use. They
should never be allowed to sit or stand on
any part of the appliance.
■ Do not allow anyone to climb, stand or
hang on the door, storage drawer or
cooktop. They could damage the range
and even tip it over, causing severe
personal injury.
■ Large scratches or impacts to glass doors
can lead to broken or shattered glass.
■ Carefully watch for spillovers or
overheating of foods when frying at high
or medium high temperatures.
SAFETY PRECAUTIONS
3
GEAppliances.com
4
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
■ Do not store flammable materials in an
oven or near the cooktop.
■
CAUTION:
Items of interest to
children should not be stored in cabinets
above a range or on the backsplash of
a range—children climbing on the range
to reach items could be seriously injured.
■ Never wear loose-fitting or hanging
garments while using the appliance.
Be careful when reaching for items stored
over the range. Flammable material could
be ignited if brought in contact with hot
surface units or heating elements and
may cause severe burns.
■ Use only dry pot holders—moist or damp
pot holders on hot surfaces may result in
burns from steam. Do not let pot holders
touch hot surface units or heating
elements. Do not use a towel or other
bulky cloth in place of pot holders.
■ For your safety, never use your appliance
for warming or heating the room.
■ Teach children not to play with the
controls or any other part of the range.
■ Always keep dish towels, dish cloths, pot
holders and other linens a safe distance
from your range.
■ Always keep wooden and plastic utensils
and canned food a safe distance from
your range.
■ Always keep combustible wall coverings,
curtains or drapes a safe distance from
your range.
■ Do not let cooking grease or other
flammable materials accumulate in
or near the range.
■ Keep the hood and grease filters clean
to maintain good venting and to avoid
grease fires.
■ Do not use water on grease fires. Never
pick up a flaming pan. Turn the controls
off. Smother a flaming pan on a surface
unit by covering the pan completely with
a well-fitting lid, cookie sheet or flat tray.
Use a multi-purpose dry chemical or
foam-type fire extinguisher.
■Flaming grease outside a pan can be put
out by covering it with baking soda or,
if available, by using a multi-purpose dry
chemical or foam-type fire extinguisher.
■Flame in the oven can be smothered
completely by closing the oven door and
turning the oven off or by using a multipurpose dry chemical or foam-type fire
extinguisher.
■ Do not touch the surface units, the
heating elements or the interior surface
of the oven. These surfaces may be hot
enough to burn even though they are
dark in color. During and after use, do not
touch, or let clothing or other flammable
materials contact the surface units, areas
nearby the surface units or any interior
area of the oven; allow sufficient time for
cooling first.
■Potentially hot surfaces include the
cooktop, areas facing the cooktop, oven
vent opening, surfaces near the opening,
crevices around the oven door.
■
REMEMBER:
The inside surface of the oven
may be hot when the door is opened.
■ Do not store or use combustible materials,
gasoline or other flammable vapors and
liquids in the vicinity of this or any other
appliance.
WARNING!
SAFETY PRECAUTIONS
Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F. and poultry
to at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against
foodborne illness.
COOK MEAT AND POULTRY THOROUGHLY…
5
Safety Instructions
Operating Instructions
Safety Instructions
Operating Instructions
Care and Cleaning Troubleshooting Tips Consumer Support
GEAppliances.com
Use proper pan size—select cookware having flat bottoms large enough to cover the surface unit
heating element. The use of undersized cookware will expose a portion of the surface unit to direct
contact and may result in ignition of clothing. Proper relationship of cookware to surface unit will also
improve efficiency.
SURFACE COOKING UNITS
■Never leave the surface units unattended
at high heat settings. Boilovers cause
smoking and greasy spillovers that may
catch on fire.
■Do not use aluminum foil to line the drip
pans or anywhere in the oven except as
described in this manual. Misuse could
result in a shock, fire hazard or damage
to the range.
■Be sure the drip pans and the vent duct
are not covered and are in place. Their
absence during cooking could damage
range parts and wiring.
■Only certain types of glass, glass ⁄ceramic,
earthenware or other glazed containers
are suitable for cooktop service; others
may break because of the sudden change
in temperature.
■To minimize the possibility of burns,
ignition of flammable materials and
spillage, the handle of a container
should be turned toward the center
of the range without extending over
nearby surface units.
■Always turn the surface units off before
removing cookware.
■Do not immerse or soak the removable
surface units. Do not put them in a
dishwasher. Do not self-clean the surface
units in the oven.
■When preparing flaming foods under
the hood, turn the fan on.
■To avoid the possibility of a burn or
electric shock, always be certain that the
controls for all surface units are at the
OFF
position and all coils are cool before
attempting to lift or remove a unit.
■Clean the cooktop with caution. If a wet
sponge is used to wipe spills on a hot
cooktop, be careful to avoid steam burns.
■Keep an eye on foods being fried at high
or medium high heat settings.
■Foods for frying should be as dry as
possible. Frost on frozen foods or moisture
on fresh foods can cause hot fat to bubble
up and over the sides of the pan.
■Use little fat for effective shallow or deep
fat frying. Filling the pan too full of fat can
cause spillovers when food is added.
■If a combination of oils or fats will be used
in frying, stir together before heating, or as
fats melt slowly.
■Always heat fat slowly, and watch as it heats.
■Use a deep fat thermometer whenever
possible to prevent overheating fat beyond
the smoking point.
6
Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
■ Do not heat unopened food containers.
Pressure could build up and the container
could burst, causing an injury.
■ Keep the oven vent unobstructed.
■ Keep the oven free from grease buildup.
■ Place the oven shelf in the desired position
while the oven is cool. If shelves must be
handled when hot, do not let pot holder
contact the heating elements.
■ Pulling out the shelf to the stop-lock
is a convenience in lifting heavy foods.
It is also a precaution against burns from
touching hot surfaces of the door or
oven walls.
■ When using cooking or roasting bags
in the oven, follow the manufacturer’s
directions.
■ Do not use the oven to dry newspapers.
If overheated, they can catch on fire.
■ Do not use the oven for a storage area.
Items stored in an oven can ignite.
■ Do not leave paper products, cooking
utensils or food in the oven when not
in use.
■ Do not use aluminum foil to line oven
bottoms, except as suggested in this
manual. Improper installation of
aluminum foil may result in a risk
of electric shock or fire.
Stand away from the range when opening the oven door. Hot air or steam which escapes can cause
burns to hands, face and/or eyes.
WARNING!
OVEN
Do not use oven cleaners. No commercial oven cleaner or oven liner protective coating of any kind
should be used in or around any part of the oven. Residue from oven cleaners will damage the inside
of the oven when the self-clean cycle is used.
■Do not clean the door gasket. The door
gasket is essential for a good seal. Care
should be taken not to rub, damage or
move the gasket.
■Before self-cleaning the oven, remove the
broiler pan, grid and other cookware.
■Be sure to wipe up excess spillage before
starting the self-cleaning operation.
■If the self-cleaning mode malfunctions,
turn the oven off and disconnect the
power supply. Have it serviced by a
qualified technician.
■Clean only parts listed in this Owner’s
Manual.
SELF-CLEANING OVEN
7
Safety Instructions
Operating Instructions
Safety Instructions
Operating Instructions
Care and Cleaning Troubleshooting Tips Consumer Support
Using the surface units.
GEAppliances.com
Throughout this manual, features and appearance may vary from your model.
How to Set
Push the knob in and turn in either
direction to the setting you want.
At both
OFF
and HIthe control
clicks
into position. You may hear slight
clicking
sounds during cooking,
indicating the control is maintaining
your desired setting.
A surface unit ONindicator light will
glow when
any
surface unit is on.
Be sure you turn the control knob to
OFF
when you finish cooking.
Surface Cookware Tips
Use medium- or heavy-weight cookware.
Aluminum cookware conducts heat faster
than other metals. Cast-iron and coated
cast-iron cookware are slow to absorb
heat, but generally cook evenly at low to
medium heat settings. Steel pans may
cook unevenly if not combined with
other metals.
For best cooking results, pans should be
flat on the bottom. Match the size of the
saucepan to the size of the surface unit.
The pan should not extend over the
edge of the surface unit more than 1″.
Not over 1 inch.
Home Canning Tips
Be sure the canner is centered over the
surface unit.
Make sure the canner is flat on the
bottom.
Use recipes and procedures from
reputable sources. These are available
from manufacturers such as Ball®and
Kerr®and the Department of Agriculture
Extension Service.
To prevent burns from steam or heat,
use caution when canning.
Use only flat-bottomed woks.
Wok Cooking
We recommend that you use only a flat-bottomed
wok. They are available at your local retail store.
Do not use woks that have support rings.
Placing the ring over the surface unit will
cause a build-up of heat that will damage
the porcelain cooktop.
Do not use round bottom woks. You
could be seriously burned if the wok
tipped over.
8
Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support
Using the oven controls.
Throughout this manual, features and appearance may vary from your model.
Oven Control, Clock and Timer Features and Settings
BAKE Pad
Press this pad to select the bake function.
BROIL HI/LO Pad
Press this pad to select the broil function.
Display
Shows the time of day and the time set for
the timer.
If “F—and a number or letter” flash in the display
and the oven control signals, this indicates a
function error code.
If your oven was set for a timed oven operation
and a power outage occurred, the clock and all
programmed functions must be reset.
The time of day will flash in the display when
there has been a power outage.
COOKING TIME Pad
Press this pad and then press the
INCREASE
or
DECREASE
pads to set the
amount of time you want your food to
cook. The oven will shut off when the
cooking time has run out.
START TIME Pad
Press this pad and the
INCREASE
or
DECREASE
pads to delay the starting of
your oven up to 9 hours and 59 minutes.
CLOCK Pad
Press this pad before setting the clock.
KITCHEN TIMER ON/OFF Pad
Press this pad to select the timer feature.
START Pad
Must be pressed to start any cooking or
cleaning function.
DECREASE Pad
Short taps to this pad will decrease the
time or temperature by small amounts.
Press and hold the pad to decrease the
time or temperature by larger amounts.
INCREASE Pad
Short taps to this pad will increase the time
or temperature by small amounts. Press
and hold the pad to increase the time or
temperature by larger amounts.
CLEAR/OFF Pad
Press this pad to cancel
ALL
oven
operations except the clock and timer.
SELF CLEAN Pad
Press this pad to select the self-cleaning
function. See the
Using the self-cleaning
oven
section.
Safety Instructions Operating Instructions Care and Cleaning Troubleshooting Tips Consumer Support
9
Special features of your oven control.
GEAppliances.com
Your new touch pad control has additional features that you may choose to use. The following are the features and
how you may activate them.
The special feature modes can only be activated while the display is showing the time of day. They remain in the
control’s memory until the steps are repeated.
When the display shows your choice, press the START pad. The special features will remain in memory after
a power failure.
12 Hour Shut-Off
With this feature, should you forget and leave the
oven on, the control will automatically turn off the
oven after 12 hours during baking functions or
after 3 hours during a broil function.
If you wish to turn
OFF
this feature, follow
the steps below.
Press the
BAKE
and
BROIL HI/LO
pads at the same time for 3 seconds
until the display shows
SF.
Press the
START TIME
pad. The
display will show
12 shdn
(12 hour
shut-off). Press the
START TIME
pad again and the display will show
no shdn
(no shut-off).
Press the
START
pad to activate the
no shut-off and leave the control
set in this special features mode.
Fahrenheit or Celsius Temperature Selection
Your oven control is set to use the Fahrenheit
temperature selections but you may change this
to use the Celsius selections.
Press the
BAKE
and
BROIL HI/LO
pads at the same time for 3 seconds
until the display shows
SF.
Press the
BROIL HI/LO
and
COOKING
TIME
pads at the same time. The
display will show F(Fahrenheit).
Press the
BROIL HI/LO
and
COOKING
TIME
pads at the same time again.
The display will show C(Celsius).
Press the
START
pad.
Control Lockout
Your control will allow you to lock out the touch
pads so they cannot be activated when pressed.
Press the
BAKE
and
BROIL HI/LO
pads at the same time for 3 seconds
until the display shows
SF.
Press the
SELF CLEAN
pad. The
display will show
LOC OFF.
Press the
SELF CLEAN
pad again.
The display will show
LOC ON.
Press the
START
pad to activate
the control lockout feature and
leave the control set in this special
features mode.
When this feature is on and the touch
pads are pressed, the control will beep
and the display will show
LOC.
NOTE: The control lockout mode will not
affect the CLOCK and KITCHEN TIMER ON/OFF
touch pads.
10
Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support
Special features of your oven control.
Tones at the End of a Timed Cycle
At the end of a timed cycle, 3 short beeps will
sound followed by one beep every 6 seconds until
the CLEAR/OFF pad is pressed. This continual
6 second beep may be canceled.
To cancel the 6 second beep:
Press the
BAKE
and
BROIL HI/LO
pads at the same time for 3 seconds
until the display shows
SF.
Press the
KITCHEN TIMER ON/OFF
pad. The display shows
CON BEEP
(continual beep). Press the
KITCHEN
TIMER ON/OFF
pad again. The
display shows
BEEP.
(This cancels
the one beep every 6 seconds.)
Press the
START
pad.
12 Hour, 24 Hour or Clock Black-Out
Your control is set to use a 12 hour clock.
If you would prefer to have a 24 hour
military time clock or black-out the clock
display, follow the steps below.
Press the
BAKE
and
BROIL HI/LO
pads at the same time for 3 seconds
until the display shows
SF.
Press the
CLOCK
pad once. The
display will show
12 hr.
If this is
the choice you want, press the
START
pad.
Press the
CLOCK
pad again to
change to the 24 hour military time
clock. The display will show
24 hr.
If this is the choice you want, press
the
START
pad.
Press the
CLOCK
pad again to blackout the clock display. The display
will show
OFF.
If this is the choice
you want, press the
START
pad.
NOTE: If the clock is in the black-out mode, you
will not be able to use the Delay Start function.
Loading...
