GE JSP26BW Specification

GE Appliances

Specification Revised 6/00

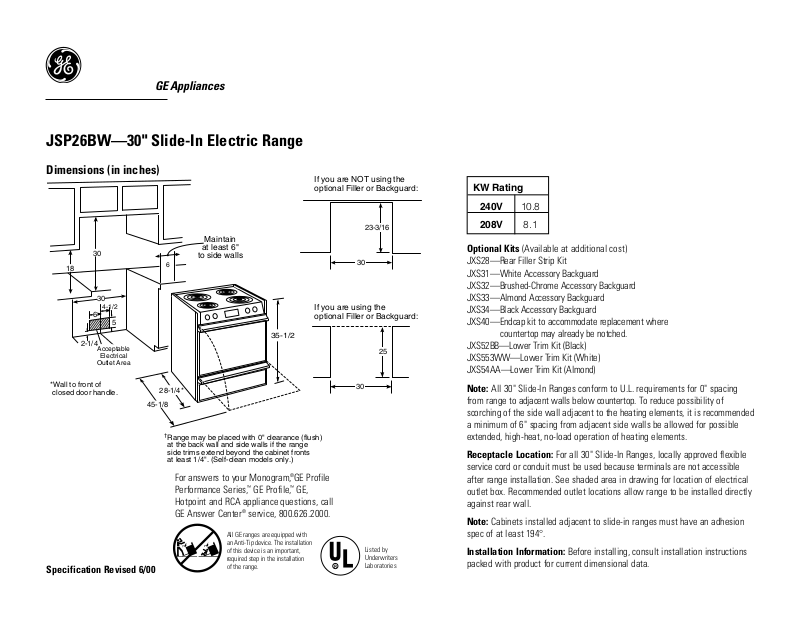

JSP26BW—30" Slide-In Electric Range

Dimensions (in inches)

23-3/16

30

30

If you are NOT using the
optional Filler or Backguard:

If you are using the
optional Filler or Backguard:

25

28-1/4*

35-1/2

Maintain

at least 6"

to side walls

Acceptable

Electrical

Outlet Area

45-1/8

2-1/4

5

6

4-1/2

30

30

18

6

*Wall to front of
closed door handle.

†

Range may be placed with 0" clearance (flush)
at the back wall and side walls if the range
side trims extend beyond the cabinet fronts
at least 1/4". (Self-clean models only.)

Optional Kits (Available at additional cost)
JXS28—Rear Filler Strip Kit
JXS31—White Accessory Backguard
JXS32—Brushed-Chrome Accessory Backguard
JXS33—Almond Accessory Backguard
JXS34—Black Accessory Backguard
JXS40—Endcap kit to accommodate replacement where

countertop may already be notched.
JXS52BB—Lower Trim Kit (Black)
JXS553WW—Lower Trim Kit (White)
JXS54AA—Lower Trim Kit (Almond)

Note: All 30" Slide-In Ranges conform to U.L. requirements for 0" spacing
from range to adjacent walls below countertop. To reduce possibility of
scorching of the side wall adjacent to the heating elements, it is recommended
a minimum of 6" spacing from adjacent side walls be allowed for possible
extended, high-heat, no-load operation of heating elements.

Receptacle Location: For all 30" Slide-In Ranges, locally approved flexible
service cord or conduit must be used because terminals are not accessible
after range installation. See shaded area in drawing for location of electrical
outlet box. Recommended outlet locations allow range to be installed directly
against rear wall.

Note: Cabinets installed adjacent to slide-in ranges must have an adhesion
spec of at least 194°.

Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.

KW Rating

240V 10.8

208V 8.1

All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.

For answers to your Monogram,®GE Profile
Performance Series,™GE Profile,™GE,
Hotpoint and RCA appliance questions, call
GE Answer Center®service, 800.626.2000.

R

Listed by
Underwriters
Laboratories

GE Appliances

Specification Revised 6/00

JSP26BW—30" Slide-In Electric Range

OVENOVEN
LIGHTLIGHT

F

R

O

N

T

FRONT

R

E

A

R

REAR

F

R

O

N

T

FRONT

R

E

A

R

REAR

SURFACESURFACE
UNITSUNITS

O

F

F

L

O

|

|

|

M

E

D

|

|

|

H

I

O

F

F

L

O

|

|

|

M

E

D

|

|

|

H

I

O

F

F

L

O

|

|

|

M

E

D

|

|

|

H

I

O

F

F

L

O

|

|

|

M

E

D

|

|

|

H

I

Features and Benefits

• Available In White or Almond

• Lift-Up Overhanging White or Almond Porcelain-Enameled Cooktop

• Self-Cleaning Oven With Automatic Oven Door Lock

• Two 8" and Two 6" Plug-In Calrod

®

Heating Elements

• Removable Porcelain-Enameled One-Piece Drip Bowls

• Self-Cleaning Oven With Automatic Oven Door Lock

• SmartSet Electronic Oven Control

• Electronic Clock and Kitchen Timer

• Delay Bake Option With Cook and Hold

• Auto Oven Shut-Off With Override

• Broiler Pan With Grid

• 2 Oven Shelves

• Interior Oven Light

• Frameless Color-Matched Glass Oven Door With Window

• Color-Matched Storage Drawer

• Designer-Style Handle

• Optional Backguard Available At Additional Cost
