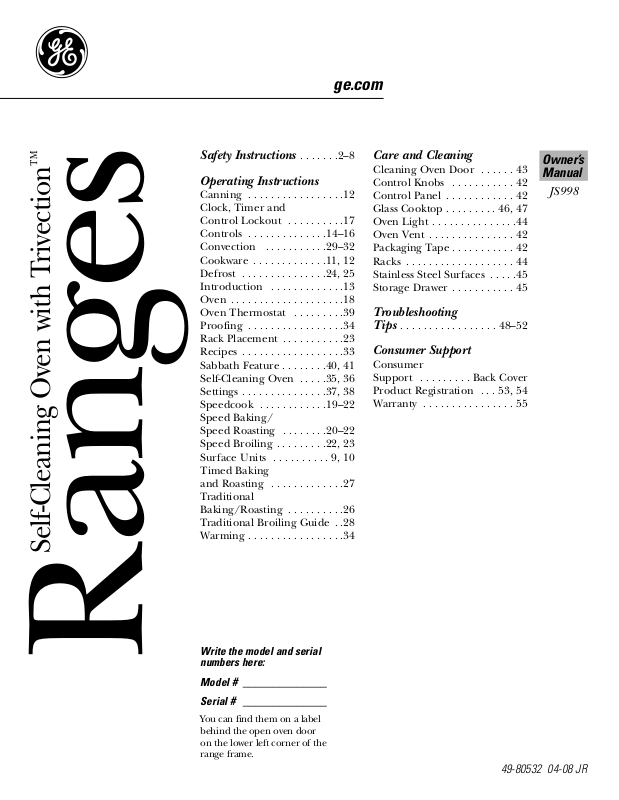

GE JS998 User Manual

Download

Page 1

ge.com

JS998

Owner’s Manual

Ranges

Self-Cleaning Oven with Trivection

™

49-80532 04-08 JR

Safety Instructions . . . . . . .2–8

Operating Instructions

Canning . . . . . . . . . . . . . . . . .12

Clock, Timer and

Control Lockout . . . . . . . . . .17

Controls . . . . . . . . . . . . . .14–16

Convection . . . . . . . . . . .29–32

Cookware . . . . . . . . . . . . .11, 12

Defrost . . . . . . . . . . . . . . .24, 25

Introduction . . . . . . . . . . . . .13

Oven . . . . . . . . . . . . . . . . . . . .18

Oven Thermostat . . . . . . . . .39

Proofing . . . . . . . . . . . . . . . . .34

Rack Placement . . . . . . . . . . .23

Recipes . . . . . . . . . . . . . . . . . .33

Sabbath Feature . . . . . . . .40, 41

Self-Cleaning Oven . . . . .35, 36

Settings . . . . . . . . . . . . . . .37, 38

Speedcook . . . . . . . . . . . .19–22

Speed Baking/

Speed Roasting . . . . . . . .20–22

Speed Broiling . . . . . . . . .22, 23

Surface Units . . . . . . . . . . 9, 10

Timed Baking

and Roasting . . . . . . . . . . . . .27

Traditional

Baking/Roasting . . . . . . . . . .26

Traditional Broiling Guide . .28

Warming . . . . . . . . . . . . . . . . .34

Care and Cleaning

Cleaning Oven Door . . . . . . 43

Control Knobs . . . . . . . . . . . 42

Control Panel . . . . . . . . . . . . 42

Glass Cooktop . . . . . . . . . 46, 47

Oven Light . . . . . . . . . . . . . . .44

Oven Vent . . . . . . . . . . . . . . . 42

Packaging Tape . . . . . . . . . . . 42

Racks . . . . . . . . . . . . . . . . . . . 44

Stainless Steel Surfaces . . . . .45

Storage Drawer . . . . . . . . . . . 45

Troubleshooting

Tips . . . . . . . . . . . . . . . . . 48–52

Consumer Support

Consumer

Support . . . . . . . . . Back Cover

Product Registration . . . 53, 54

Warranty . . . . . . . . . . . . . . . . 55

Write the model and serial numbers here:

Model

# ______________

Serial

# ______________

You can find them on a label behind the open oven door on the lower left corner of the range frame.

Page 2

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

■ Do not attempt to operate this oven with

the door open since open-door operation can result in harmful exposure to microwave energy.

It is important not to

defeat or tamper with the safety interlocks.

■ Do not place any object between the oven

front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

■ The oven should not be adjusted or

repaired by anyone except properly qualified service personnel.

■ Do not operate the oven if it is damaged.

It is particularly important that the oven door close properly and that there is no damage to the:

door (bent),

hinges and latches (broken or loosened),

door seals and sealing surfaces.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

The fiberglass insulation in self-clean ovens gives off a very small amount of carbon monoxide during the cleaning cycle. Exposure can be minimized by venting with an open window or using a ventilation fan or hood.

Page 3

ge.com

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock, or to prevent property damage, personal injury, or loss of life.

When using electrical appliances, basic safety precautions should be followed, including the following:

■ Use this appliance only for its intended

purpose as described in this Owner’s Manual.

■ Be sure your appliance is properly

installed and grounded by a qualified installer in accordance with the provided installation instructions.

■ Have the installer show you the location of

the circuit breaker or fuse. Mark it for easy reference.

■ Do not attempt to repair or replace any

part of your range unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

■ Do not cover or block any openings

on the appliance.

■ Before performing any service, disconnect

the range power supply at the household distribution panel by removing the fuse or switching off the circuit breaker.

■ Do not leave children alone—children

should not be left alone or unattended in an area where an appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

■ Do not allow anyone to climb, stand

or hang on the door, storage drawer or cooktop. They could damage the range and even tip it over, causing severe personal injury.

SAFETY PRECAUTIONS

To reduce the risk of tipping the range, the range must be secured by a properly installed anti-tip bracket. See installation instructions shipped with the bracket for complete details before attempting to install.

To check if the bracket is installed and engaged properly, remove the storage drawer or kick panel and look underneath the range to see that the leveling leg is engaged in the bracket. If the range is pulled from the wall for any reason, always repeat this procedure to verify the range is properly secured by the anti-tip bracket.

If you did not receive an anti-tip bracket with your purchase, call 1.800.626.8774 to receive one at no cost (in Canada, call 1.800.561.3344). For installation instructions of the bracket, visit GEAppliances.com (in Canada, GEAppliances.ca).

ANTI-TIP DEVICE

WARNING

All ranges can tip.

•

BURNS or other SERIOUS

•

INJURIES can result.

INSTALL and CHECK the

•

ANTI-TIP bracket following the instructions supplied with the bracket.

Page 4

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

■ Do not store flammable materials in an

oven or near the cooktop.

■

CAUTION:

Items of interest to children should not be stored in cabinets above a range or on the back of a range— children climbing on the range to reach items could be seriously injured.

■ Never wear loose-fitting or hanging

garments while using the appliance. Be careful when reaching for items stored over the range. Flammable material could be ignited if brought in contact with hot surface units or heating elements and may cause severe burns.

■ Use only dry pot holders—moist or damp

pot holders on hot surfaces may result in burns from steam. Do not let pot holders touch hot surface units or heating elements. Do not use a towel or other bulky cloth in place of pot holders.

■ Do not use water on grease fires. Never

pick up a flaming pan. Turn the controls off. Smother a flaming pan on a surface unit by covering the pan completely with a well-fitting lid, cookie sheet or flat tray. Use a multi-purpose dry chemical or foam-type fire extinguisher.

■ Flaming grease outside a pan can be put

out by covering it with baking soda or, if available, by using a multi-purpose dry chemical or foam-type fire extinguisher.

■ Flame in the oven can be smothered

completely by closing the oven door and turning the oven off or by using a multi-purpose dry chemical or foam-type fire extinguisher.

■ For your safety, never use your appliance

for warming or heating the room.

■ Do not let cooking grease or other

flammable materials accumulate in or near the range.

■ Do not touch the surface units, the

heating elements or the interior surface of the oven. These surfaces may be hot enough to burn even though they are dark in color. During and after use, do not touch, or let clothing or other flammable materials contact the surface units, areas nearby the surface units or any interior area of the oven; allow sufficient time for cooling first.

■ Potentially hot surfaces include the

cooktop, areas facing the cooktop, oven vent opening, surfaces near the opening, crevices around the oven door.

■

REMEMBER:

The inside surface of the oven

may be hot when the door is opened.

■ Do not store or use combustible materials,

gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

■ Keep the hood and grease filters clean

to maintain good venting and to avoid grease fires.

■ Teach children not to play with the

controls or any other part of the range.

■ Always keep dish towels, dish cloths, pot

holders and other linens a safe distance from your range.

■ Always keep wooden and plastic utensils

and canned food a safe distance from your range.

■ Always keep combustible wall coverings,

curtains or drapes a safe distance from your range.

WARNING!

SAFETY PRECAUTIONS

Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F and poultry to at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against foodborne illness.

COOK MEAT AND POULTRY THOROUGHLY…

Do not operate the oven or cooktop controls if the glass is broken. Food splatter or cleaning solution may penetrate a broken control panel or cooktop and create a risk of electrical shock. Contact a qualified technician immediately should your glass control panel or cooktop become broken.

Page 5

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

Use proper pan size—select cookware having flat bottoms large enough to cover the surface unit heating element. The use of undersized cookware will expose a portion of the surface unit to direct contact and may result in ignition of clothing. Proper relationship of cookware to surface unit will also improve efficiency.

■ Never leave the surface units unattended

at high heat settings. Boilovers cause smoking and greasy spillovers that may catch on fire.

■ Only certain types of glass, glass ⁄ceramic,

earthenware or other glazed containers are suitable for cooktop service; others may break because of the sudden change in temperature.

■ To minimize the possibility of burns,

ignition of flammable materials and spillage, the handle of a container should be turned toward the center of the range without extending over nearby surface units.

■ Always turn the surface units off before

removing cookware.

■ When preparing flaming foods under

the hood, turn the fan on.

■ Use care when touching the cooktop. The

glass surface of the cooktop will retain heat after the controls have been turned off.

■ Keep an eye on foods being fried at high

or medium high heat settings.

■ Foods for frying should be as dry as

possible. Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan.

■ Use little fat for effective shallow or deep

fat frying. Filling the pan too full of fat can cause spillovers when food is added.

■ If a combination of oils or fats will be

used in frying, stir together before heating, or as fats melt slowly.

■ Always heat fat slowly, and watch as it heats.

■ Use a deep fat thermometer whenever

possible to prevent overheating fat beyond the smoking point.

■ Avoid scratching the glass cooktop. The

cooktop can be scratched with items such as sharp instruments, rings or other jewelry, and rivets on clothing.

■ Large scratches or impacts to glass

doors or cooktops can lead to broken or shattered glass.

■ Do not operate the radiant surface units if

the glass is broken. Spillovers or cleaning solution may penetrate a broken cooktop and create a risk of electrical shock. Contact a qualified technician immediately should your glass cooktop become broken.

■ Never use the glass cooktop surface as a

cutting board.

■ Do not place or store items that can melt

or catch fire on the glass cooktop, even when it is not being used.

■ Be careful when placing spoons or other

stirring utensils on glass cooktop surface when it is in use. They may become hot and could cause burns.

■ Clean the cooktop with caution. If a wet

sponge or cloth is used to wipe spills on a hot surface unit, be careful to avoid steam burns. Some cleaners can produce noxious fumes if applied to a hot surface.

NOTE:

We recommend that you avoid wiping any surface unit areas until they have cooled and the indicator light has gone off. Sugar spills are the exception to this. Please see the

Cleaning the glass

cooktop

section.

■ When the cooktop is cool, use only the

CERAMA BRYTE

Ceramic Cooktop Cleaner and the CERAMA BRYTE Ceramic Cooktop Cleaning Pad to clean the cooktop.

■ To avoid possible damage to the cooking

surface, do not apply cleaning cream to the glass surface when it is hot.

■ After cleaning, use a dry cloth or paper

towel to remove all cleaning cream residue.

■ Read and follow all instructions and

warnings on the cleaning cream labels.

SURFACE UNITS

ge.com

Page 6

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

Read and follow the specific “Precautions to Avoid Possible Exposure to Excessive Microwave Energy” section in this manual.

To reduce the risk of fire in the oven cavity:

■ Do not overcook food. Carefully attend

appliance if paper, plastic or other combustible materials are placed inside the oven to facilitate cooking.

■ In defrost mode, remove wire twist-ties

from paper or plastic containers before placing bags in the oven.

■ Oven Cooking Bags—Do not use the wire

twist-tie to close the bag.

■ Do not use paper towels.

■ Do not use your oven to dry newspapers.

■ Do not overcook potatoes. They could

dehydrate and catch fire, causing damage to your oven.

■ Do not operate the oven while empty to

avoid damage to the oven and the danger of fire.

■ Do not use the oven for storage purposes.

Do not leave paper products, cooking utensils or food in the oven when not in use.

■ If materials inside the oven should ignite,

keep the oven door closed, turn the oven off and shut off power at the fuse or circuit breaker panel. If the door is opened, the fire may spread.

■ This oven is not approved or tested for

marine use.

■ Some products such as whole eggs and

sealed containers—for example, closed jars—will explode and should not be heated in this oven. Such use of the oven could result in injury.

■ Do not boil eggs in this oven. Pressure will

build up inside the egg yolk and will cause it to burst, possibly resulting in injury.

■ Do not pop popcorn in your oven.

■ Foods with unbroken outer “skin” such as

potatoes, sausages, tomatoes, apples, egg yolks, chicken livers and other giblets should be pierced to allow steam to escape during cooking.

■ Don’t defrost frozen beverages in narrow-

necked bottles (especially carbonated beverages). Even if the container is opened, pressure can build up. This can cause the container to burst, possibly resulting in injury.

■ Hot foods and steam can cause burns.

Be careful when opening any containers of hot food, cooking pouches and boxes. To prevent possible injury, direct steam away from hands and face.

■ As with any appliance, close supervision is

necessary when used by children.

TRIVECTION™OVEN

Page 7

Safety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

ge.com

■ Steam or vapor escaping from around

the door.

■ Dimming of the oven light and change

in the blower sound may occur.

■ The microwave fan may operate with both

ovens off. It is cooling the control and will turn itself off.

■ Some TV-radio interference might be

noticed while using your oven. It is similar to the interference caused by other small appliances and does not indicate a problem with your oven.

ALL THESE THINGS ARE NORMAL WITH YOUR TRIVECTION™OVEN

If you see arcing, open the door and correct the problem.

ARCING

Arcing is the microwave term for sparks in the oven. Arcing is caused by:

■ Metal or foil touching the side of the oven.

■ Foil not molded to food (upturned edges

act like antennas).

■ Metal, such as twist-ties, poultry pins or

gold-rimmed dishes in the oven.

■ Recycled paper towels containing small

metal pieces being used in the oven.

Liquids such as water, coffee or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present.

THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.

SUPER HEATED WATER AND SPONTANEOUS BOILING

Page 8

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

■ Do not heat unopened food containers.

Pressure could build up and the container could burst, causing an injury.

■ Keep the oven vent unobstructed.

■ Keep the oven free from grease buildup.

■ Place the oven shelf in the desired position

while the oven is cool. If shelves must be handled when hot, do not let pot holder contact the heating elements.

■ When using cooking or roasting bags

in the oven, follow the manufacturer’s directions.

■ Pulling out the shelf to the stop-lock is a

convenience in lifting heavy foods. It is also a precaution against burns from touching hot surfaces of the door or oven walls.

■ Do not use the oven to dry newspapers.

If overheated, they can catch on fire.

■ Do not use the oven for a storage area.

Items stored in an oven can ignite.

■ Do not leave paper products, cooking

utensils or food in the oven when not in use.

■ Do not use aluminum foil to line

oven bottoms. Improper installation of aluminum foil may result in a risk of electric shock or fire.

Stand away from the range when opening the oven door. Hot air or steam which escapes can cause burns to hands, face and/or eyes.

WARNING!

OVEN

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Do not use oven cleaners. No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven. Residue from oven cleaners will damage the inside of the oven when the self-clean cycle is used.

■ Do not clean the door gasket. The door

gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.

■ Before self-cleaning the oven, remove

shiny, silver-colored oven racks (on some models) and all other cookware.

■ Be sure to wipe up excess spillage before

starting the self-cleaning operation.

■ If the self-cleaning mode malfunctions,

turn the oven off and disconnect the power supply. Have it serviced by a qualified technician.

■ Clean only parts listed in this Owner’s

Manual.

■ Listen for fan—A fan noise should be

heard sometime during the cleaning cycle. If not, call a serviceman before selfcleaning again.

SELF-CLEANING OVEN

Page 9

Safety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

Using the surface units.

ge.com

NOTE: Throughout this manual, features and appearance may vary from your model.

How to Set

Push the knob in and turn in either direction to the setting you want.

At both

OFF

and HIthe control

clicks

into position. You may hear slight

clicking

sounds during cooking, indicating the control is keeping the power level you set.

HOT SURFACE

indicator light, on the cooktop, will glow when any radiant element is turned on. It will remain on until the surface is cooled to approximately 150°F.

Hot surface indicator light will:

■

come on when the unit is hot to the touch.

■

stay on even after the unit is turned off.

■

glow until the unit is cooled to approximately 150°F.

Be sure you turn the control knob to OFF when you finish cooking.

Page 10

Do not slide cookware across the cooktop because it can scratch the glass—the glass is scratch resistant, not scratch proof.

Temperature Limiter

Every radiant surface unit has a temperature limiter.

The temperature limiter protects the glass cooktop from getting too hot.

The temperature limiter may cycle the units off for a time if:

■

The pan boils dry.

■

The pan bottom is not flat.

■

The pan is off center.

■

There is no pan on the unit.

Dual Surface Unit Control Knob

The right front surface unit has 2 cooking sizes to select from so you can match the size of the unit to the size of the cookware you are using.

To use the small (6 inch) surface unit, turn the control knob to the

SMALL

settings.

To use the large (9 inch) surface unit, turn the control knob to the

LARGE

settings.

About the radiant surface units…

The radiant cooktop features heating units beneath a smooth glass surface.

NOTE: A slight odor is normal when a new cooktop is used for the first time. It is caused by the heating of new parts and insulating materials and will disappear in a short time.

NOTE: On models with light colored glass cooktops, it is normal for the cooking zones to change color when hot or cooling down. This is temporary and will disappear as the glass cools to room temperature.

The surface unit will cycle on and off to maintain your selected control setting.

It is safe to place hot cookware on the glass surface even when the cooktop is cool.

Even after the surface units are turned off, the glass cooktop retains enough heat to continue cooking. To avoid over-cooking, remove pans from the surface units when the food is cooked. Avoid placing anything on the surface unit until it has cooled completely.

■

Water stains (mineral deposits) are removable using the cleaning cream or full strength white vinegar.

■

Use of window cleaner may leave an iridescent film on the cooktop. The cleaning cream will remove this discoloration.

■

Don’t store heavy items above the cooktop. If they drop onto the cooktop, they can cause damage.

■

Do not use the surface as a cutting board.

;

;;

;

;;

;

;;;;

;

Never cook directly on the glass. Always use cookware.

Always place the pan in the center of the surface unit you are cooking on.

Using the surface units.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

SURFACE

COOKING

OFF CENTER

DRAGGING

Page 11

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

Selecting types of cookware.

ge.com

The following information will help you choose cookware which will give good performance on glass cooktops.

Stainless Steel:

recommended

Aluminum:

heavy weight recommended

Good conductivity. Aluminum residues sometimes appear as scratches on the cooktop, but can be removed if cleaned immediately. Because of its low melting point, thin weight aluminum should not be used.

Copper Bottom:

recommended

Copper may leave residues which can appear as scratches. The residues can be removed, as long as the cooktop is cleaned immediately. However, do not let these pots boil dry. Overheated metal can bond to glass cooktops. An overheated copper bottom pot will leave a residue that will permanently stain the cooktop if not removed immediately.

Porcelain Enamel Covered Cast Iron:

recommended

As long as the cookware is covered completely with porcelain enamel, this cookware is recommended. Caution is recommended for cast iron cookware that is not completely covered with smooth porcelain enamel, as it may scratch the glass ceramic cooktop.

Glass-ceramic:

usable, but not recommended

Poor performance. May scratch the surface.

Stoneware:

usable, but not recommended

Poor performance. May scratch the surface.

Check pans for flat bottoms by using a straight edge.

Pans with rounded, curved, ridged or warped bottoms are not recommended.

Use only flat-bottomed woks.

Wok Cooking

We recommend that you use only a flat-bottomed wok. They are available at your local retail store.

Do not use round-bottom woks. You could be seriously burned if the wok tipped over.

Page 12

Note: Flat-bottomed canners are required for glass cooktops.

Pots that extend beyond 1″ of the surface unit’s circle are not recommended for most surface cooking. However, when canning with water-bath or pressure canner, larger-diameter pots may be used. This is because boiling water temperatures (even under pressure) are not harmful to the cooktop surfaces surrounding the surface units.

HOWEVER, DO NOT USE LARGE DIAMETER CANNERS OR OTHER LARGE DIAMETER POTS FOR FRYING OR BOILING FOODS OTHER THAN WATER. Most syrup or sauce mixtures—and all types of frying—cook at temperatures much higher than boiling water. Such temperatures could eventually harm the glass cooktop surfaces.

Be sure the canner fits over the center of the surface unit. If your cooktop or its location does not allow the canner to be centered on the surface unit, use smaller diameter pots for good canning results.

Flat-bottomed canners must be used. Do not use canners with flanged or rippled bottoms (often found in enamelware) because they don’t make enough contact with the surface units and take a long time to boil water.

When canning, use recipes and procedures from reputable sources. Reliable recipes and procedures are available from the manufacturer of your canner; manufacturers of glass jars for canning, such as Ball and Kerr brand; and the United States Department of Agriculture Extension Service.

Remember that canning is a process that generates large amounts of steam. To avoid burns from steam or heat, be careful when canning.

NOTE: If your house has low voltage, canning may take longer than expected, even though directions have been carefully followed. The process time will be shortened by:

(1) using a pressure canner, and

( 2) starting with HOT tap water for fastest

heating of large quantities of water.

CAUTION:

■

Safe canning requires that harmful microorganisms are destroyed and that the jars are sealed completely. When canning foods in a water-bath canner, a gentle but steady boil must be maintained for the required time. When canning foods in a pressure canner, the pressure must be maintained for the required time.

■

After you have adjusted the controls, it is very important to make sure the prescribed boil or pressure levels are maintained for the required time.

■

Since you must make sure to process the canning jars for the prescribed time, with no interruption in processing time, do not can on any cooktop surface unit if your canner is not flat.

Observe the Following Points in Canning

Wrong!

Right!

Selecting types of cookware.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Page 13

Safety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

The GE Profile oven with Trivection™technology is a microwave-assist oven designed to cook food up to five times faster than a traditional oven. This oven gives the user the flexibility to cook food in traditional cooking modes (Bake or Broil), convection modes (convection bake and convection roast) or in speedcook modes (speed bake and speed broil). This oven features easy-to-use controls that will guide you through oven operations.

Bake

Baking is cooking with heated air. The upper and lower elements cycle back and forth to heat the air and maintain temperature. Used for traditional baking and roasting. Best for delicate items.

Broil

Heat is provided by the upper element to broil your food. May be used with the oven door open or closed.

Convection Bake—Multi and Single Rack

Heat is provided by the element in the back of the oven, along with the upper and lower elements. The air is circulated with a reversing fan system. The fan will change directions to provide optimal

evenness and browning. The

Multi Rack

option is ideal for evenly baking foods when using more than one rack. The

1 Rack

option, used for one rack of food,

cooks food faster than

BAKE

mode.

Convection Roast

Heat is provided by the upper element and circulated with the reversing fan system. The fan will change directions to provide optimal evenness and browning. Good for roasting large tender cuts of

meat or poultry, uncovered. Roasts foods up to 25% faster.

Speed Bake

Heat is provided by the three elements and microwave. The exact combination of elements is automatically determined by the food category selected. Air is

circulated with the reversing fan system described above.

Ideal for baking and

roasting foods up to five times faster.

Speed Broil

Heat is provided by the upper element and microwave. Air is circulated with the reversing fan system described above. Oven door must be closed.

Ideal for

broiling foods to medium to well done

doneness levels two times faster than traditional broil.

Introduction.

ge.com

Page 14

SELECT

CONTROL

LOCK

KITCHEN

TIMER

ON/OFF

OVEN LIGHT

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using the oven controls.

(Throughout this manual, features and appearance may vary from your model.)

Control Screen & Keypad

All cooking modes, special features and oven settings are directed and operated from the control screen. Directions for operating the oven and prompting for required information are displayed within the control screen.

Numeric Keypad

Used to enter information requiring numbers such as time of day on the clock, timer, oven temperature, start time and length of operation for timed baking and self-cleaning.

Control Lock

Allows the user to lock the control so that the touch pads cannot be activated when pressed.

Time and Temperature Display

All time and temperature information is displayed in this area as feedback to the user.

Kitchen Timer

Turns the kitchen timer on and off. Does not control the oven.

Oven Light

Turns oven light on or off.

Clear/Off

Cancels

ALL

oven operations

EXCEPT

the

clock and timer.

If “F– and a number or letter” flash in the display and the oven control signals, this indicates a function error code. Press the CLEAR/OFF pad. Allow the oven to

cool for one hour. Put the oven back into operation. If the function error code repeats, disconnect the power to the oven and call for service.

If your oven was set for a timed oven operation and a power outage occurred, the clock and all

programmed functions must be reset.

The time of day will flash in the display when there has been a power outage.

Oven Control Layout and Description

Page 15

Safety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

ge.com

SELECT

Press pad beside display to select item in display.

Oven Control Sleep Feature

—Any time the oven is not in use (no cooking, no cleaning, no help and no timers) for more than 10 minutes, the oven control will go to sleep. While sleeping, the control display will not show any text; it will go blank. The clock will remain displayed in the time and temperature display unless the “no clock” option has been selected.

There will be no audible signal given to indicate that the control is entering the sleep feature.

The control will enter the sleep feature even when the control is locked.

The user

cannot

turn this feature

OFF

How to Exit the Sleep Feature

—Touch any key. The function associated with that key will not be started, but the control display main menu will reappear.

Speedcook

mode, the user will be prompted to enter food category, temperature and cooking time.

Speed Bake

—Bakes food faster than

traditional cooking modes.

Speed Broil

—Broils food faster than

traditional Hi/Lo Broil.

Bake

Traditional bake mode.

Convection

Conv 1-Rack

—Convection bake function

used for baking on one rack.

Conv Multi

—Convection bake function

used for baking on more than one rack.

ConvRoast

—Convection roast function.

Broil

LO&HI

—Traditional broil function.

Speed Broil

Features

Additional cooking-related features

Defrost

—This feature is used to thaw frozen foods. Enter the defrost time using the chart in the

Using the Defrost Feature

section.

Self-Clean

—This feature cleans the oven.

See the

Using the self-cleaning oven

section.

Warmer

—This feature keeps hot, cooked food warm for up to 3 hours. It is not intended for reheating cold food. See the

How to Set the Oven for Warmer

section.

Proof

—This feature maintains a warm environment useful for rising yeastleavened products. It is not intended to keep food warm or reheat cold food. See the

How to Set the Oven for Proof

section.

Warm (Cook & Hold)

—When this feature is turned on, it will keep hot, cooked foods warm for up to 3 hours following a Timed Bake function. See the

How to Set the Oven

for Warm

section.

Sabbath

—Designed for use on the Jewish

Sabbath and Holidays. See the

Using the

Sabbath Feature

section.

Control Screen and Keypad

Page 16

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using the oven controls.

(Throughout this manual, features and appearance may vary from your model.)

SELECT

Settings

This oven has additional settings that you may choose to use. See the

Settings

section.

Recipes

This oven feature allows the user to store up to six temperature/cooking time combinations. The user can then speed bake, bake or convection bake/roast one of the six stored favorite recipes without having to choose the settings each time.

Help

Provides basic information on each function and how to find the function. If selected from the home screen, it gives general help. If selected while performing a function, it gives help on that function. Select

Exit

to leave

Help

Select Prompt

Visual prompt to the user indicating that a selection needs to be made from the control screen.

Door Lock Indicator

Indicates that the oven door is locked for self-clean.

Control Screen and Keypad

Page 17

Safety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

Your control will allow you to lock out the touch pads so they cannot be activated when pressed.

To lock/unlock the controls:

Press the

CONTROL LOCK

pad for 3 seconds, until the control screen shows

CONTROL IS LOCKED.

To unlock the control, press the

CONTROL LOCK

pad for 3 seconds,

until

CONTROL IS LOCKED

disappears from the control screen and the main menu is displayed.

When this feature is on and the touch pads are pressed, the control will show

CONTROL IS LOCKED

■

The control lockout mode affects all touch pads.

■

The control will remain locked after a power failure.

Using the clock, timer and control lockout.

ge.com

To Set the Clock

The clock must be set to the correct time of day for the automatic oven timing functions to work properly. The time of day cannot be changed during timed baking, a self-cleaning cycle or delayed start time.

Select

SETTINGS

Select

CLOCK

Press the number pads.

Select

ENTER

Make sure the clock is set to the correct time of day.

To Set the Timer

Press the

KITCHEN TIMER

pad.

Press the number pads until the amount of time you want shows in the display. For example, to set 2 hours and 45 minutes, press

2, 4

and 5in that order. If you make a mistake, press the

KITCHEN TIMER

pad and begin again.

Select

START

After selecting START, SET disappears; this tells you the time is counting down, although the display does not change until

one minute has passed. Seconds will not be shown in the display until the last minute is counting down.

When the timer reaches

:00

, the control will beep 3 times followed by one beep every 6 seconds until the

KITCHEN

TIMER

pad is pressed once.

The continuous beep can be canceled by following the steps in the

Settings

section

under

Tones at the End of a Timed Cycle.

The timer is an hour and minute timer only.

The timer does not control oven operations. The maximum setting on the timer is 9 hours and 59 minutes.

To set 10 minutes, enter 10. DO NOT enter 10:00!

To Reset the Timer

If the remaining time is not in the display (clock, delay start or cooking time are in the display), recall the remaining time by pressing the

KITCHEN TIMER

pad or using

REVIEW TIMES

You may change it by pressing the

KITCHEN TIMER

pad, then press the number pads until the time you want appears in the display.

To Cancel the Timer

Press

KITCHEN TIMER

pad twice.

Control Lockout

KITCHEN

TIMER

CONTROL

LOCK

Page 18

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using the oven.

To avoid possible burns, place the racks in the desired position before you turn the oven on.

Before you begin…

The racks have stop-locks, so that when placed correctly on the supports, they will stop before coming completely out, and will not tilt.

When placing and removing cookware, pull the rack out to the bump on the rack support.

To remove a rack,

pull it toward you,

tilt the front end up and pull it out.

To replace,

place the end of the rack (stop-locks) on the support, tilt up the front and push the rack in.

NOTE: A cooling fan will automatically turn on during all cooking modes. This fan turns on to cool internal parts. It may run for up to 1 1/2 hours after the oven is turned off.

30″Trivection™oven has 5 rack positions A–E (as shown).

Page 19

Safety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

Using the Trivection™oven.

ge.com

Microwave Assisted

In the Trivection oven, a microwave is used to assist cooking.

The combination of microwave, convection fan and heating elements is unique for each food category.

NOTE The microwave will cycle on and off while cooking to best distribute energy to the food.

The microwave turns off and the cook time stops counting down when the oven door is opened.

NOTE: The convection fan may cycle on and

off and change direction while cooking to best distribute hot air in the oven. The convection fan shuts off when the oven door is opened.

Auto Recipe™Conversion

You can use your favorite recipes in the Trivection oven.

When speedcooking, enter the traditional cooking temperature and the maximum recipe/package cook time. When speedcooking, the Auto Recipe

™

conversion feature automatically converts traditional cook time into the appropriate

speedcooking time. The converted time will display after you start the oven. This time will be up to 5 times faster than traditional baking based on food type.

Cookware for Speedcooking. . .

You can use cookware that is oven-safe. Heat-resistant paper and plastic containers and bakeware that are recommended for use in traditional baking can also be used for speed baking. However, they should not be used at temperatures higher than the temperature recommended by the bakeware manufacturer.

If you are cooking with several pans, leave space between them. Arcing is the microwave term for sparks in the oven. To avoid arcing, be sure there is at least 1 inch of space between metal surfaces— pans, wall of cavity, aluminum foil.

Do not completely surround food with metal and/or foil while speedcooking— you will not have a time savings (for example, wrapping potato with foil, using metal roasting pan with lid).

When using a metal pan, do not cover it with a metal lid or foil.

DO NOT USE FOOD WRAPPERS MADE FROM A COMBINATION OF METAL FOIL AND PAPER IN THE OVEN

in speedcook modes. For example, some frozen or deli breads are baked and sold in these wrappers. Remove the food from the wrapper and speed bake on a flat metal pan.

When speedcooking with metal pans, heavy aluminum pans are recommended for best results.

When speed baking with stoneware or cooking stones, refer to the manufacturer’s owner’s manual for proper use and maintenance. For best results, preheat your flat cooking stones. If manufacturer does not recommend preheating cooking stones, don’t use them in the Speedcooking mode.

Do not use hearth

inserts while speedcooking.

Use pans with low sides whenever possible. A shallow pan allows air to circulate around the food more efficiently.

Dark or matte finish bakeware will produce darker browning on food. When you are speed broiling, it is important that you use the broiler pan with grid for best results. The pan is used to catch grease spills and the grid is used to prevent grease spatters.

Page 20

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using the Trivection™oven.

Other Speedcooking Tips. . .

You must preheat your oven.

Put the food in the oven after the preheat beep when the oven control displays “Put Food In Oven” and then press

START. You must press the START key after placing the food in the oven to start the speedcook mode.

When choosing a speedcook food category, refer to the chart on page 21.

In general, when cooking meats wrapped in dough or refrigerated dough product, use the Biscuit/Roll or BakedGoods category.

For recipes using a large quantity of cheese, milk and/or eggs, use the BakedGoods category.

Larger amounts of food or multiple racks of food may require additional time. Check food doneness as prompted and continue cooking as needed.

Items such as appetizers, cookies, biscuits and rolls can be speed baked on multiple racks. Cooking time may increase slightly for some foods, but since two or three racks of food are being cooked at the same time, the overall result is substantial time saved.

When cooking multiple items or pans, leave space between them for maximum air circulation.

Cakes and quick breads (banana, zucchini or pumpkin bread) are not recommended for multiple rack speed baking. Place cakes side-by-side on one rack if speed baking. When using more than one rack to cook these foods, use

CONV MULTI

mode. See

Using the

convection modes

section.

Meats/Poultry

Cooking times will vary depending on the cut of meat. Check for doneness at minimum time.

Note:

Meats will continue to cook and internal temperatures will rise after they are removed from the oven (standing time).

Use the broiler pan and grid provided with your oven for best results.

As in a conventional oven, aluminum foil may be used to shield food—to prevent overbrowning or overcooking (i.e., placing small strips of foil on tips of wings and legs of poultry). Make sure that the foil is securely attached to the food. However, large amounts of foil or fully enclosing food in foil blocks the microwave energy, which eliminates time savings.

Do not use oven thermometers, meat thermometers or wire twist-ties in the oven while speedcooking.

Pop-up thermometers in your meat may be inaccurate. Check the temperature of the meat with a thermometer after removing the meat from the oven.

For best results, speed bake turkeys unstuffed.

Rack Positions for Speed Baking. . .

If cooking on one rack, place food so that it is approximately centered in the oven.

Rack Positions and Examples C Cookies, pizza, pie, muffins, cakes, biscuits, casseroles B Loaves of bread, bundt cakes, meat loaf, small and medium roasts, whole chicken A Very tall items: turkey, large roasts, angel food cakes

If cooking on two racks, use rack positions A and D to provide lots of space between items for optimal results.

If cooking on three racks, use rack positions A, C and E.

Rack positions, Trivection™oven.

Page 21

Safety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

ge.com

How to Set the Oven for Speed Baking

Select

SPEEDCOOK

from the

main menu.

Select

SPEED BAKE

when baking or

roasting.

Select food type. You can select

FROZENFOODS, MEAT

VEG/CASS

Select

to see additional

categories—

POULTRY/FISH,

BAKEDGOODS

and

BREADS

. Reference the table for food category and time savings.

NOTE:

You will need to select a subcategory for some food types. For example, if you select

VEG/CASS

you will need to select between

BAKED POTATO, VEGETABLE

CASSEROLE

Enter recipe cook temperature.

Enter maximum recipe or package cook time.

Select

START

. Cook time will automatically convert to shorter time and display on control screen.

You must always preheat the oven. Wait for preheat signal and message on display to

“PUT FOOD IN OVEN”

before placing food in oven.

Select

START. Start will not appear on

control screen until door is opened and food is put in oven. You must select START to start cooking. Countdown of cook time will begin.

NOTE: Food may be checked at any time by opening the door. The microwave and convection fan will turn off and the cooking time countdown will stop while the door is open. All three will resume when the door is closed.

Check food when prompted and add more time if desired.

After the cooking time has ended, the oven will prompt the user to add “MORE TIME” to further cook food if desired. Add additional time by selecting MORE TIME. Enter traditional cooking time in minutes and select START. Once again, the oven automatically converts the traditional time to the appropriate speedcook time (nearest minute). Press CLEAR/OFF pad if food has finished cooking.

Food Type Food Subcategory Food Examples Approximate Time Savings

FrozenFood Desserts Frozen: Pies, Cookies, Cobblers 1-1/2 times faster

MainDishes Frozen: Entrees, Lasagna, TV Dinners, Pizzas 2 times faster Snack/Sides Frozen: Snacks, Appetizers, Vegetables, French Fries 2 to 3 times faster

Frozen: Rolls, Biscuits

Meat Ham Ham 1-1/2 times faster

Pork Pork Tenderloin, Pork Roast 2-1/2 to 3 times faster Beef Meatloaf, Beef Roast 2-1/2 to 3 times faster Lamb Leg of Lamb 2-1/2 to 3 times faster Game/Wild Venison 2-1/2 to 3 times faster

Veg/Cass BakedPotato Baked Potatoes 5 times faster

Vegetable Unfrozen: Vegetables (carrots, squash, etc.) 4 times faster Casserole Unfrozen: Meat Casseroles or Lasagna, 4 times faster

Unfrozen: Vegetable Casseroles

Poultry/Fish —— Chicken, Fish, Turkey, Seafood, Cornish Hens 2 to 3 times faster BakedGoods —— Cookies, Muffins, Cupcakes, Appetizers, Bar Cookies, Cakes, 2 times faster

Fresh Pies, Brownies, Souffles, Cobblers

Breads QuickBread Quick Breads such as Corn Bread and Banana Bread 2 times faster

DoughBread Yeast Bread, Fresh or Deli Pizzas 3 times faster Biscuit/Roll Biscuits, Sweet Rolls, Dinner Rolls, Breadsticks 3 times faster

Page 22

Meats Minutes/Lb. Oven Temp. Internal Temp. Beef Rib, Boneless Rib, Rare

†

22–26 325°F 140°F

†

Top Sirloin Medium 26–30 325°F 160°F (3 to 5 lbs.) Well 30–34 325°F 170°F

Beef Tenderloin Rare

†

12–16 325°F 140°F

†

Medium 16–20 325°F 160°F

Pork Bone-in, Boneless (3 to 5 lbs.) 30–35 325°F 160°F Ham Canned, Butt, Shank (3 to 5 lbs., fully cooked) 23–28 325°F 140°F Lamb Bone-in, Boneless (3 to 5 lbs.) Medium 25–30 325°F 160°F

Well 30–35 325°F 170°F

Poultry Whole Chicken (2-1/2 to 3-1/2 lbs.) 24–26 325°F 180°–185°F

Cornish Hens, Unstuffed (1 to 1-1/2 lbs.) 40–45 325°F 180°–185°F Stuffed (1 to 1-1/2 lbs.) 45–50 325°F 180°–185°F Duckling (4 to 5 lbs.) 28–32 350°F 180°–185°F Turkey, whole*

Unstuffed (10 to 16 lbs.) 14–18 325°F 180°–185°F Unstuffed (18 to 24 lbs.) 8–12 325°F 180°–185°F Turkey Breast (4 to 6 lbs.) 23–27 325°F 170°F

* Stuffed birds are not recommended to be speedcooked.

† The U.S. Department of Agriculture says “Rare beef is popular, but you should know that cooking it to only 140°F means some

food poisoning organisms may survive.” (Source: Safe Food Book. Your Kitchen Guide. USDA Rev. June 1985.)

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using the Trivection™oven.

Tips for Speed Broiling

Your oven with Trivection™technology has the flexibility to broil like a traditional oven or speed broil. Speed broiling of meats is approximately twice as fast as traditional broiling.

Speed broiling must be done with the door closed.

The oven must be preheated when speed broiling.

Turning meat and poultry is optional in speed broil. However, use tongs if turning meat to prevent piercing the meat and losing juices.

Speed broil will generally produce good results for medium to well done meats. If rare meat is desired, use traditional broil.

Cooking times will vary depending on the cut of meat. Check for doneness at minimum time using a meat thermometer.

DO NOT leave a meat thermometer in the meat or poultry while cooking with Trivection technology since this may damage the thermometer.

For best results, use a pan designed for broiling.

Evenly slit fat around the outside edges of steaks and chops to prevent curling during broiling.

If desired, marinate meats before broiling. Brush with sauces during the last five minutes only.

Traditional Roasting Guide

Page 23

ge.com

Rack First Side Second Side

Food Quantity and/or Thickness Position Time, Min Time, Min. Comments Ground Beef 2 lb. (8 patties) D 10 8 Space evenly on pan.

1/2″ to 3/4″ thick Up to 8 patties take about

the same time

Beef Steaks

Med. Rare 1″ thick D 11 10 Steaks less than 1″ thick Medium (about 2–3 lbs.) D 13 12 cook through before browning.

Cook first side to desired Med. Rare 1-1/2″ thick D 14 13 brownness. Then turn and Medium (about 3–4 lbs.) D 17 16 finish second side to desired

doneness. Slash fat.

Chicken 1 whole, cut up, C 35 25

about 3 to 3-1/2 lbs. 6 Bone-in breasts, C 28 26

Brush each side with melted

12 to 14 oz. each

butter. Broil skin-side down first.

6 Boneless breasts, D 12 10 5 to 7 oz. each

Fish 4 Fillets, 1/4″ to 1/2″ thick E 7 Do not Place skin side down.

turn over. Brush with olive oil.

4 Fillets, 3/4″ to 1″ thick D 14 Do not Place skin side down.

turn over. Brush with olive oil.

4 Steaks, 1″ thick (about 2 lbs.) D 10 10

Brush with lemon butter before

and during cooking, if desired.

Lobster Tails 2–4, 8 to 12 oz. each C 18–20 Do not Cut through back of shell.

turn over. Spread open. Brush with

melted butter after half of

broiling time.

Pork Chops 6 Chops, 1/2″ thick (about 2 lbs.) E 9–11 7 Slash fat.

6 Chops, 1″ thick (about 4 lbs.) D 23 14 Slash fat.

Ham Slices 2 precooked, 1/2″ thick D 13 6 Lamb Chops

Medium 4 Chops, 1-1/2″ thick, D 12 9 Slash fat. Well Done about 1-1/2 lbs. D 14 12

Traditional Broiling Guide for Speed Broiling

Safety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

How to Set the Oven for Speed Broiling

Heat is provided by the upper element and microwave. Air is circulated with the reversing fan system. Oven door must be closed.

Ideal for broiling foods to medium to well done doneness levels two times faster than traditional broil.

Select

SPEEDCOOK

from the main menu.

Select

SPEED BROIL

Enter traditional broil time for first side (using maximum time if a range is given). Reference the chart below.

NOTE: If you don’t plan to turn the food over, enter the total broil time.

Select

START

to preheat oven. Cook time will automatically convert to shorter time and display on control screen.

You must preheat the oven.

Wait for the

preheat signal and message on display to

“PUT FOOD IN OVEN”

before placing food

in oven.

Select

START. Start will not appear on control

screen until door is opened and food is put in oven.

Countdown of cook time will begin.

NOTE: Food may be checked at any time by opening the door. The microwave and convection fan will turn off and the time countdown will stop while the door is open. They will resume when the door is closed.

Check food when prompted. Turn food as needed and add more time for the second side.

Page 24

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using the defrost feature.

How to Set the Oven for Defrost

Place food in oven.

Select

FEATURE

from main menu.

Select

DEFROST

Enter the defrost time in hours and/or minutes. Reference the chart on the next page.

Select

START

NOTE: Food may be checked at any time by opening the door. The microwave and convection fan will turn off and the defrost time countdown will stop while the door is open. They will resume when the door is closed.

Check food and turn over when prompted. Add more time if desired.

After the defrost time has ended, the oven will prompt the user to add “MORE

TIME.” Add additional time by selecting MORE TIME. Enter time in minutes.

Press CLEAR/OFF pad if food has finished defrosting.

The defrost feature allows you to thaw food for a set amount of time.

Cookware/Tips for Defrosting

For best results, remove food from packaging and

place on broil pan and grid

. If food is left in packaging, slit, pierce or vent to prevent heat buildup.

Place food in the oven according to

Defrosting Guide

You can use all cookware/containers that are oven safe or microwave-safe. Arcing is the microwave term for sparks in the oven. Be sure there is at least 1 inch of space between metal surfaces—pans, wall of cavity, aluminum foil—to prevent arcing.

Dishes with metallic trim should not be used as arcing may occur. Remove metal twist ties from paper or plastic bags before placing them in the oven.

Do not completely surround food with metal and/or foil.

Plastic storage containers should be uncovered before defrosting.

Foods that spoil easily should not be allowed to sit out for more than one hour after defrosting. Room temperature promotes the growth of harmful bacteria.

Use caution when removing metal pans and stoneware after defrosting. They may become very warm, and you may need to use a potholder.

For more even defrosting, turn food over, separate and rearrange when prompted. Be sure large meats are completely defrosted before cooking. See the

Defrosting Guide

for additional

comments.

When defrosted, food should be cool but softened in all areas. If still slightly icy, return to the oven very briefly, or let it stand a few minutes.

Page 25

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

ge.com

Defrosting Guide

Rack Defrost Stand

Food Position Time Time Comments Ground Meat

1 lb. D 9 min. 5 min. Turn over, break apart and remove more than 1 lb. C 9 min./lb. 10 min. defrosted meat at signals.

Hamburger Patties D 9 min./lb. 5 min. Turn over and separate at signals. Stew Meat D 9 min./lb. 10 min. Turn over and break apart at signals. Steaks and Chops B 10–12 min./lb. 10 min. Turn over and separate at signals. Shield

warm areas with small pieces of foil.

Roasts

Boneless and Bone-in A 8–9 min./lb. 30 min. Turn over at signals. Shield warm areas

with small pieces of foil.

Chicken

Pieces, Boneless C 9 min./lb. 10 min. Turn over and separate at signals. Rinse Pieces, Bone-in C 9 min./lb. 10 min. under cold water after stand.

Whole B 9–10 min./lb. 20 min. Shield ends of legs and wings with foil.

Turn over at signals. Rinse under cold water after stand.

Turkey Breast B 10 min./lb. 30 min. Turn over at signals. Shield warm areas

with foil.

Cornish Hens C 8 min./lb. 30 min. Shield ends of legs with foil. Turn over

at signals. Rinse under cold water after stand time.

Duck B 9–10 min./lb. 30 min. Shield ends of legs with foil. Turn over

at signals. Rinse uner cold water after stand time.

Fish

Fillets and Steaks C 6–7 min./lb. 10 min. Turn over and rearrange at signals. Shield Whole C 8 min./lb. 10 min. warm areas with foil. Let stand in cold water.

Seafood

Shrimp and Scallops D 6 min./lb. 10 min. Separate at signals. Rinse under cold water

after stand.

Lobster Tails C 7 min./each 15 min. Shield tail ends with foil. Turn over at

signals. Let stand in cold water.

Page 26

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using traditional bake and roast.

To avoid possible burns, place the racks in the desired position before you turn the oven on.

How to Set the Oven for Baking or Roasting

Select

BAKE

Press the number pads to set the desired temperature.

Select

START

. The display will show the changing temperature (starting at 100°F). The display starts changing once the temperature reaches 100°F.

Check food for doneness at minimum time on recipe. Cook longer if necessary.

Press the

CLEAR/OFF

pad when

cooking is complete.

NOTE: A cooling fan may automatically turn on and off to cool internal parts. This is normal, and the fan may continue to run even after the oven is turned off.

Preheating and Pan Placement for Baking

Preheat the oven if the recipe calls for it. To preheat, set the oven at the correct temperature. Preheating is necessary for good results when baking cakes, cookies, pastry and breads.

Baking results will be better if baking pans are centered in the oven as much as possible. Pans should not touch each other or the walls of the oven. If you need to use two racks, use

CONV MULTI

mode

described in

Using the convection modes

section for best results, placing food on racks A and D.

Rack Position

Trivection

™

Type of Food 30″ Oven

Frozen pies B or C (on cookie sheet)

Angel food cake A

Bundt or pound cakes B

Biscuits, muffins, B or C brownies, cookies, cupcakes, layer cakes, pies

Casseroles B or C

Aluminum Foil

Do not use aluminum foil on the bottom of the oven.

Never entirely cover a rack with aluminum foil. This will disturb the heat circulation and result in poor baking.

A smaller sheet of foil may be used to catch a spillover by placing it on a lower rack several inches below the food.

Page 27

Using the traditional timed baking and roasting features.

(on some models)

ge.com

NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for

more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven light is off because heat from the bulb will speed harmful bacteria growth.

How to Set an Immediate Start and Automatic Stop

The oven will turn on immediately and cook for a selected length of time. At the end of the cooking time, the oven will turn off automatically.

Make sure the clock shows the correct time of day.

Select

BAKE

Using the number pads, enter the desired temperature.

Select

OPTIONS

Select

TIMED BAKE

NOTE: The time countdown will not start until after the oven is preheated.

Using the number pads, enter the desired baking time. The oven temperature and the cooking time that you entered will be displayed.

Select

ENTER

. This tells the oven that

you have finished setting it.

Select

START

The display will show the changing temperature (starting at 100°F) and the cooking time. The display starts changing once the temperature reaches 100°F.

The oven will continue to cook for the programmed amount of time, then shut off automatically, unless the

WARM

feature was set. See the

Using the Proof,

Warmer and Warm Features

section.

CLEAR/OFF pad if food has finished cooking.

How to Set a Delayed Start and Automatic Stop

You can set the oven control to delay-start the oven, cook for a specific length of time and then turn off automatically.

Make sure the clock shows the correct time of day.

Select

BAKE

Using the number pads, enter the desired temperature.

Select

OPTIONS

Select

TIMED BAKE

Using the number pads, enter the desired baking time.

NOTE: The time countdown will not start until after the oven is preheated.

Select

ENTER

Select

OPTIONS

Select

DELAY BAKE

Using the number pads, enter the time of day you want the oven to turn on and start cooking.

Select

ENTER

Select

START

If you would like to check the times you have set, select

REVIEW TIMES

. You have the option to see delay time, clock, bake time or timer.

When the oven turns on at the time of day you have set, the display will show the changing temperature (starting at 100°F) and the cooking time. The display starts changing once the temperature reaches 100°F.

The oven will continue to cook for the programmed amount of time.

After the

cooking time has ended, the oven will prompt the user to add “MORE TIME” to further cook food if desired. Add additional time by selecting MORE TIME. Enter traditional cooking time in minutes and select START. Press CLEAR/OFF pad if food has finished cooking.

The oven will turn off

automatically, unless the

WARM

feature

was set. See the

Using the Proof, Warmer

and Warm Features

section.

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

Page 28

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using traditional broil.

How to Set the Oven for Broiling

Leave the door open to the broil stop position. The door stays open by itself, yet the proper temperature is maintained in the oven.

NOTE: Food can be broiled with the door open or closed; however, if the door is closed, the food may not brown as well because the oven heating element will cycle on and off.

Select

BROIL

Select HIfor high broil or LOfor low broil. LOis used to broil thicker cuts of meat without over-browning them.

Select

START. We recommend preheating for 5 minutes with the door closed,

whether you broil food with

the door open or closed.

Place the meat or fish on a broiler grid in a broiler pan designed for broiling.

Follow suggested rack positions in the

Broiling Guide.

The size, weight, thickness, starting temperature and your preference of doneness will affect broiling times. This guide is based on meats at refrigerator temperature.

When broiling is finished, press the

CLEAR/OFF

pad.

NOTE: The oven will automatically turn off after 3 hours of continuous broil.

Rack First Side Second Side

Food Quantity and/or Thickness Position Time, Min Time, Min. Comments Ground Beef 2 lb. (8 patties) D 10 8 Space evenly on pan.

1/2″ to 3/4″ thick Up to 8 patties take about

the same time

Beef Steaks

Med. Rare 1″ thick D 11 10 Steaks less than 1″ thick Medium (about 2–3 lbs.) D 13 12 cook through before browning.

Cook first side just to turn Med. Rare 1 1/2″ thick D 14 13 meat color then finish second Medium (about 3–4 lbs.) D 17 16 side to desired doneness.

Slash fat.

Chicken 1 whole, cut up, C 35 25

about 3 to 3-1/2 lbs.

6 Bone-in breasts, C 28 26 Brush each side with melted 12 to 14 oz. each butter. Broil skin-side down

first.

6 Boneless breasts, D 12 10 5 to 7 oz. each

Fish 4 Fillets, 1/4″ to 1/2″ thick E 7 Do not Place skin side down.

turn over. Brush with olive oil.

4 Fillets, 3/4″ to 1″ thick E 14 Do not Place skin side down.

turn over. Brush with olive oil.

4 Steaks, 1″ thick (about 2 lbs.) E 12 12 Brush with lemon butter

before and during cooking,

if desired.

Lobster Tails 2–4, 8 to 12 oz. each C 18–20 Do not Cut through back of shell.

turn over. Spread open. Brush with

melted butter after half of

broiling time.

Pork Chops 6 Chops, 1/2″ thick (about 2 lbs.) E 9–11 7

Slash fat.

6 Chops, 1″ thick (about 4 lbs.) D 23 14

Ham Slices 2 precooked, 1/2″ thick D 13 6 Lamb Chops

Medium 4 Chops, 1-1/2″ thick, D 12 9 Slash fat. Well Done about 1-1/2 lbs. D 14 12

Broiling Guide

Page 29

Auto Recipe™ Conversion

When convection baking, the Auto Recipe™Conversion feature automatically reduces the set traditional baking temperature by the recommended 25°F. See Auto Recipe™Conversion in the

Settings

section.

■

Use pan size recommended.

■

Some package instructions for frozen casseroles or main dishes have been developed using commercial convection ovens. For best results in this oven, preheat the oven and use the traditional temperature on the package.

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

Because heated air is circulated evenly throughout the oven, foods can be baked with excellent results using multiple racks.

The amount of time required for multi-rack baking may increase slightly for some foods, but overall time is saved because two to three times as much food is cooked at once. Cookies, muffins, biscuits and other quick breads give good results with multi-rack baking.

To cook food on more than one rack in convection bake, use

CONV MULTI

When baking on 3 racks, place one rack in the first (A) position, one in the third (C) position and one in the 5th (E) position.

Using the convection modes.

ge.com

Convection Fan

In a convection oven, a fan circulates hot air over, under and around the food.

This circulating hot air is evenly distributed throughout the oven cavity. As a result, foods are evenly cooked and browned—often in less time with convection heat.

NOTE: The convection fan may cycle on and off and change direction while cooking to best distribute hot air in the oven. The convection oven fan shuts off when the oven door is opened.

DO NOT

leave the door open for long periods of time while using convection cooking or you may shorten the life of the convection heating element.

Multi-Rack Convection Baking

Multi-rack position.

The convection fan circulates the heated air evenly over and around the food using the bake and broil elements.

When convection baking with only 1 rack, use CONV 1 RACK and for best results place the rack on shelf B or C at the center of the oven. Cook times may decrease, so food should be checked earlier than package directions to make sure that it does not overcook.

Ideal for cooking large casseroles and lasagna with good results.

1-Rack Convection Baking

Page 30

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Select

CONVECTION

Select

CONV MULTI

for multi-rack convection baking. This mode is used for cooking food items on more than one rack (i.e., 2, 3 or more racks) at the same time in convection bake. See

Multi-Rack

Baking

section for more information.

Select

CONV 1-RACK

for one rack convection baking. This mode is used for cooking food items on only one rack in convection bake.

Select

CONVROAST

for convection

roasting.

Press the number pads to set the desired oven temperature.

Select

START

When the oven starts to heat, the changing temperature, starting at 100°F, will be displayed. When the oven reaches the temperature you set, 3 beeps will sound.

To change the oven temperature, select

HOME

. Select

CONVECTION

and the desired convection mode. Then use the number pads to set the new temperature and select

START

Press

CLEAR/OFF

pad when finished.

■

You will hear a fan while cooking with convection. The convection fan will stop when the door is opened, but the heat will not turn off.

■

You may hear the oven clicking during baking. This is normal.

Using the convection modes.

Cookware for Convection Cooking

Before using your convection oven, check to see if your cookware leaves room for air circulation in the oven. If you are baking with several pans, leave space between them. Also, be sure the pans do not touch each other or the walls of the oven.

Paper and Plastic

Heat-resistant paper and plastic containers that are recommended for use in regular ovens can be used for convection baking, but shouldn’t be used at temperatures higher than the temperature recommendation of the cookware manufacturer.

Metal and Glass

Any type of cookware will work in your convection oven. However, metal pans heat the fastest and are recommended for convection baking.

■

Glass or ceramic pans cook more slowly.

For recipes like oven-baked chicken, use a pan with low sides. Hot air cannot circulate well around food in a pan with high sides.

How to Set the Oven for Convection Baking or Roasting

Convection Roast

■

Good for large tender cuts of meat, uncovered.

The convection fan circulates the heated air evenly over and around the food. Meat and poultry are browned on all sides as if they were cooked on a rotisserie. The heated air seals in juices quickly for a moist and tender product while, at the same time, creating a rich golden brown exterior.

When you are convection roasting, it is important that you use a broiler pan and grid designed for broiling for best convection roasting results. The pan is used to catch grease spills and the grid is used to prevent grease spatters.

When baking cookies, you will get the best results if you use a flat cookie sheet instead of a pan with low sides.

Page 31

Safety Instructions

Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

Using the timed features for convection cooking.

ge.com

You will hear a fan while cooking with these features. The convection fan will stop when the door is opened, but the heat will not turn off.

NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven light is off because heat from the bulb will speed harmful bacteria growth.

How to Set an Immediate Start and Automatic Stop

The oven will turn on immediately and cook for a selected length of time. At the end of the cooking time, the oven will turn off automatically.

Make sure the clock shows the correct time of day.

Select

CONVECTION

Select

CONV MULTI

for multi-rack convection baking. This mode is used for cooking food items on more than one rack (i.e., 2, 3 or more racks) at the same time in convection bake. See

Multi-Rack

Baking

section for more information.

Select

CONV 1-RACK

for one rack convection baking. This mode is used for cooking food items on only one rack in convection bake.

Select

CONVROAST

for convection

roasting. Press the number pads to set the

desired oven temperature. Select

OPTIONS

Select

TIMED BAKE

Using the number pads, enter the desired convection cooking time. The oven temperature and the cooking time that you entered will be displayed.

NOTE: The time countdown will not start until after the oven is preheated.

Select

ENTER

. This tells the oven

that you have finished setting it.

Select

START

When the oven starts to heat, the changing temperature, starting at 100°F, will be displayed. When the oven reaches the temperature you set, 3 beeps will sound.

The oven will continue to cook for the programmed amount of time, then shut off automatically, unless the

WARM

feature was set. See the

Settings

section.

Page 32

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

How to Set a Delayed Start and Automatic Stop

You can set the oven control to delay-start the oven, cook for a specific length of time and then turn off automatically.

Make sure the clock shows the correct time of day.

Select

CONVECTION

Select

CONV MULTI

for multi-rack convection baking. This mode is used for cooking food items on more than one rack (i.e., 2, 3 or more racks) at the same time in convection bake. See

Multi-Rack

Baking

section for more information.

Select

CONV 1-RACK

for one rack convection baking. This mode is used for cooking food items on only one rack in convection bake.

Select

CONVROAST

for convection

roasting. Press the number pads to set the

desired oven temperature. Select

OPTIONS

Select

TIMED BAKE

Using the number pads, enter the desired convection cooking time.

NOTE: The time countdown will not start until after the oven is preheated.

Select

ENTER

Select

OPTIONS

Select

DELAY BAKE

Using the number pads, enter the time of day you want the oven to turn on and start cooking.

Select

ENTER

Select

START

If you would like to check the times you have set, select

REVIEW TIMES

. You have the option to see delay time, clock, cook time or timer.

When the oven starts to heat, the changing temperature, starting at 100°F, will be displayed. When the oven reaches the temperature you set, 3 beeps will sound.

The oven will continue to cook for the programmed amount of time.

After the

The oven will turn off

automatically, unless the

WARM

feature

was set. See the

Settings

section.

Press the

CLEAR/OFF

pad to clear

the display.

Using the timed features for convection cooking.

Convection Roasting Guide

Meats Minutes/Lb. Oven Temp. Internal Temp.

Beef Rib, Boneless Rib, Rare 20–24 325°F 140°F†

Top Sirloin Medium 24–28 325°F 160°F (3 to 5 lbs.) Well 28–32 325°F 170°F

Beef Tenderloin Rare 10–14 325°F 140°F†

Medium 14–18 325°F 160°F

Pork Bone-in, Boneless (3 to 5 lbs.) 23–27 325°F 170°F

Chops (1/2 to 1″ thick) 2 chops 30–35 total 325°F 170°F

4 chops 35–40 total 325°F 170°F 6 chops 40–45 total 325°F 170°F

Ham Canned, Butt, Shank (3 to 5 lbs. fully cooked) 14–18 325°F 140°F Lamb Bone-in, Boneless (3 to 5 lbs.) Medium 17–20 325°F 160°F

Well 20–24 325°F 170°F

Seafood Fish, whole (3 to 5 lbs.) 30–40 total 400°F

Lobster Tails (6 to 8 oz. each) 20–25 total 350°F

Poultry Whole Chicken (21⁄2 to 31⁄2 lbs.) 24–26 350°F 180°–185°F

Cornish Hens Unstuffed (1 to 11⁄2 lbs.) 50–55 total 350°F 180°–185°F Stuffed (1 to 11⁄2 lbs.) 55–60 total 350°F 180°–185°F

Duckling (4 to 5 lbs.) 24–26 325°F 180°–185°F

Turkey, whole* Unstuffed (10 to 16 lbs.) 8–11 325°F 180°–185°F Unstuffed (18 to 24 lbs.) 7–10 325°F 180°–185°F

Turkey Breast (4 to 6 lbs.) 16–19 325°F 170°F

* Stuffed birds generally require 30–45 minutes additional roasting time. Shield legs and breast with foil to prevent

overbrowning and drying of skin.

† The U.S. Department of Agriculture says “Rare beef is popular, but you should know that cooking it to only 140°F means

some food poisoning organisms may survive.” (Source: Safe Food Book. Your Kitchen Guide. USDA Rev. June 1985.)

Page 33

Select

RECIPES

Select the desired

FAVORITE

recipe.

FAVORITE

that has already been programmed will have a block before and after it. For example:

■FAVORITE1■.

The control display will show the programmed cooking mode, temperature and time for the

FAVORITE

. Select

REPLACE

Select the desired cooking mode. The available options are

BAKE,

CONVECTION

(both convection bake

modes and convection roast) and

SPEED BAKE

(all speed bake

categories and sub-categories).

Use the number pads to enter the cooking temperature.

Use the number pads to enter the cooking time. Select

ENTER

when

finished entering the cooking time.

The control display will show the programmed cooking mode, temperature and time for the

FAVORITE

. Select

SAVE

if the

information displayed is correct.

Select

START

to begin cooking with the recipe that was just saved. If you do not want to start the recipe now, touch the

CLEAR/OFF

pad.

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

Recipes.

ge.com

You can preset up to six temperature/cooking time combinations with this function. You can then bake, convection bake/roast or speed bake any of these six favorite recipes without choosing settings each time.

NOTES:

You cannot program Broil, Defrost, Dehydrate, Warmer, Proof, Speed Broil, Delay Bake or Self-Clean in RECIPES. Your oven will remember FAVORITES that have been programmed even after a power outage.

The cooking time you enter does not include preheat time. The oven will begin to count down the cooking time after the oven has completed preheating. At the preheat tone, put your food in the oven.

To Program a New FAVORITE

Select

RECIPES

Select an available

FAVORITE

. An

available

FAVORITE

will not have

a block before and after it. A

FAVORITE

that has already been programmed will have a block before and after it. For example:

■FAVORITE1■.

Select the desired cooking mode. The available options are

BAKE,

CONVECTION

(both convection bake

modes and convection roast) and

SPEED BAKE

(all speed bake

categories and sub-categories).

Use the number pads to enter the cooking temperature.

Use the number pads to enter the cooking time. Select

ENTER

when

finished. The control display will show the

programmed cooking mode, temperature and time for the

FAVORITE

. Select

SAVE

if the

information displayed is correct.

Select

START

to begin cooking with the recipe that was just saved. If you do not want to start the recipe now, touch the

CLEAR/OFF

pad.

To Use a FAVORITE

Select

RECIPES

Select an available

FAVORITE

. An

available

FAVORITE

will not have

a block before and after it. A

FAVORITE

that has already been programmed will have a block before and after it. For example:

■FAVORITE1■.

The control display will show the programmed cooking mode, temperature and time for the

FAVORITE

selected. Select

START

to begin cooking with the selected recipe.

To Change or Replace a FAVORITE

Page 34

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using the proof, warmer and warm features.

The proofing feature maintains a warm environment useful for rising yeast-leavened products.

How to Set the Oven For Proof

NOTE: For best results, cover the dough with a

cloth or with greased plastic wrap (the plastic may need to be anchored underneath the container so the oven fan will not blow it off).

Place the covered dough in the oven on rack B or C.

Select

FEATURES

, then

PROOF

and then

START

The interior oven lights turn on and remain on during proofing.

The proofing feature automatically provides the optimum temperature for the proofing process, and therefore does not have a temperature adjustment.

Set the

KITCHEN TIMER

for the

minimum proof time.

When proofing is finished, press the

CLEAR/OFF

pad.

■

To avoid lowering the oven temperature and lengthening proofing time, do not open the oven door unnecessarily.

■

Check bread products early to avoid over-proofing.

NOTE:

■

Do not use the proofing mode for warming food or keeping food hot. The proofing oven temperature is not hot enough to hold foods at safe temperatures. Use the WARMER feature to keep hot food warm.

■

Proofing will not operate when oven is above 125°F. “OVEN TOO HOT” will show in the display.

How to Set the Oven For Warmer

The warmer feature can be activated independently to keep hot, cooked foods warm. This feature is not designed to reheat cold food.

To use this feature, select

FEATURES

, then

WARMER

, then

START

To Crisp Stale Items

■ Place food in low-sided dishes or pans.

■ For best results, place the food items in

a single layer. Do not stack.

■ Leave them uncovered.

■ Check crispness after 20–30 minutes.

Add time as needed.

IMPORTANT NOTES:

■

Food should be kept hot in its cooking container or transferred to a heat-safe serving dish.

■

For moist foods, cover them with an oven-safe lid or aluminum foil.

■

Fried or crisp foods do not need to be covered, but can become too dry if warmed for too long.

■

Repeated opening of the door allows the hot air to escape and the food to cool.

■

Allow extra time for the temperature inside the oven to stabilize after adding items.

■

With large loads it may be necessary to cover some of the cooked food items.

■

Remove serving spoons, etc., before placing containers in the oven.

■

Do not use plastic containers, lids or plastic wrap.

CAUTION: Plastic containers, lids or plastic wrap will melt if placed in the oven. Melted plastic may not be removable and is not covered under your warranty.

How to Set the Oven For Warm

The warm feature (cook and hold) automatically keeps hot cooked foods warm for up to 3 hours after a

TIMED

BAKE

is finished.

To turn this feature

OFF

, select

FEATURES

, then

WARM

If the blocks before and after

WARM

are lit, the feature is ON. If there are no blocks lit before and after

WARM

, the

feature is

OFF

Page 35

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

The oven door must be closed and all controls must be set correctly for the cycle to work properly.

Before a Clean Cycle

We recommend venting your kitchen with an open window or using a ventilation fan or hood during the first self-clean cycle.

Remove broiler pan, broiler grid, all cookware and any aluminum foil from the oven.

The shiny, silver-colored oven racks (on some models) can be self-cleaned, but they will darken, lose their luster and become hard to slide.

Do not use abrasives or oven cleaners. Clean the top, sides and outside of the oven door with soap and water.

Make sure the oven light bulb cover is in place and the oven light is off.

NOTE:

See the

Cleaning the Oven Door

section in the

Care and Cleaning

section for instructions on how to clean the inner door outside the gasket. This area is not cleaned during the self-clean cycle.

IMPORTANT:

The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any oven. Move birds to another well-ventilated room.

Wipe up heavy soil on the oven bottom. (appearance may vary)

How to Set the Oven for Cleaning

Select

FEATURES

Select

SELF CLEAN

Select the desired self clean.

A 3-hour self-clean time is recommended when cleaning small, contained spills. A self-clean time of 4 hours or longer is recommended for a dirtier oven.

(3 hrs) will self clean the oven

for 3 hours.

STD

(4 hrs) will self clean the oven

for 4 hours.

ADJUST TIME

allows oven to be set for any time between 3 and 5 hours. Input the clean time (to nearest 5 minutes) using the number pads and select

ENTER

Select

START

The door locks automatically. will flash until door is locked. The display will show the clean time remaining.

It will not be possible to open the oven door until the temperature drops below the lock temperature and the

(LOCK)

light goes off.

When the

(LOCK)

light goes off, you

will be able to open the door.

■ To stop a clean cycle, press the

CLEAR/OFF

pad. When the

(LOCK)

light goes off indicating the oven has cooled below the locking temperature, you will be able to open the door.

Using the self-cleaning oven.

ge.com

Page 36

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Using the self-cleaning oven.

The oven door must be closed and all controls must be set correctly for the cycle to work properly.

How to Delay the Start of Cleaning

Select

FEATURES

Select

SELF CLEAN

Select the desired self clean.

A 3-hour self-clean time is recommended when cleaning small, contained spills. A self-clean time of 4 hours or longer is recommended for a dirtier oven.

(3 hrs) will self clean the oven

for 3 hours.

STD

(4 hrs) will self clean the oven

for 4 hours.

ADJUST TIME

allows oven to be set for any time between 3 and 5 hours. Input the clean time (to nearest 5 minutes) using the number pads and select

ENTER

Select

DELAY CLEAN

Using the number pads, enter the time of day you want the clean cycle to start.

Select

ENTER

Select

START

The door locks automatically when you select

START

. The oven will remain locked. The display will show the start time. Once the self-clean cycle starts, it will not be possible to open the oven door until the temperature drops below the lock temperature and the goes off.

When goes off, you will be able to open the door.

After a Clean Cycle

You may notice some white ash in the oven. Wipe it up with a damp cloth after the oven cools.

If white spots remain, remove them with a soap-filled steel-wool pad and rinse thoroughly with a vinegar and water mixture.

These deposits are usually a salt residue that cannot be removed by the clean cycle.

If the oven is not clean after one clean cycle, repeat the cycle.

■ You cannot set the oven for cooking

until the oven is cool enough for the door to unlock.

■ If the racks become hard to slide, wipe

the rack supports with cooking oil.

Page 37

Safety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips

Consumer Support

Settings.

ge.com

Your new touch pad control has additional settings that you may choose to use. They remain in the control’s memory, even after a power failure.

NOTE: If a setting is selected, it will have blocks before and after. For example: settings . If the setting is not selected, it will not have a block before and after. For example: (settings).

))((

Clock

The clock must be set to the correct time of day for the automatic oven timing functions to work properly. Note that the time of day cannot be changed during a timed baking or self-cleaning cycle.

Select

SETTINGS

and then select

CLOCK

Press the number keys to enter the correct time of day.

Select

ENTER

Clock Options

Your control uses a 12-hour clock. If you prefer to have no clock displayed or a 24-hour military time clock, follow these steps:

Select

SETTINGS

and then select

CLOCKOPTIONS

Select “12 hour”, “24 hour” or “no clock.”

After setting this option, select

HOME

NOTE:

If you select the “no clock” option,

you will not be able to use the

DelayBake

DelayClean

functions.

12 Hour Shut Off

With this option, should you forget and leave the oven on, the control will automatically turn the oven off after 12 hours.

To turn this option ON or OFF:

Select

SETTINGS

and then select

Select

12HOUROFF

to turn the option

OFF

After setting this option, select

HOME

Check Food Doneness

To help you adapt to cooking with Trivection

™

technology, this option prompts you 3/4 of the way through a speed bake mode so that you can check your food doneness.

To turn this option ON or OFF:

Select

SETTINGS

and then select

Select

CHECKFOOD

to turn the

option ONor

OFF

After setting this option, select

HOME

Page 38

Safety Instructions

Operating Instructions

Care and CleaningTroubleshooting TipsConsumer Support

Settings.

Auto Recipe™Conversion

When using convection bake, the Auto Recipe

™

Conversion feature automatically changes entered traditional baking temperatures to convection baking temperatures. For example, if you enter a regular recipe temperature of 350°F and select START, the display will show Con and then the converted temperature of 325°F.

NOTE: This feature does not change traditional baking times, only traditional baking temperatures.

To turn this option ON or OFF:

Select

SETTINGS

and then select

Select

CONVTEMP

to turn the option

OFF

After setting this option, select

HOME

Tones at the End of a Timed Cycle

At the end of a timed cycle, 3 short beeps will sound followed by one beep every 6 seconds until the CLEAR/OFF pad is pressed. This continuous 6-second beep may be canceled.

To turn the continuous 6-second beep ON or OFF:

Select

SETTINGS

and then select

twice.

Select

BEEPONCE

to turn the

continuous 6-second beep

OFF

Select

FULL BEEP

to turn the

continuous 6-second beep ON.

After setting this option, select

HOME

Fahrenheit or Celsius Temperature

Your oven control displays the temperature in Fahrenheit (°F), but you may change this to display the temperature in Celsius (°C).

To change the temperature display between Fahrenheit or Celsius:

Select

SETTINGS

and then select

Select

TEMP°F

to display the temperature in Fahrenheit (°F). Select

TEMP°C

to display the temperature in Celsius (°C).

After setting this option, select

HOME

Tone Volume

This feature allows you to adjust the tone volumes to a more acceptable level. There are three possible volume levels.

To change the volume level:

Select

SETTINGS

and then select

twice.

Select

BEEPVOLUME

. Each time the volume level is changed, the tone you hear is an audible indication of the volume level. Select

2 BEEP

for

the middle volume level. Select

3 BEEP

for the loudest volume level.

Select

1 BEEP

for the quietest

volume level.

After choosing the desired sound level (

1 BEEP, 2 BEEP

3 BEEP

select

HOME

Page 39

Safety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips

Consumer Support

Adjust the oven temperature—Do it yourself!

ge.com

You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the temperature yourself.

Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven. These thermometers may vary 20–40 degrees.

NOTE: This adjustment will only affect baking and roasting temperatures; it does not affect broiling, speedcooking or self-cleaning temperatures. The adjustment will be retained in memory after a power failure.

To Adjust the Temperature

Select

SETTINGS

, then

± temp

The current temperature adjustment will appear in the time and temperature display.

Select

INCREASE

(cook hotter) or

DECREASE

(cook cooler) to change cooking temperature adjustment in 1° increments. Continue until desired number is displayed.

The oven temperature can be adjusted up to (+) 35°F hotter or (-) 35°F cooler.

When you have made the adjustment, select

HOME

to go back to the main display. Use your oven as you would normally.

The type of margarine will affect baking performance!

Most recipes for baking have been developed using high-fat products such as butter or margarine (80% fat). If you decrease the fat, the recipe may not give the same results as with a higher-fat product.

Recipe failure can result if cakes, pies, pastries, cookies or candies are made with low-fat spreads. The lower the fat content of a spread product, the more noticeable these differences become.

Federal standards require products labeled “margarine” to contain at least 80% fat by weight. Low-fat spreads, on the other hand, contain less fat and more water. The high-moisture content of these spreads affect the texture and flavor of baked goods. For best results with your old favorite recipes, use margarine, butter or stick spreads containing at least 70% vegetable oil.

Page 40

Safety Instructions

Operating Instructions

Care and CleaningTroubleshooting TipsConsumer Support

Using the Sabbath Feature.

(Designed for use on the Jewish Sabbath and Holidays.) (on some models)

The Sabbath feature can be used for baking/roasting only. It cannot be used for Convection, Broil, Speedcook, Defrost, Proof, Dehydrate, Warm, Warmer, Self-Clean or DelayBake cooking.

NOTE:

■

The oven light is automatically locked out by the control while using the Sabbath feature. The light cannot be turned on or off by the oven light keypad or by opening or closing the door. If the oven light is on, it will remain on and if the oven light is off, it will remain off while the Sabbath feature is being used.

■

If there is a loss of power while using the Sabbath feature, the oven will return to the Sabbath feature when power returns, but the Bake settings will need to be reentered.

■

The CLEAR/OFF pad still works during the Sabbath feature and will clear any active BAKE settings.

■

The Glass Touch number pads surface is solid and will not depress when pushed. To make sure that any command entered while using Sabbath registers for the Glass Touch, ensure that the entire pad of your finger is squarely over the keypad for two seconds. Make sure not to overlap another pad while touching the desired pad—be especially careful around the CLEAR/OFF pad so that the programmed cooking mode is not exited accidentally.

How to Set for Sabbath Feature in Baking/Roasting

Make sure that the clock shows the correct time of day.

Select

BAKE

. Enter the desired

temperature using the number pads and

START

the oven.

Select

HOME

, then

FEATURES

then

Select

SABBATH

. No audible signal will be given and the temperature will disappear from the time and temperature display. The element and oven icons will remain displayed to indicate that the oven is on.

How to Set for Sabbath Feature in Timed Baking/Roasting—Immediate Start and Automatic Stop

Make sure that the clock shows the correct time of day.

Select

BAKE

Using the number pads, enter the desired temperature between 170°F and 550°F. No audible signals will be given and no temperature will be displayed.

Select

OPTIONS

Select

TIMEDBAKE

. Enter the desired cooking time using the number pads. Note that the cooking time will not start to count down until after preheat is complete.

Select

ENTER

. This tells the oven that you

have finished setting it. Select

START

Select

HOME

, then

FEATURES

then

Select

SABBATH

. No audible signal will be given and the temperature will disappear from the time and temperature display. The element and oven icons will remain displayed to indicate that the oven is on and the cooking time will remain displayed.

*Sabbath*

Bake

Back

Start

Control screen

*Sabbath*

Bake

Back

Start

Control screen

NOTE:

The temperature can not be changed during a Timed Bake. Selecting

BAKE

, entering a

temperature, and pressing

START

will clear any programmed Timed Bake and start the new settings.

When cooking is finished,

0HR:00

will appear in the time and temperature display. Then the

0HR:00

along with the element and oven icons will turn off, indicating that the oven has turned

OFF

. The control remains

in the Sabbath feature.

NOTE:

Selecting

BAKE

, entering a

temperature and pressing

START

will clear any programmed Timed Bake and start the new settings.

Page 41

Safety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips

Consumer Support

ge.com

Once in Sabbath Feature…How to Set for Baking/Roasting or Adjust Baking Temperature

Select

BAKE

. No audible signal will

be given. Using the number pads, enter the

desired temperature between 170°F and 550°F. No audible signals will be given and no temperature will be displayed.

Select

START

. No audible signal will

be given.

NOTE:

■

When setting the oven for baking/roasting, the element and oven icons will light after a random delay period of approximately 30 seconds to 1 minute to indicate that the oven is baking/roasting. If the element and oven icons do not appear in the time and temperature display, start again at step 1. The control did not recognize the temperature entered as a valid temperature.

■

When adjusting the temperature setting of the oven, the element and oven icons remain lit to indicate that the oven is still on. If the element and oven icons turn off, start again at step 1. The control did not recognize the temperature entered as a valid temperature.

■

How to Exit the Sabbath Feature

Touch the

CLEAR/OFF

pad to make

sure that the oven is turned

OFF

. No

audible signal will be given.

Hold the

BACK

key for 3 seconds. No audible signal will be given. This will take the oven control out of the Sabbath feature. The control will return to the Features menu where

SABBATH

was originally selected.

Select

HOME

to return to the main

menu on the control display.

Page 42

Control Panel

If desired, the touch pads may be deactivated before cleaning.

See the

Control lockout

information in the

Using the clock, timer and control lockout

section in this manual.

Clean up splatters with a damp cloth.

You may also use a glass cleaner or the cooktop cream.

Remove heavier soil with warm soapy water. Do not use abrasives of any kind.

Reactivate the touch pads after cleaning.

Care and cleaning of the range.

Be sure all controls are off and all surfaces are cool before cleaning any part of the range.

Control Knobs

The control knobs may be removed for easier cleaning.

Before removing the knobs for cleaning, please note that the knobs are in the

OFF

position. When replacing the

knobs, check the

OFF

position to insure

proper placement.

Wash the knobs in soap and water or a vinegar and hot water solution but do not soak.

How to Remove Packaging Tape

To assure no damage is done to the finish of the product, the safest way to remove the adhesive left from packaging tape and cooktop labels on new appliances is an application of a household liquid dishwashing detergent, mineral oil or cooking oil.

Apply with a soft cloth and allow to soak. Wipe dry and then apply an appliance polish to thoroughly clean and protect the surface.

NOTE: The adhesive must be removed from all parts. It cannot be removed if it is baked on.

If your range is removed for cleaning, servicing or any reason, be sure the anti-tip device is re-engaged properly when the range is replaced. Failure to take this precaution could result in tipping of the range and cause injury.

Oven Vent

The oven vent is above the left side of the door.

This area could become hot during oven use.

It is normal for steam to come out of the vent.

The vent is important for proper air circulation. Never block this vent.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Page 43

Safety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

ge.com

Do not rub or clean the door gasket— it has an extremely low resistance to abrasion.

If you notice the gasket becoming worn, frayed or damaged in any way or if it has become displaced on the door, you should have it replaced.

To clean the inside of the door:

■ Because the area inside the gasket is

cleaned during the self-clean cycle, you do not need to clean this by hand.

■ The area outside the gasket and

the door liner can be cleaned with a soap-filled steel wool or plastic pad, hot water and detergent. Rinse well with a vinegar and water solution.

To clean the outside of the door:

■ Use soap and water to thoroughly

clean the top, sides and front of the oven door. Rinse well. You may also use a glass cleaner to clean the glass on the outside of the door. Do not let water drip into the vent openings.

■ If any stain on the door vent trim is

persistent, use a soft abrasive cleaner and a sponge-scrubber for best results.

■ Spillage of marinades, fruit juices,

tomato sauces and basting materials containing acids may cause discoloration and should be wiped up immediately. When surface is cool, clean and rinse.

■ Do not use oven cleaners, cleaning

powders or harsh abrasives on the outside of the door.

■ When cleaning surfaces of door and

oven that come together on closing the door, use only mild, non-abrasive soaps or detergents applied with a sponge or soft cloth.

Cleaning the Oven Door

Page 44

Care and cleaning of the range.

All oven racks may be cleaned by hand with an abrasive cleaner or steel wool. After cleaning, rinse the racks with clean water and dry with a clean cloth. Gray porcelain-coated oven racks may remain in the oven during the self-cleaning cycle without being damaged. The shiny, silver-colored oven racks may remain in the oven during the self-cleaning cycle, but they will lose their luster and become hard to slide.

It will be necessary to grease all oven rack side edges with a light coating of vegetable oil after cleaning them by hand or in the oven. This will help maintain the ease of sliding the racks in and out of the oven.

Oven Racks

Oven rack

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Painted Surfaces

Painted surfaces include the door, top of the control panel and the drawer front. Clean these with soap and water or a vinegar and water solution.

Do not use commercial oven cleaners, cleaning powders, steel wool or harsh abrasives on any painted surface.

Oven Light Bulbs

NOTE: The glass cover should be

removed only when cold. Wearing latex gloves may offer a better grip.

CAUTION

: Before replacing your

oven light bulb, disconnect the electrical power to the oven at the main fuse or circuit breaker panel.

Be sure to let the light cover and bulb cool completely.

For your safety, do not touch a bulb with bare hands or a damp cloth. It can also shorten the bulb life.

To remove:

Turn the glass cover counterclockwise 1/4 turn until the tabs of the glass cover clear the grooves of the socket.

Using gloves or a dry cloth, remove the bulb by pulling it straight out.

To replace:

Use a new 130-volt Halogen bulb, not to exceed 50 watts.

Using gloves or a dry cloth, remove the bulb from its packaging.

Do not

touch the bulb with bare fingers.

Push the bulb straight into the receptacle all the way. Then replace the screen.

NOTE: The screen must be replaced or the life of the bulb will be reduced.

Place the tabs of the glass cover into the grooves of the socket. Turn the glass cover clockwise 1/4 turn.

For improved lighting inside the oven, clean the glass cover frequently using a wet cloth. This should be done when the oven is completely cool.

Reconnect electrical power to the oven.

Bulb

Socket

Tab

Glass cover

Receptacle

Use gloves or cloth

Receptacle

Screen

Page 45

Safety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

ge.com

Oven Heating Elements

Do not clean the broil element. Any soil will burn off when the element is heated.

To clean the area below the bake element, gently lift the element and clean with warm, soapy water.

Storage Drawer Removal

To remove the drawer:

Pull the drawer out until it stops.

Lift the front of the drawer until the stops clear the guides.

Remove the drawer.

To replace the drawer:

Place the drawer rails on the guides.

Push the drawer back until it stops.

Lift the front of the drawer and push back until the stops clear the guides.

Lower the front of the drawer and push back until it closes.

Stop guide

Rail

Do not use a steel wool pad; it will scratch the surface.

To clean the stainless steel surface, use warm sudsy water or a stainless steel cleaner or polish. Always wipe the surface in the direction of the grain. Follow the cleaner instructions for cleaning the stainless steel surface.

To inquire about purchasing stainless steel appliance cleaner or polish, or to find the location of a dealer nearest you, please call our toll-free number:

National Parts Center

1.800.626.2002

ge.com

Stainless Steel Surfaces

(on some models)

Page 46

Burned-On Residue

WARNING: DAMAGE to your glass surface

may occur if you use scrub pads other than BLUE Scotch-Brite®Multi-Purpose No Scratch scrub pads by 3M.

Allow the cooktop to cool.

Spread a few drops of Cerama Bryte®to the entire burned residue area.

Using the Scotch-Brite®blue pad, rub the residue area, applying pressure as needed.

If any residue remains, repeat the steps listed above as needed.

For additional protection, after all residue has been removed, polish the entire surface with Cerama Bryte

and a paper towel.

The RAZOR SCRAPER is available through our Parts Center. See instructions under “To Order Parts” section on next page.

NOTE: Razor blade is packed inverted for safety reasons. Prior to use, the blade must be rotated and reinserted into slot. Do not use a dull or nicked blade.

Heavy, Burned-On Residue

Allow the cooktop to cool.

Spread a few drops of Cerama Bryte®to the entire burned residue area.

Hold the razor scraper at approximately a 45° angle against the glass surface and scrape the soil. It will be necessary to apply pressure to the razor scraper in order to remove the residue.

Keep a small amount of cream on the residue as you scrape.

After scraping with the razor scraper, use the scrub sponge to remove any remaining residue.

For additional protection, after all residue has been removed, polish the entire surface with Cerama Bryte®and a paper towel.

Scotch-Brite®Multi-Purpose No Scratch scrub pad

Cleaning the glass cooktop.

Normal Daily Use Cleaning

ONLY use the recommended cleaning cream, Cerama Bryte®, on the glass cooktop. Other creams may not be as effective.

To maintain and protect the surface of your glass cooktop, follow these steps:

Before using the cooktop for the first time, clean it with the cooktop cleaning cream. This helps protect the top and makes clean-up easier.

Daily use of the cooktop cleaning cream will help keep the cooktop looking new.

Shake the cleaning cream well. Apply a few drops of the cream directly to the cooktop.

Use a paper towel or sponge to clean the entire cooktop surface.

NOTE: It is very important that you DO NOT heat the cooktop until it has been cleaned thoroughly.

Clean your cooktop after each spill.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Page 47

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

ge.com

Turn off all surface units. Remove hot pans.

Wearing an oven mitt: a. Use the razor scraper to move

the spill to a cool area on the cooktop.

b. Remove the spill with

paper towels.

Any remaining spillover should be left until the surface of the cooktop has cooled.

Don’t use the surface units again until all of the residue has been completely removed.

NOTE: If pitting or indentation in the glass surface has already occurred, the cooktop glass will have to be replaced. In this case, service will be necessary.

Damage from Sugary Spills and Melted Plastic

Our testing shows that if you are cooking high sugar mixtures such as jelly or fudge and have a spillover, it can cause permanent damage to the glass surface unless the spillover is immediately removed.

Be careful not to slide pots and pans across your cooktop. It will leave metal markings on the cooktop surface.

These marks are removable using the cleaning cream with a Scotch-Brite®blue pad and/or razor scraper.

If pots with a thin overlay of aluminum or copper are allowed to boil dry, the overlay may leave black discoloration on the cooktop.

This should be removed immediately before heating again or the discoloration may be permanent.

WARNING: Carefully check the bottom of pans for roughness that would scratch the cooktop.

Metal Marks and Scratches

To order Cerama Bryte®cream and the razor scraper, please call our toll-free number:

National Parts Center 800.626.2002.

Cerama Bryte®Cream . . . . . . . .# WX10X300

Razor Scraper . . . . . . . . . . . . . .# WX5X1614

Kit . . . . . . . . . . . . . . . . . . . . . . . .# WB64X5027

(Kit includes cream and razor scraper)

To Order Parts

Glass surface—potential for permanent damage.

Page 48

Before you call for service…

Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Causes What To Do

Surface units will not

Improper cookware • Use pans which are flat and match the diameter of

maintain a rolling boil

being used. the surface unit selected.

or cooking is not fast enough

Surface units do

A fuse in your home may be • Replace the fuse or reset the circuit breaker.

not work properly

blown or the circuit breaker tripped.

Cooktop controls • Check to see the correct control is set for the surface improperly set. unit you are using.

Scratches (may appear

Incorrect cleaning • Scratches are not removable. Tiny scratches will become

as cracks) on cooktop

methods being used. less visible in time as a result of cleaning.

glass surface

Cookware with rough bottoms • To avoid scratches, use the recommended cleaning being used or coarse particles procedures. Make sure bottoms of cookware are clean (salt or sand) were between before use, and use cookware with smooth bottoms. the cookware and the surface of the cooktop.

Cookware has been slid across the cooktop surface.

Areas of discoloration

Food spillovers not cleaned • See the

Cleaning the glass cooktop

section.

on the cooktop

before next use.

Hot surface on a model • This is normal. The surface may appear discolored with a light-colored cooktop. when it is hot. This is temporary and will disappear

as the glass cools.

Plastic melted to

Hot cooktop came into • See the

Glass surface—potential for permanent damage

the surface

contact with plastic placed section in the

Cleaning the glass cooktop

section.

on the hot cooktop.

Pitting (or indentation)

Hot sugar mixture spilled • Call a qualified technician for replacement.

of the cooktop

on the cooktop.

Frequent cycling

Improper cookware • Use only flat cookware to minimize cycling.

off and on of

being used.

surface units

Oven light does

Light bulb is loose or defective. • Tighten or replace the bulb.

not work

Switch operating • Call for service. light is broken.

Oven will not work

Plug on range is not completely • Make sure electrical plug is plugged into a live, properly inserted in the electrical outlet. grounded outlet.

A fuse in your home • Replace the fuse or reset the circuit breaker. may be blown or the circuit breaker tripped.

Oven controls improperly set. • See the

Using the oven

section.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Page 49

Safety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

ge.com

Problem Possible Causes What To Do

Food does not

Oven controls • See

Using the Trivection™Oven

section.

speed bake properly

improperly set.

Rack position is incorrect • See

Using the Trivection™Oven

section.

or the rack is not level.

Incorrect use of cookware • See

Using the Trivection™Oven

section.

and/or aluminum foil. Cookware of improper size being used.

Door not closed. • Close door completely.

Very delicate item. • Use traditional bake.

Food not to desired • Cook times will vary due to recipe and pan variations. doneness. Check food when prompted and add additional time

with

More Time

if needed.

Sauce on food gets too brown. • Apply sauce later in cooking cycle.

Meat cooked too long. • Remove from oven sooner and allow to stand. Meat

temperature will continue to rise.

Put food in too early. • Place food in the oven once the oven is preheated and

the display shows, “PUT FOOD IN OVEN.”

Temperature

Don’t use a meat • Take the temperature of the meat

after

removing it

reading on meat

thermometer in oven while from the oven.

thermometer seems

speedcooking.

inaccurate

Food does not

Oven controls • See

Using the Trivection™Oven

section.

speed broil properly

improperly set.

Improper rack position • See the

Broiling Guide

being used.

Cookware not suited to broiling. • Use the broiling pan and grid that came with your oven.

Door not closed. • Close door completely.

Food overcooked. • Remove from oven sooner and allow to stand. Food

temperatures will continue to rise.

Food undercooked. • Speed broil for additional time using

MoreTime

Meat is too done in center. • Use traditional broil for very thin steaks or for foods

where a rare to medium rare doneness is desired.

Put food in too early. • Place food in the oven once the oven is preheated and

the display shows, “PUT FOOD IN OVEN.”

Cook time doesn’t

Oven controls improperly set. • See

Using the Trivection™Oven

section.

countdown while

Door is not • Close door completely.

speedcooking

closed completely.

START

not selected. • Press

START

once food is placed in the oven.

Page 50

Problem Possible Causes What To Do

Arcing between metal

Improper spacing between • See

Using the Trivection™Oven

section.

surfaces in oven while

metal surfaces and/or

speedcooking or

aluminum foil.

defrosting

Display shows

Wiring from house to oven • Contact installer or qualified electrician to check

“Miswired detected”

is incorrect. house wiring to range.

Option not seen on the

Option may be listed • Select

to see additional items.

display screen

on the next screen.

Hot air from oven

When using the cooking • This is normal. features, hot air will exit the oven through the vent located above the door.

Food does not bake or

Oven controls improperly set. • See the

Using traditional bake and roast

section.

roast properly in the

Shelf position is incorrect • See the

Using traditional bake and roast

section.

oven

or the shelf is not level.

Incorrect cookware or • See the

Using traditional bake and roast

section.

cookware of improper size being used.

Oven temperature needs • See the

Adjust the oven temperature—Do it yourself!

adjustment. section.

Food does not broil

Oven controls improperly set. • Make sure you select

BROIL

properly

Improper shelf position • See the

Broiling Guide.

being used.

Cookware not suited • For best results, use a pan designed for broiling. for broiling.

In some areas the power • Preheat the broil element for 10 minutes. (voltage) may be low.

• Broil for the longest period of time recommended in

the

Broiling Guide.

Clock and timer

The clock is in the • See the

Settings

section for the oven clock.

do not work or

no clock mode.

display goes blank

Controls improperly set. • See the

Using the clock and lower oven timer

section.

A fuse in your home may be • Replace the fuse or reset the circuit breaker. blown or the circuit breaker tripped.

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Before you call for service…

Troubleshooting Tips

Page 51

Safety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

ge.com

Problem Possible Causes What To Do

Oven

Oven temperature • See the

Adjust the oven temperature—Do it yourself!

temperature too

needs adjustment. section.

hot or too cold

Oven will not work

Oven controls improperly set. • See the

Using the oven

section.

A fuse in your home may • Replace the fuse or reset the circuit breaker. be blown or the circuit breaker tripped.

Oven will not self-clean

The oven temperature is too • Allow the oven to cool and reset the controls. high to set a self-clean operation.

Oven controls improperly set. • See the

Using the self-cleaning oven

section.

“Crackling” or

This is the sound of the • This is normal.

“popping” sound

metal heating and cooling

in the oven

during both the cooking and cleaning functions.

Excessive smoking

Excessive soil. • Press the

CLEAR/OFF

pad. Open the windows to

in the oven during

rid the room of smoke. Wait until the

(LOCK)

light

a clean cycle

goes off. Wipe up the excess soil and reset the clean cycle.

Oven door will

Oven too hot. • Allow the oven to cool below locking temperature.

not open after a clean cycle

Oven not clean

Oven controls improperly set. • See the

Using the self-cleaning oven

section.

after a clean cycle

Oven was heavily soiled. • Clean up heavy spillovers before starting the clean

cycle. Heavily soiled ovens may need to self-clean again or for a longer period of time.

(LOCK) light is on

The oven door is locked • Press the

CLEAR/OFF

pad. Allow the oven to cool.

when you want to cook

because the temperature

in the oven

inside the oven has not dropped below the locking temperature.

Display shows "ERR"

A temperature was • Set the temperature between 170°F–550°F. set outside the allowable range of 170°F–550°F.

Page 52

Before you call for service…

Consumer Support Troubleshooting Tips Care and Cleaning Operating Instructions Safety Instructions

Troubleshooting Tips

Problem Possible Causes What To Do

Oven light does

Light bulb is loose or defective. • Tighten or replace the bulb.

not work

Pad operating light is broken. • Call for service.

“F— and a number or

You have a function • Press the

CLEAR/OFF

pad. Allow the oven to cool for one

letter” flash in the

error code. hour. Put the oven back into operation.

oven display

If the function code repeats. • Disconnect all power to the cooking center for at

least 30 seconds and then reconnect power. If the function error code repeats, call for service.

Power outage,

Power outage or surge. • Reset the clock. If the oven was in use, you must reset

clock flashes

it by pressing the

CLEAR/OFF

pad, setting the clock

and resetting any cooking function.

Steam from the vent

When using the convection • This is normal. or speedcook feature, it is normal to see steam coming out of the oven vent. As the number of shelves or amount of food being cooked increases, the amount of visible steam will increase.

“Burning” or “oily”

This is normal in a new oven • To speed the process, set a self-clean cycle for a

odor emitting from

and will disappear in time. minimum of 3 hours. See the

Using the self-cleaning

oven vent oven

section.

Strong odor

An odor from the insulation • This is temporary.

in the oven

around the inside of the oven is normal for the first few times the oven is used.

Fan noise when using

A cooling fan or a convection • This is normal. The cooling fan will turn on

the oven

fan (depending on the function to cool internal parts. It may run for up to 1-1/2 you are using) may automatically hours after the oven is turned off. The convection turn on. fan will cycle on and off until the function is over

or the door is opened.

Storage drawer

Rear drawer support is • Reposition the drawer. See the

Storage Drawer

is crooked

on top of the guide rail.

Removal

instructions in the

Care and cleaning of your

range

section.

Storage drawer

Power cord may be • Reposition the drawer and power cord. See the

won’t close

obstructing drawer

Storage Drawer Removal

instructions in the

Care and

in the lower back

cleaning of your range

section.

of the range.

Rear drawer support is • Reposition the drawer. See the

Storage Drawer

on top of the guide rail.

Removal

instructions in the

Care and cleaning of

your range

section.

Page 53

General Electric Company

Warranty Registration Department P.O. Box 32150 Louisville, KY 40232-2150

GE Service Protection Plus

™

GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus

™

—comprehensive protection on all your appliances—

No Matter What Brand!

Benefits Include:

• Backed by GE

• All brands covered

• Unlimited service calls

• All parts and labor costs included

• No out-of-pocket expenses

• No hidden deductibles

• One 800 number to call

You will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It’s that simple.

Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand! Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemaker coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable household products are protected against expensive repairs.

Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224 for more information.

*All brands covered, up to 20 years old, in the continental U.S.

We’ll Cover Any Appliance. Anywhere. Anytime.*

Please place in envelope and mail to:

✁

Cut here

Page 54

Consumer Product Ownership Registration

Important

Mail Today!

GE Consumer & Industrial

Appliances General Electric Company Louisville, KY 40225 ge.com

First

Name

Mr. ■■ Ms. ■■ Mrs. ■■ Miss ■■

Street

Address

City

State

Date Placed

In Use

Month

Day

Year

Zip

Code

Apt. #

Last

Name

Phone

Number

Consumer Product Ownership Registration

Dear Customer: Thank you for purchasing our product and thank you for placing your confidence in us. We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

Important: If you did not get a registration card with your

product, detach and return the form below to ensure that your product is registered, or register online at ge.com.

Model Number Serial Number

✁

Cut here

Complete and mail your Consumer Product Ownership Registration today.

Have the peace of mind of knowing we can contact you in the unlikely event of

safety modification.

After mailing the registration below, store this document in a safe place. It contains information you will need should you require service. Our service number is

800.GE.CARES (800.432.2737).

Read your Owner’s Manual carefully. It will help you operate your new appliance properly.

Model Number Serial Number

E-mail Address*

* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important

communications from GE Appliances (GEA).

■■ Check here if you do not want to receive communications from GEA’s carefully selected partners.

FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR WARRANTY RIGHTS.

For more information about GEA’s privacy and data usage policy, go to ge.com and click on “Privacy Policy” or call 800.626.2224.

Page 55

Safety Instructions Operating InstructionsSafety Instructions Operating Instructions Care and Cleaning

Troubleshooting Tips Consumer Support

GE Self-Cleaning Oven with Trivection™ Warranty.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care

technician. To schedule service, on-line, visit us at ge.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service.

■ Service trips to your home to teach you how to use

the product.

■ Improper installation, delivery or maintenance.

■ Failure of the product if it is abused, misused,

or used for other than the intended purpose or used commercially.

■ Damage to the glass cooktop caused by use of cleaners

other than the recommended cleaning creams.

■ Damage to the glass cooktop caused by hardened

spills of sugary materials or melted plastic that are not cleaned according to the directions in the Owner’s Manual.

■ Replacement of house fuses or resetting of circuit

breakers.

■ Damage to the product caused by accident, fire, floods

or acts of God.

■ Incidental or consequential damage caused by possible

defects with this appliance.

■ Damage caused after delivery.

■ Product not accessible to provide required service.

What GE Will Not Cover:

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

For The Period Of: GE Will Provide:

One Year Any part

of the speedcook electric convection range which fails due to a defect in materials

From the date of the

or workmanship. During this

limited one-year warranty,

GE will also provide,

free of charge,

original purchase

all labor and in-home service to replace the defective part.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

Page 56

Printed in the United States

Consumer Support.

GE Appliances Website

ge.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals, order parts or even schedule service on-line.

Schedule Service ge.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio ge.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call

800.TDD.GEAC (800.833.4322).

Extended Warranties ge.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories ge.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Also available is a VHS video tape on using your oven with Trivection

™

technology. Order on-line today, 24 hours every day or by phone at 800.626.2002

during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park Louisville, KY 40225

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material, or detach and use the form in the Owner’s Manual.
