GE JS250DFBB, JS250DFWW Specification Sheet
JS250DF
30"
Min.
30"
Min.
15" Min.
If the control panel
measures 31-1/8"
(79.1 cm) like in the
illustration AND if the
countertop has a
raised edge, shave
raised edge to clear
the control panel,
as shown at left.
2-1/2"
4"
1-1/4" Min. from
countertop to top
of cabinet drawer
Acceptable electrical
outlet area
2-1/2"
9-1/16"
7-1/2"
25"
1-1/4" Min. Flat
NOTE: Use a 4' powercord
to prevent interference with
the storage drawer. Power
cords 4-1/2' to 6' long may
have to be dressed to allow
for proper drawer closing.
Accessory
Backguard JXS32
Recommended
6" Min.
From Walls
30"
Min.
30"
Min.
15" Min.
23-3/16"
35-7/8"-36-1/2" from
Floor to countertop
2-7/8"
To Front
Surface of
Countertop
If the control panel
measures 31-1/8"
(79.1 cm) like in the
illustration AND if the
countertop has a
raised edge, shave
raised edge to clear
the control panel,
as shown at left.
2-1/2"
4"
1-1/4" Min. from
countertop to top
of cabinet drawer
Acceptable electrical
outlet area
2-1/2"
9-1/16"
7-1/2"
25"
29-15/16"-30-1/16"
24"
4"
31-1/4"
30"
1-1/4" Min. Flat
NOTE: Use a 4' powercord
to prevent interference with
the storage drawer. Power
cords 4-1/2' to 6' long may
have to be dressed to allow
for proper drawer closing.
Accessory
Backguard JXS32
Recommended
6" Min.
From Walls
30"
Min.
30"
Min.
15" Min.
23-3/16"
35-7/8"-36-1/2" from
Floor to countertop
2-7/8"
To Front
Surface of
Countertop
20-5/8" Door
Clearance
From Front
Surface of
Countertop
25-3/4"*
(excluding handle)
If the control panel
measures 31-1/8"
(79.1 cm) like in the
illustration AND if the
countertop has a
raised edge, shave
raised edge to clear
the control panel,
as shown at left.
2-1/2"
4"
1-1/4" Min. from
countertop to top
of cabinet drawer
Acceptable electrical
outlet area
2-1/2"
9-1/16"
7-1/2"
25"
29-15/16"-30-1/16"
24"
4"
31-1/4"
36-1/4"
30"
1-1/4" Min. Flat
If you are NOT using the
Filler strip or Backguard:
If you are using the
23-3/16"
30"
GE

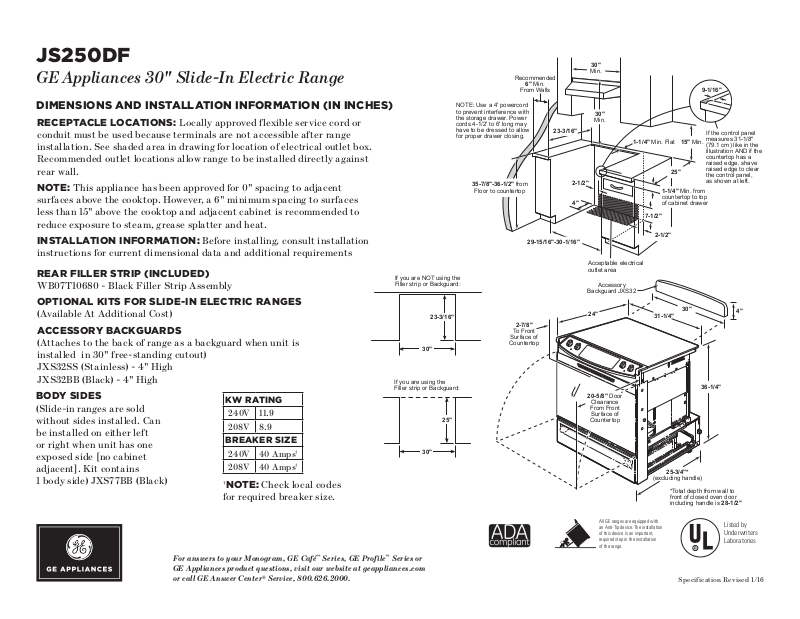

Appliances 30" Slide-In Electric Range
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
RECEPTACLE LOCATIONS: Locally approved flexible service cord or
conduit must be used because terminals are not accessible after range
installation.
Recommended
rear wall.
NOTE: This appliance has been approved for 0" spacing to adjacent
surfaces above the cooktop. However, a 6" minimum spacing to surfaces
less than 15" above the cooktop and adjacent cabinet is recommended to
reduce exposure to steam, grease splatter and heat.
INSTALLATION I N FORMATI O N : Before installing, consult installation
instructions for current dimensional data and additional requirements
REAR FILLER STRIP (INCLUDED)
WB07T10680 - Black Filler Strip Assembly
OPTIONAL KITS FOR SLIDE-IN ELECTRIC RANGES
(Available At Additional Cost)
ACCESSORY BACKGUARDS
(Attaches to the back of range as a backguard when unit is
installed in 30" free-standing cutout)
JXS32SS (Stainless) - 4" High
JXS32BB (Black) - 4" High
BODY SIDES
(Slide-in ranges are sold
without sides installed. Can
be installed on either left
or right when unit has one
exposed side [no cabinet
adjacent]. Kit contains
1 body side) JXS77BB (Black)
See shaded area in drawing for location of electrical outlet box.
outlet locations allow range to be installed directly against
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
KW R ATI N G
240V 11.9
208V 8.9
BREAKER SIZE
240V 40 Amps
208V 40 Amps
†
NOTE: Check local codes
for required breaker size.
†
†
If you are NOT using the
Filler strip or Backguard:
Filler strip or Backguard:
30"
30"
NOTE: Use a 4' powercord
to prevent interference with
the storage drawer. Power
cords 4-1/2' to 6' long may
have to be dressed to allow
for proper drawer closing.
23-3/16"
25"
Recommended
35-7/8"-36-1/2" from
Floor to countertop
2-7/8"
To Front
Surface of
Countertop
6" Min.
From Walls
23-3/16"
29-15/16"-30-1/16"
30"
Min.
30"
Min.
2-1/2"
4"
Acceptable electrical
outlet area
Accessory
Backguard JXS32
24"
20-5/8" Door
Clearance
From Front
Surface of
Countertop
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
1-1/4" Min. Flat
1-1/4" Min. from
countertop to top
of cabinet drawer
7-1/2"
2-1/2"
31-1/4"
25-3/4"*
(excluding handle)
9-1/16"
If the control panel
measures 31-1/8"
15" Min.
(79.1 cm) like in the
illustration AND if the
countertop has a
raised edge, shave
30"
36-1/4"
raised edge to clear
the control panel,
as shown at left.
4"
25"
*Total depth from wall to
front of closed oven door
including handle is 28-1/2"
Listed by
Underwriters
Laboratories
Speci fication Revised 1/16
JS250DF
GE
Appliances 30" Slide-In Electric Range
FEATURES AND BENEFITS
Self-Clean Oven - Cleans the oven cavity without the need for scrubbing
Coil Heating Elements - Provide even heat and easy cleanup
4.4 cu. ft. Oven Capacity - Enough room to cook an entire meal at once
Removable Full-Width Storage Drawer - Store cookware or kitchen accessories
Dual Element Bake - Upper and lower elements produce even heat and great results
Electronic Oven Controls - Electronic touch pads are easy to operate
Chrome Drip Bowls - Contain spills and remove for easy cleaning
Model JS250DFWW - White on white
Model JS250DFCC - Bisque on bisque
Model JS250DFBB - Black on black
LIGHT
Speci fication Revised 1/16
