GE JRP20BJ2BB, JRP20SK1SS, JRP20SK2SS, JRP20WJ1WW, JRP20WJ2WW Installation Guide

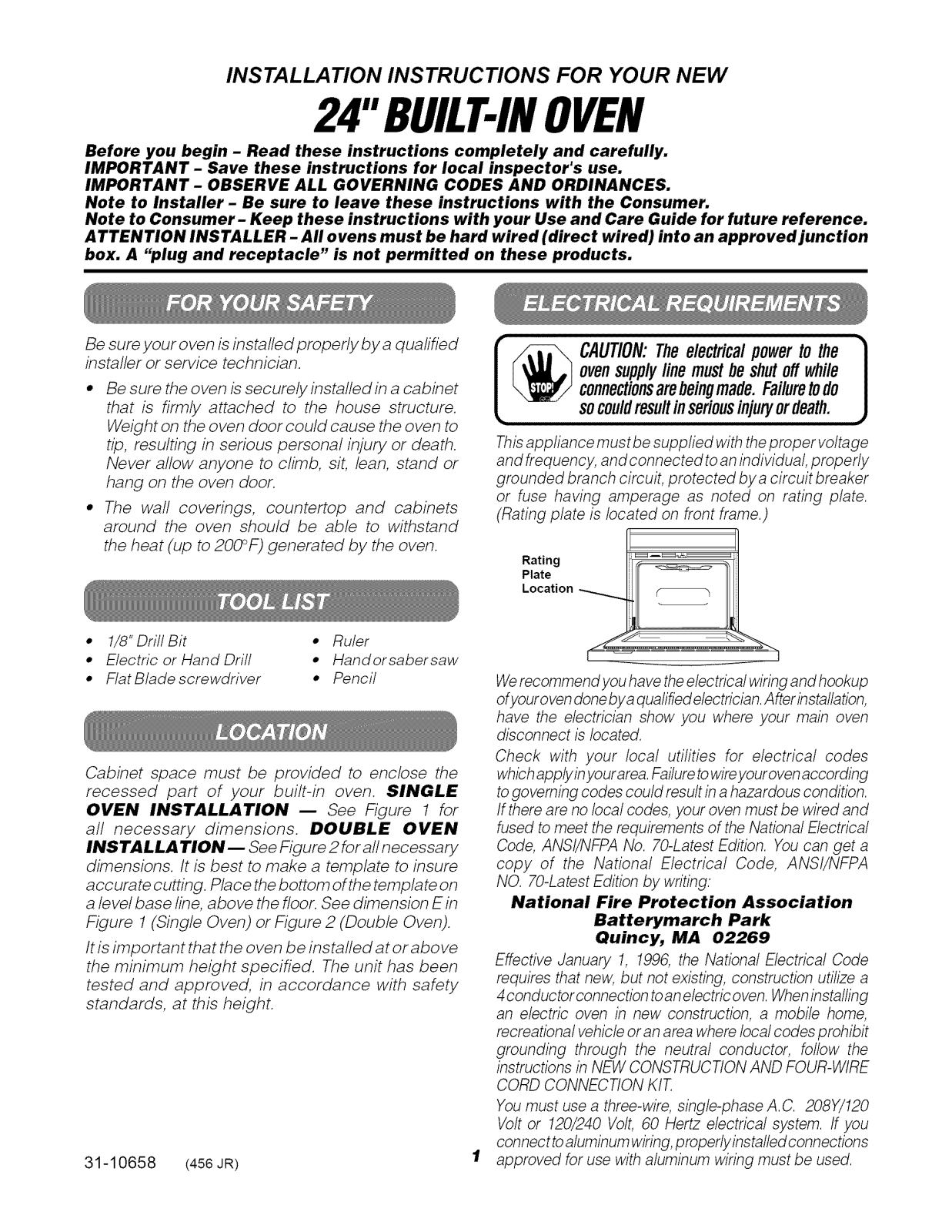

INSTALLATION INSTRUCTIONS FOR YOUR NEW

24"BUILT-INOVEN

Before you begin - Read these instructions completely and carefully.

IMPORTANT - Save these instructions for local inspector's use.

IMPORTANT - OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer- Be sure to leave these instructions with the Consumer.

Note to Consumer- Keep these instructions with your Use and Care Guide for future reference.

ATTENTION INSTALLER - All ovens must be hard wired (direct wired) into an approved junction
box. A "plug and receptacle" is not permitted on these products.

Be sure your oven is installed properly by a qualified
installer or service technician.

• Be sure the oven is securelyinstalledin a cabinet
that is firmly attached to the house structure.

Weight on the oven door could cause the oven to
tip, resulting in serious personal injury or death.
Never allow anyone to climb, sit, lean, stand or
hang on the oven door.

• The wall coverings, countertop and cabinets
around the oven should be able to withstand

the heat (up to 200°F) generated by the oven.

_ AUTION:Theelectricalpowertothe 1

This appliance must be supplied with theproper voltage
and frequency, and connected to an individual, properly

grounded branch circuit, protected by a circuit breaker
or fuse having amperage as noted on rating plate.

(Rating plate is located on front frame.)

Rating _ _
Plate

Location _ _--_

ovensupplylinemustbeshutof while
connectionsarebeingmade.Failuretodo
socouldresultinseriousinjuryordeath.

• 1/8" Drill Bit • Ruler

• Electnc or Hand Dr/// • Handorsabersaw

• Flat Blade screwdriver • Pencil

Cabinet space must be provided to enclose the
recessed part of your built-in oven. SINGLE

OVEN INSTALLATION i See Figure 1 for
all necessary dimensions. DOUBLE OVEN

INSTALLATION i See Figure 2 for all necessary
dimensions. It is best to make a template to insure
accurate cutting. Place the bottom of the template on

a level base line, above the floor. See dimension E in
Figure 1 (Single Oven) or Figure 2 (Double Oven).

It is important that the oven be installed at or above
the minimum height specified. The unit has been
tested and approved, in accordance with safety
standards, at this height.

31-10658 (456 JR)

........... '_..

i • i

Werecommend you have theelectrical wiring and hookup
ofyouroven done by a qualified electn'ctan.Aftenhstallation,

have the electrician show you where your main oven
disconnect is located.

Check with your local utilities for electrical codes
whlbh apply inyour area.Faffuretowireyour ovenaccording

to governing codes could result in a hazardous condition.
If there are no local codes, your oven must be wired and

fused to meet the requirements of the National Electrical
Code, ANSI/NFPA No. 70-Latest Edition. You can get a

copy of the National Electrical Code, ANSI/NFPA
NO. 70-Latest Edition by wn'ting:

National Fire Protection Association

Batterymarch Park

Quincy, MA 02269

Effective January 1, 1996, the National Electrical Code

requires that new, but not existing, construction util/2e a
4 conductor connection toan electric oven. Wheninstalling

an electric oven in new construction, a mobile home,
recreational vehicle or an area where local codes prohibit

grounding through the neutral conductor, follow the
instructions in NEW CONSTRUCTION AND FOUR-WIRE

CORD CONNECTION KIT
You must use a three-wire, single-phase A.C. 208Y/120

Volt or 120/240 Volt, 60 Hertz electrical system. If you

connect toaluminum wl?ing,properly installed connections
approved for use with aluminum wiring must be used.

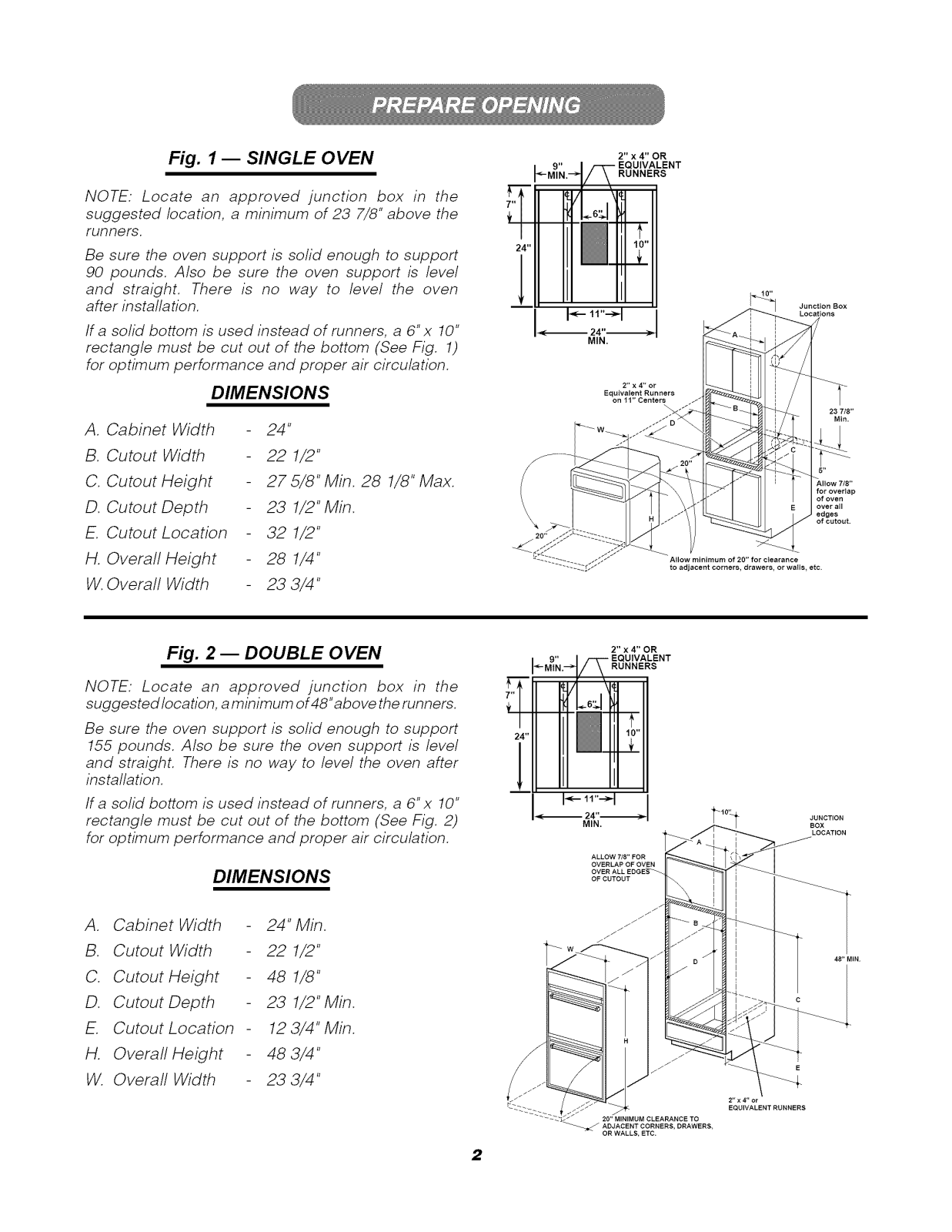

Fig. 1 -- SINGLE OVEN

NOTE. Locate an approved junction box in the
suggested location, a minimum of 23 7/8" above the

runners.
Be sure the oven support is solid enough to support

90 pounds. Also be sure the oven support is level
and straight. There is no way to level the oven

after installation.
/f a solid bottom is used instead of runners, a 6" x 10"

rectangle must be cut out of the bottom (See Fig. 1)
for optimum performance and proper air circulation.

DIMENSIONS

Equivalent Runners

A. Cabinet Width

B. Cutout Width
C. Cutout Height

D. Cutout Depth
E. Cutout Location

H. Overall Height

W Overall Width

24 _'

22 1/2"
27 5/8" Min. 28 1/8" Max.

23 1/2" Min.
32 1/2"

28 1/4"
23 3/4"

Fig. 2 -- DOUBLE OVEN

NOTE. Locate an approved junction box in the
suggested /ocaton, am n mum of 48 'above the runners.

Be sure the oven support is solid enough to support

155 pounds. Also be sure the oven support is level

and straight. There is no way to level the oven after
installation.

/f a solid bottom is used instead of runners, a 6" x 10"
rectangle must be cut out of the bottom (See Fig. 2)

for optimum performance and proper air circulation.

DIMENSIONS

2" x 4" OR

9" RUNNERS

i__ MJN .__ i EQUIVALENT

_6,\

2i" _

MIN,

to adjacent corners, drawers, or wails, etc

16"

for over{ap

edges

JUNCTION

BOX

A. Cabinet Width

B. Cutout Width
C. Cutout Height

D. Cutout Depth
E. Cutout Location -

H. Overall Height

W Overall Width

24" Min.
22 1/2"
48 1/8"

23 1/2" Min.

12 3/4" Min.

48 3/4"
23 3/4"

-_ 20- MINIMUM CLEARANCE TO
ADJACENT CORNERS, DRAWERS.

OR WALLS, ETC.

2
