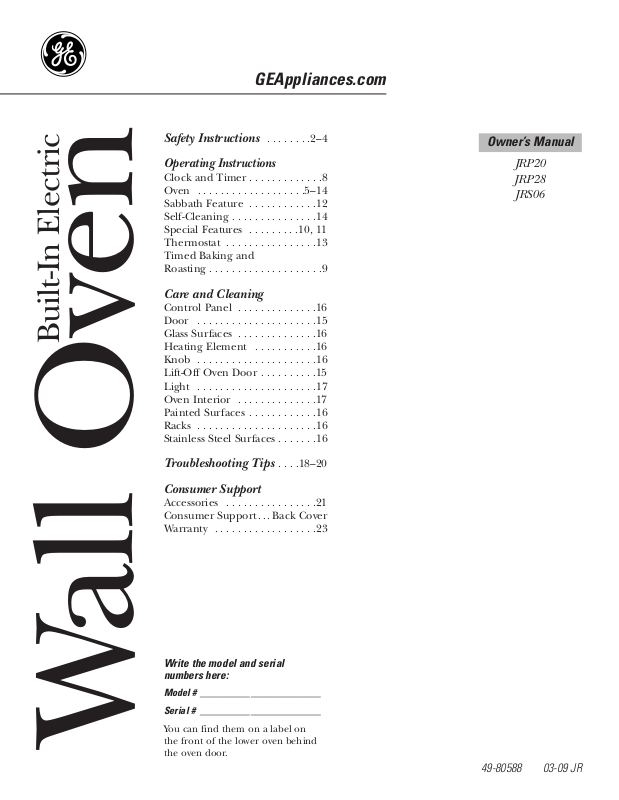

GE JRS06 User Manual

Write the model and serial
numbers here:

Model # ________________________

Serial # ________________________

You can find them on a label on
the front of the lower oven behind
the oven door.

Wall Oven

Safety Instructions . . . . . . . .2–4

Operating Instructions

Clock and Timer . . . . . . . . . . . . .8

Oven . . . . . . . . . . . . . . . . . . .5–14

Sabbath Feature . . . . . . . . . . . .12

Self-Cleaning . . . . . . . . . . . . . . .14

Special Features . . . . . . . . .10, 11

Thermostat . . . . . . . . . . . . . . . .13

Timed Baking and

Roasting . . . . . . . . . . . . . . . . . . . .9

Care and Cleaning

Control Panel . . . . . . . . . . . . . .16

Door . . . . . . . . . . . . . . . . . . . . .15

Glass Surfaces . . . . . . . . . . . . . .16

Heating Element . . . . . . . . . . .16

Knob . . . . . . . . . . . . . . . . . . . . .16

Lift-Off Oven Door . . . . . . . . . .15

Light . . . . . . . . . . . . . . . . . . . . .17

Oven Interior . . . . . . . . . . . . . .17

Painted Surfaces . . . . . . . . . . . .16

Racks . . . . . . . . . . . . . . . . . . . . .16

Stainless Steel Surfaces . . . . . . .16

Troubleshooting Tips . . . .18–20

Consumer Support

Accessories . . . . . . . . . . . . . . . .21

Consumer Support . . . Back Cover

Warranty . . . . . . . . . . . . . . . . . .23

49-80588 03-09 JR

JRP20
JRP28
JRS06

Owner’s Manual

GEAppliances.com

Built-In Electric

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to
publish a list of substances known to the state to cause cancer, birth defects or other reproductive
harm, and requires businesses to warn customers of potential exposure to such substances.

The fiberglass insulation in self-clean ovens gives off a very small amount of carbon monoxide during
the cleaning cycle. Exposure can be minimized by venting with an open window or using a ventilation
fan or hood.

IMPORTANT: The health of some birds is extremely sensitive to the fumes given

off during the self-cleaning cycle of any oven. Move birds to another well ventilated room.

When using electrical appliances, basic safety precautions should be followed, including the following:

■ Use this appliance only for its intended

purpose as described in this Owner’s
Manual.

■ Be sure your appliance is properly

installed and grounded by a qualified
technician in accordance with the
provided installation instructions.

■ Do not attempt to repair or replace any

part of your oven unless it is specifically
recommended in this manual. All other
servicing should be referred to a qualified
technician.

■ Have the installer show you the location

of the circuit breaker or fuse. Mark it for
easy reference.

■ Before performing any service, disconnect

the oven power supply at the household
distribution panel by removing the fuse or
switching off the circuit breaker.

■ Do not leave children alone—children

should not be left alone or unattended
in an area where an appliance is in use.
They should never be allowed to sit or
stand on any part of the appliance.

■ Do not allow anyone to climb, stand or

hang on the door. They could damage the
oven, or cause severe personal injury.

■ Be sure the oven is securely installed in a

cabinet that is firmly attached to the house
structure. Never allow anyone to climb, sit,
stand or hang on the oven door.

■ Never leave the oven door open when you

are not watching the oven.

■ Always keep combustible wall covering,

curtains or drapes a safe distance from
your oven.

■ Always keep dish towels, dish cloths, pot

holders and other linens a safe distance
from your oven.

■ Always keep wooden and plastic utensils

and canned food a safe distance away from
your oven.

■ Teach children not to play with the

controls or any other part of the oven.

■ Large scratches or impacts to glass doors

can lead to broken or shattered glass.

SAFETY PRECAUTIONS

2

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support

3

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips Consumer Support

GEAppliances.com

■ Do not store flammable materials in

an oven.

■ CAUTION: Items of interest to

children should not be stored in cabinets
above an oven; children climbing on the
oven to reach items could be seriously
injured.

■ Never wear loose-fitting or hanging

garments while using the appliance.
Be careful when reaching for items stored
in cabinets over the oven. Flammable
material could be ignited if brought in
contact with hot surfaces or heating
elements and may cause severe burns.

■ Use only dry pot holders—moist or damp

pot holders on hot surfaces may result in
burns from steam. Do not let pot holders
touch hot heating elements. Do not use
a towel or other bulky cloth.

■ For your safety, never use your appliance

for warming or heating the room.

■ Do not let cooking grease or other

flammable materials accumulate in
or near the oven.

■ Do not use water on grease fires.

Never pick up a flaming pan.
Turn the controls off.

■ Flame in the oven can be smothered

completely by closing the oven door and
turning the oven off or by using a multi­purpose dry chemical or foam-type fire
extinguisher.

■ Never leave jars or cans of fat drippings

in or near your oven.

■ Do not store or use combustible materials,

gasoline or other flammable vapors and
liquids in the vicinity of this or any other
appliance.

■ Stand away from the oven when opening

the oven door. Hot air or steam which
escapes can cause burns to hands, face
and/or eyes.

■ Do not heat unopened food containers.

Pressure could build up and the container
could burst, causing an injury.

■ Keep the oven vent unobstructed.

■ Keep the oven free from grease buildup.

■ Place the oven rack in the desired position

while the oven is cool. If racks must be
handled when hot, do not let pot holder
contact the heating elements.

■ When using cooking or roasting bags in

the oven, follow the manufacturer’s
directions.

■ Do not touch the heating elements or the

interior surface of the oven. These surfaces
may be hot enough to burn even though
they are dark in color. During and after
use, do not touch, or let clothing or other
flammable materials contact any interior
area of the oven; allow sufficient time for
cooling first.

■ Potentially hot surfaces include oven vent

openings, surfaces near the openings,
crevices around the oven door, the edges
of the window and metal trim parts above
the door.

■ REMEMBER: The inside surface of the oven

may be hot when the door is opened.

WARNING!

SAFETY PRECAUTIONS

■ Pulling out the rack to the stop-lock is

a convenience in lifting heavy foods.
It is also a precaution against burns from
touching hot surfaces of the door or
oven walls.

■ Do not use the oven to dry newspapers.

If overheated, they can catch on fire.

■ Do not use the oven for a storage area.

Items stored in an oven can ignite.

■ Do not leave paper products, cooking

utensils or food in the oven when
not in use.

■ After broiling, always take any broiler pan

out of the oven and clean it. Leftover
grease in a broiler pan can catch fire
next time you use the pan.

■ Clean only parts listed in this Owner’s

Manual.

■ Do not use aluminum foil to line

oven bottoms. Improper installation
of aluminum foil may result in a risk
of electric shock or fire.

Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F and poultry
to at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against
foodborne illness.

COOK MEAT AND POULTRY THOROUGHLY…

■ Do not clean the door gasket. The door

gasket is essential for a good seal. Care
should be taken not to rub, damage or
move the gasket.

■ Do not use oven cleaners. No commercial

oven cleaner or oven liner protective
coating of any kind should be used in or
around any part of the oven. Residue from
oven cleaners will damage the inside of the
oven when the self-clean cycle is used.

■ Before self-cleaning the oven, remove

shiny, silver-colored oven racks (on some
models) and all other cookware.

■ Be sure to wipe up excess spillage before

starting the self-cleaning operation.

■ If the self-cleaning mode malfunctions,

turn the oven off and disconnect
the power supply. Have it serviced by
a qualified technician.

SELF-CLEANING OVEN (on some models)

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

4

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting Tips

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

SAFETY PRECAUTIONS

Consumer Support

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips Consumer Support

Using the oven controls. GEAppliances.com

Lower Oven Control (on some models)

OVEN TEMP Knob

Turn this knob to
the temperature
setting you want.

The OVEN CYCLE light glows until the oven reaches your selected
temperature, then goes off and on with the oven element(s) during
cooking.

5

Throughout this manual, features and appearance may vary from your model.

Upper Oven Control, Clock and Timer Features and Settings

BAKE Pad

Touch this pad to select the bake function.

BAKE Light

Flashes while in edit mode—you can change the
oven temperature at this point. Glows when the
oven is in bake mode.

BROIL HI/LO Pad

Touch this pad to select the broil function.

BROIL Light

Flashes while in edit mode—you can switch
from HI to LO BROIL at this point. Glows when
the oven is in broil mode.

Display

Shows the operations you have selected,
the time of day and the cooking status.

COOKING TIME Pad

Touch this pad and then touch the + or – pad
to set the amount of time you want your food to
cook. The oven will shut off when the cooking
time has run out.

DELAY START Pad

Use along with the COOKING TIME or
SELF CLEAN pad to set the oven to start and stop

automatically at a time you set.

OVEN LIGHT ON/OFF Pad

Touch this pad to turn the oven light on
or off.

TIMER/CLOCK Pad

Touch this pad to select the timer feature. Then
touch + and – pads to adjust time.

To set the clock, touch this pad twice and hold 3
seconds and then touch the + and – pads. The
time of day will flash in the display when the
oven is first turned on.

START Pad

Must be touched to start any cooking function.

– Pad

Short taps to this pad will decrease the time
or temperature by small amounts. Touch
and hold the pad to decrease the time or
temperature by larger amounts.

+ Pad

Short taps to this pad will increase the time
or temperature by small amounts. Touch
and hold the pad to increase the time or
temperature by larger amounts.

CLEAR/OFF Pad

Touch this pad to cancel ALL oven operations
except the clock and timer.

SELF CLEAN Pad (on some models)

Touch this pad to select the self-cleaning
function. See the Using the self-cleaning oven
section.

CLEAN Light

Flashes while in edit mode—you can change the
length of time for the self-clean cycle at this
point. Glows when the oven is in the self-clean
cycle. After the self-clean cycle, the light will turn
off. Unlatch the door.

If “F– and a number or letter” flash in the display and the oven
control signals, this indicates a function error code.

Touch the CLEAR/OFF pad. Allow the oven to cool for one hour.
Put the oven back into operation.

If function error code repeats, disconnect power to the oven and
call for service.

Touch the BAKE pad.

Touch the + or – pad to set the
desired temperature.

Touch the START pad.

Check food for doneness at
minimum time on recipe. Cook longer
if necessary.

Touch the CLEAR/OFF pad when
cooking is complete.

NOTE: The lower oven is controlled with a knob.
To set the oven for baking turn the knob to the
desired setting or temperature. Turn the knob to
OFF when baking is complete.

NOTE: A cooling fan may automatically turn on
and off to cool internal parts. This is normal, and
the fan may continue to run even after the oven is
turned off.

Using the oven.

To avoid possible burns, place the racks in the desired position before you turn the oven on.

Before you begin…

The racks have stop-locks, so that when
placed correctly on the supports, they will
stop before coming completely out, and
will not tilt.

When placing and removing cookware,
pull the rack out to the bump on the
rack support.

To remove a rack, pull it toward you,
tilt the front end up and pull it out.

To replace, place the end of the rack
(stop-locks) on the support, tilt up the
front and push the rack in.

Preheating and Pan Placement

Preheat the oven if the recipe calls for it.
To preheat, set the oven at the correct
temperature. Preheating is necessary for
good results when baking cakes, cookies,
pastry and breads.

For ovens without a preheat indicator light or
tone, preheat 10 minutes.

Baking results will be better if baking pans
are centered in the oven as much as
possible. Pans should not touch each
other or the walls of the oven. If you need
to use two racks, stagger the pans so one
is not directly above the other, and leave
approximately 11⁄2″ between pans, from
the front, back and sides of the wall.

6

Type of Food Rack Position

Frozen pies (on cookie sheet) B or C

Angel food cake, A
bundt or pound cakes

Biscuits, muffins, brownies, B or C
cookies, cupcakes,
layer cakes, pies

Casseroles B or C

Roasting A or B

The oven has 4 rack positions.

How to Set the Oven for Baking or Roasting

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support

Aluminum Foil

Do not use aluminum foil on the bottom
of the oven.

Never entirely cover a rack with
aluminum foil. This will disturb the heat
circulation and result in poor baking.

A smaller sheet of foil may be used to
catch a spillover by placing it on a lower
rack several inches below the food.

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips Consumer Support

How to Set the Oven for Broiling

Place the meat or fish on a broiler
grid in a broiler pan designed
for broiling.

Follow suggested rack positions in
the Broiling Guide.

If your oven is connected to 208 volts, rare steaks
may be broiled by preheating the broiler and
positioning the oven rack one position higher.

Touch the BROIL HI/LO pad once for
HI Broil.

To change to LO Broil, touch the
BROIL HI/LO pad again.

Touch the START pad.

When broiling is finished, touch the

CLEAR/OFF pad.

NOTE: The lower oven is controlled with a knob.

To set the oven for broiling turn the knob to BROIL.
Turn the knob to OFF when broiling is complete.

Leave the door open to the broil
stop position. The door stays open
by itself, yet the proper temperature
is maintained in the oven.

Broiling Guide

GEAppliances.com

Quantity and/ Rack First Side Second Side

Food or Thickness Position Time (min.) Time (min.) Comments

Ground Beef 1 lb. (4 patties) C 10 7 Space evenly. Up

Well Done 1/2 to 3/4″ thick to 8 patties take

about the same
time.

Beef Steaks

Rare 1″ thick C 6 5 Steaks less than
Medium 1 to 1

1

⁄2 lbs. C 8 6 1″ thick cook

Well Done C 12 11 through before

browning.
Rare 11⁄2″ thick C 10 7–8 Pan frying is
Medium 2 to 21⁄2 lbs. C 15 14–16 recommended.
Well Done C 25 20–25 Slash fat.

Chicken 1 whole A 35 10–15 Reduce time about

2 to 21⁄2 lbs., 5 to 10 minutes
split lengthwise per side for cut-up

chicken. Brush

each side with

melted butter.

Broil skin-side-

down first.
Lobster Tails 2–4 B 13–16 Do not Cut through back of

6 to 8 oz. each turn over. shell. Spread open.

Brush with melted

butter before

broiling and after

half of broiling

time.
Fish Fillets 1/4 to 1/2″ thick C 5 5 Handle and turn

very carefully.

Brush with lemon

butter before and

during cooking, if

desired. Preheat

broiler to increase

browning.
Ham Slices 1″ thick B 8 8 Increase time 5 to

(precooked) 10 minutes per

side for 1

1

⁄2″ thick

or home-cured ham.
Pork Chops 2 (1/2″ thick) C 10 10 Slash fat.

Well Done 2 (1″ thick) about 1 lb. B 13 13

Lamb Chops

Medium 2 (1″ thick) about 10 C 10 9 Slash fat.
Well Done to 12 oz. C 12 10
Medium 2 (1

1

⁄2″ thick) about 1 lb. C 14 12

Well Done B 17 12–14

7

8

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support

Not all features are on all models.

To Set the Timer

The timer does not control oven operations.
The maximum setting on the timer is 9 hours
and 59 minutes.

Touch the TIMER/CLOCK pad.

Touch the + or – pad until the
amount of time you want shows in
the display. The maximum time that
can be entered in minutes is 59.
Times more than 59 minutes should
be changed to hours and minutes.

If you make a mistake, touch the TIMER/CLOCK
pad and begin again.

Touch the START pad. The time
will start counting down, although
the display does not change until
one minute has passed.

When the timer reaches :00, the
control will beep 3 times followed by
one beep every 6 seconds until the
TIMER/CLOCK pad is touched.

The timer is a minute timer only.
The CLEAR/OFF pad does not affect

the timer.

Using the clock and timer.

To Set the Clock

The clock must be set to the correct time
of day for the automatic oven timing
functions to work properly. The time of
day cannot be changed during a delayed
cooking or a delayed self-cleaning cycle.

Touch the TIMER/CLOCK pad twice.

Touch the + or – pad.

If the + or – pad is not touched
within one minute after you touch the
TIMER/CLOCK pad, the display reverts to

the original setting. If this happens, touch
the TIMER/CLOCK pad twice and reenter
the time of day.

Touch the START pad until the time
of day shows in the display. This
enters the time and starts the clock.

To check the time of day when the display is
showing other information, simply touch the
TIMER/CLOCK pad. The time of day shows until
another pad is touched.

Make sure the clock is set to the
correct time of day.

To Turn Off the Clock Display

If you have several clocks in your kitchen,
you may wish to turn off the time of day
clock display on your oven.

Touch the TIMER/CLOCK pad once
to turn off the time of day display.
Although you will not be able to

see it, the clock maintains the correct
time of day.

Touch the TIMER/CLOCK pad twice to
recall the clock display.

To Reset the Timer

If the display is still showing the time
remaining, you may change it by touching
the TIMER/CLOCK pad, then touching the
+ or – pad until the time you want
appears in the display.

If the remaining time is not in the display
(clock, start time or cooking time are in
the display), recall the remaining time by
touching the TIMER/CLOCK pad and then
touching the + or – pad to enter the new
time you want.

To Cancel the Timer

Touch the TIMER/CLOCK pad twice.

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips Consumer Support

Using the timed baking and roasting features.

(These features are not available for the lower oven.) (on some models) GEAppliances.com

NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for
more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that
the oven light is off because heat from the bulb will speed harmful bacteria growth.

How to Set an Immediate Start and Automatic Stop

The oven will turn on immediately and cook for a
selected length of time. At the end of the cooking
time the oven will turn off automatically.

Make sure the clock shows the correct
time of day.

Touch the BAKE pad.

Using the + or – pad, enter the
desired temperature.

Touch the COOKING TIME pad.

NOTE: If your recipe requires preheating, you may
need to add additional time to the length of the
cooking time.

Using the + or – pad, enter the
desired baking time. The maximum
time you can enter in minutes is 59.
Cooking times more than 59
minutes should be changed

to hours and minutes. For example,
enter 90 minutes as 1 hour, 30
minutes.

The oven temperature and the cooking
time that you entered will be displayed.

Touch the START pad.

The display shows the oven temperature
that you set and the cooking time
countdown. The display starts changing
once the temperature reaches 100°F.

The oven will continue to cook for the
programmed amount of time, then shut
off automatically, unless the Cook and
Hold feature was set. See the Special
features of your oven control section.

Touch the CLEAR/OFF pad to clear the
display.

How to Set a Delayed Start and Automatic Stop

You can set the oven control to delay-start the
oven, cook for a specific length of time and then
turn off automatically.

Make sure the clock shows the correct
time of day.

Touch the BAKE pad.

Using the + or – pad, enter the
desired temperature.

Touch the COOKING TIME pad.

NOTE: If your recipe requires preheating, you may
need to add additional time to the length of the
cooking time.

Using the + or – pad, enter the
desired baking time. The maximum
time you can enter in minutes is 59.
Cooking times more than 59
minutes should be changed to hours
and minutes. For example, enter 90
minutes as 1 hour, 30 minutes.

The oven temperature and the cooking
time that you entered will be displayed.

Touch the DELAY START pad.

Using the + or – pad, enter the time
of day you want the oven to turn on
and start cooking.

Touch the START pad.

NOTE: An attention tone will sound if you are
using timed baking and do not touch the START
pad after entering the baking temperature.

If you would like to check the times you
have set, touch the DELAY START pad to
check the start time you have set, or
touch the COOKING TIME pad to check
the length of cooking time you have set.

When the oven turns on at the time of
day you have set, the display will show the
changing temperature (starting at 100°F)
and the cooking time countdown.

The oven will continue to cook for the
programmed amount of time, then shut
off automatically, unless the Cook and
Hold feature was set. See the Special
features of your oven control section.

At the end of timed baking, the oven
will turn off. The end of cycle tone will
sound.

Touch the CLEAR/OFF pad to clear the
display.

9

Special features of your oven control.

Your new touch pad control has additional features that you may choose to use. The following are the features
and how you may activate them.

The special feature modes can only be activated while the display is showing the time of day. They remain
in the control’s memory until the steps are repeated.

When the display shows your choice, touch the START pad. The special features will remain in memory after
a power failure, except for the Sabbath feature, which will have to be reset.

12 Hour Shut-Off

With this feature, should you forget and leave the
oven on, the control will automatically turn off the
oven after 12 hours during baking functions or
after 3 hours during a broil function.

If you wish to turn OFF this feature,
follow the steps below.

Touch the BAKE and BROIL HI/LO
pads at the same time for 3 seconds
until the display shows SF.

Touch the DELAY START pad until
no shdn (no shut-off) appears in the
display.

Touch the START pad to lock in the
no shdn (no shut-off ) feature and
leave the control set in this special
features mode.

NOTE: This feature is not available for the
lower oven.

Fahrenheit or Celsius Temperature Selection

Your oven control is set to use the Fahrenheit
temperature selections but you may change this
to use the Celsius selections.

Touch the BAKE and BROIL HI/LO
pads at the same time for 3 seconds
until the display shows SF.

Touch the BROIL HI/LO and COOKING
TIME pads at the same time for 2
seconds. The display will show F
(Fahrenheit).

Touch the BROIL HI/LO and
COOKING TIME pads again at the
same time for 2 seconds. The display
will show C (Celsius).

Touch the START pad.

NOTE: This feature is not available for the
lower oven.

Control Lockout (on some models)

Your control will allow you to lock down the touch
pads so they cannot be activated when touched.

Touch the BAKE and BROIL HI/LO
pads at the same time for 3 seconds
until the display shows SF.

Touch the SELF CLEAN pad. The
display will show LOC OFF.

Touch the SELF CLEAN pad again.
The display will show LOC ON.

Touch the START pad to activate
the control lockout feature and
leave the control set in this special
features mode.

When this feature is on and the touch
pads are touched, the control will beep
and the display will show LOC.

To unlock the control, repeat steps 1 and

2. Touch the START pad when the display
shows LOC OFF.

NOTE:

■ The control lockout mode will not affect the

TIMER/CLOCK and OVEN LIGHT ON/OFF
touch pads.

■ This feature is not available for the lower oven.

10

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips Consumer Support

GEAppliances.com

Tones at the End of a Timed Cycle

At the end of a timed cycle, 3 short beeps will
sound followed by one beep every 6 seconds until
the CLEAR/OFF pad is touched. This continuous
6 second beep may be canceled.

To cancel the 6 second beep:

Touch the BAKE and BROIL HI/LO
pads at the same time for 3 seconds
until the display shows SF.

Touch the BROIL HI/LO pad. The
display shows CON BEEP (continuous
beep). Touch the BROIL HI/LO pad
again. The display shows BEEP.
(This cancels the one beep
every 6 seconds.)

Touch the START pad.

NOTE: This feature is not available for the
lower oven.

12 Hour, 24 Hour or Clock Black-Out

Your control is set to use a 12 hour clock.

If you would prefer to have a 24 hour
military time clock or black-out the clock
display, follow the steps below.

Touch the BAKE and BROIL HI/LO
pads at the same time for 3 seconds
until the display shows SF.

Touch the TIMER/CLOCK pad once.
The display will show 12 hr. If this
is the choice you want touch the
START pad.

Touch the TIMER/CLOCK pad again
to change to the 24 hour military
time clock. The display will show
24 hr. If this is the choice you want
touch the START pad.

Touch the TIMER/CLOCK pad again
to black-out the clock display.
The display will show OFF.
If this is the choice you want
touch the START pad.

NOTE: If the clock is in the black-out mode you
will not be able to use the Delay Start function.

Cook and Hold

Your new control has a cook and hold feature that
keeps cooked foods warm for up to 3 hours after
Timed Baking or Roasting is finished.

NOTE: This feature can only be programmed to
work with Timed Baking or Roasting. (See the
Using the timed baking and roasting features
section.) After Timed Baking or Roasting has
automatically stopped, the programmed Cook
and Hold will automatically start.

To activate this feature for use after
Timed Baking or Roasting, follow the
steps below.

Touch the BAKE and BROIL HI/LO
pads at the same time for 3 seconds
until the display shows SF.

Touch the COOKING TIME pad. The
display will show Hld OFF.

Touch the COOKING TIME pad again
to activate the feature. The display
will show Hld ON.

Touch the START pad to activate the
cook and hold feature and leave the
control set in this special features
mode.

NOTE: This feature is not available for the
lower oven.

Changing the Speed of the + or – Pads

As you use the + or – pad when setting a time or
temperature, you may notice the display changes
slowly. This special feature allows you to change
the speed. To set the speed you prefer, follow the
steps below.

Touch the BAKE and BROIL HI/LO
pads at the same time for 3 seconds
until the display shows SF.

Touch the + pad. The display will
show you a set speed between
1 and 5.

Touch the + pad to increase the
speed up to the number 5.

Touch the – pad to decrease the
speed down to the number 1.

Touch START to activate the setting
and leave the control set in this
special features mode.

11

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support

Using the Sabbath Feature. (This feature is not available for the lower oven.)

(Designed for use on the Jewish Sabbath and Holidays.) (

on some models)

How to Set Sabbath Feature for Timed Baking/Roasting—
Immediate Start and Automatic Stop

NOTE: To understand how the oven control works,

practice using regular (non-Sabbath) Immediate Start
and Automatic Stop before entering the Sabbath mode.

Make sure the clock shows the correct time of day.

Touch and hold both the BAKE and
BROIL HI/LO pads, at the same time, until

the display shows SF.
Tap th e DELAY START pad until SAb bAtH

appears in the display.
Touch the START pad and ⊃ will appear

in the display.
Touch the COOKING TIME pad.

Touch the + or – pad to set the desired
length of cooking time between 1 minute
and 9 hours and 59 minutes. The cooking
time that you entered will be displayed.

Touch the START pad.

Touch the BAKE pad. No signal will
be given.

The preset starting temperature will
automatically be set to 350°. Tap the + or –
pad to increase or decrease the temperature
in 5° increments. The temperature can be
set between 170° and 550°. No signal or
temperature will be given.

Touch the START pad.

After a random delay period of
approximately 30 seconds to 1 minute, ⊃
will appear in the display indicating that the
oven is baking/ roasting. If ⊃ does not
appear in the display, start again at step 7.

To adjust the oven temperature, touch the
BAKE pad and tap the + or – pad to increase
or decrease the temperature in 5° increments.
Touch the START pad.

When cooking is finished, the display will
change from ⊃ to ⊃ and 0:00 will appear,
indicating that the oven has turned OFF but is
still set in Sabbath. Remove the cooked food.

⊃

⊃

⊃

The Sabbath feature can be used for baking/roasting only. It cannot be used for broiling, self-cleaning, or Delay Start cooking.
NOTE: The oven light comes on automatically (on some models) when the door is opened and goes off when the door is

closed. The bulb may be removed. See the Oven Light Replacement section. On models with a light switch on the control
panel, the oven light may be turned on and left on.

How to Set Sabbath Feature for Regular Baking/Roasting

NOTE: To understand how the oven control works,

practice using regular baking (non-Sabbath) before
entering Sabbath mode.

Make sure the clock shows the correct time of day.

Touch and hold both the BAKE and
BROIL HI/LO pads, at the same time, until

the display shows SF.
Tap th e DELAY START pad until SAb bAtH

appears in the display.
Touch the START pad and ⊃ will appear

in the display.
Touch the BAKE pad. No signal will

be given.
The preset starting temperature will

automatically be set to 350°. Tap the + or –
pad to increase or decrease the temperature
in 5° increments. The temperature can be
set between 170° and 550°. No signal or
temperature will be given.

Touch the START pad.

After a random delay period of
approximately 30 seconds to 1 minute,
⊃ will appear in the display indicating
that the oven is baking/roasting.
If ⊃ does not appear in the display,
start again at step 4.

To adjust the oven temperature, touch
the BAKE pad and tap the + or – pad to
increase or decrease the temperature in 5°
increments. Touch the START pad.

NOTE: The CLEAR/OFF and COOKING TIME pads
are active during the Sabbath feature.

⊃

⊃

When the display shows ⊃ the oven is
set in Sabbath. When the display shows

⊃ the oven is baking/roasting.

⊃

When the display shows ⊃ the oven is
set in Sabbath. When the display shows

⊃ the oven is baking/roasting.

⊃

How to Exit the Sabbath Feature

Touch the CLEAR/OFF pad.

If the oven is cooking, wait for a random
delay period of approximately 30 seconds
to 1 minute, until only ⊃ is in the display.

Touch and hold both the BAKE and
BROIL HI/LO pads, at the same time, until
the display shows SF.

Tap the DELAY START pad until 12 shdn or
no shdn appears in the display. 12 shdn
indicates that the oven will automatically
turn off after 12 hours. no shdn indicates
that the oven will not automatically turn off.

Touch the START pad.

NOTE: If a power outage occurred while the
oven was in Sabbath mode, the oven will
automatically turn off and the oven control
must be reset.

12

13

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips Consumer Support

Adjust the oven thermostat—Do it yourself! GEAppliances.com

You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to
become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the thermostat yourself.

Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven.
These thermometers may vary 20–40 degrees.

NOTE: This adjustment will not affect the broiling or the self-cleaning temperatures. The adjustment will be
retained in memory after a power failure.

To Adjust the Oven Thermostat (on the upper oven)

Touch the BAKE and BROIL HI/LO
pads at the same time for 3 seconds
until the display shows SF.

Touch the BAKE pad. A two digit
number shows in the display.

The oven temperature can be
adjusted up to (+) 35°F hotter or
(-) 35°F cooler. Touch the + pad
to increase the temperature in 1
degree increments. Touch the
– pad to decrease the temperature
in 1 degree increments.

When you have made the
adjustment, touch the START pad
to go back to the time of day
display. Use your oven as you
would normally.

To Adjust the Oven Thermostat (on the lower oven) – on some models

Pull the OVEN knob off the shaft, look
at the back of the knob and note the
current setting before making any
adjustment. The knob is factory set with
the top screw directly under the pointer.

Pull off the OVEN knob.

Loosen both screws on back of
the knob.

Hold both parts of the knob as
shown in the illustration of the back
of the OVEN knob and turn so the
lower screw moves in the desired
direction.

You will hear and feel the notches as you
turn the knob. Each notch changes
temperature about 10° Fahrenheit.

Tighten the screws.

Return the OVEN knob to the oven.

Re-check oven performance before making any
additional adjustments.

The type of margarine will affect baking performance!

Most recipes for baking have been developed using high fat products such as butter or margarine (80% fat). If you
decrease the fat, the recipe may not give the same results as with a higher fat product.

Recipe failure can result if cakes, pies, pastries, cookies or candies are made with low fat spreads. The lower the fat
content of a spread product, the more noticeable these differences become.

Federal standards require products labeled “margarine” to contain at least 80% fat by weight. Low fat spreads, on the
other hand, contain less fat and more water. The high moisture content of these spreads affect the texture and flavor
of baked goods. For best results with your old favorite recipes, use margarine, butter or stick spreads containing
at least 70% vegetable oil.

Turn the disk counterclockwise to
increase the oven temperature.

Turn the disk clockwise to decrease
the oven temperature.

Using the self-cleaning oven. (on some models)

(This feature is not available for the lower oven.)

The oven door must be closed and all controls must be set correctly for the cycle to work properly.

Before a Clean Cycle

The oven must be cool in order to set the
self-clean cycle.

We recommend venting your kitchen
with an open window or using a
ventilation fan or hood during the
first self-clean cycle.

Remove broiler pan, broiler grid,
all cookware and any aluminum foil
from the oven.

The shiny, silver-colored oven racks
(on some models) can be self-cleaned,
but they will darken, lose their luster
and become hard to slide.

Do not use abrasives or oven cleaners.
Clean the top, sides and outside of the
oven door with soap and water.

Make sure the oven lightbulb cover
(on some models) is in place and the
oven light is off.

IMPORTANT: The health of some birds
is extremely sensitive to the fumes given
off during the self-cleaning cycle of any
oven. Move birds to another well
ventilated room.

Wipe up heavy soil on the oven
bottom. (appearance may vary)

How to Set the Oven for Cleaning

Touch the SELF CLEAN pad.

Using the + or – pad, enter the
desired clean time, if a time other
than 4 hours is needed.

Clean cycle time is normally 4 hours.
You can change the clean time to any time
between 3 hours and 5 hours, depending
on how dirty your oven is.

Touch the START pad.

The door locks automatically. The display will
show the clean time remaining. It will not
be possible to open the oven door until
the temperature drops below the lock
temperature and the LOCKED light goes off.

When the LOCKED light is off, open the door.

■ The word LOCK will flash and the oven

control will signal if you set the clean
cycle and forget to close the oven door.

■ To stop a clean cycle, touch the CLEAR/OFF

pad. When the LOCKED light goes off
indicating the oven has cooled below the
locking temperature, open the door.

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support

14

How to Delay the Start of Cleaning

Touch the SELF CLEAN pad.

Using the + or – pad, enter the
desired clean time.

Touch the DELAY START pad.

Using the + or – pad, enter the time
of day you want the clean cycle to
start.

Touch the START pad.

The door locks automatically. The display
will show the start time. It will not be
possible to open the oven door until
the temperature drops below the lock
temperature and the LOCKED light
goes off.

When the LOCKED light is off, open
the door.

After a Clean Cycle

You may notice some white ash in the
oven. Wipe it up with a damp cloth after
the oven cools.

If white spots remain, remove them with a
soap-filled scouring pad and rinse thoroughly with
a vinegar and water mixture.

These deposits are usually a salt
residue that cannot be removed by
the clean cycle.

If the oven is not clean after one clean
cycle, repeat the cycle.

■ You cannot set the oven for cooking

until the oven is cool enough for the
door to unlock.

■ If the racks become hard to

slide, wipe the rack supports with
cooking oil.

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips Consumer Support

Care and cleaning of the oven. GEAppliances.com

Be sure electrical power is off and all surfaces are cool before cleaning any part of the oven.

Lift the door straight up and off
the hinges.

Lift-Off Oven Door

The oven door is removable for easier
access to the light bulb.

Do not lift the door by the handle.

To remove the door, open it to the broil
stop position. Grasp firmly on each side
and lift the door straight up and off the
hinges.

Do not place hands between the hinge and the
oven door frame.

To replace the door, make sure the hinges
are in the broil stop position. Position
the slots in the bottom of the door
squarely over the hinges and slowly lower
it over both hinges.

The gasket is designed with a gap at the
bottom to allow for proper air circulation.

Do not rub or clean the door gasket—
it has an extremely low resistance to
abrasion.

If you notice the gasket becoming worn,
frayed or damaged in any way or if it has
become displaced on the door, you should
have it replaced.

To clean the inside of the door:

■ Because the area inside the gasket is

cleaned during the self-clean cycle, you
do not need to clean this by hand.

■ The area outside the gasket and

the door liner can be cleaned with
a soap-filled or plastic scouring pad,
hot water and detergent. Rinse well
with a vinegar and water solution.

To clean the outside of the door:

■ Use soap and water to thoroughly

clean the top, sides and front of the
oven door. Rinse well. You may also
use a glass cleaner to clean the glass

on the outside of the door. Do not let
water drip into the vent openings.

■ If any stain on the door vent trim is

persistent, use a soft abrasive cleaner
and a sponge-scrubber for best results.

■ Spillage of marinades, fruit

juices, tomato sauces and basting
materials containing acids may cause
discoloration and should be wiped up
immediately. When surface is cool,
clean and rinse.

■ Do not use oven cleaners, cleaning

powders or harsh abrasives on the
outside of the door.

Door (on the lower oven or on standard clean model)

Do not allow food spills with a high
sugar or acid content (such as
tomatoes, sauerkraut, fruit juices or
pie filling) to remain on the surface.
They may cause a dull spot even
after cleaning.

To clean the inside of the door:

■ Soap and water will normally do the

job. Heavy spattering or spillovers may
require cleaning with a mild abrasive
cleaner. Soap-filled scouring pads
may also be used.

If necessary, you may use an oven cleaner.
Follow the package directions.

■ Clean the inside of the oven window

with a mild non-scratching cleaner and
a damp cloth.

To clean the outside of the door:

■ Use soap and water to thoroughly

clean the top, sides and front of the

oven door. Rinse well. You may also use
a glass cleaner to clean the glass on the
outside of the door. Do not let water
drip into the vent openings.

■ Spillage of marinades, fruit

juices, tomato sauces and basting
materials containing acids may cause
discoloration and should be wiped
up immediately. When surface is
cool, clean and rinse.

■ Do not use oven cleaners, cleaning

powders or harsh abrasives on the
outside of the door.

Door (on the upper oven and/or self clean model)

How to Remove Protective Shipping Film and Packaging Tape

Carefully grasp a corner of the protective
shipping film with your fingers and slowly
peel it from the appliance surface. Do
not use any sharp items to remove the
film. Remove all of the film before using
the appliance for the first time.

To assure no damage is done to the
finish of the product, the safest way to

remove the adhesive from packaging
tape on new appliances is an application
of a household liquid dishwashing
detergent. Apply with a soft cloth and
allow to soak.

NOTE: The adhesive must be removed from all
parts. It cannot be removed if it is baked on.

15

Care and cleaning of the oven.

Be sure electrical power is off and all surfaces are cool before cleaning any part of the oven.

16

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support

Oven Racks

Clean the oven racks with an abrasive
cleanser or steel wool. After cleaning,
rinse the racks with clean water and dry
with a clean cloth.

NOTE: The shiny, silver-colored oven racks
(on some models) may be cleaned in the self­cleaning oven. However, the racks will darken in
color, lose their luster and become hard to slide if
cleaned during the self-cleaning cycle.

To make the racks slide more easily, apply
a small amount of vegetable oil
or cooking oil to a paper towel and wipe
the edges of the oven racks with the
paper towel.

Oven Heating Elements

Do not clean the bake element or the broil
element. Any soil will burn off when the
elements are heated.

To clean the oven floor, gently lift
the bake element. Clean with warm
soapy water.

Do not use a steel wool pad; it will scratch
the surface.

To clean the stainless steel surface,
use warm sudsy water or a stainless steel
cleaner or polish. Always wipe the surface
in the direction of the grain. Follow the
cleaner instructions for cleaning the
stainless steel surface.

To inquire about purchasing stainless
steel appliance cleaner or polish, or to
find the location of a dealer nearest you,
please call our toll-free number:

National Parts Center

1.800.626.2002
GEAppliances.com

Stainless Steel Surfaces

(on some models)

Control Knob (on some models)

The control knobs may be removed for easier
cleaning.

Make sure the knobs are in the OFF
positions and pull them straight off the
stems for cleaning.

The knobs can be cleaned in a
dishwasher or they may also be washed
with soap and water. Make sure the inside
of the knobs are dry before replacing.

Replace the knobs in the OFF position to
ensure proper placement.

Control Panel

It’s a good idea to wipe the control
panel after each use. Clean with mild
soap and water or vinegar and water,
rinse with clean water and polish dry
with a soft cloth.

Do not use abrasive cleansers, strong
liquid cleansers, plastic scouring pads or
oven cleansers on the control panel—they
will damage the finish. A 50/50 solution of
vinegar and hot water works well.

Spring clip

Clear groove
in stem

Molded rib

Glass Surfaces

To clean the outside glass finish,
use a glass cleaner. Rinse and polish
with a dry cloth.

Do not allow the water or cleaner
to run down inside the oven door
while cleaning.

Painted Surfaces

Clean with soap and water or a vinegar
and water solution.

Do not use commercial oven cleaners,
cleansing powders, steel wool or harsh
abrasives on any painted surface.

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips Consumer Support

GEAppliances.com

Non-Self-Clean Oven Interior (on standard clean models or on lower oven)

With proper care, the porcelain enamel
finish on the inside of the oven—top,
bottom, sides, back and inside of the
door—will stay new-looking for years.

Let the oven cool before cleaning.
We recommend that you wear rubber
gloves when cleaning the oven.

Soap and water will normally do the
job. Heavy spattering or spillovers may
require cleaning with a mild abrasive
cleaner. Soap-filled scouring pads may
also be used.

Do not allow food spills with a high sugar or acid
content (such as tomatoes, sauerkraut, fruit juices
or pie filling) to remain on the surface. They may
cause a dull spot even after cleaning.

Household ammonia may make the
cleaning job easier. Place 1/2 cup in a
shallow glass or pottery container in a
cold oven overnight.

The ammonia fumes will help loosen the
burned-on grease and food.

If necessary, you may use an oven cleaner.
Follow the package directions.

■ Do not spray oven cleaner on the electrical

controls and switches because it could cause
a short circuit and result in sparking or fire.

■ Do not allow a film from the cleaner to build up

on the temperature sensor—it could cause the
oven to heat improperly. (The sensor is located
at the top of the oven.) Carefully wipe the
sensor clean after each oven cleaning, being
careful not to move the sensor as a change in
its position could affect how the oven bakes.

■ Do not spray any oven cleaner on the oven

door, handles or any exterior surface of the
oven, cabinets or painted surfaces. The cleaner
can damage these surfaces.

Wire cover holder

Oven Light Bulb (on some models)

CAUTION:Before replacing your

oven light bulb, disconnect the electrical power to
the oven at the main fuse or circuit breaker panel.

Be sure to let the light cover and bulb
cool completely.

To remove the cover:

Hold a hand under the cover so it
doesn’t fall when released. With
fingers of the same hand, firmly
push back the wire cover holder.
Lift off the cover.

Do not remove any screws to remove the cover.

Replace bulb with a 40-watt
appliance bulb.

To replace the cover:

Place it into grooves of the light
receptacle. Pull wire forward to
the center of the cover until it
snaps into place.

Connect electrical power to
the oven.

Oven Light Bulb (on some models)

NOTE: The glass cover (on some models) should

be removed only when cold. Wearing latex gloves
may offer a better grip.

Before replacing the bulb, disconnect
electrical power to the oven at the main
fuse or circuit breaker panel. Let the
bulb cool completely before removing it.
For your safety, do not touch a hot bulb
with a damp cloth. If you do, the bulb
will break.

To remove:

Turn the glass cover counterclockwise
1/4 turn until the tabs of the glass cover
clear the grooves of the socket. Remove
the bulb.

To replace:

Put in a new 40-watt appliance bulb.
Place the tabs of the glass cover into the
grooves of the socket. Turn the glass
cover clockwise 1/4 turn.

NOTE:

■ A 40-watt appliance bulb is smaller than a

standard 40-watt household bulb.

■ Install and tighten the cover clockwise.

■ Reconnect electrical power to the oven.

■ For improved lighting inside the oven, clean

the glass cover frequently using a wet cloth.
This should be done when the oven is
completely cool.

Bulb

Socket

Tab

Maximum
length

31⁄2”

Glass cover

17

Before you call for service…

Troubleshooting Tips
Save time and money! Review the charts on the following
pages first and you may not need to call for service.

Problem Possible Causes What To Do

Control signals after You forgot to enter a • Touch the BAKE pad and desired temperature or the
entering cooking time bake temperature or SELF CLEAN pad and desired clean time.
or delay start cleaning time.

Food does not bake Oven controls improperly set. • See the Using the oven section.
or roast properly

Rack position is incorrect • See the Using the oven section.
or the rack is not level.

Incorrect cookware or • See the Using the oven section.
cookware of improper
size being used.

Oven thermostat • See the Adjust the oven thermostat—Do it yourself!
needs adjustment. section.

Food does not Door not open to the • See the Using the oven section.
broil properly broil stop position as

recommended.

Oven controls improperly set. • Make sure you touch the BROIL HI/LO pad.

Improper rack • See the Broiling Guide.
position being used.

Food being cooked • For best results, use a pan designed for broiling.
in a hot pan. Make sure it is cool.

Cookware not suited • For best results, use a pan designed for broiling.
for broiling.

In some areas the power • Preheat the broil element for 10 minutes.
(voltage) may be low.

• Broil for the longest period of time recommended in

the Broiling Guide.

Clock and timer A fuse in your home • Replace the fuse or reset the circuit breaker.
do not work may be blown or the

circuit breaker tripped.

Oven controls improperly set. • See the Using the clock and timer section.

Oven light does Lightbulb is loose or defective. • Tighten or replace the bulb.
not work

Pad operating light is broken. • Call for service.

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support

18

19

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips Consumer Support

GEAppliances.com

Problem Possible Causes What To Do

Oven temperature too Oven thermostat • See the Adjust the oven thermostat—Do it yourself!
hot or too cold needs adjustment. section.

Oven will not work A fuse in your home may • Replace the fuse or reset the circuit breaker.

be blown or the circuit
breaker tripped.

Oven controls improperly set. • See the Using the oven section.

Oven will not self-clean The oven temperature • Allow the oven to cool to room temperature and reset

is too high to set a the controls.
self-clean operation.

Oven controls improperly set. • See the Using the self-cleaning oven section.

“Crackling” or This is the sound of the • This is normal.
“popping” sound metal heating and cooling

during both the cooking
and cleaning functions.

Excessive smoking Excessive soil. • Touch the CLEAR/OFF pad. Open the windows to rid
during clean cycle the room of smoke. Wait until the LOCKED light goes

off. Wipe up the excess soil and reset the clean cycle.

Oven door will not Oven too hot. • Allow the oven to cool below locking temperature.
open after a
clean cycle

Oven not clean after a Oven controls improperly set. • See the Using the self-cleaning oven section.
clean cycle

Oven was heavily soiled. • Clean up heavy spillovers before starting the clean

cycle. Heavily soiled ovens may need to self-clean
again or for a longer period of time.

“LOCK DOOR” flashes The self-clean cycle • Close the oven door.
in the display has been selected but

the door is not closed.

LOCKED light is on The oven door is locked • Touch the CLEAR/OFF pad. Allow the oven to cool.
when you want to cook because the temperature

inside the oven has not
dropped below the
locking temperature.

Problem Possible Causes What To Do

“F— and a number You have a function • Touch the CLEAR/OFF pad. Allow the oven to cool for
or letter” flash error code. one hour. Put the oven back into operation.
in the display

If the function • Disconnect all power to the oven for at least 30
code repeats. seconds and then reconnect power. If the function

error code repeats, call for service.

Display goes blank A fuse in your home may • Replace the fuse or reset the circuit breaker.

be blown or the circuit
breaker tripped.

The clock is in the • See the Special features of your oven control section.
black-out mode.

Display flashes Power failure. • Reset the clock.

Unable to get the Oven control pads were • The BAKE and BROIL HI/LO pads must be touched
display to show “SF” not pressed properly. at the same time and held for 3 seconds.

Power outage, Power outage or surge. • Reset the clock. If the oven was in use, you must reset
clock flashes it by touching the CLEAR/OFF pad, setting the clock

and resetting any cooking function.

“Burning” or “oily” This is normal in a • To speed the process, set a self-clean cycle for a
odor emitting from new oven and will minimum of 3 hours. See the Using the self-cleaning
the vent disappear in time. oven section.

Strong odor An odor from the insulation • This is temporary.

around the inside of the
oven is normal for the first
few times the oven is used.

Fan noise A cooling fan may • This is normal. The cooling fan will turn on to cool

automatically turn on. internal parts. It may run for up to 2 hours after the

oven is turned off.

20

Before you call for service…

Troubleshooting Tips

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support

21

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips

Consumer Support

Accessories. GEAppliances.com

Looking For Something More?

You can find these accessories and many more at GEAppliances.com (U.S.) or
www.GEAppliances.ca (Canada), or call 800.626.2002 (U.S.) or 800.661.1616 (Canada)

(during normal business hours). Have your model number ready.

Experience these other great products to keep your kitchen looking great!

Get the most out of your Broiler Pan! (Not for use with Broiler Drawer models.)

Use your pan and grid cover to broil hamburgers, seafood, steaks, vegetables,
bacon, chops and so much more! The pan below catches the excess fats and oils.

• Genuine GE Part

• Easy To Clean

• One-Year Warranty

Limited Time Offer! Free Shipping!

When you order your broiler pan within 30 days of purchasing your GE cooking product.

Small Large* XL**

U.S. Part # WB48X10055 WB48X10056 WB48X10057
Canada Part # 222D2097G001 222D2097G002 N/A
Dimensions 8-3/4" W x 1-1/4" H x 13-1/2" D 12-3/4" W x 1-1/4" H x 16-1/2" D 17" W x 1-1/4" H x 19-1/4" D

Price US$10.50

†

US$14.50

†

US$16.75

†

† Plus applicable state sales tax (PST/HST and GST)

* The large (standard) broil pan does not fit in 20"/24" ranges.

** The XL pan does not fit in 24" wall ovens, 27" drop-ins or 20"/24" ranges.

To place your order, call 800.626.2002 (U.S.), 800.661.1616 (Canada) or mail this form to:

In the U.S.: GE Parts, P.O. Box 221027, Memphis, TN 38122-1027. In Canada: GE Parts, 1 Factory Lane, Moncton, N.B. E1C 9M3

Broiler Pan Order Form

Quantity ____________________ Part Number ______________________________________________________________

____________________ ______________________________________________________________
____________________ ______________________________________________________________

Model Number ______________ Serial Number____________________ Brand ________________ Date of Purchase____________
First Name ____________________________________________ Last Name ______________________________________________
Address __________________________________________________________________________________________________________
City __________________________________________________ State____________ Zip Code ______________________________
Phone ________________________________________________ E-Mail __________________________________________________
Credit Card ____ Check ____ Money Order ____
Visa ____ MasterCard ____ Discover ____ AmEx ____ Credit Card # ____________________________________________
Exp. Date: Month ________________ Year __________________ Signature: ________________________________________

Surface Elements and Drip Pans

Grates Surface Burner Heads and Caps

Oven Elements Light Bulbs

Knobs

Oven Racks

WX10X117GCS

WX10X305

WX10X10001

PM10X311

Ceramic Cooktop
Cleaning Kit:
Includes cleaner,
scraper and pad

Ceramic Cooktop
Cleaning Wipes

Stainless Steel
Appliance Polish
Wipes

Stainless Steel
Appliance
Cleaner

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

✁

or

22

Notes.

Safety InstructionsOperating InstructionsCare and CleaningTroubleshooting TipsConsumer Support

23

Safety Instructions

Operating Instructions

Care and Cleaning

Troubleshooting Tips Consumer Support

GE Built-In Electric Oven Warranty.

For The Period Of: GE Will Replace:

One Year Any part of the oven which fails due to a defect in materials or workmanship.

From the date of the During this limited one-year warranty, GE will also provide, free of charge, all labor
original purchase and in-home service to replace the defective part.

■ Service trips to your home to teach you how to use

the product.

■ Improper installation, delivery or maintenance.

■ Failure of the product if it is abused, misused, or used

for other than the intended purpose or used
commercially.

■ Replacement of house fuses or resetting of circuit

breakers.

■ Damage to the product caused by accident, fire, floods

or acts of God.

■ Incidental or consequential damage caused by possible

defects with this appliance.

■ Damage caused after delivery.

■ Product not accessible to provide required service.

What GE Will Not Cover:

This warranty is extended to the original purchaser and any succeeding owner for products purchased for
home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not
available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE
Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know
what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

All warranty service provided by our Factory Service Centers,
or an authorized Customer Care

®

technician. To schedule service
on-line, visit us at GEAppliances.com, or call 800.GE.CARES
(800.432.2737). Please have serial number and model number
availa ble when calling for service.

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited
Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose,
are limited to one year or the shortest period allowed by law.

Printed in the United States

Consumer Support.

GE Appliances Website

GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,
order parts or even schedule service on-line.

Schedule Service GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at
your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by
people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical
and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen
design ideas for people with disabilities, check out our Website today. For the hearing impaired, please
call 800.TDD.GEAC (800.833.4322).

Extended Warranties GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty
is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours.
GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their
homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or
by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally
should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause
unsafe operation.

Contact Us GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details
including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park
Louisville, KY 40225

Register Your Appliance GEAppliances.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for
enhanced communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the pre-printed registration card included in the packing material.
