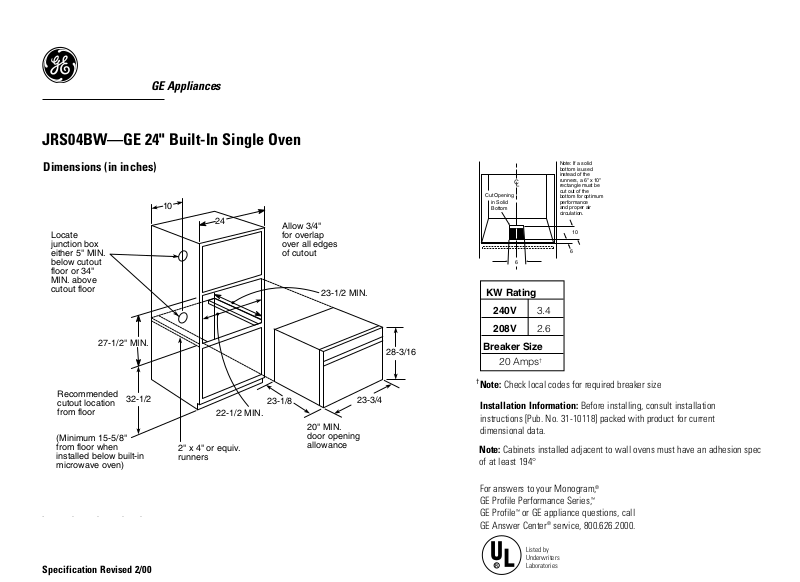

GE JRS04BW Specification
JRS04BW—GE 24" Built-In Single Oven
GE Appliances
Specification Revised 2/00
2" x 4" or equiv.
runners
23-1/2 MIN.
22-1/2 MIN.
32-1/2
27-1/2" MIN.
10
24
20" MIN.
door opening
allowance
Allow 3/4"
for overlap
over all edges
of cutout
Locate
junction box
either 5" MIN.
below cutout
floor or 34"
MIN. above
cutout floor
Recommended
cutout location
from floor
(Minimum 15-5/8"
from floor when
installed below built-in
microwave oven)
28-3/16
23-3/4
23-1/8
Installation Information: Before installing, consult installation
instructions [Pub. No. 31-10118] packed with product for current
dimensional data.
Dimensions (in inches)
Cut Opening
in Solid
Bottom
10
Note: If a solid
bottom is used
instead of the
runners, a 6" x 10"
rectangle must be
cut out of the
bottom for optimum
performance
and proper air
circulation.
6
6
Note: Cabinets installed adjacent to wall ovens must have an adhesion spec
of at least 194°
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
KW Rating
240V 3.4
208V 2.6
Breaker Size
20 Amps
†
†
Note: Check local codes for required breaker size
Specification Revised 2/00
GE Appliances
JRS04BW—GE 24" Built-In Single Oven
Features and Benefits
• Black on black Model
• Standard Clean Oven
• 2 Oven Racks
• SmartSet Electronic Controls
• Electronic Clock and Kitchen Timer
• Delay Time Bake Option With Cook and Hold
• Auto Oven Shut-Off With Override
• Variable Broil With Window
• Broiler Pan and Grid
• Frameless Glass Oven Door
• Interior Oven Light
• 24" Oven Cabinet Width Required
• Designer-Style Handle
