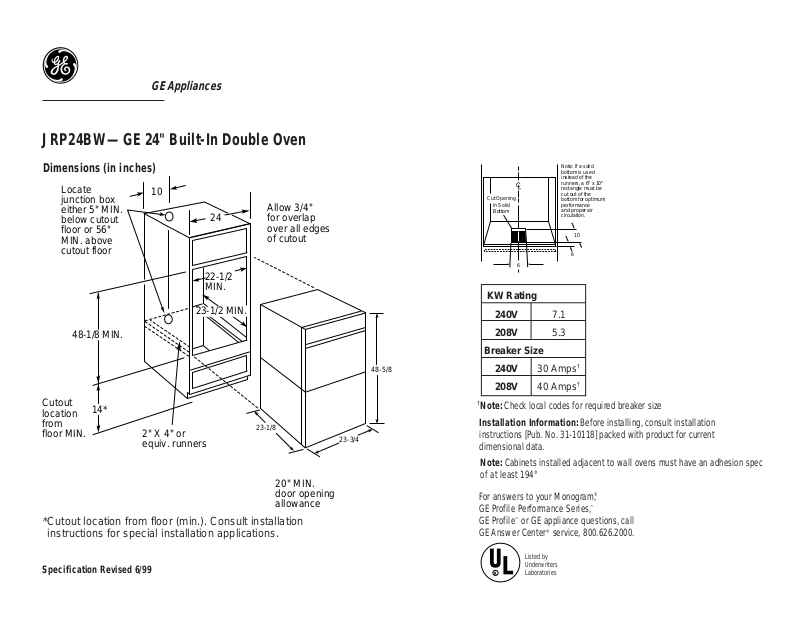

GE JRP24BW Specification

JRP24BW—GE 24" Built-In Double Oven

GE Appliances

Specification Revised 6/99

Locate junction box either 5" MIN. below cutout floor or 56" MIN. above cutout floor

Allow 3/4" for overlap over all edges of cutout

Cutout location from floor MIN.

48-1/8 MIN.

14*

2" X 4" or equiv. runners

20" MIN. door opening allowance

23-1/2 MIN.

22-1/2 MIN.

48-5/8

23-3/4

23-1/8

Dimensions (in inches)

Installation Information: Before installing, consult installation

instructions [Pub. No. 31-10118] packed with product for current dimensional data.

*Cutout location from floor (min.). Consult installation

instructions for special installation applications.

Cut Opening

in Solid Bottom

Note: If a solid bottom is used instead of the runners, a 6" x 10" rectangle must be cut out of the bottom for optimum performance and proper air circulation.

Note: Cabinets installed adjacent to wall ovens must have an adhesion spec of at least 194°

Listed by Underwriters Laboratories

For answers to your Monogram,

GE Profile Performance Series,

™

GE Profile™or GE appliance questions, call GE Answer Center®service, 800.626.2000.

KW Rating

240V 7.1 208V 5.3

Breaker Size

240V 30 Amps

†

208V 40 Amps

†

Note: Check local codes for required breaker size

Specification Revised 6/99

GE Appliances

JRP24BW—GE 24" Built-In Double Oven

START

CLEAR

OFF

TIME CONTROLS

OVEN

TEMP

HOUR MIN

COOK TIMER

STOP

CLOCK

CLEAN

START

Features and Benefits

•Black on black Model

• Upper Oven –Self-Cleaning Oven With Automatic Oven Door Lock –2 Oven Shelves –SmartSet Electronic Controls With Touchpads –Delay Time Bake Option With Cook and Hold –Variable Broil

• Lower Oven –Standard Clean Oven –Rotary Controls –2 Oven Shelves

• Electronic Clock and Kitchen Timer

• Broiler Pan With Grid

• Frameless Glass Oven Doors With Windows

• 24" Oven Cabinet Width Required

• Designer-Style Handles
