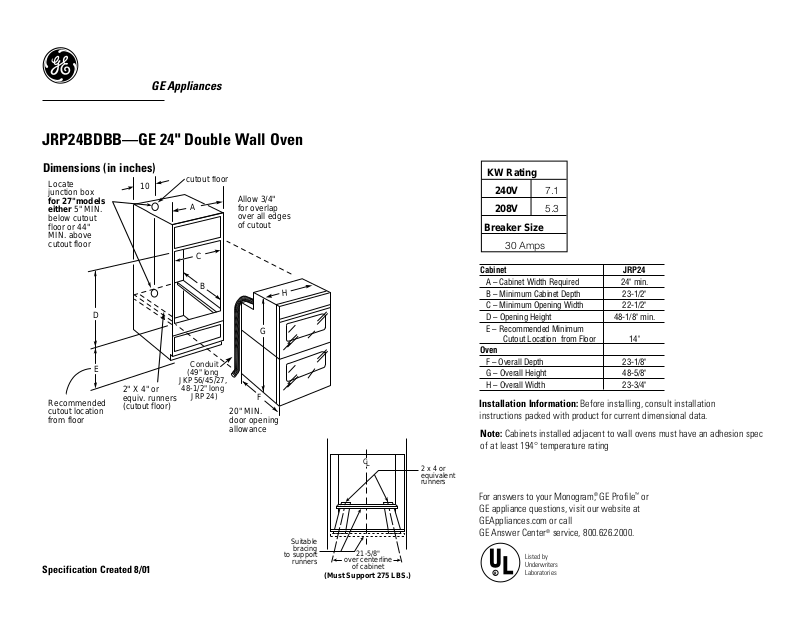

GE JRP24BDBB Specification
JRP24BDBB—GE 24" Double Wall Oven
GE Appliances
Specification Created 8/01
10
Locate
junction box
for 27"models
either 5" MIN.
below cutout
floor or 44"
MIN. above
cutout floor
Allow 3/4"
for overlap
over all edges
of cutout
A
Recommended
cutout location
from floor
D
E
2" X 4" or
equiv. runners
(cutout floor)
20" MIN.
door opening
allowance
B
C
H
F
G
cutout floor
Conduit
(49" long
JKP56/45/27,
48-1/2" long
JRP24)
Dimensions (in inches)
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
C
L
(Must Support 275 LBS.)
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
Note: Cabinets installed adjacent to wall ovens must have an adhesion spec
of at least 194° temperature rating
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
KW Rating
240V 7.1
208V 5.3
Breaker Size
30 Amps
Cabinet JRP24
A – Cabinet Width Required 24" min.
B – Minimum Cabinet Depth 23-1/2"
C – Minimum Opening Width 22-1/2"
D – Opening Height 48-1/8" min.
E – Recommended Minimum
Cutout Location from Floor 14"
Oven
F – Overall Depth 23-1/8"
G – Overall Height 48-5/8"
H – Overall Width 23-3/4"
Specification Created 8/01
GE Appliances
JRP24BDBB—GE 24" Double Wall Oven
S
T
A
R
T
C
L
E
A
R
O
F
F
T
I
M
E
C
O
N
T
R
O
L
S
O
V
E
N
T
E
M
P
H
O
U
R
M
I
N
C
O
O
K
T
I
M
E
R
S
T
O
P
C
L
O
C
K
C
L
E
A
N
S
T
A
R
T
Features and Benefits
• 2 Extra-Large 3.9 cu. ft. Capacity Ovens
• SmartSet Electronic Oven Controls (Upper Oven)
• Variable Broil/Six-Pass Broil Element (Upper)
• 2 Oven Racks with 4 Embossed Positions Each Oven
• True Frameless Glass Oven Doors with Big ClearView
™
Windows
• Installation Flexibility
• Model JRP24BDBB - Black on black
