GE JP970SK Specification

JP970SK
R
Electrical junction box 16" MIN. below countertop
30" MIN. to unprotected cabinet
Cut should not interfere with cabinet structure at front
2" MIN.
clearance to
side wall
from cut-out
2" MIN.
clearance to
side wall
from cut-out
18" MIN. to cabinet
1-3/4" to rear wall
13" MAX. depth
3-1/4*
Cooktop
2-1/2
Required
33-7/8
19-1/8
33-13/16
19-1/32
36-1/8
21-1/4
*Depth of unit at conduit location (rear) is 4-5/8"

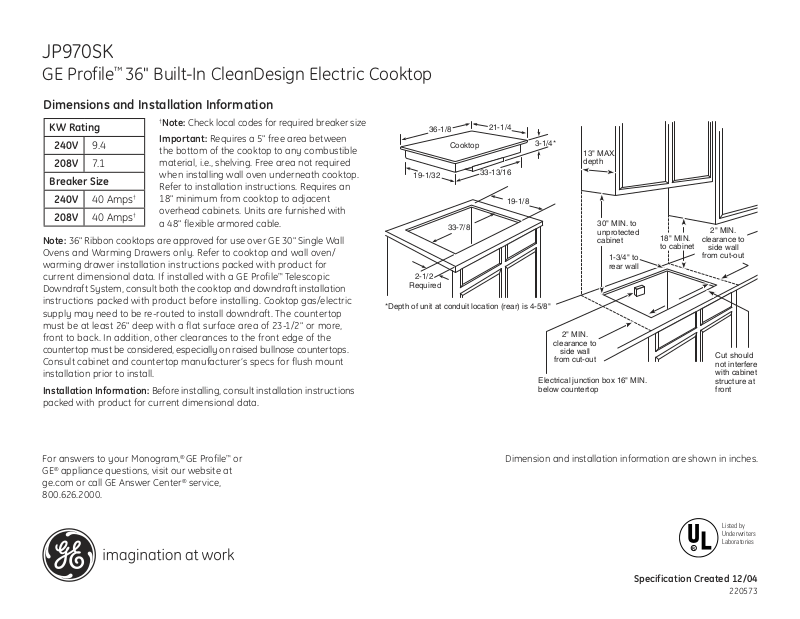

GE Profile™ 36" Built-In CleanDesign Electric Cooktop
Dimensions and Installation Information
KW Rating
240V
208V
9.4
7.1
Breaker Size
240V
208V
Note: 36" Ribbon cooktops are approved for use over GE 30" Single Wall
Ovens and Warming Drawers only. Refer to cooktop and wall oven/ warming drawer installation instructions packed with product for current dimensional data. If installed with a GE Profile™ Telescopic Downdraft System, consult both the cooktop and downdraft installation instructions packed with product before installing. supply may need to be re-routed to install downdraft. The countertop must be at least 26" deep with a flat surface area of 23-1/2" or more, front to back. In addition, other clearances to the front edge of the countertop must be considered, especially on raised bullnose countertops. Consult cabinet and countertop manufacturer’s specs for flush mount installation prior to install.
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.
40 Amps
40 Amps
Note: Check local codes for required breaker size
Important: Requires a 5" free area between
the bottom of the cooktop to any combustible material, i.e., shelving. Free area not required when installing wall oven underneath cooktop. Refer to installation instructions. Requires an
18" minimum from cooktop to adjacent overhead cabinets. Units are furnished with
a 48" flexible armored cable.
Cooktop
gas/electric
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service,
800.626.2000.
Dimension and installation information are shown in inches.
Listed by Underwriters Laboratories
Specification Created 12/04
220573
JP970SK
GE Profile™ 36" Built-In CleanDesign Electric Cooktop
Features and Benefits
• Ceramic glass cooktop – A smooth cooktop surface makes cleaning quick and easy
• Ribbon heating elements – Provides powerful heat beneath the smooth glass surface to ensure even heat and fast warm-up times
• Dual Size ribbon elements – Offers a convenient choice of using a 6” or 9” on one and a 5” or 8” on the other heating element, depending on the size of the pan
• Frameless design – A smooth and seamless cooktop surface makes cleaning quick and easy
• Upfront controls – Combines a digital clock and large-easy-to-read graphics for convenient operation and an attractive appearance
• Hot surface indicator lights – Illuminates when the cooking surface is active and hot, adding convenience and safe caution
• Model JP970SK - Stainless steel
Specification Created 12/04
220573
