GE JP960SL Specification

JP960SL

R

Electrical junction box 16" MIN.
below countertop

30" MIN. to
unprotected
cabinet

Cut should
not interfere
with cabinet
structure at
front

2" MIN.

clearance to

side wall

from cut-out

2" MIN.

clearance to

side wall

from cut-out

18" MIN.
to cabinet

1-3/4" to
rear wall

13" MAX.
depth

3-1/4*

Cooktop

2-1/2

Required

33-7/8

19-1/8

33-13/16

19-1/32

36-1/8

21-1/4

*Depth of unit at conduit location (rear) is 4-5/8"

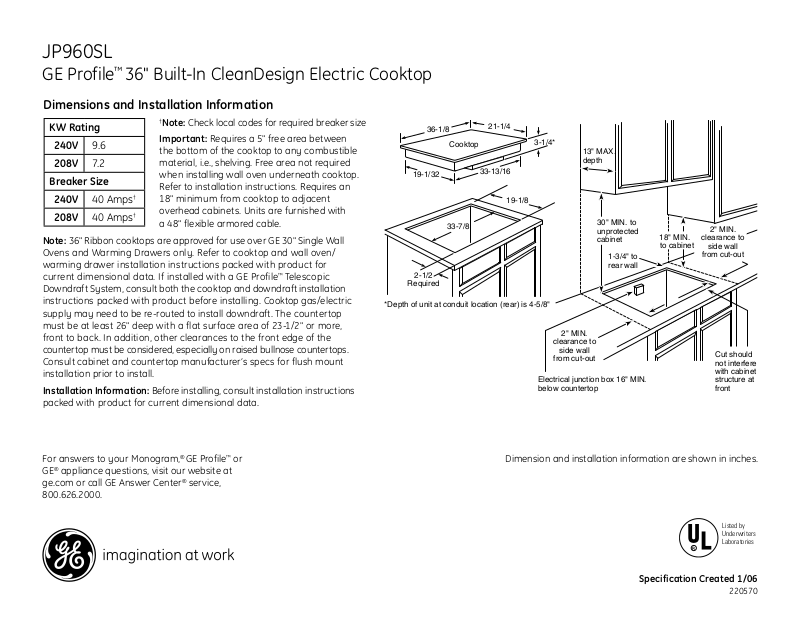

GE Profile™ 36" Built-In CleanDesign Electric Cooktop

Dimensions and Installation Information

†

KW Rating

240V

208V

9.6

7.2

Breaker Size

240V

208V

Note: 36" Ribbon cooktops are approved for use over GE 30" Single Wall

Ovens and Warming Drawers only. Refer to cooktop and wall oven/
warming drawer installation instructions packed with product for
current dimensional data. If installed with a GE Profile™ Telescopic
Downdraft System, consult both the cooktop and downdraft installation
instructions packed with product before installing.
supply may need to be re-routed to install downdraft. The countertop
must be at least 26" deep with a flat surface area of 23-1/2" or more,
front to back. In addition, other clearances to the front edge of the
countertop must be considered, especially on raised bullnose countertops.
Consult cabinet and countertop manufacturer’s specs for flush mount
installation prior to install.

Installation Information: Before installing, consult installation instructions
packed with product for current dimensional data.

40 Amps

40 Amps

Note: Check local codes for required breaker size

Important: Requires a 5" free area between

the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires an

†

18" minimum from cooktop to adjacent
overhead cabinets. Units are furnished with

†

a 48" flexible armored cable.

Cooktop

gas/electric

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

Dimension and installation information are shown in inches.

Listed by
Underwriters
Laboratories

Specification Created 1/06

220570

JP960SL

GE Profile™ 36" Built-In CleanDesign Electric Cooktop

Features and Benefits

• Ceramic Glass Cooktop - A smooth cooktop surface makes cleaning
quick and easy

• Ribbon Heating Elements - Provide powerful heat beneath a smooth
glass surface to ensure even heat and fast warm-up times

• Bridge Element - Combines three cooktop elements into one large
cooking area, ideal for oversized cooking pans

• Dual Size Ribbon Element - Offers a convenient choice of using a 6" or 9"
heating element, depending on the size of the pan

• Frameless Design - A smooth and seamless cooktop surface makes

cleaning quick and easy

• Upfront Controls - Controls are placed within easy reach at the front

center of the cooktop

• Control Lock Capability - Provides the ability to lock controls,

helping protect from unintentional activation

• Heavy-Duty Die-Cast Knobs - Add durability and brushed chrome for
enhanced style and performance

• Hot Surface Indicator Lights - Illuminate when the cooking surface is

active and hot, adding convenience and safe caution

• Heating Element “On” Light - Illuminates when the cooking surface

is activated

• Dishwasher-Safe Knobs - Feature a robust construction for safe and easy cleaning

• Model JP960SLSS - Stainless steel

Specification Created 1/06

220570
