GE JP960BABB Specification
Specification Revised 8/99

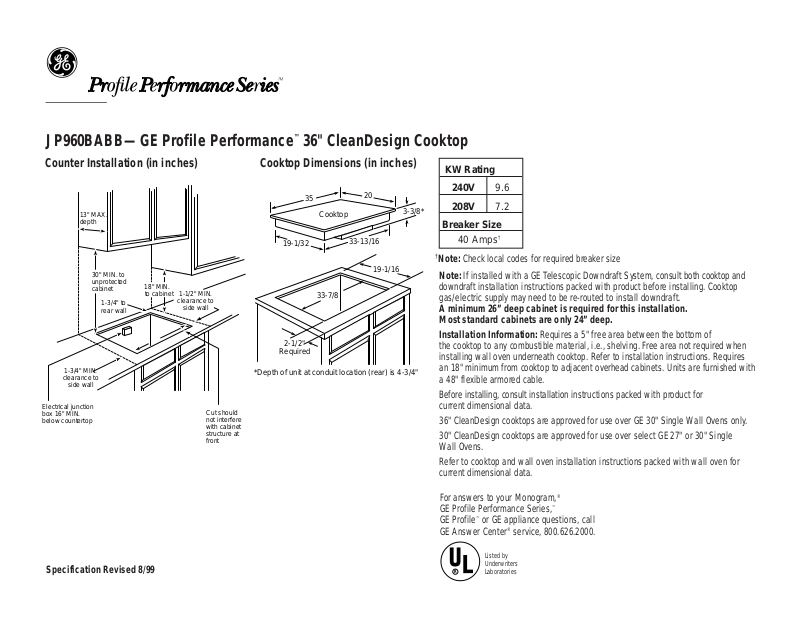

JP960BABB—GE Profile Performance™ 36" CleanDesign Cooktop
Counter Installation (in inches) Cooktop Dimensions (in inches)
Electrical junction
box 16" MIN.
below countertop
30" MIN. to
unprotected
cabinet
Cut should
not interfere
with cabinet
structure at
front
1-3/4" MIN.
clearance to
side wall
1-1/2" MIN.
clearance to
side wall
18" MIN.
to cabinet
1-3/4" to
rear wall
13" MAX.
depth
Note: If installed with a GE Telescopic Downdraft System, consult both cooktop and
downdraft installation instructions packed with product before installing. Cooktop
gas/electric supply may need to be re-routed to install downdraft.
A minimum 26” deep cabinet is required for this installation.
Most standard cabinets are only 24” deep.
Installation Information: Requires a 5" free area between the bottom of
the cooktop to any combustible material, i.e., shelving. Free area not required when
installing wall oven underneath cooktop. Refer to installation instructions. Requires
an 18" minimum from cooktop to adjacent overhead cabinets. Units are furnished with
a 48" flexible armored cable.
Before installing, consult installation instructions packed with product for
current dimensional data.
36" CleanDesign cooktops are approved for use over GE 30" Single Wall Ovens only.
30" CleanDesign cooktops are approved for use over select GE 27" or 30" Single
Wall Ovens.
Refer to cooktop and wall oven installation instructions packed with wall oven for
current dimensional data.
3-3/8*
Cooktop
2-1/2"
Required
33-7/8
19-1/16
33-13/16
19-1/32
35
20
*Depth of unit at conduit location (rear) is 4-3/4"
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
KW Rating
240V 9.6
208V 7.2
Breaker Size
40 Amps
†
†
Note: Check local codes for required breaker size
Specification Revised 8/99
JP960BABB—GE Profile Performance™ 36" CleanDesign Cooktop
5
6
7
8
4
3
1
2
5
6
7
8
4
3
1
2
5
6
7
8
4
3
1
2
5
6
7
8
4
3
1
2
5
6
7
8
4
3
1
2
UNIT ON
Features and Benefits
•36" Frameless Smooth-Surface Glass-Ceramic Cooktop
•5 Ribbon Heating Elements
•One Dual 6"/9" (2500W), One 7" (1500W), Two 7” (1800W with 800W Bridge Element)
and One 6” (1200W) Ribbon Heating Elements
•5 Hot Surface Indicator Lights
•Fingerprint and Scratch Resistant Patterned Glass Cooktop
•Model JP960SASS–Stainless Steel
•Model JP960WAWW–White on White
•Model JP960BABB–Black on Black
•Model JP960AAAA–Almond on Almond
•Model JP960CACC–Bisque
•Model JP960TBWW–True White
