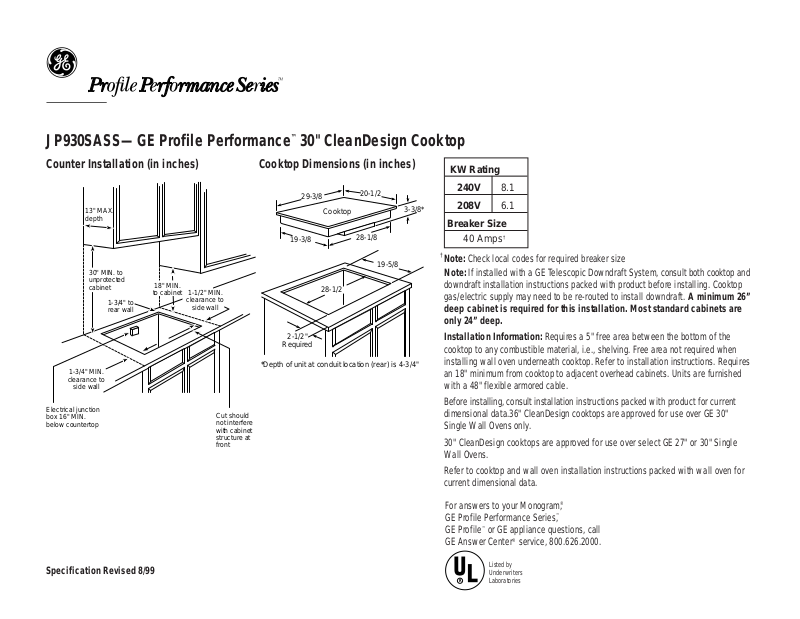

JP930SASS—GE Profile Performance™ 30" CleanDesign Cooktop
Counter Installation (in inches) |
Cooktop Dimensions (in inches) |
13" MAX. depth
30" MIN. to unprotected cabinet
1-3/4" to rear wall
1-3/4" MIN. clearance to side wall
Electrical junction box 16" MIN. below countertop
29-3/8 |
|
20-1/2 |
|
|
|
|
Cooktop |
3-3/8* |
|
|
|
19-3/8 |
|
28-1/8 |
|
|
19-5/8
18" MIN. |
28-1/2 |
|
to cabinet 1-1/2" MIN. |
||
|
||
clearance to |
|
|
side wall |
|
2-1/2" Required
*Depth of unit at conduit location (rear) is 4-3/4"
Cut should not interfere with cabinet structure at front
KW Rating
240V 8.1
208V 6.1
Breaker Size
40 Amps†
†Note: Check local codes for required breaker size
Note: If installed with a GE Telescopic Downdraft System, consult both cooktop and downdraft installation instructions packed with product before installing. Cooktop gas/electric supply may need to be re-routed to install downdraft. A minimum 26” deep cabinet is required for this installation. Most standard cabinets are only 24” deep.
Installation Information: Requires a 5" free area between the bottom of the cooktop to any combustible material, i.e., shelving. Free area not required when installing wall oven underneath cooktop. Refer to installation instructions. Requires an 18" minimum from cooktop to adjacent overhead cabinets. Units are furnished with a 48" flexible armored cable.
Before installing, consult installation instructions packed with product for current dimensional data.36" CleanDesign cooktops are approved for use over GE 30" Single Wall Ovens only.
30" CleanDesign cooktops are approved for use over select GE 27" or 30" Single Wall Ovens.
Refer to cooktop and wall oven installation instructions packed with wall oven for current dimensional data.
For answers to your Monogram,®
GE Profile Performance Series,™
GE Profile™ or GE appliance questions, call
GE Answer Center® service, 800.626.2000.
Specification Revised 8/99
R
Listed by Underwriters Laboratories
JP930SASS—GE Profile Performance™ 30" CleanDesign Cooktop
OFF |
4 |
RIGHT |
3 |
1 |
2 |
OFF |
4 |
LEFT |
3 |
1 |
2 |
OFF |
4 |
LEFT |
3 |
1 |
2 |
OFF |
4 |
RIGHT |
3 |
1 |
2 |
UNITON |
|
|
OIL SIZE |
Features and Benefits
•30" Frameless Smooth-Surface Glass-Ceramic Cooktop
•4 Ribbon Heating Elements
•One Dual 6”/9” (2500W), Two 7” (1800W) with Bridge Element and One 6” (1200W) Ribbon Heating Elements
•4 Hot Surface Indicator Lights
•Fingerprint and Scratch Resistant Patterned Glass Surface
•Model JP930SASS–Stainless Steel
•Model JP930WAWW–White on White
•Model JP930BABB–Black on Black
•Model JP930AAAA–Almond on Almond
•Model JP930CACC–Bisque
•Model JP930TBWW–True White
Specification Revised 8/99
