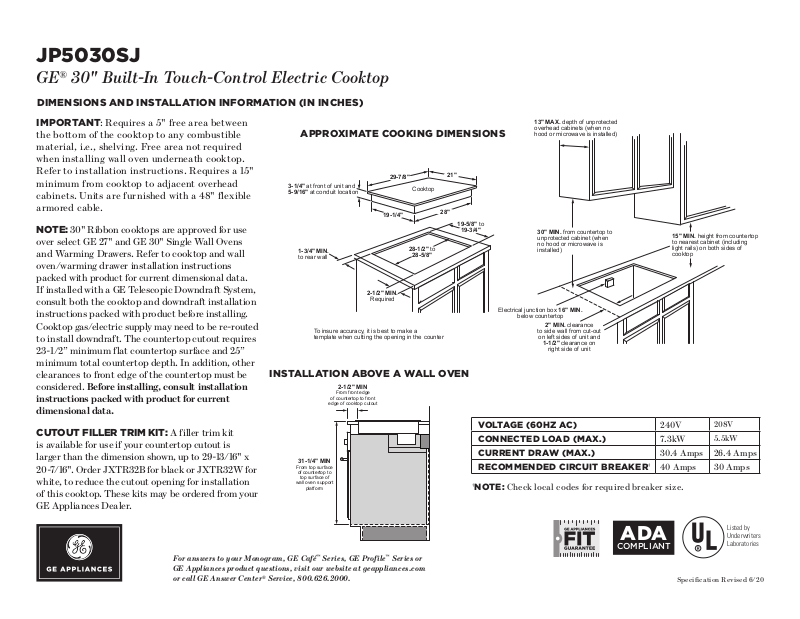

JP5030SJ
PP9030SJ, PP7030SJ, JP5030SJ
INSTALLATION ABOVE A WALL OVEN
®
GE
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
30" Built-In Touch-Control Electric Cooktop
IMPORTANT: Requires a 5" free area between
the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires a 15"
minimum from cooktop to adjacent overhead
cabinets. Units are furnished with a 48" flexible
armored cable.
NOTE: 30" Ribbon cooktops are approved for use
over select GE 27" and GE 30" Single Wall Ovens
and Warming Drawers. Refer to cooktop and wall
oven/warming drawer installation instructions
packed with product for current dimensional data.
If installed with a GE Telescopic Downdraft System,
consult both the cooktop and downdraft installation
instructions packed with product before installing.
Cooktop gas/electric supply may need to be re-routed
to install downdraft.
The countertop cutout requires
23-1/2” minimum flat countertop surface and 25”
minimum total countertop depth. In addition, other
clearances to front edge of the countertop must be
considered. Before installing, consult installation
instructions packed with product for current
dimensional data.
CUTOUT FILLER TRIM KIT: A filler trim kit
is available for use if your countertop cutout is
larger than the dimension shown, up to 29-13/16" x
20-7/16". Order JXTR32B for black or JXTR32W for
white, to reduce the cutout opening for installation
of this cooktop. These kits may be ordered from your
GE Appliances Dealer.

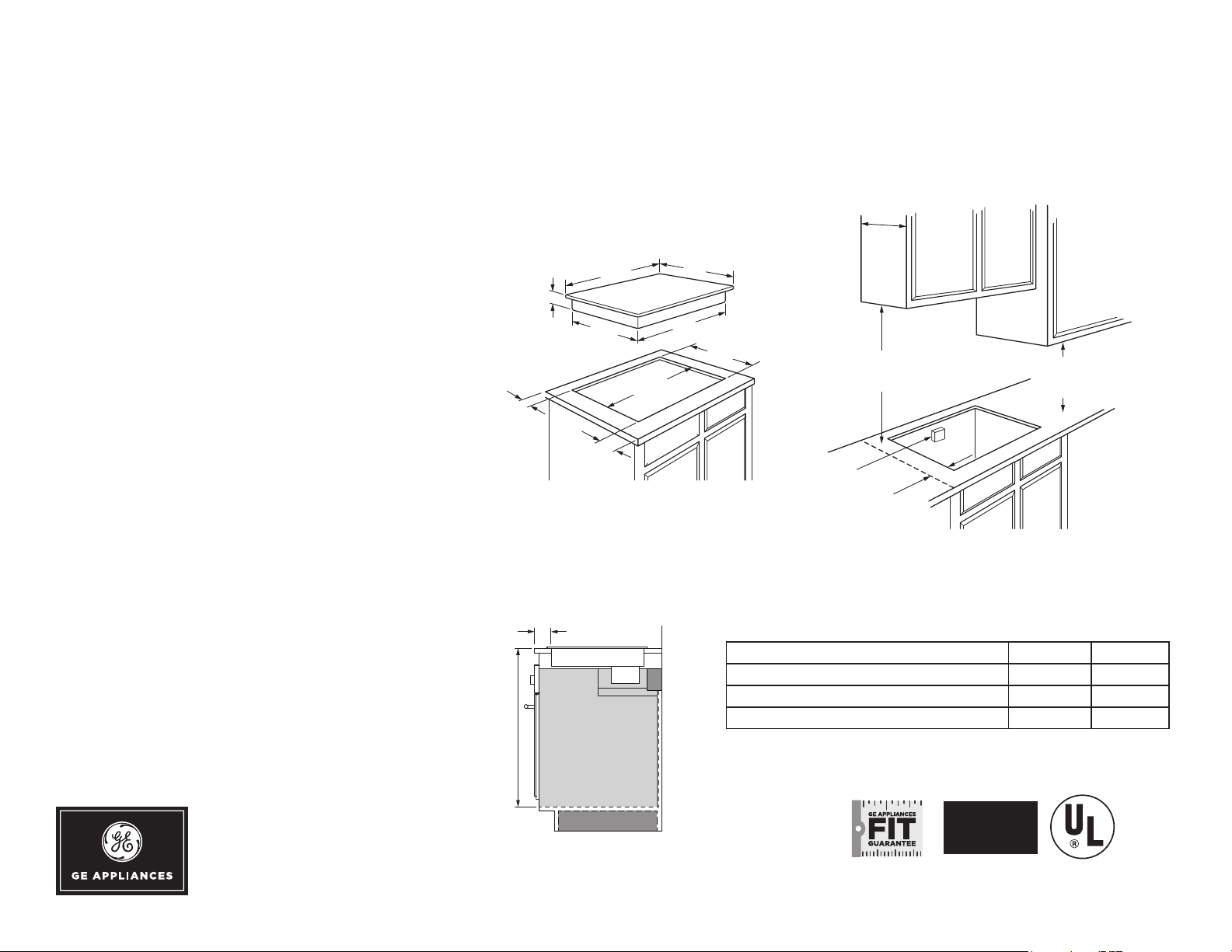

APPROXIMATE COOKING DIMENSIONS
28"
21"
19-5/8" to
19-3/4"
3-1/4" at front of unit and
5-9/16" at conduit location
19-1/4"
1-3/4" MIN.
to rear wall
2-1/2" MIN.
Required
To insure accuracy, it is best to make a
template when cutting the opening in the counter
29-7/8"
Cooktop
28-1/2" to
28-5/8"
INSTALLATION ABOVE A WALL OVEN
2-1/2" MIN
From front edge
of countertop to front
edge of cooktop cutout
31-1/4" MIN
From top surface
of countertop to
top surface of
wall oven support
platform
13" MAX. depth of unprotected
overhead cabinets (when no
hood or microwave is installed)
30" MIN. from countertop to
unprotected cabinet (when
no hood or microwave is
installed)
Electrical junction box 16" MIN.
below countertop
2" MIN. clearance
to side wall from cut-out
on left sides of unit and
1-1/2" clearance on
right side of unit
VOLTAGE (60HZ AC) 240V
CONNECTED LOAD (MAX.) 7.3kW
15" MIN. height from countertop
to nearest cabinet (including
light rails) on both sides of
cooktop
208V
5.5kW
CURRENT DRAW (MAX.) 30.4 A mps 26.4 Amps
RECOMMENDED CIRCUIT BREAKER†40 Amps 30 Amps
†
NOTE: Check local codes for required breaker size.
ADA
COMPLIANT
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Specification Revised 6/20
Listed by
Underwriters
Laboratories
Page 2
JP5030SJ
®
GE

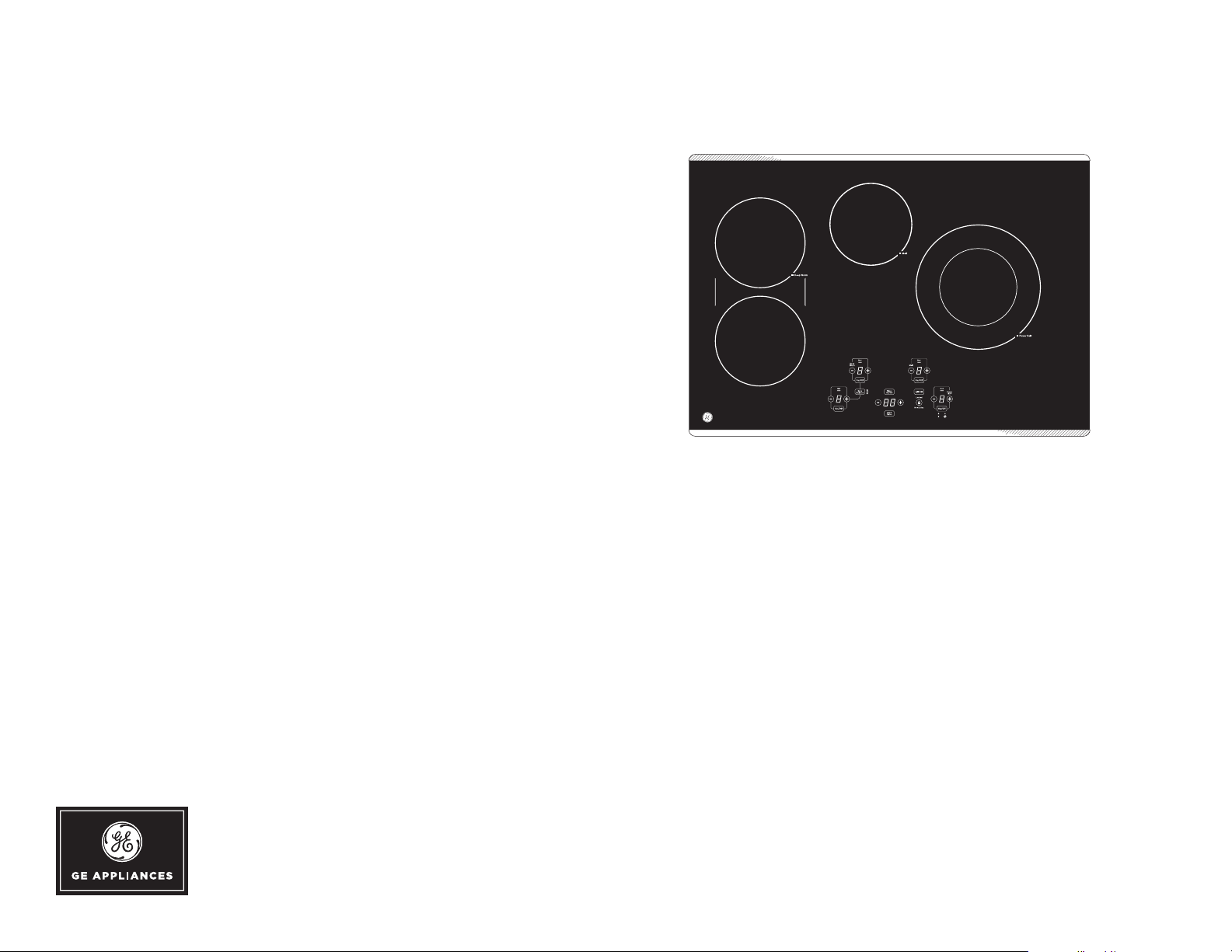

FEATURES AND BENEFITS
Four radiant cooking elements
Digital touch controls
Power Boil dual-ring element
SyncBurners
Kitchen timer
Keep warm setting
Melt setting
Control lock capability
Red LED with black glass surface
Hot surface indicator lights
30" Built-In Touch-Control Electric Cooktop
Fit Guarantee
Model JP5030SJSS – Stainless steel
* OPTIONAL STAINLESS STEEL CLAD
ALUMINUM GRIDDLE
Achieve even results with this lightweight griddle,
tailored to fit GE SyncBurners. Order part
numberJXGRIDL1 from your GE Dealer.
GUARANTEED FIT
Replacing a similar cooktop from GE Appliances or another brand?
GE cooktops are guaranteed for an exact fit or GE Appliances will
pay up to $100 toward modifications
Visit geappliances.com for more info
Specification Revised 6/20
