JP5030DJ
CP9530SJ, PP9030DJ, JP7030DJ,
JP5030DJ
INSTALLATION ABOVE A WALL OVEN
®
GE

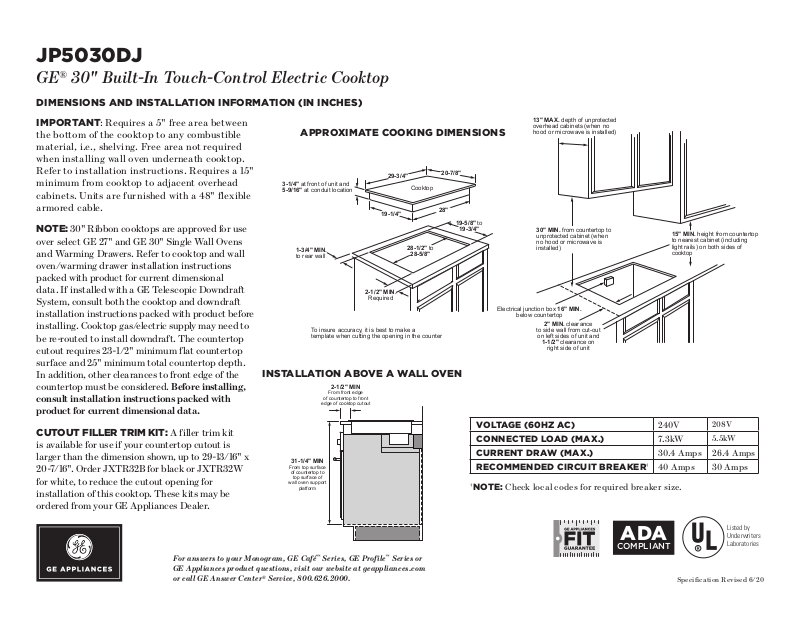

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
IMPORTANT: Requires a 5" free area between
the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires a 15"
minimum from cooktop to adjacent overhead
cabinets. Units are furnished with a 48" flexible
armored cable.
NOTE: 30" Ribbon cooktops are approved for use
over select GE 27" and GE 30" Single Wall Ovens
and Warming Drawers. Refer to cooktop and wall
oven/warming drawer installation instructions
packed with product for current dimensional
data. If installed with a GE Telescopic Downdraft
System, consult both the cooktop and downdraft
installation instructions packed with product before
installing.
be re-routed to install downdraft.
cutout requires 23-1/2" minimum flat countertop
surface and 25" minimum total countertop depth.
In addition, other clearances to front edge of the
countertop must be considered. Before installing,
consult installation instructions packed with
product for current dimensional data.
CUTOUT FILLER TRIM KIT: A filler trim kit
is available for use if your countertop cutout is
larger than the dimension shown, up to 29-13/16" x
20-7/16". Order JXTR32B for black or JXTR32W
for white, to reduce the cutout opening for
installation of this cooktop. These kits may be
ordered from your GE Appliances Dealer.
30" Built-In Touch-Control Electric Cooktop
APPROXIMATE COOKING DIMENSIONS
3-1/4" at front of unit and
5-9/16" at conduit location
1-3/4" MIN.
to rear wall
Cooktop gas/electric supply may need to
The countertop
INSTALLATION ABOVE A WALL OVEN
To insure accuracy, it is best to make a
template when cutting the opening in the counter
31-1/4" MIN
From top surface
of countertop to
top surface of
wall oven support
platform
2-1/2" MIN
From front edge
of countertop to front
edge of cooktop cutout
29-3/4"
19-1/4"
2-1/2" MIN.
Required
Cooktop
28-1/2" to
28-5/8"
20-7/8"
28"
13" MAX. depth of unprotected
overhead cabinets (when no
hood or microwave is installed)
19-5/8" to
19-3/4"
Electrical junction box 16" MIN.
30" MIN. from countertop to
unprotected cabinet (when
no hood or microwave is
installed)
below countertop
2" MIN. clearance
to side wall from cut-out
on left sides of unit and
1-1/2" clearance on
right side of unit
15" MIN. height from countertop
to nearest cabinet (including
light rails) on both sides of
cooktop
VOLTAGE (60HZ AC) 240V
CONNECTED LOAD (MAX.) 7.3kW
CURRENT DRAW (MAX.) 30.4 A mps 26.4 Amps
RECOMMENDED CIRCUIT BREAKER†40 Amps 30 Amps
†
NOTE: Check local codes for required breaker size.
208V
5.5kW
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
ADA
COMPLIANT
Listed by
Underwriters
Laboratories
Specification Revised 6/20
Page 2
JP5030DJ
®
GE
FEATURES AND BENEFITS
Four radiant cooking elements
Digital touch controls
Power Boil dual-ring element
SyncBurners
Kitchen timer
Keep warm setting
Melt setting
Control lock capability
Red LED with black glass surface
Hot surface indicator lights
Fit Guarantee
30" Built-In Touch-Control Electric Cooktop
Model JP5030DJBB – Black on black
* OPTIONAL STAINLESS STEEL CLAD
ALUMINUM GRIDDLE
Achieve even results with this lightweight griddle,
tailored to fit GE SyncBurners. Order part number
JXGRIDL1 from your GE Dealer.
GUARANTEED FIT
Replacing a similar cooktop from GE Appliances or another brand?
GE cooktops are guaranteed for an exact fit or GE Appliances will
pay up to $100 toward modifications
Visit geappliances.com for more info
Specification Revised 6/20
