JP389BV—GE Profile™Select-Top™Modular Downdraft Cooktop
Built-In Downdraft Modular Cooktop
Dimensions (in inches)
TM
Specification Revised 6/99
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.

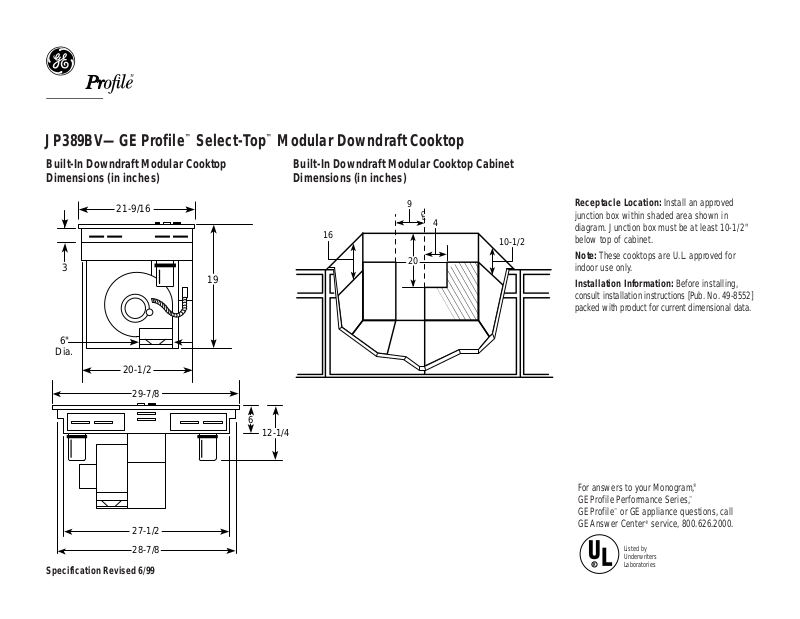

Built-In Downdraft Modular Cooktop Cabinet
Dimensions (in inches)
21-9/16
3
19
6"
Dia.
20-1/2
Receptacle Location: Install an approved
junction box within shaded area shown in
diagram. Junction box must be at least 10-1/2"
below top of cabinet.
Note: These cooktops are U.L. approved for
indoor use only.
Installation Information: Before installing,
consult installation instructions [Pub. No. 49-8552]
packed with product for current dimensional data.
28-7/8
27-1/2
29-7/8
12-1/4
6
,
20
9
4
10-1/2
16
C
L
Page 2
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
TM
Specification Revised 6/99
JP389BV—GE Profile™Select-Top™Modular Downdraft Cooktop
Cutout Dimensions (in inches)
25
1-7/8"
MIN. Required*
20-5/8
28-7/8
*U.L. Requirement.
Note: A 6" minimum spacing to adjacent side wall is required
Preparing the Cabinet for Installation
2" Approx.
5" Approx.
for European
cabinets
9-3/8
7-9/16
Downward venting
(in inches)
9-3/8
15-3/4
Rear wall venting (in inches)
Note: In some cabinets, the sides may need to be scooped or cut down 2" as shown and the corner
braces removed in order to accommodate the cooktop.
Wall Installation: Wall installations require 25" countertop depth. When cabinet is flush against
the wall, the fan housing can be rotated to the horizontal position for direct venting through rear
wall. Make a countertop cutout that is centered in the range cabinet according to unit dimensions
and installation type. Duct hole is positioned in back of cabinet for through-the-wall ducting.
Peninsula or Island Installation: For peninsula or island installation, a minimum 26" countertop
depth is suggested. Blower should be in vertical position. Island or peninsula cabinets may require
adjustment in cutout depth and/or location within the width dimensions. Duct hole is positioned in
bottom of cabinet for island or peninsula installation.
Slab Installation: For peninsula or island installation and rear wall ducting, PVC duct or locallyapproved piping should be used if installing under a poured concrete slab.
Installing the Ductwork: Use minimum
26-gauge galvanized or 24-gauge aluminum duct
in 6" round or 3-1/4" x 10" size, or combination
of both. PVC duct or locally approved piping
should be used if installing under a poured
concrete slab.
Page 3
JP389BV—GE Profile™Select-Top™Modular Downdraft Cooktop
Venting Options
TM
Specification Revised 6/99
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Inside Wall
Through Roof
Note: Ductwork must be vented to outside. Do
not vent into a wall, ceiling, crawlspace, attic or
any concealed space. Always use an appropriate
roof or wall cap with damper. Laundry-type wall
caps should never be used. For maximum
efficiency use, the shortest and straightest duct
run possible, with as few fittings as possible.
For satisfactory performance, the duct run should
not exceed 100 feet equivalent length. Refer to
the table of equivalent lengths (shown in
Pub. No. 49-8552) for various duct configurations.
Installation Information: Before installing,
consult installation instructions [Pub. No. 49-8552]
packed with product for current dimensional data.
Direct to Outside
Straight Duct
Between the Floor Joists
Through the Cabinet Toe Space
KW Rating
240V 8.0
Breaker Size
40 Amps
†
†
Note: Check local codes for required breaker size
Page 4
TM
Specification Revised 6/99
JP389BV—GE Profile™Select-Top™Modular Downdraft Cooktop
,,,,,,,,,,,,,,
,,,,,,,,,,,,,,
,,,,,,,,,,,,
,,,,,,,,,,
,,,,,,,,,,
,,,,,,,,
,,,,,,
,,,,,,
,,,,
,,
,,
M
E
D
M
E
D
Profile
Features and Benefits
•Black on black Model
• 30" Dual Modular Cooktop
• Infinite Heat Rotary Controls
• Powerful Downdraft Venting System
• 3-Speed Fan
• Heating Element “ON” Indicator Light
• Porcelain-Enameled Cooktop
• Optional Modules Available At Additional Cost
• Also Available In Black on black as Model JP389BV
• Also Designed For 208-Volt Installation InWhite on white as Model JP387WV and
Black on black as Model JP387BV (208V models require advance ordering)
Optional modulesX JP387WV
(available at additional cost) JP389WV JP389BV JP387BV
JXDC44RWH
Calrod®modules JXDC44RWH JXDC43RBL JXDC43RBL
JXDR46VW
Ribbon modules JXDR50VW JXCDR50VB JXDR46VB
Grill modules JXDL44N JXDL44N JXDL45N
Griddle Accessory JXDD44R JXDD44R JXDD45R
JXDM3
Grill Cover JXDM3 JXDM2 JXDM2
Models
