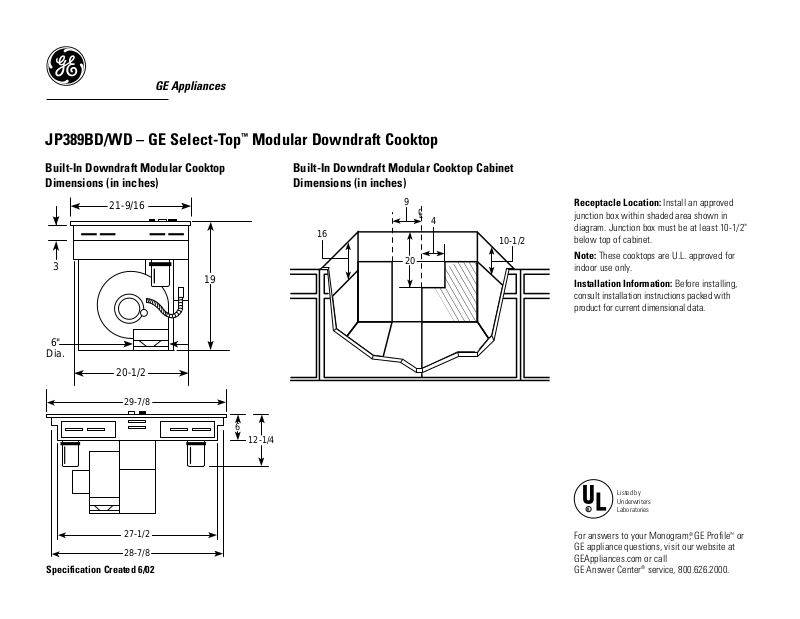

JP389BD/WD – GE Select-Top™ Modular Downdraft Cooktop
Built-In Downdraft Modular Cooktop |
Built-In Downdraft Modular Cooktop Cabinet |
||||||||||||
Dimensions (in inches) |
Dimensions (in inches) |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
9 |
|
|
|
|
|
|
21-9/16 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
L 4 |
|
16 |
|
10-1/2 |
3 |
20 |
|
|
|
19 |
6" |
|
Dia. |
|
|
20-1/2 |
|
29-7/8 |
|
12-1/4 |
27-1/2
28-7/8
Specification Created 6/02
Receptacle Location: Install an approved junction box within shaded area shown in diagram. Junction box must be at least 10-1/2" below top of cabinet.
Note: These cooktops are U.L. approved for indoor use only.
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.
Listed by
Underwriters
R Laboratories
For answers to your Monogram,® GE Profile™ or GE appliance questions, visit our website at GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
GE Appliances
JP389BD/WD – GE Select-Top™ Modular Downdraft Cooktop
Cutout Dimensions (in inches)
20-5/8
28-7/8
25
1-7/8"
MIN. Required*
*U.L. Requirement.
Note: A 6" minimum spacing to adjacent side wall is required
Preparing the Cabinet for Installation
5" Approx. |
Rear wall venting (in inches) |
for European |
|
cabinets |
9-3/8 |
15-3/4
2" Approx.
Specification Created 6/02
Note: In some cabinets, the sides may need to be scooped or cut down 2" as shown and the corner braces removed in order to accommodate the cooktop.
Wall Installation: Wall installations require 25" countertop depth. When cabinet is flush against the wall, the fan housing can be rotated to the horizontal position for direct venting through rear wall. Make a countertop cutout that is centered in the range cabinet according to unit dimensions and installation type. Duct hole is positioned in back of cabinet for through-the-wall ducting.
Peninsula or Island Installation: For peninsula or island installation, a minimum 26" countertop depth is suggested. Blower should be in vertical position. Island or peninsula cabinets may require adjustment in cutout depth and/or location within the width dimensions. Duct hole is positioned in bottom of cabinet for island or peninsula installation.
Slab Installation: For peninsula or island installation and rear wall ducting, PVC duct or locallyapproved piping should be used if installing under a poured concrete slab.
Installing the Ductwork: Use minimum
26-gauge galvanized or 24-gauge aluminum duct in 6" round or 3-1/4" x 10" size, or combination of both. PVC duct or locally approved piping should be used if installing under a poured concrete slab.
Downward venting (in inches)
7-9/16
9-3/8
|
Listed by |
|
Underwriters |
R |
Laboratories |
For answers to your Monogram,® GE Profile™ or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
