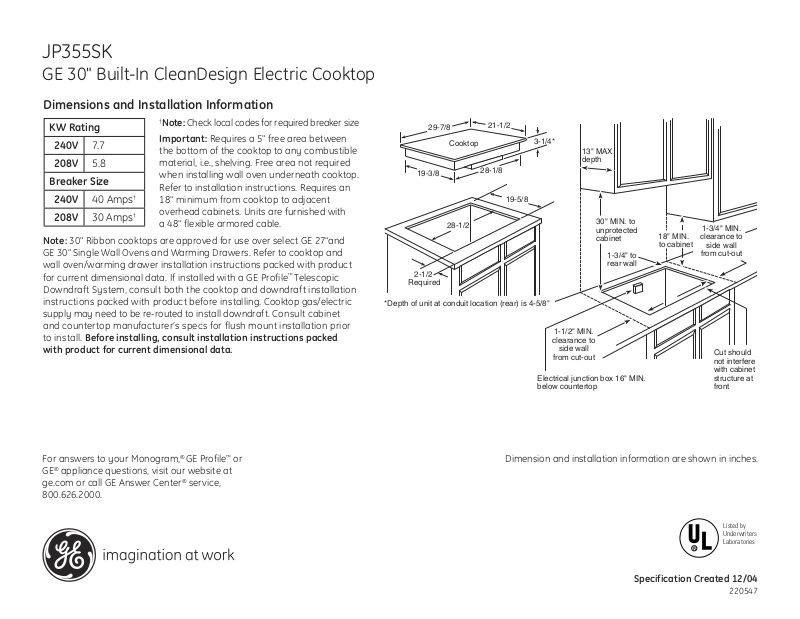

GE JP355SK Specification

JP355SK

GE 30" Built-In CleanDesign Electric Cooktop

Dimensions and Installation Information

KW Rating

240V 7.7

208V 5.8

Breaker Size

240V 40 Amps†

208V 30 Amps†

†Note: Check local codes for required breaker size

Important: Requires a 5" free area between the bottom of the cooktop to any combustible material, i.e., shelving. Free area not required when installing wall oven underneath cooktop. Refer to installation instructions. Requires an 18" minimum from cooktop to adjacent overhead cabinets. Units are furnished with a 48" flexible armored cable.

Note: 30" Ribbon cooktops are approved for use over select GE 27"and GE 30" Single Wall Ovens and Warming Drawers. Refer to cooktop and wall oven/warming drawer installation instructions packed with product for current dimensional data. If installed with a GE Profile™ Telescopic Downdraft System, consult both the cooktop and downdraft installation instructions packed with product before installing. Cooktop gas/electric supply may need to be re-routed to install downdraft. Consult cabinet and countertop manufacturer’s specs for flush mount installation prior to install. Before installing, consult installation instructions packed with product for current dimensional data.

	29-7/8	21-1/2
	Cooktop	3-1/4*
		13" MAX.
		depth
	19-3/8	28-1/8
		19-5/8
	28-1/2	30" MIN. to
		unprotected
		cabinet
		1-3/4" to
		rear wall

2-1/2 Required

*Depth of unit at conduit location (rear) is 4-5/8"

1-1/2" MIN. clearance to

side wall from cut-out

Electrical junction box 16" MIN. below countertop

1-3/4" MIN. 18" MIN. clearance to to cabinet side wall

from cut-out

Cut should not interfere with cabinet structure at front

For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.

Dimension and installation information are shown in inches.

Listed by

Underwriters

Laboratories

R

Specification Created 12/04

220547

JP355SK

GE 30" Built-In CleanDesign Electric Cooktop

Features and Benefits

• Ceramic glass cooktop - A smooth cooktop surface makes cleaning quick and easy

• Ribbon heating elements - Provide powerful heat beneath a smooth glass surface to ensure even heat and fast warm-up times

• Dual size ribbon element - Offers a convenient choice of using a 6” or 9” heating element, depending on the size of the pan

• Frameless design - A smooth and seamless cooktop surface makes cleaning quick and easy

• Hot surface indicator lights - Illuminate when the cooking surface is active and hot, adding convenience and safe caution

• Heating element “On” light - Illuminates when the cooking surface is activated

• Model JP355SKSS - Stainless steel
