GE JP3536DJ, JP3536TJ Specification

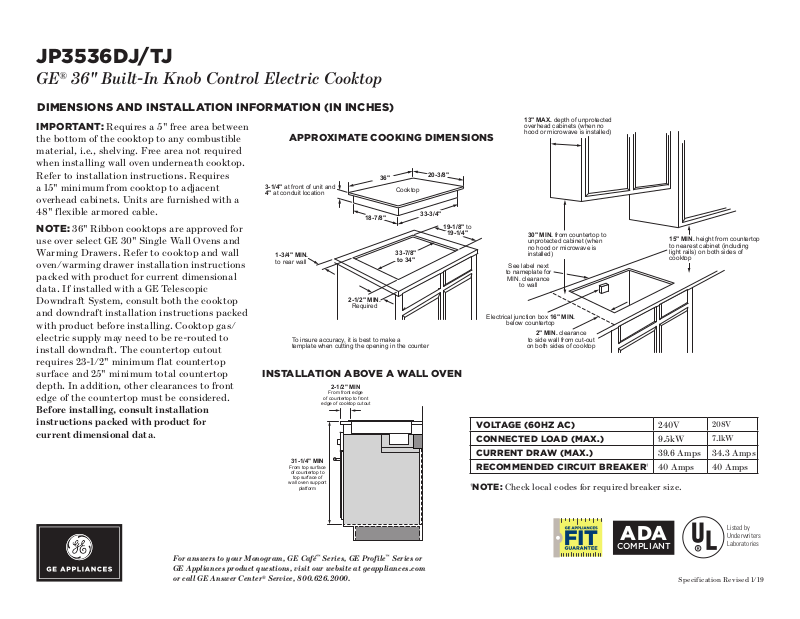

JP3536DJ/TJ
GE® 36" Built-In Knob Control Electric Cooktop
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
IMPORTANT: Requires a 5" free area between the bottom of the cooktop to any combustible material, i.e., shelving. Free area not required when installing wall oven underneath cooktop. Refer to installation instructions. Requires
a 15" minimum from cooktop to adjacent overhead cabinets. Units are furnished with a 48" flexible armored cable.
NOTE: 36" Ribbon cooktops are approved for use over select GE 30" Single Wall Ovens and Warming Drawers. Refer to cooktop and wall oven/warming drawer installation instructions packed with product for current dimensional data. If installed with a GE Telescopic Downdraft System, consult both the cooktop and downdraft installation instructions packed with product before installing. Cooktop gas/ electric supply may need to be re-routed to install downdraft. The countertop cutout requires 23-1/2" minimum flat countertop surface and 25" minimum total countertop depth. In addition, other clearances to front edge of the countertop must be considered.
Before installing, consult installation instructions packed with product for current dimensional data.
APPROXIMATE COOKING DIMENSIONS
|
36" |
20-3/8" |
|
|
|
3-1/4" at front of unit and |
|
Cooktop |
4" at conduit location |
|
|
|
|
13" MAX. depth of unprotected overhead cabinets (when no hood or microwave is installed)
|
18-7/8" |
33-3/4" |
|
|
|
|
|
19-1/8" to |
|
|
19-1/4" |
1-3/4" MIN. |
|
33-7/8" |
to rear wall |
|
to 34" |
2-1/2" MIN.
Required
To insure accuracy, it is best to make a
template when cutting the opening in the counter
30" MIN. from countertop to unprotected cabinet (when no hood or microwave is installed)
See label next to nameplate for MIN. clearance to wall
Electrical junction box 16" MIN. below countertop
2" MIN. clearance to side wall from cut-out
on both sides of cooktop
15" MIN. height from countertop to nearest cabinet (including light rails) on both sides of cooktop
INSTALLATION ABOVE A WALL OVEN
2-1/2" MIN
From front edge of countertop to front
edge of cooktop cutout
31-1/4" MIN
From top surface of countertop to top surface of wall oven support platform
VOLTAGE (60HZ AC) |
240V |
208V |
|
||||
CONNECTED LOAD (MAX.) |
9.5kW |
7.1kW |
|
||||
CURRENT DRAW (MAX.) |
39.6 Amps |
34.3 Amps |
|
||||
RECOMMENDED CIRCUIT BREAKER† |
40 Amps |
40 Amps |
|
||||
†NOTE: Check local codes for required breaker size. |
|
|
|||||
|
|
|
|
ADA |
Listed by |
||
|
|
|
|
||||
|
|
|
|
||||
|
|
|
|
Underwriters |
|||
|
|
|
|
Laboratories |
|||
|
|
|
|
COMPLIANT |
|||
|
|
|
|||||
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or |
|
GE Appliances product questions, visit our website at geappliances.com |
|
or call GE Answer Center® Service, 800.626.2000. |
Specification Revised 1/19 |
JP3536DJ/TJ
GE® 36" Built-In Knob Control Electric Cooktop
FEATURES AND BENEFITS
Five radiant cooking elements – Cook foods quickly and evenly on this sleek, glass surface
9"/12" Dual element – Use different pan sizes on this single, 2,700-watt flexible element
8" Power Boil element – Get rapid heat from this powerful 2,500-watt element
Keep Warm setting – Keep food warm with GE’s lowest
heat setting or boil water in minutes with this fully functional 6" element
Melt setting – Gently melt delicate foods without burning or scorching
Control lock capability – Protects against unintended activation
Hot surface indicator lights – Know when elements are too hot to touch with a quick glance
Cooktop “On” indicator light – A light lets you know when an element is active
Model JP3536DJBB – Black on black Model JP3536TJWW – True white
GUARANTEED FIT
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications
Visit geappliances.com for more info
JP3536DJBB_TJWW
Specification Revised 1/19
