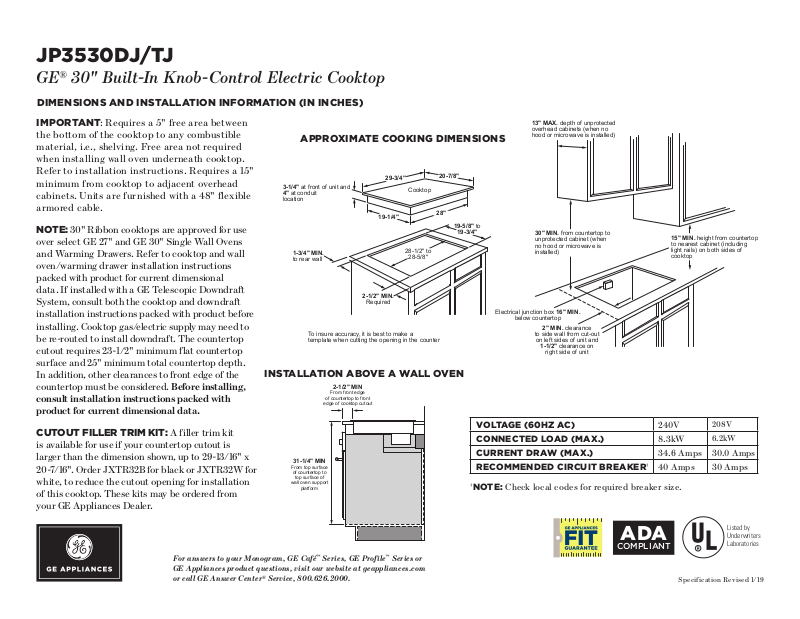

JP3530DJ/TJ
JP3530DJ_TJ, JP3030DJ_TJ
INSTALLATION ABOVE A WALL OVEN
®
GE
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
30" Built-In Knob-Control Electric Cooktop
IMPORTANT: Requires a 5" free area between
the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires a 15"
minimum from cooktop to adjacent overhead
cabinets. Units are furnished with a 48" flexible
armored cable.
NOTE: 30" Ribbon cooktops are approved for use
over select GE 27" and GE 30" Single Wall Ovens
and Warming Drawers. Refer to cooktop and wall
oven/warming drawer installation instructions
packed with product for current dimensional
data. If installed with a GE Telescopic Downdraft
System, consult both the cooktop and downdraft
installation instructions packed with product before
installing.
be re-routed to install downdraft.
Cooktop gas/electric supply may need to
The countertop
cutout requires 23-1/2" minimum flat countertop
surface and 25" minimum total countertop depth.
In addition, other clearances to front edge of the
countertop must be considered. Before installing,
consult installation instructions packed with
product for current dimensional data.
CUTOUT FILLER TRIM KIT: A filler trim kit
is available for use if your countertop cutout is
larger than the dimension shown, up to 29-13/16" x
20-7/16". Order JXTR32B for black or JXTR32W for
white, to reduce the cutout opening for installation
of this cooktop. These kits may be ordered from
your GE Appliances Dealer.
APPROXIMATE COOKING DIMENSIONS
20-7/8"
28"
19-5/8" to
3-1/4" at front of unit and
4" at conduit
location
19-1/4"
1-3/4" MIN.
to rear wall
2-1/2" MIN.
Required
To insure accuracy, it is best to make a
template when cutting the opening in the counter
29-3/4"
Cooktop
28-1/2" to
28-5/8"
INSTALLATION ABOVE A WALL OVEN
2-1/2" MIN
From front edge
of countertop to front
edge of cooktop cutout
31-1/4" MIN
From top surface
of countertop to
top surface of
wall oven support
platform
13" MAX. depth of unprotected
overhead cabinets (when no
hood or microwave is installed)
19-3/4"
Electrical junction box 16" MIN.
30" MIN. from countertop to
unprotected cabinet (when
no hood or microwave is
installed)
below countertop
2" MIN. clearance
to side wall from cut-out
on left sides of unit and
1-1/2" clearance on
right side of unit
15" MIN. height from countertop
to nearest cabinet (including
light rails) on both sides of
cooktop
VOLTAGE (60HZ AC) 240V
CONNECTED LOAD (MAX.) 8.3kW
CURRENT DRAW (MAX.) 34.6 Amps 30.0 Amps
RECOMMENDED CIRCUIT BREAKER†40 Amps 30 Amps
†
NOTE: Check local codes for required breaker size.
208V
6.2kW
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
ADA
COMPLIANT
Listed by
Underwriters
Laboratories
Specification Revised 1/19
Page 2
JP3530DJ/TJ
®
GE
FEATURES AND BENEFITS
Four radiant cooking elements – Cook foods quickly and evenly
on this sleek, glass surface
6"/9" Power Boil element – Use different pan sizes on this single,
3,100-watt flexible element that produces rapid powerful heat
8" Power Boil element – Get rapid heat from this powerful
2,500-watt element
Keep Warm setting – Keep food warm with GE Appliances’ lowest
heat setting or boil water in minutes with this fully functional
6" element
Melt setting – Gently melt delicate foods without burning
or scorching
Control lock capability – Protects against unintended activation
Hot surface indicator lights – Know when elements are too hot
to touch with a quick glance
Cooktop “On” indicator light – A light lets you know when an
element is active
30" Built-In Knob-Control Electric Cooktop
Model JP3530TJWW – True white
Model JP3530DJBB – Black on black
GUARANTEED FIT
Replacing a similar cooktop from GE Appliances or another brand?
GE cooktops are guaranteed for an exact fit or GE Appliances will
pay up to $100 toward modifications
Visit geappliances.com for more info
Specification Revised 1/19
