GE JP328WK, JP328BK Specification

JP328WK/BK

Electrical junction box
below countertop

at front

ADA

COMPLIANT

GE 30" Built-In Electric Cooktop

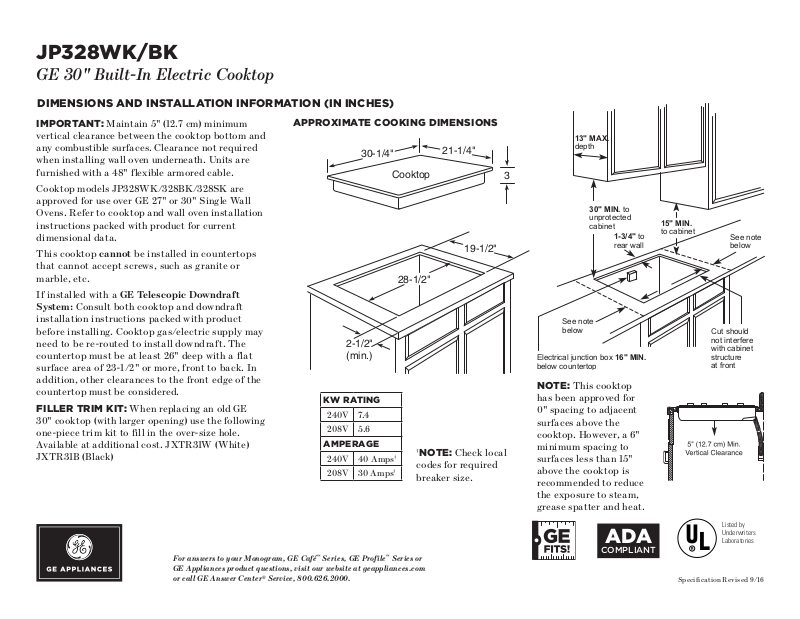

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

IMPORTANT: Maintain 5" (12.7 cm) minimum
vertical clearance between the cooktop bottom and
any combustible surfaces. Clearance not required
when installing wall oven underneath. Units are
furnished with a 48" flexible armored cable.

Cooktop models JP328WK/328BK/328SK are
approved for use over GE 27" or 30" Single Wall
Ovens. Refer to cooktop and wall oven installation
instructions packed with product for current
dimensional data.

This cooktop cannot be installed in countertops
that cannot accept screws, such as granite or
marble, etc.

If installed with a GE Telescopic Downdraft
System: Consult both cooktop and downdraft
installation instructions packed with product
before installing. Cooktop gas/electric supply may
need to be re-routed to install downdraft. The
countertop must be at least 26" deep with a flat
surface area of 23-1/2" or more, front to back. In
addition, other clearances to the front edge of the
countertop must be considered.

FILLER TRIM KIT: When replacing an old GE
30" cooktop (with larger opening) use the following
one-piece trim kit to fill in the over-size hole.
Available at additional cost. JXTR31W (White)
JXTR31B (Black)

APPROXIMATE COOKING DIMENSIONS

30-1/4"

21-1/4"

Cooktop

19-1/2"

28-1/2"

2-1/2"
(min.)

KW R ATI N G

240V 7.4

208V 5.6

AMPERAGE

240V 40 Amps

208V 30 Amps

†

NOTE: Check local

†

codes for required

†

breaker size.

13" MAX.

depth

3

30" MIN. to
unprotected
cabinet

1-3/4" to
rear wall

See note
below

16" MIN.

15" MIN.
to cabinet

See note
below

Cut should
not interfere
with cabinet
structure

NOTE: This cooktop
has been approved for
0" spacing to adjacent
surfaces above the
cooktop. However, a 6"
minimum spacing to
surfaces less than 15"
above the cooktop is
recommended to reduce
the exposure to steam,
grease spatter and heat.

Listed by
Underwriters
Laboratories

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.

Speci fication Revised 9/16

JP328WK/BK

GE 30" Built-In Electric Cooktop

FEATURES AND BENEFITS

Coil heating elements - Provides consistent and even heat on the cooktop
with a plug-in element that is removable for easy cleaning

Lift-up cooktop with support rod - Makes spills and messes under the
cooktop easily accessible and within your reach

Upfront controls - Controls are placed within easy reach at the front
center of the cooktop

Heating element “On” light - Illuminates when the cooking surface
is activated

Model JP328WKWW - White on white

Model JP328BKBB - Black on black

GUARANTEED FIT
Replacing a similar cooktop from GE or another brand? GE cooktops
are guaranteed for an exact fit to make replacement easy
