GE JP326WV Specification

GE Appliances

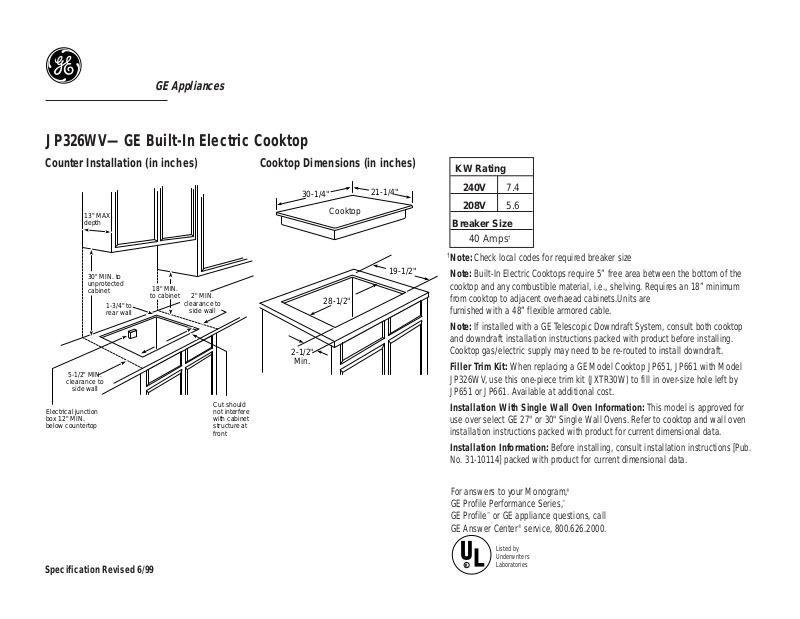

JP326WV—GE Built-In Electric Cooktop

Specification Revised 6/99

Counter Installation (in inches) Cooktop Dimensions (in inches)

Electrical junction
box 12" MIN.
below countertop

30" MIN. to
unprotected
cabinet

Cut should
not interfere
with cabinet
structure at
front

5-1/2" MIN.

clearance to

side wall

2" MIN.

clearance to

side wall

18" MIN.

to cabinet

1-3/4" to
rear wall

13" MAX.
depth

Note: Built-In Electric Cooktops require 5” free area between the bottom of the
cooktop and any combustible material, i.e., shelving. Requires an 18” minimum
from cooktop to adjacent overhaead cabinets.Units are
furnished with a 48” flexible armored cable.

Note: If installed with a GE Telescopic Downdraft System, consult both cooktop
and downdraft installation instructions packed with product before installing.
Cooktop gas/electric supply may need to be re-routed to install downdraft.

Filler Trim Kit: When replacing a GE Model Cooktop JP651, JP661 with Model
JP326WV, use this one-piece trim kit (JXTR30W) to fill in over-size hole left by
JP651 or JP661. Available at additional cost.

Installation With Single Wall Oven Information: This model is approved for
use over select GE 27" or 30" Single Wall Ovens. Refer to cooktop and wall oven
installation instructions packed with product for current dimensional data.

Installation Information: Before installing, consult installation instructions [Pub.
No. 31-10114] packed with product for current dimensional data.

Cooktop

2-1/2"

Min.

28-1/2"

19-1/2"

30-1/4"

21-1/4"

R

Listed by
Underwriters
Laboratories

For answers to your Monogram,

®

GE Profile Performance Series,

™

GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.

KW Rating

240V 7.4
208V 5.6

Breaker Size

40 Amps

†

†

Note: Check local codes for required breaker size

GE Appliances

JP326WV—GE Built-In Electric Cooktop

RIGHT

OFF

LEFT

OFFOFF

LEFT

OFF

RIGHTRIGHT

OFF

Features and Benefits

•White on white Model

• 30" Porcelain-Enameled Lift-Up Cooktop

• Two 8" and Two 6" Plug-In Calrod

®

Heating Elements

• Glass Control Panel

• Infinite Heat Rotary Controls

• Removable One-Piece Chrome Drip Bowls

• Heating Element “On” Indicator Light

• Also Available InAlmond on almond as Model JP326AV, Black on black as
Model JP326BV and Brushed-Chrome as Model JP326BC

Specification Revised 6/99
