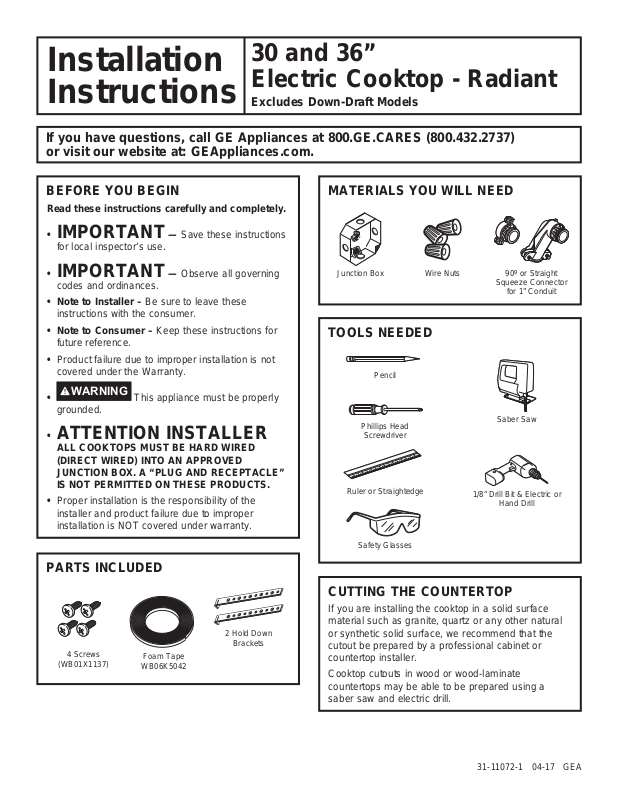

GE JP3036DL1BB, JP3036DL2BB, JP3036SL1SS, JP3036SL2SS, JP3036TL1WW Installation Guide

...

Installation

30 and 36” Electric Cooktop - Radiant

Instructions

If you have questions, call GE Appliances at 800.GE.CARES (800.432.2737) or visit our website at: GEAppliances.com.

Excludes Down-Draft Models

BEFORE YOU BEGIN

Read these instructions carefully and completely.

• IMPORTANT — Save these instructions

for local inspector’s use.

• IMPORTANT — Observe all governing

codes and ordinances.

• Note to Installer – Be sure to leave these instructions with the consumer.

• Note to Consumer – Keep these instructions for future reference.

• Product failure due to improper installation is not covered under the Warranty.

WARNING

•

grounded.

• ATTENTION INSTALLER

ALL COOKTOPS MUST BE HARD WIRED

(DIRECT WIRED) INTO AN APPROVED JUNCTION BOX. A “PLUG AND RECEPTACLE” IS NOT PERMITTED ON THESE PRODUCTS.

• Proper installation is the responsibility of the

installer and product failure due to improper installation is NOT covered under warranty.

This appliance must be properly

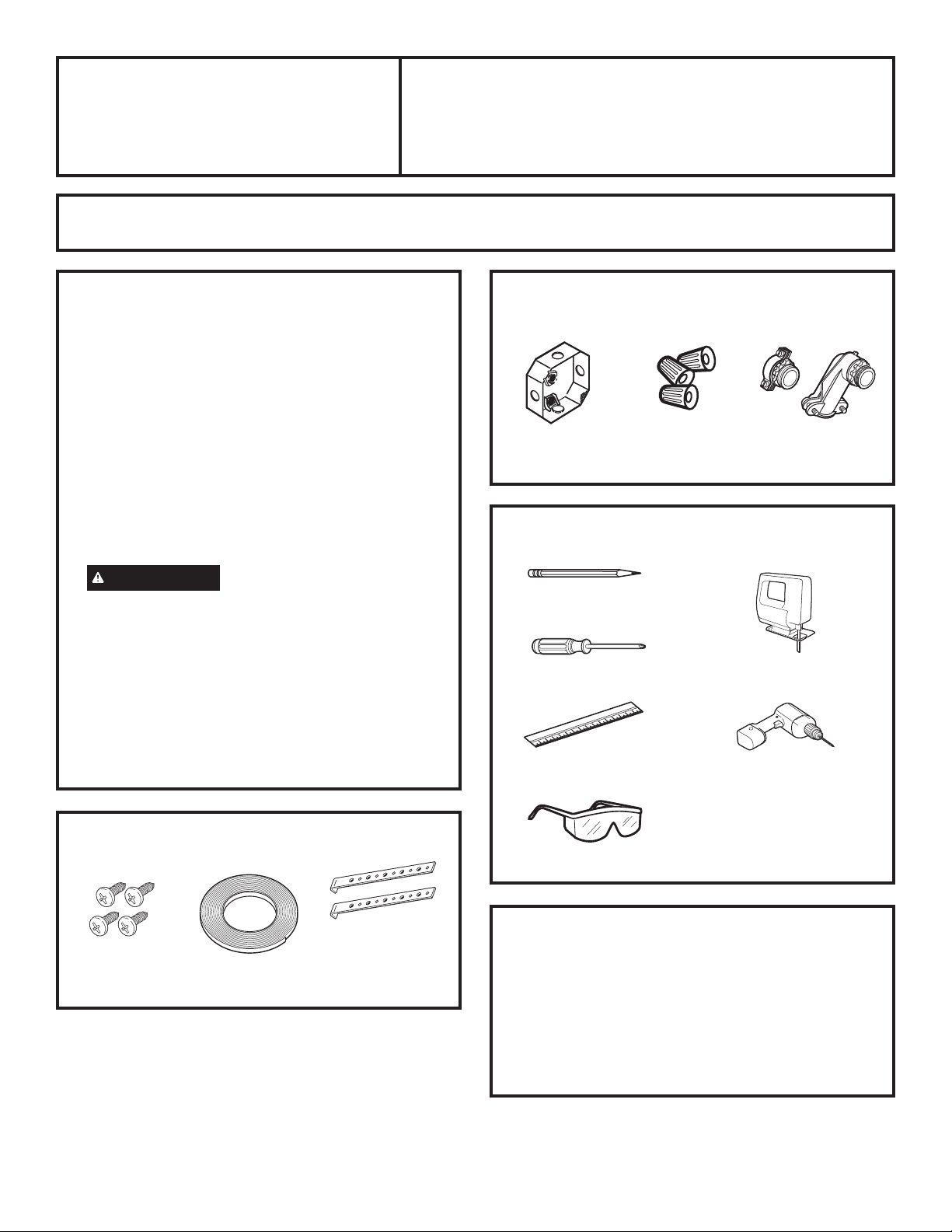

MATERIALS YOU WILL NEED

Wire NutsJunction Box

90º or Straight

Squeeze Connector

TOOLS NEEDED

Pencil

Phillips Head

Screwdriver

Ruler or Straightedge

Saber Saw

1/8” Drill Bit & Electric or

Hand Drill

for 1” Conduit

PARTS INCLUDED

4 Screws

(WB01X1137)

Foam Tape

WB06K5042

2 Hold Down

Brackets

Safety Glasses

CUTTING THE COUNTERTOP

If you are installing the cooktop in a solid surface material such as granite, quartz or any other natural or synthetic solid surface, we recommend that the cutout be prepared by a professional cabinet or countertop installer.

Cooktop cutouts in wood or wood-laminate countertops may be able to be prepared using a saber saw and electric drill.

31-11072-1 04-17 GEA

Installation Instructions

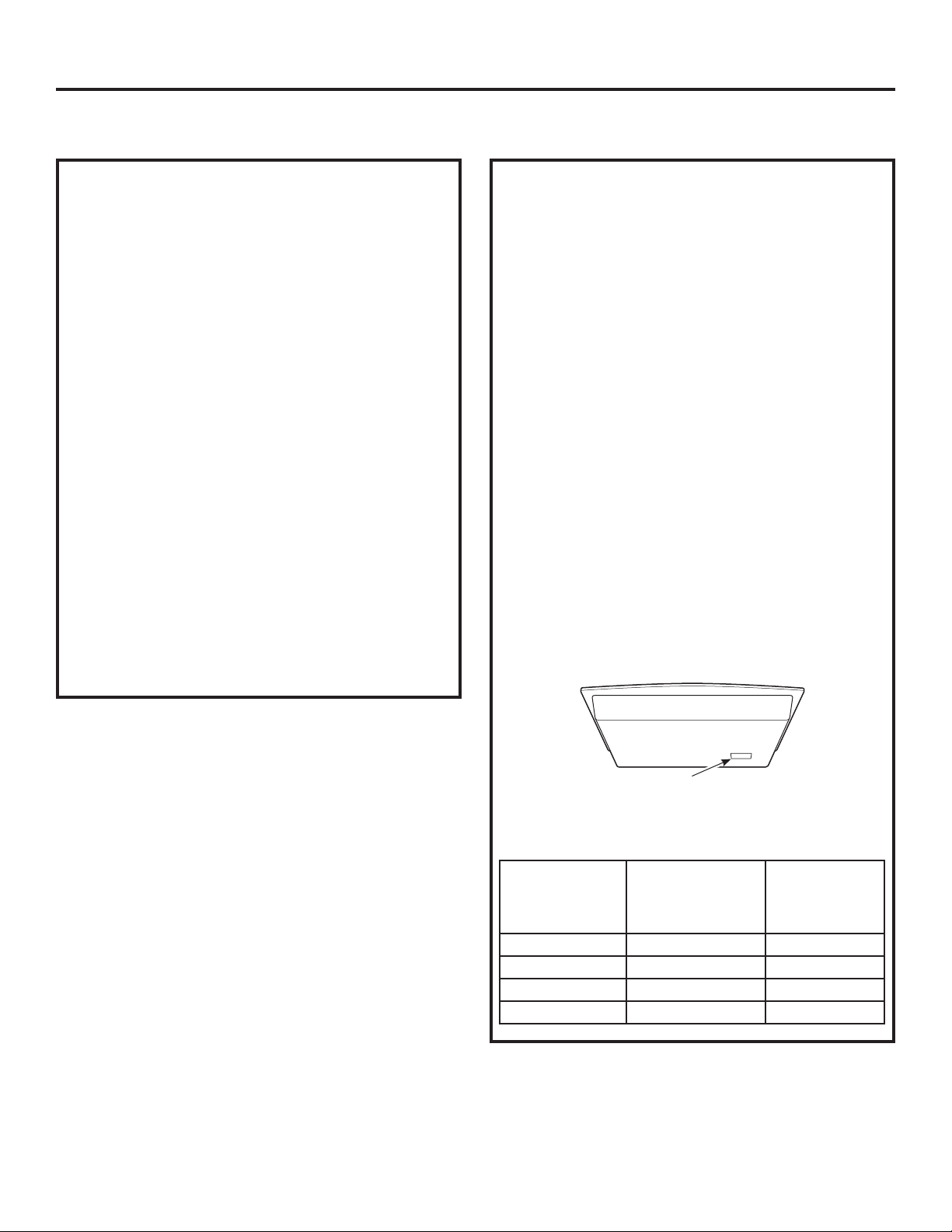

IMPORTANT SAFETY INSTRUCTIONS

FOR YOUR SAFETY

• For Personal Safety, remove house fuse or open

circuit breaker before beginning installation. Failure to do so could result in serious injury or death.

• Be sure your cooktop is installed properly by a qualified installer or service technician.

• To eliminate the risk of burns or fire due to reaching over heated surface elements, cabinet storage located above the surface units should be avoided. If cabinet storage space is to be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of 5" beyond the bottom of the cabinets. Cabinet installation above the cooktop may be no deeper than 13".

• Make sure the cabinets and wall coverings around the cooktop can withstand the temperatures (up to 200°F) generated by the cooktop.

• The cooktop should be easy to reach and lighted with natural light during the day.

• Always disconnect the electrical service to the cooktop before repairing or servicing the cooktop. This can be done by disconnecting the fuse or circuit breaker. Failure to do this could result in a dangerous or fatal shock. Know where your main disconnect switch is located. If you do not know, have your electrician show you.

ELECTRICAL REQUIREMENTS

This appliance must be supplied with the proper voltage and frequency, and connected to an individual, properly grounded branch circuit, protected by a circuit breaker or a time delay fuse as noted on name plate and the chart below.

We recommend you have the electrical wiring and hookup of your cooktop connected by a qualified electrician. After installation, have the electrician show you where your main cooktop disconnect is located.

Wiring must conform to National Electrical Code. You can get a copy of the National Electrical Code, ANSI/ NFPA No. 70-Latest Edition, by writing to:

National Fire Protection Association

Batterymarch Park

Quincy, MA 02269

The cooktop conduit wiring is approved for copper wire connection only, and if you have aluminum house wiring, you must use special UL approved connectors for joining copper to aluminum.

You must use a two-wire, three conductor 208/240 VAC, 60 Hertz electrical system. A white (neutral) wire is not needed for this unit. The cooktop must be installed in a circuit that does not exceed 125 VAC nominal to ground.

Refer to the name plate on your cooktop for the KW rating for your cooktop.

Name plate location

Use the chart below to determine the minimum recommended dedicated circuit protection:

Recommended

KW Rating 240v KW Rating 208V

.: .: 20 Amp

4.9 KW - 7.2 KW 4.2 KW - 6.2 KW 30 Amp

7.3 KW - 9.6 KW 6.3 KW - 8.3 KW 40 Amp

9.7 KW - 12.0 KW 8.4 KW - 10.4 KW 50 Amp

Circuit Size (Dedicated)

2 31-11072-1

Installation Instructions

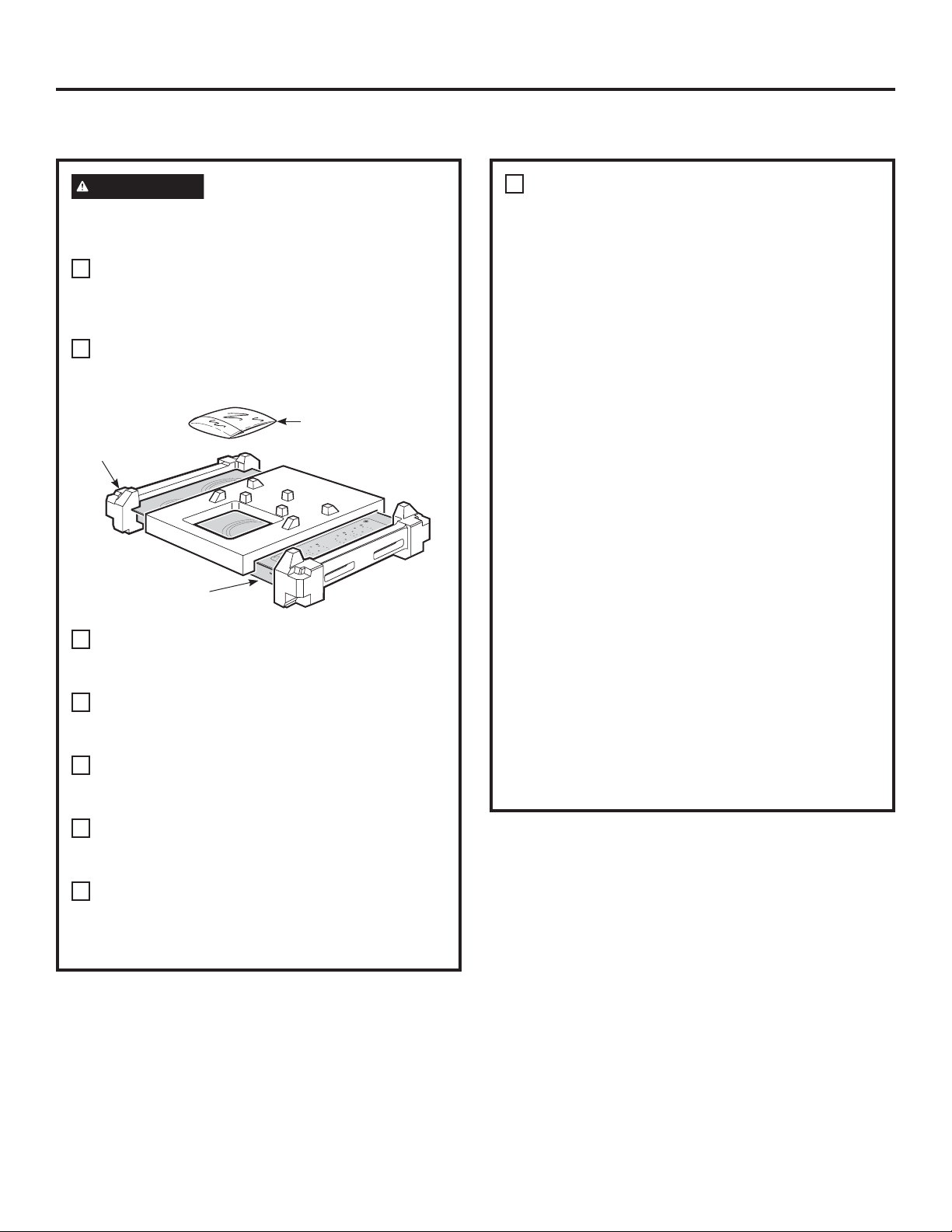

PRE-INSTALLATION CHECKLIST

WARNING

The electrical power to the cooktop supply line must be shut off while connections are being made. Failure to do so could result in serious injury or death.

When preparing cooktop opening, make sure

the inside of the cabinet and the cooktop do not interfere with each other. (See section on preparing the opening.)

Remove packaging materials and literature

package from the cooktop before beginning installation.

Literature Package

Foam Packaging

H OT

Cooktop

Be sure to place all literature, Owner’s Manual,

(Located under unit)

Installations, etc. in a safe place for future reference.

Make sure you have all the tools and materials

you need before starting the installation of the cooktop.

Your home must provide the adequate electrical

service needed to safely and properly use your cooktop. (Refer to section on electrical requirements.)

When installing your cooktop in your home, make

sure all local codes and ordinances are followed exactly as stated.

Make sure the wall coverings, countertop and

cabinets around the cooktop can withstand heat (up to 200°F) generated by the cooktop.

Installing cooktop in combination

with other products.

Over one or two wall ovens:

• Only certain models may be installed over wall

Over a Microwave:

• See microwave installation instructions for how

In combination with telescopic downdraft vent:

• See telescopic downdraft vent instructions for

• The countertop must have a deep flat surface

Over a warming drawer:

• See warming drawer instructions for how to

Both products must be installed according to their specific product installation instructions. Consideration must be given the separate electrical requirements and locations:

ovens. The wall oven and cooktop will both have a label stating which models are approved in combination.

to install a microwave under a cooktop. For vertical dimension of cooktop, see Approximate Cooktop Dimensions section.

how to install a vent behind a cooktop.

to accommodate the combined installation of the cooktop and vent.

install a warming drawer under a cooktop. For vertical dimension of cooktop, see Approximate Cooktop Dimensions section.

31-11072-1 3

Installation Instructions

PREPARING THE OPENING

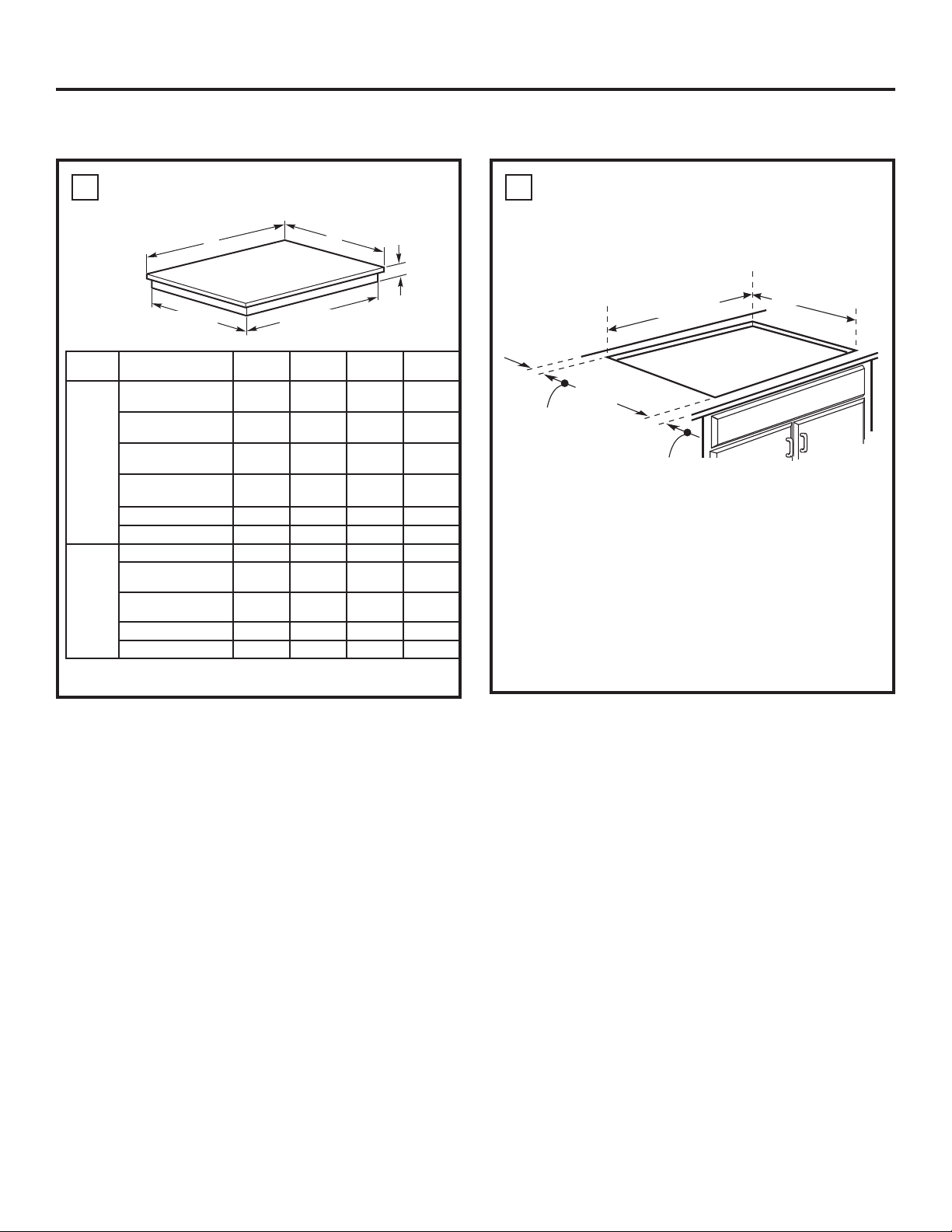

APPROXIMATE COOKTOP

DIMENSIONS

Cooktop

30” models: 19 1/4” 36” models: 18 7/8”

Size Models X Y Z Front Z Rear*

30” JP3030D, T

JP3530D, T JP3030SJSS,

JP3530SJSS CP9530D, JP5030D,

PP7030D, PP7030E JP5030S, PP7030S,

PP9030S PP9030D 29 3/4” 20 7/8” 3 3/4” 5 13/16”

ZEU30RS 29 7/8” 21 7/16” 3 9/16” 5 9/16”

36” CP9536S 36” 20 3/8” 3 9/16” 5 9/16”

JP3036D, S, T JP3536D, S, T

JP5036D, S PP7036D, S

PP9036D, S 36” 20 3/8” 3 9/16” 5 9/16” ZEU36RSJSS 36 1/8” 20 7/8” 3 9/16” 5 9/16”

* Depth at rear of cooktop at conduit location.

29 3/4” 20 7/8” 3 1/4 ” 4”

29 7/8” 21” 3 1/4” 4”

29 3/4” 20 7/8” 3 9/16” 5 9/16”

29 7/8” 21” 3 9/16” 5 9/16”

36 1/8” 20 7/16” 3 9/16” 4 1/16”

36 1/8” 20 7/16” 3 9/16” 5 9/16”

30” models: 28 1/16”

36” models: 33 3/4”

CUTOUT DIMENSIONS

OF THE COUNTERTOP

To ensure accuracy, it may be best to create a template when cutting the opening in the counter.

19 5/8 - 19 3/4” (30”)

28 1/2 - 28 5/8” (30”)

33 7/8 - 34” (36”)

length of cut

1-3/4” MIN. Between rear edge of cutout and the wall behind the cooktop.

2-1/2” MIN. From front edge of cutout and front edge of countertop.

JXTR32 CUTOUT FILLER TRIM KIT (for use with 30” models):

A filler trim kit is available for use if your countertop cutout is larger than the dimensions shown, up to 29-13/16” x 20-7/16”. Order JXTR32B (black) or JXTR32W (white) to reduce the cutout opening for installation of this cooktop. This kit may be ordered from your dealer or directly from GE Appliances at www.geappliances.com.

19 1/8 - 19 1/4” (36”)

width of cut

4 31-11072-1

Installation Instructions

PREPARING THE OPENING (Cont)

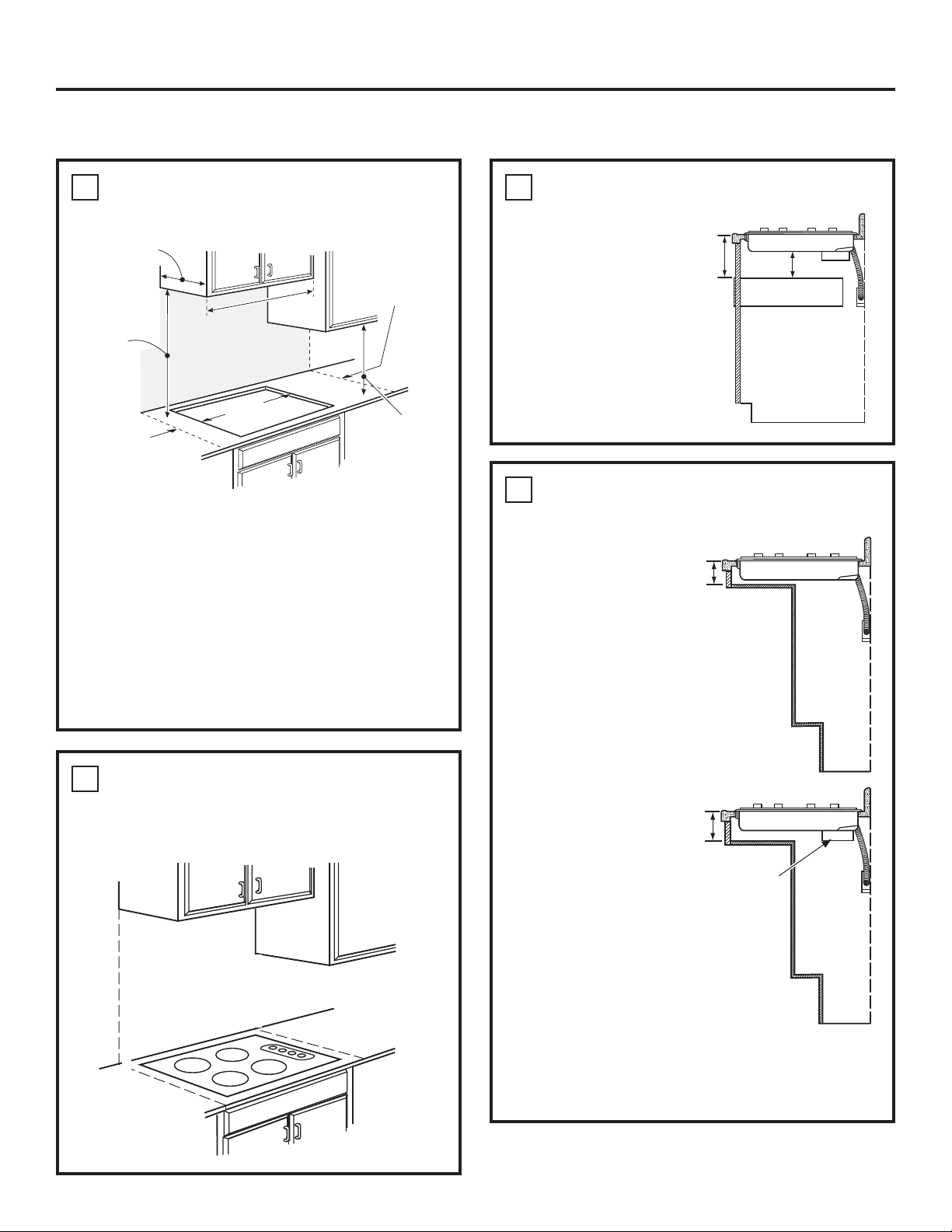

MINIMUM CLEARANCES TO

ADJACENT WALLS & CABINETS

13” max. Depth of unprotected overhead cabinets

30” min. Clearance from countertop to unprotected overhead surface

2” min. Clearance from cutout to nearest vertical wall or cabinet on left side of the unit below the 15” MIN. clearance height.

30” min. for 30” cooktop

36” min. for 36” cooktop

1 1/2” min. (30”) and

2” min. (36”) Clearance

from cutout to nearest

vertical wall or cabinet

on right side of the unit

below the 15” MIN.

clearance height.

15” min. Clearance

from countertop

to underside of

nearest cabinets

on both sides of

cooktop, including

any light rails.

VERTICAL CLEARANCE

Allow 5” minimum vertical clearance from the cooktop bottom (or 8-1/4” minimum depth from the countertop) to any combustible surfaces, such as a cabinet drawer.

For Americans with Disabilities Act (ADA)

Forward Approach Installation Only:

8-1/4"

DRAWER

If a 30” clearance between the cooktop and overhead combustible materials or metal cabinet cannot be maintained, then a minimum clearance of 24” is required and the underside of the cabinets above the cooktop must be protected with not less than 1/4” insulating millboard covered with sheet metal not less than 30 gage (0.0125”) thick. A ventilation hood may be installed above the cooktop. See the ventilation hood installation instructions for the appropriate dimensions and clearances.

Make sure the wall coverings, countertop and

cabinets around the cooktop can withstand heat (up to 200°F) generated by cooktop.

Wall covering, cabinets and countertop must withstand heat up to 200°F.

For models with no drop box, allow 5” minimum depth between the countertop and an enclosure. (JP3030, JP3530, JP3036, and JP3536)

For electronic touch and backlit knob models, allow 6-1/2” minimum depth between the countertop and an enclosure. (All other models)

6 1/2"

Drop box

NOTE: The enclosure must be made of wood material. Also, an access panel is required for the junction box, hold-down brackets, and service.

31-11072-1 5
