GE JP3030SJ Specification
JP3030SJ

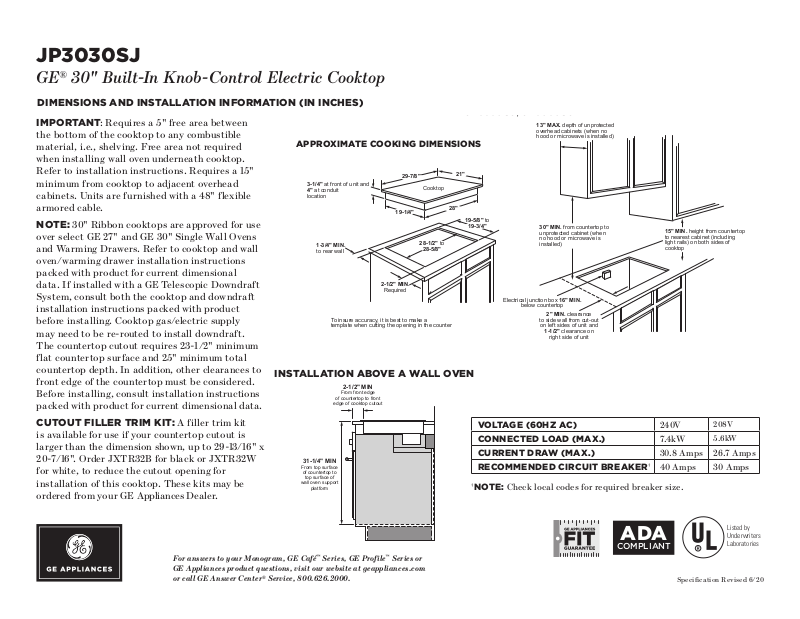

JP3530SJ, JP3030SJ
INSTALLATION ABOVE A WALL OVEN
®
GE
30" Built-In Knob-Control Electric Cooktop
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
IMPORTANT: Requires a 5" free area between
the bottom of the cooktop to any combustible
material, i.e., shelving. Free area not required
when installing wall oven underneath cooktop.
Refer to installation instructions. Requires a 15"
minimum from cooktop to adjacent overhead
cabinets. Units are furnished with a 48" flexible
armored cable.
NOTE: 30" Ribbon cooktops are approved for use
over select GE 27" and GE 30" Single Wall Ovens
and Warming Drawers. Refer to cooktop and wall
oven/warming drawer installation instructions
packed with product for current dimensional
data. If installed with a GE Telescopic Downdraft
System, consult both the cooktop and downdraft
installation instructions packed with product
before installing. Cooktop gas/electric supply
may need to be re-routed to install downdraft.
The countertop cutout requires 23-1/2" minimum
flat countertop surface and 25" minimum total
countertop depth. In addition, other clearances to
front edge of the countertop must be considered.
Before installing, consult installation instructions
packed with product for current dimensional data.
CUTOUT FILLER TRIM KIT: A filler trim kit
is available for use if your countertop cutout is
larger than the dimension shown, up to 29-13/16" x
20-7/16". Order JXTR32B for black or JXTR32W
for white, to reduce the cutout opening for
installation of this cooktop. These kits may be
ordered from your GE Appliances Dealer.
APPROXIMATE COOKING DIMENSIONS
3-1/4" at front of unit and
4" at conduit
location
19-1/4"
1-3/4" MIN.
to rear wall
2-1/2" MIN.
Required
To insure accuracy, it is best to make a
template when cutting the opening in the counter
29-7/8"
Cooktop
28-1/2" to
28-5/8"
21"
28"
19-5/8" to
INSTALLATION ABOVE A WALL OVEN
2-1/2" MIN
From front edge
of countertop to front
edge of cooktop cutout
31-1/4" MIN
From top surface
of countertop to
top surface of
wall oven support
platform
13" MAX. depth of unprotected
overhead cabinets (when no
hood or microwave is installed)
19-3/4"
Electrical junction box 16" MIN.
VOLTAGE (60HZ AC) 240V
CONNECTED LOAD (MAX.) 7.4kW
30" MIN. from countertop to
unprotected cabinet (when
no hood or microwave is
installed)
below countertop
2" MIN. clearance
to side wall from cut-out
on left sides of unit and
1-1/2" clearance on
right side of unit
15" MIN. height from countertop
to nearest cabinet (including
light rails) on both sides of
cooktop
208V
5.6kW
CURRENT DRAW (MAX.) 30.8 Amps 26.7 A mps
RECOMMENDED CIRCUIT BREAKER†40 Amps 30 Amps
†
NOTE: Check local codes for required breaker size.
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
ADA
COMPLIANT
Listed by
Underwriters
Laboratories
Specification Revised 6/20
JP3030SJ
®
GE
FEATURES AND BENEFITS
Four radiant cooking elements
Power Boil elements
Keep warm setting
Melt setting
Hot surface indicator lights
Cooktop "on" indicator light
Fit Guarantee
Model JP3030SJSS – Stainless steel
30" Built-In Knob-Control Electric Cooktop
GUARANTEED FIT
Replacing a similar cooktop from GE Appliances or another brand?
GE cooktops are guaranteed for an exact fit or GE Appliances will
pay up to $100 toward modifications
Visit geappliances.com for more info
Specification Revised 6/20
